◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#1307) — 24 parça

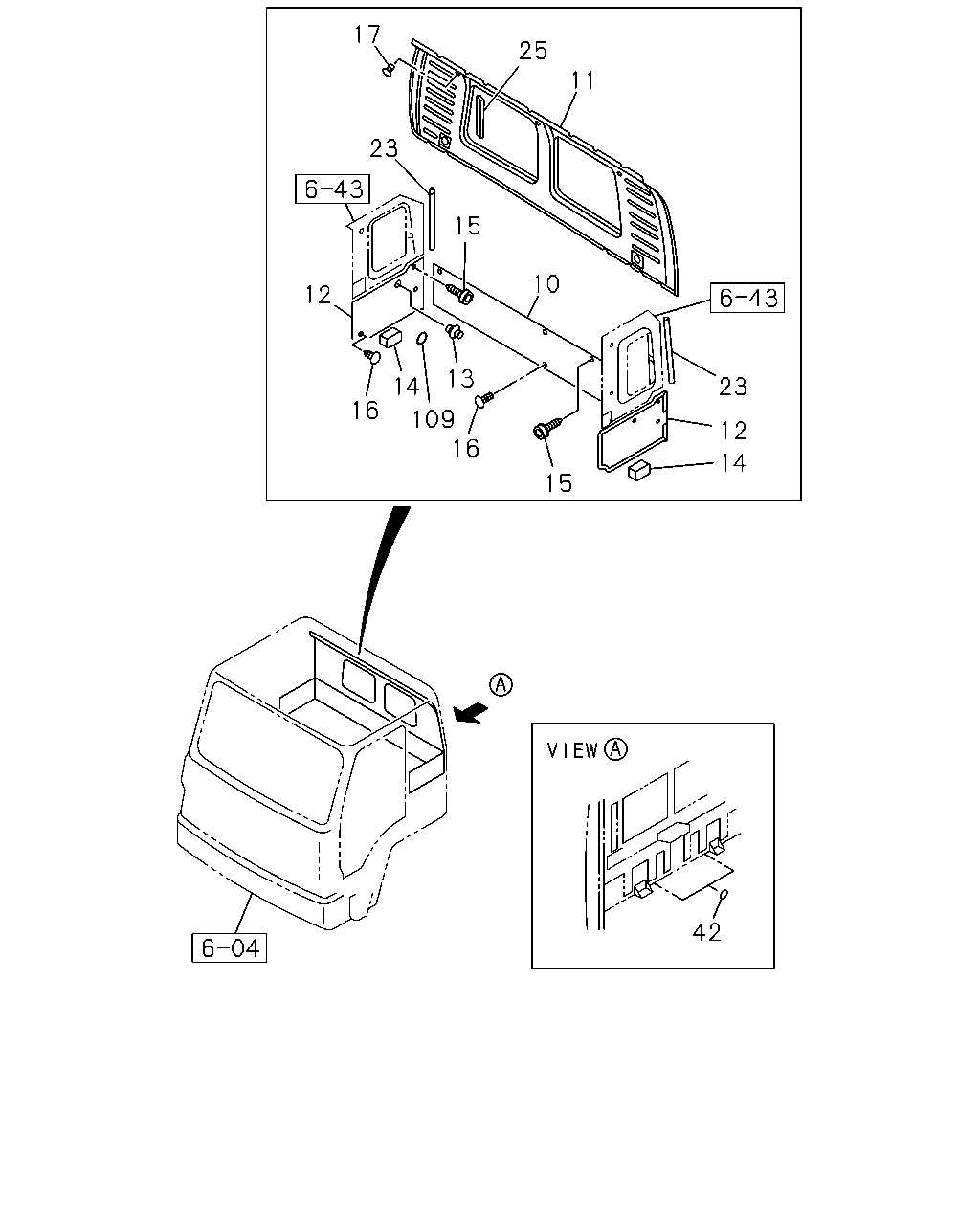

çizim 95891
17 25 11 23 15 10 12 13 14 23 16 109 16 12 14 15 42
BalonParca AdiParca NoAdetTipApplied Date A B
10 TRIM; BED ROOM CENTER
SAUDI ARABIA EQUIPMENT(WH1) 		1-73348-398-0 01 1 9202-9312 ● ●
10 TRIM; BED ROOM CENTER 1-73348-398-0 01 1 9401- ● ●
10 TRIM; BED ROOM CENTER
EXC. SAUDI ARABIA EQUIPMENT(WH1) DARK GRAY 		1-73348-358-2 01 1 9202-9312 ● ●
11 TRIM; ROOM,BACK INNER
DELUXE CAB(W14) GRAY 		1-73348-339-1 01 1 9202- ● ●
12 PAD; TRIM,BED ROOM SIDE
SAUDI ARABIA EQUIPMENT(WH1) 		1-73348-400-1 01 1 9202- ● ●
12 PAD; TRIM,BED ROOM SIDE
SAUDI ARABIA EQUIPMENT(WH1) 		1-73348-399-1 01 1 9202- ● ●
12 PAD; TRIM,BED ROOM SIDE
EXC. SAUDI ARABIA EQUIPMENT(WH1) DARK GRAY 		1-73348-293-3 01 1 9202- ● ●
12 PAD; TRIM,BED ROOM SIDE
EXC. SAUDI ARABIA EQUIPMENT(WH1) DARK GRAY 		1-73348-292-3 01 1 9202- ● ●
13 CLIP; BED ROOM TRIM 1-09987-119-1 02 1 9202- ● ●
14 INSULATOR; FLOOR SIDE REAR 1-73377-160-0 02 1 9202- ● ●
15 HOOK; BED ROOM TRIM
M4X14 HOOK MALE 		1-09981-370-0 11 1 9202- ● ●
16 CLIP; TRIM,BED ROOM
D6X23 BLACK 		1-09987-114-0 05 1 9202- ● ●
17 CLIP; ANCHOR,TRIM BACK INNER
DELUXE CAB(W14) 		1-09987-203-0 03 1 9202- ● ●
23 FINISHER; BACK INNER PANEL
BODY COLOR MARINE BLUE(890) EXC. DELUXE CAB(W14) BLUE 		1-73337-284-0 02 1 9407- ● ●
23 FINISHER; BACK INNER PANEL
DELUXE CAB(W14) GRAY 		1-73338-319-1 02 1 9202- ● ●
23 FINISHER; BACK INNER PANEL
EXC. DELUXE CAB(W14) WHITE 		1-73337-264-0 02 1 9202-9406 ● ●
23 FINISHER; BACK INNER PANEL
BODY COLOR SUNRISE RED(816),BODY COLOR CALM WHITE(820),BODY COLOR SAHARA BEIGE(829),BODY COLOR GLACIAL WHITE(844),BODY COLOR DARK GREEN(903),BODY COLOR GOLDEN YELLOW(904),BODY COLOR SMOKE YELLOW(905), BODY COLOR OMAHA ORANGE(906),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR WHEATLAND YELLOW(910),BO DY COLOR LIME GREEN(911),BODY COLOR NEPAL ORANGE(912),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY YELLOW(916),BODY COLOR CATERPILLAR YELLOW(917),BODY COLOR PURUTAMINA BLUE(918),BODY COLOR PRIMER PAINT(927),BODY COLOR BCL YELLOW(930),BODY COLOR HIGHWAY ORANGE(944) EXC. DELUXE CAB(W14) WHITE 		1-73337-264-0 02 1 9407- ●
23 FINISHER; BACK INNER PANEL
BODY COLOR SUNRISE RED(816),BODY COLOR CALM WHITE(820),BODY COLOR SAHARA BEIGE(829),BODY COLOR GLACIAL WHITE(844),BODY COLOR DARK GREEN(903),BODY COLOR GOLDEN YELLOW(904),BODY COLOR SMOKE YELLOW(905), BODY COLOR OMAHA ORANGE(906),BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR WHEATLAND YELLOW(910),BO DY COLOR LIME GREEN(911),BODY COLOR NEPAL ORANGE(912),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY YELLOW(916),BODY COLOR CATERPILLAR YELLOW(917),BODY COLOR PURUTAMINA BLUE(918),BODY COLOR PRIMER PAINT(927),BODY COLOR BCL YELLOW(930),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR POLAR WHITE(982) EXC. DELUXE CAB(W14) WHITE 		1-73337-264-0 02 1 9407- ●
25 SPACER; ROOM TRIM
DELUXE CAB(W14) L=400 		1-73348-364-0 02 1 9202- ● ●
25 SPACER; ROOM TRIM
DELUXE CAB(W14) L=450 		1-73348-386-0 02 1 9202- ● ●
42 SEAL; BACK OUTER PANEL
OD=36 WHITE 		1-76778-007-0 02 1 9202- ● ●
109 SEAL; HOLE
EXC. DELUXE CAB(W14) BLUE 		1-76777-075-0 03 1 9202- ● ●
109 SEAL; HOLE
EXC. DELUXE CAB(W14) WHITE 		1-76777-076-0 03 1 9202- ● ●
109 SEAL; HOLE
EXC. DELUXE CAB(W14) OD=20 T=0.4 BLACK 		1-76798-020-0 03 1 9202- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
