Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-20 - MANUAL TRANSMISSION ASM AND CASE
▶

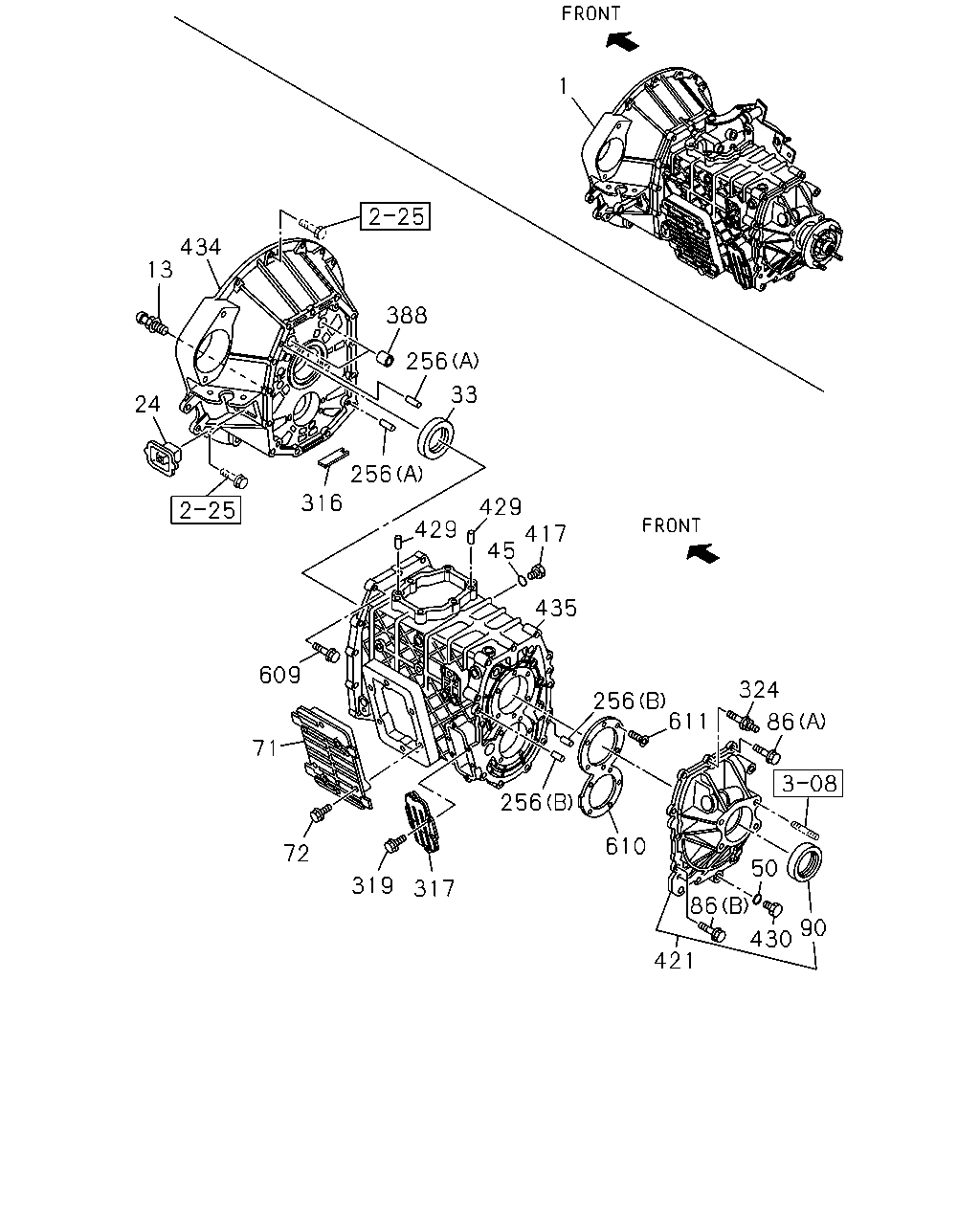

2-20 — MANUAL TRANSMISSION ASM AND CASE
(#130689) — 27 parça
417
429
429
609
71
72
319
317
256
610
611
256
324
86
45
435
33
256
316
13
434
388
24
421
90
430
86
50
256
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.003 TRANSMISSION ASM; MANUAL
8-98187-418-0
01
1
1308-
13
04.302 SUPPORT; SHIFT FORK
8-97255-384-1
01
1
1308-
24
00.797 COVER; CHECK HOLE,DUST
8-97255-201-0
01
1
1308-
33
04.318 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
8-97253-550-0
01
1
1308-
45
04.105 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
1308-
50
04.105 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
1308-
71
04.439 COVER; SIDE,TRANS CASE
8-97252-625-0
01
1
1308-
72
04.439 BOLT; SIDE COVER
00.206 M10X20 FLANGE
8-98014-142-0
06
1
1308-
86
04.317 BOLT; RR COVER
09.171 (A) M10X40 FLANGE
0-28151-040-0
10
1
1308-
86
04.317 BOLT; RR COVER
04.510 (B) M10X40 FLANGE
8-97365-377-0
02
1
1308-
90
04.318 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-97253-552-1
01
1
1308-
256
04.317 PIN; KNOCK
04.510 (A) OD=10 L=20
8-97135-423-0
02
1
1308-
256
04.317 PIN; KNOCK
00.862 (B) ID=6 L=12
9-08160-612-0
02
1
1308-
316
04.105 MAGNET; TRANS CASE
8-94249-524-2
01
1
1308-
317
04.109 COVER; CASE
8-97252-626-0
01
1
1308-
319
04.109 BOLT; COVER
04.338 M8X20 FLANGE EGY
0-28050-820-0
06
1
1308-
324
04.319 STUD; RR COVER
04.510 M10X15,M10X40 L=65
8-97365-379-0
01
1
1308-
388
00.683 BUSHING; CLU HSG
8-97241-326-2
02
1
1308-
417
04.105 PLUG; OIL FILLER,TRANS
8-97365-373-0
01
1
1308-
421
04.317 COVER; RR,TRANS
8-98020-029-0
01
1
1308-
429
04.105 PIN; STRAIGHT
04.510 OD=10 L=20
8-97135-423-0
02
1
1308-
430
04.105 PLUG; OIL DRAIN
8-97365-374-0
01
1
1308-
434
00.683 HOUSING; CLU
8-97237-099-5
01
1
1308-
435
04.103 CASE; TRANS
8-97379-375-0
01
1
1308-
609
04.104 BOLT; HSG TO CASE
09.171 M10X40 FLANGE
0-28151-040-0
13
1
1308-
610
04.412 RETAINER; BRG
8-97241-315-1
01
1
1308-
611
04.104 SCREW
M10X27 TORQUES
8-97365-354-0
11
1
1308-
