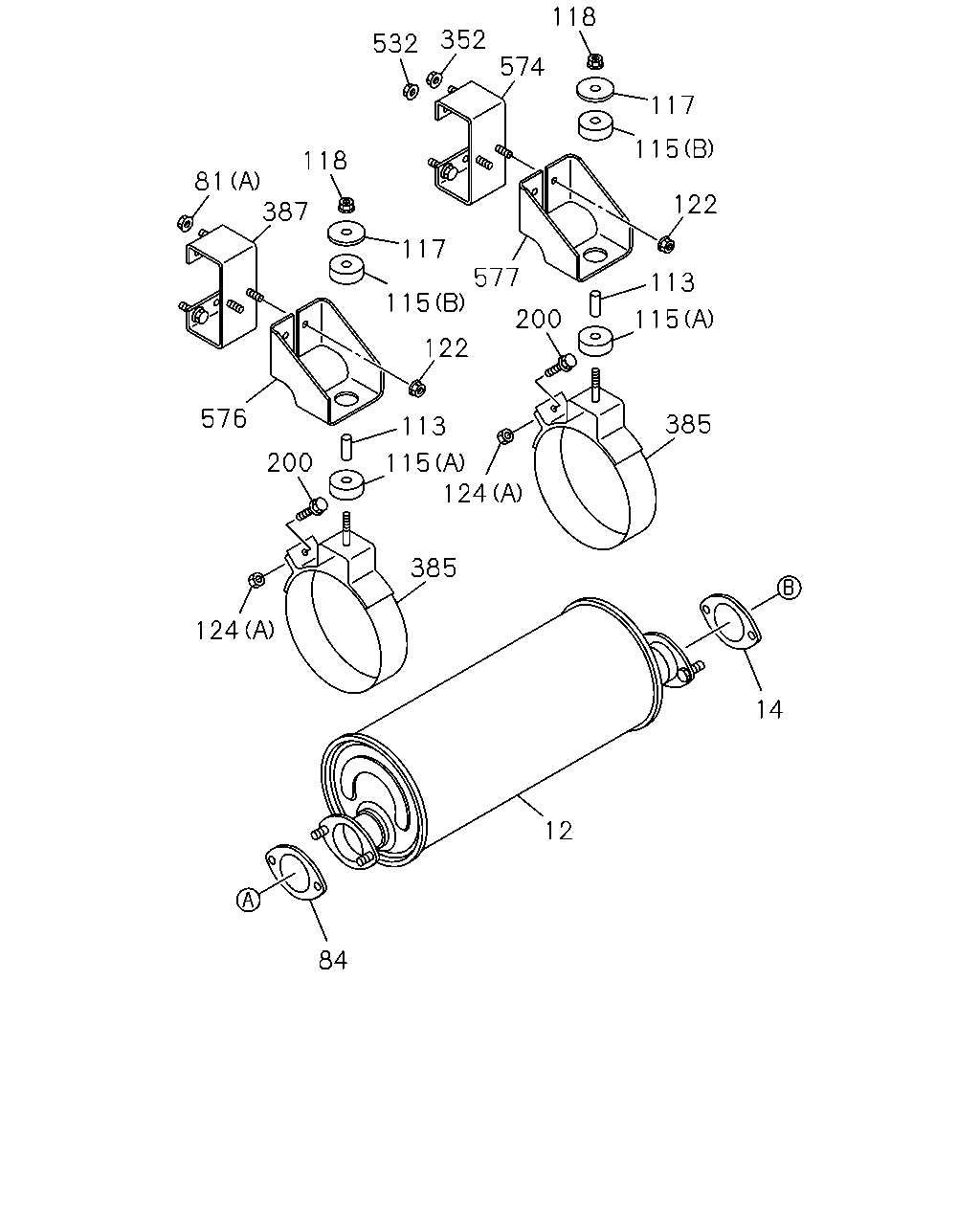

1-50 — EXHAUST PIPE AND SILENCER (#130679) — 78 parça

532 352 574 118 117 115 122 113 115 385 124 115 113 200 124 12 84 14 385 200 122 576 115 387 81 118 117 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH	8-98117-518-0	01	1	1308-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	1308-
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE EGY	0-91180-108-0	02	1	1308-
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE EGY	0-91180-110-0	02	1	1308-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1308-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1308-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	1308-
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	1308-
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	1308-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1308-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	1308-
122	03.275 NUT; HANGER BRKT 03.162 M10 FLANGE EGY	0-91180-110-0	02	1	1308-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8 EGY	0-91110-508-0	02	1	1308-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE EGY	0-91180-110-0	01	1	1308-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE EGY	0-91180-110-0	01	1	1308-
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	1308-
352	03.613 NUT; BRKT 03.162 M10 FLANGE EGY	0-91180-110-0	02	1	1308-
385	03.704 BRACKET; SILENCER MTG 03.706 EGY	8-97076-020-0	02	1	1308-
387	03.704 SPACER; BRKT 03.706	8-98044-774-0	01	1	1308-
532	03.704 NUT 03.162 M10 FLANGE EGY	0-91180-110-0	02	1	1308-
574	03.706 SPACER; DPD	8-98044-774-0	01	1	1308-
576	03.706 BRACKET; DPD FRT TO FRAME EGY	8-98074-124-1	01	1	1308-
577	03.706 BRACKET; DPD RR TO FRAME EGY	8-98074-124-1	01	1	1308-

2 36 1 44 8 43 25 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH	8-98215-932-0	01	1	1308-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	1308-
8	03.704 BRACKET; EXH PIPE 03.613	8-98020-555-0	01	1	1308-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER	8-98108-164-1	01	1	1308-
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE EGY	0-91180-110-0	02	1	1308-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1308-
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	1308-
44	03.613 BOLT; BRKT 00.029 M10X30 FLANGE EGY	0-28651-030-0	02	1	1308-
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE EGY	0-91180-110-0	02	1	1308-

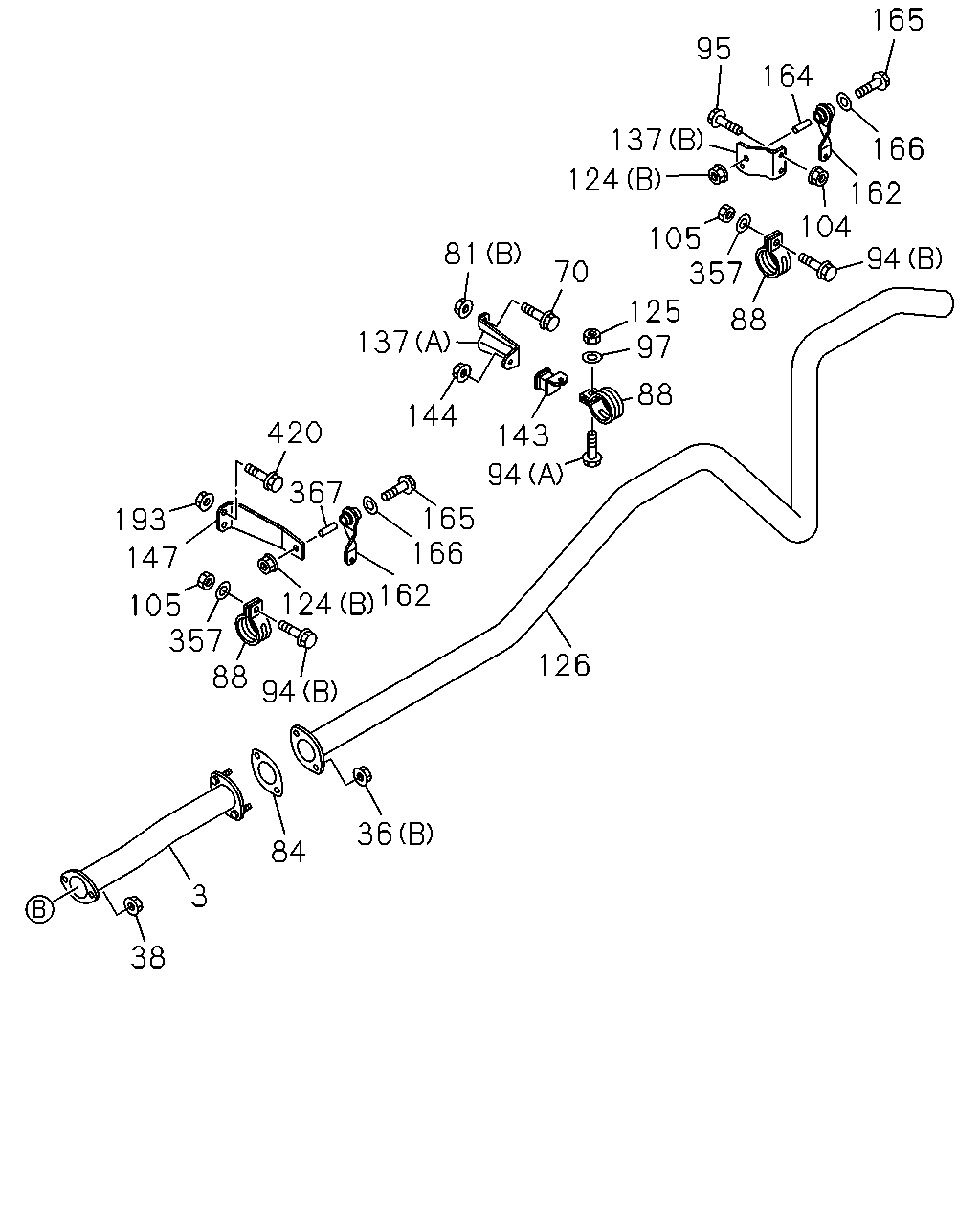

94 88 357 105 147 193 420 367 124 162 166 165 94 143 144 137 81 70 125 97 88 88 357 105 124 137 95 164 165 166 162 104 94 126 36 84 3 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER	8-98117-521-0	01	1	1308-1508
3	03.609 PIPE; EXH,CENTER	8-98283-852-0	01	1	1509-
36	03.613 NUT; EXH PIPE 03.162 (B) M10 FLANGE EGY	0-91180-110-0	02	1	1308-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	1308-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE EGY	0-91180-110-0	02	1	1308-
70	03.706 BOLT; BRKT 06.216 M8X25 FLANGE EGY	0-28650-825-0	02	1	1308-
81	03.704 NUT; BRKT 01.062 (B) M8 FLANGE EGY	0-91180-108-0	02	1	1308-
81	03.704 NUT; BRKT 03.162 (A) M10 FLANGE EGY	0-91180-110-0	02	1	1308-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1308-
84	03.611 GASKET; EXH PIPE 03.704 ID=64.7	8-94328-352-0	01	1	1308-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1308-1508
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1308-1508
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1308-1508
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1509-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1509-
94	03.704 BOLT; CLAMP 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	1308-
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1308-
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	1308-
95	03.708 BOLT; BRKT 06.216 M8X25 FLANGE EGY	0-28650-825-0	02	1	1308-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1308-
104	03.704 NUT; BRKT 01.062 M8 FLANGE EGY	0-91180-108-0	02	1	1308-
105	03.704 NUT; CLAMP 00.833 M10 EGY	0-91110-510-0	01	1	1308-
105	03.704 NUT; CLAMP 00.833 M10 EGY	0-91110-510-0	01	1	1308-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8 EGY	0-91110-508-0	02	1	1308-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE EGY	0-91180-110-0	01	1	1308-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE EGY	0-91180-110-0	01	1	1308-
125	03.708 NUT; CLAMP 00.833 M10 EGY	0-91110-510-0	01	1	1308-
126	03.705 PIPE; EXH,RR	8-98090-128-1	01	1	1308-1508
126	03.705 PIPE; EXH,RR	8-98134-798-0	01	1	1509-
137	03.706 BRACKET; TAIL PIPE 03.613 (A)	8-97096-651-0	01	1	1308-
137	03.706 BRACKET; TAIL PIPE (B)	8-97116-588-2	01	1	1308-
143	03.704 RUBBER; SUPPORT	8-98034-767-0	01	1	1308-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE EGY	0-91180-108-0	01	1	1308-
147	03.704 BRACKET; VERTICAL PIPE	8-98117-604-0	01	1	1308-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1308-
162	03.706 RUBBER; SUPPORT,TAIL PIPE L=115	8-98034-765-0	01	1	1308-
164	03.706 COLLAR; DIST,TAIL PIPE L=37.5	9-22151-217-0	01	1	1308-
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1308-
165	03.706 BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28051-070-0	01	1	1308-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1308-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	1308-
193	03.704 NUT; BRKT,VERTICAL PIPE 03.162 M10 FLANGE EGY	0-91180-110-0	02	1	1308-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1308-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	1308-
367	03.704 COLLAR; DIST,SUPPORT RUBBER 03.706 L=37.5	9-22151-217-0	01	1	1308-
420	03.704 BOLT; BRKT,VERTICAL PIPE 00.029 M10X30 FLANGE EGY	0-28651-030-0	02	1	1308-
