Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

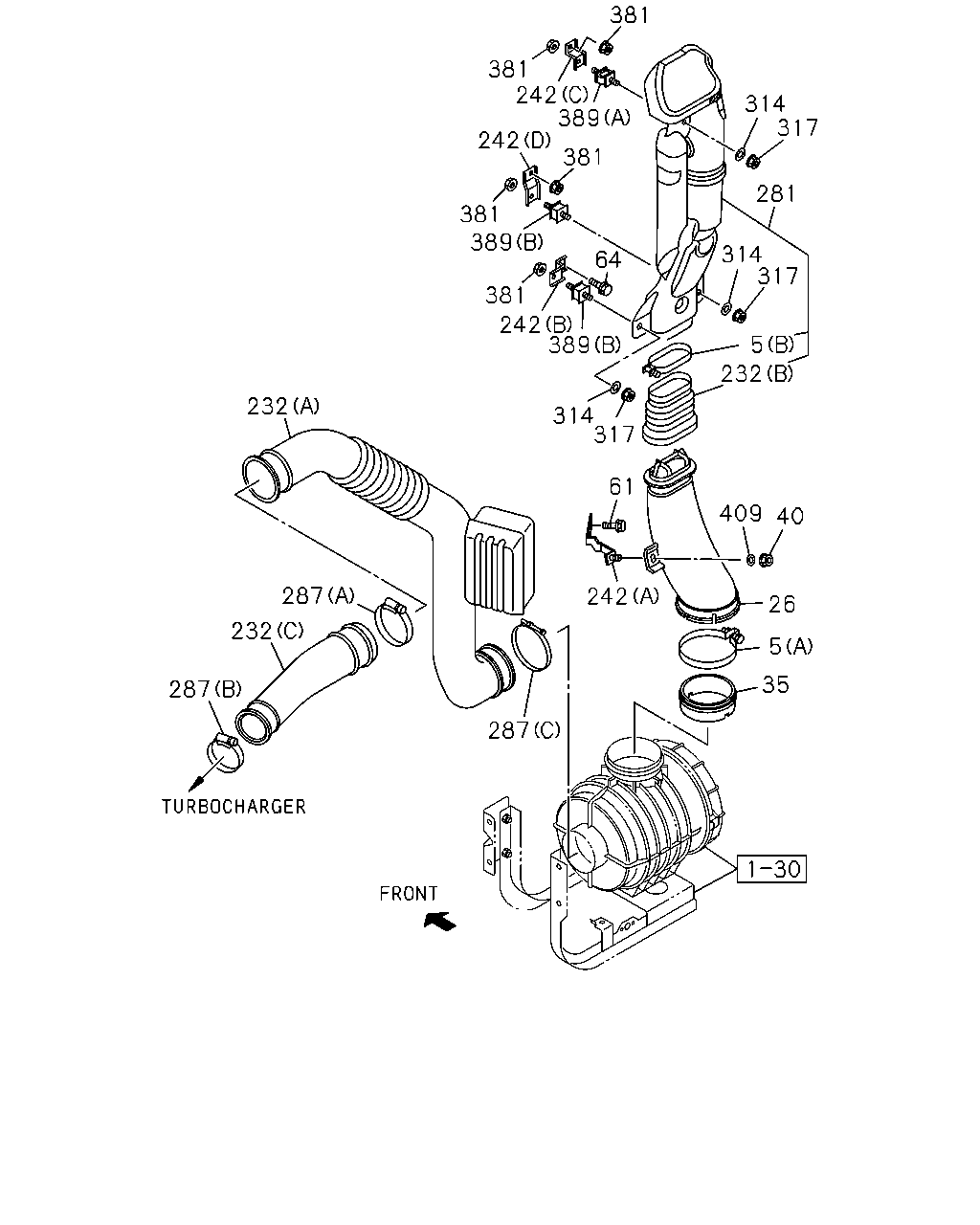

1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#130675) — 26 parça
287
232
287
232
287
242
35
5
26
409
40
61
317
314
389
242
381
389
381
381
242
242
381
381
389
314
317
281
64
314
317
5
232
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
03.407 CLIP; AIR DUCT
(A) ID=127
1-14239-263-0
01
1
1308-
5
03.407 CLIP; AIR DUCT
(B) D=101.6
9-09915-502-1
01
1
1308-
26
03.417 DUCT; AIR INT
8-98025-626-0
01
1
1308-
35
03.406 SEAL; DUCT,INT
8-98029-332-0
01
1
1308-
40
03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE EGY
0-91180-110-0
01
1
1308-
61
03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE EGY
0-28650-825-0
01
1
1308-
64
03.417 BOLT; BRKT,AIR DUCT
M8X16 EGY
0-52000-816-0
01
1
1308-
232
03.417 HOSE; CONN
(B)
8-98082-535-0
01
1
1308-1309
232
03.417 HOSE; CONN
(B)
8-98231-785-0
01
1
1310-
232
03.417 HOSE; CONN
(A)
8-98105-926-1
01
1
1308-
232
03.417 HOSE; CONN
(C)
8-98131-538-1
01
1
1308-
242
03.417 BRACKET; AIR DUCT
(C) EGY
8-98036-646-2
01
1
1308-
242
03.417 BRACKET; AIR DUCT
(D) EGY
8-98036-647-2
01
1
1308-
242
03.417 BRACKET; AIR DUCT
(B) EGY
8-98036-649-2
01
1
1308-
242
03.417 BRACKET; AIR DUCT
(A)
8-98145-112-1
01
1
1308-
281
03.417 DUCT; AIR,VERTICAL INT
8-98101-995-5
01
1
1308-
287
03.417 CLIP; AIR DUCT
(B) ID=40-50
8-98133-347-0
01
1
1308-
287
03.417 CLIP; AIR DUCT
03.407 (A) ID=65-85
8-98133-350-0
01
1
1308-
287
03.417 CLIP; AIR DUCT
03.407 (C) ID=112
9-09915-074-1
01
1
1308-
314
03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32
0-91614-810-0
03
1
1308-
317
03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER EGY
8-97581-234-0
03
1
1308-
381
03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER EGY
8-97581-234-0
02
1
1308-
381
03.417 NUT; BRKT,AIR DUCT
M8 W/LK WASHER EGY
8-97581-234-0
03
1
1308-
389
03.317 RUBBER; SUPPORT,AIR INT UPR
(A) EGY
8-98036-825-0
01
1
1308-
389
03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) EGY
8-98036-826-0
02
1
1308-
409
03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32
0-91614-810-0
01
1
1308-
