1-01 — ACCELERATOR PEDAL AND CONTROL (#130671) — 48 parça

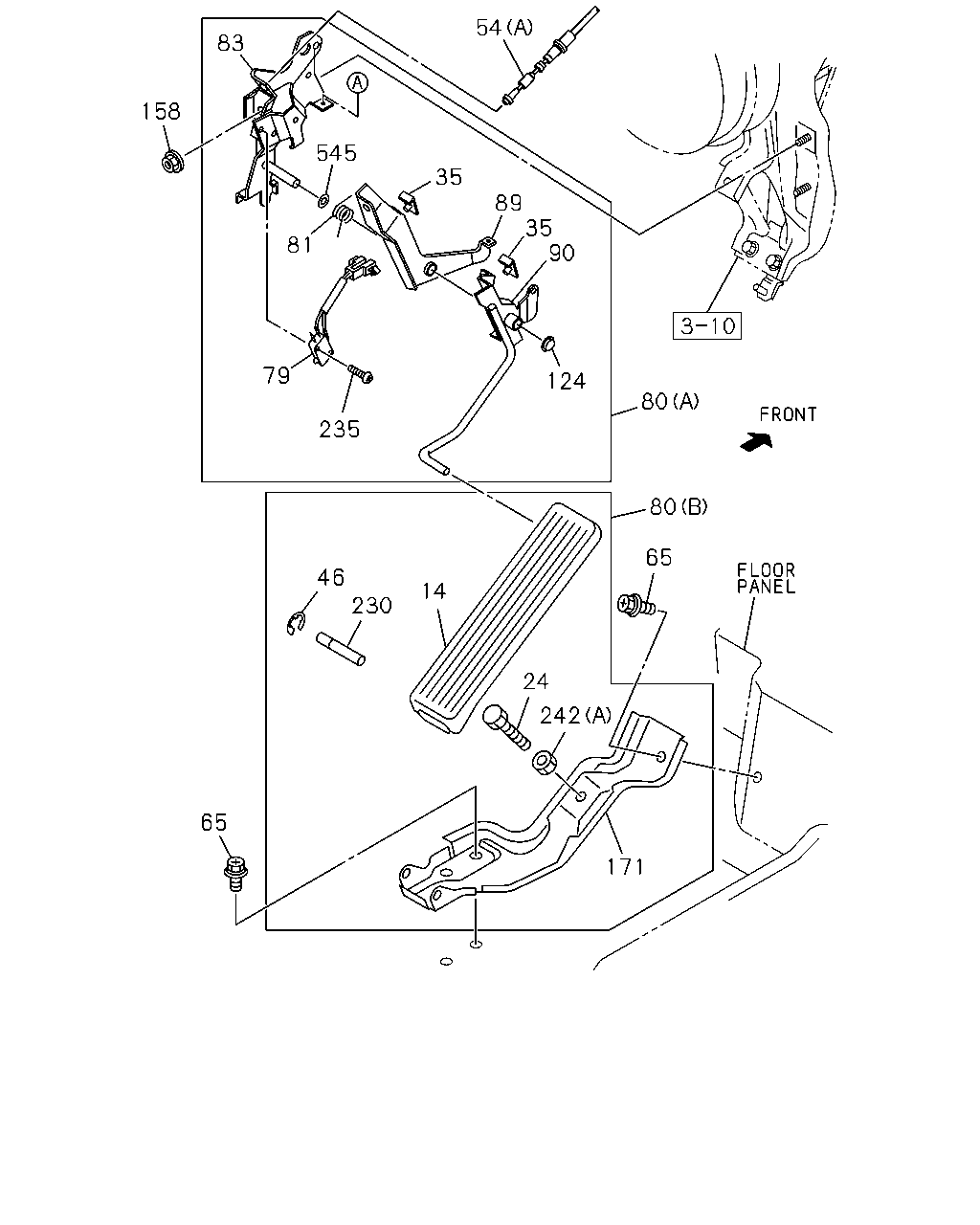

158 83 545 81 54 35 79 235 89 124 35 80 90 80 65 14 46 230 24 242 171 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.451 PAD; PEDAL,ACCEL EGY	8-97853-062-2	01	1	1308-
24	03.483 BOLT; BRKT 09.173 M8X35 FLANGE EGY	8-98049-562-0	01	1	1308-
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	02	1	1308-
46	03.485 RING; SNAP,ACCEL CONT PEDAL ID=4 EGY	0-91805-504-0	01	1	1308-
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	1308-
54	03.430 CABLE; ENG CONT (A) L=2758 EGY	8-98099-703-4	01	1	1308-
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	03	1	1308-
79	03.451 SWITCH; ACCEL PEDAL 03.636	8-97855-192-0	01	1	1308-
80	03.452 LINK ASM; ENG CONT 03.459 (B) EGY	8-98006-714-1	01	1	1308-
80	03.452 LINK ASM; ENG CONT (A)	8-98038-417-2	01	1	1308-
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-98031-665-0	01	1	1308-
83	03.452 BRACKET; CONT LINK	8-98093-897-0	01	1	1308-
89	03.454 LEVER; RELAY	8-97857-617-4	01	1	1308-
90	03.454 LEVER; RELAY,ENG CONT	8-98093-899-1	01	1	1308-
124	03.463 NUT; LEVER 09.011 ID=9.9 PUSH NUT	8-97012-098-0	01	1	1308-
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	1308-
171	03.483 BRACKET ASM; ACCEL PEDAL EGY	8-98006-716-1	01	1	1308-
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT EGY	8-98026-806-0	01	1	1308-
235	03.452 SCREW; PEDAL TO SW 03.425 M3X16 TAPPING	0-71340-316-0	02	1	1308-
242	03.483 NUT; ACCEL PEDAL (B) M18 EGY	8-97853-233-0	01	1	1308-
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8 FLANGE EGY	8-98040-024-0	01	1	1308-
545	03.463 WASHER; NYLON 12.242 ID=10.5 OD=16	9-09855-178-0	01	1	1308-

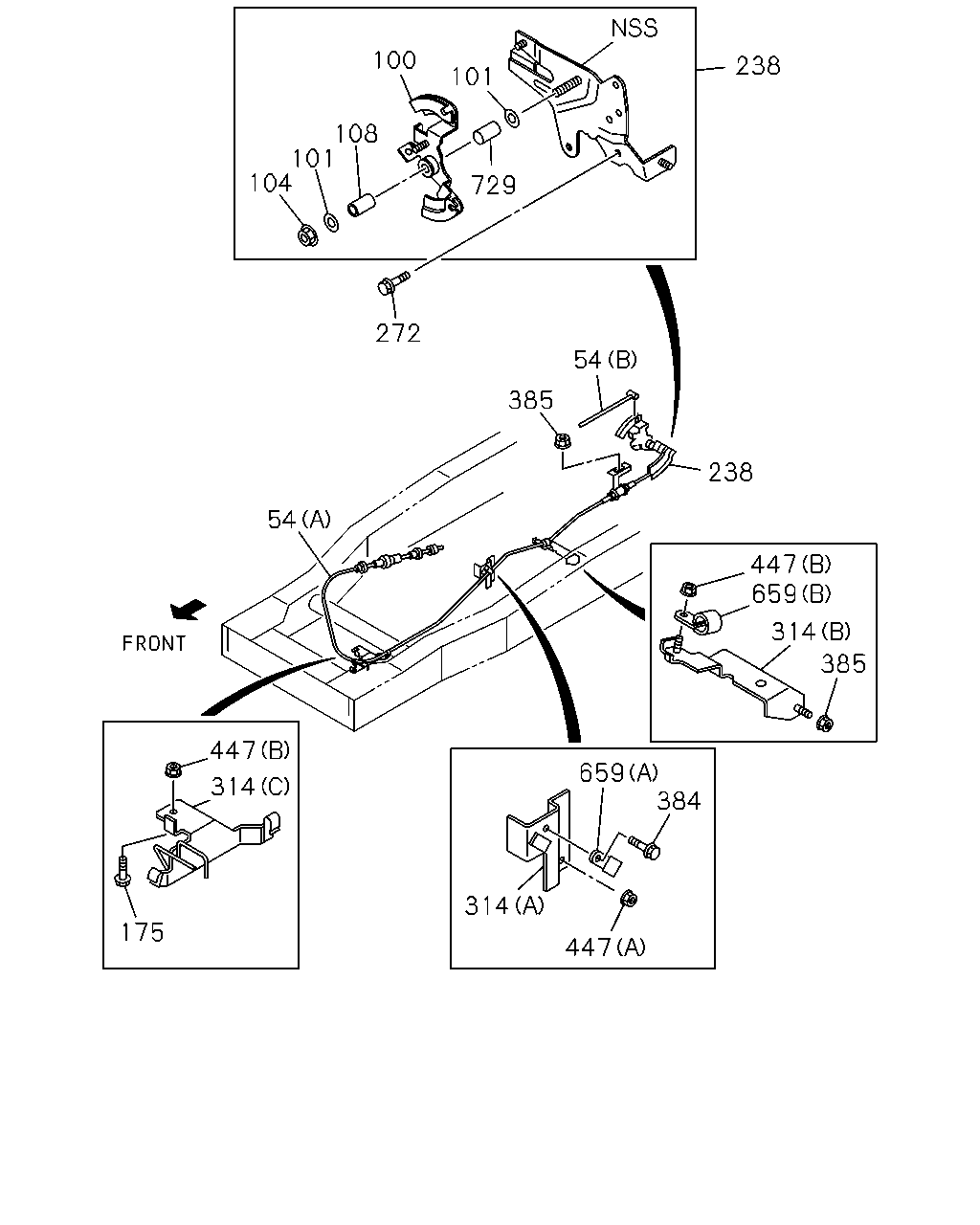

447 314 384 659 447 314 175 54 385 314 447 659 238 54 385 272 104 101 108 100 729 101 238

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	03.430 CABLE; ENG CONT (B) L=293	8-97115-730-0	01	1	1308-
54	03.430 CABLE; ENG CONT (A) L=2758 EGY	8-98099-703-4	01	1	1308-
100	03.463 SHAFT ASM; ENG CONT	8-97118-737-0	01	1	1308-
101	03.463 WASHER; ENG CONT 01.276	8-94142-117-0	02	1	1308-
104	03.463 NUT; ENG CONT 01.062 M8 FLANGE EGY	0-91180-108-0	01	1	1308-
108	03.463 BUSHING; ENG CONT	8-97120-004-0	01	1	1308-
175	03.483 BOLT; BRKT,ACCEL CABLE 06.216 M8X25 FLANGE EGY	0-28650-825-0	01	1	1308-
238	03.463 LEVER; ACCEL CONT	8-97118-729-0	01	1	1308-
272	03.454 BOLT; LEVER 02.343 M8X16 FLANGE EGY	0-28050-816-0	03	1	1308-
314	03.481 BRACKET; ACCEL CABLE (A)	8-98100-387-1	01	1	1308-
314	03.481 BRACKET; ACCEL CABLE (B) EGY	8-98120-569-1	01	1	1308-
314	03.481 BRACKET; ACCEL CABLE (C) EGY	8-98146-419-1	01	1	1308-
384	03.483 BOLT; CLIP,CONT CABLE 03.162 M6X12 FLANGE EGY	0-28050-612-0	01	1	1308-
385	03.481 NUT; CLIP 01.062 M6 FLANGE EGY	0-91180-106-0	02	1	1308-
447	03.452 NUT; BRKT,CONT WIRE 01.062 (A) M6 FLANGE EGY	0-91180-106-0	01	1	1308-
447	03.452 NUT; BRKT,CONT WIRE 01.062 (B) M8 FLANGE EGY	0-91180-108-0	02	1	1308-
659	03.483 CLIP; ACCEL CONT CABLE 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	1308-
659	03.483 CLIP; ACCEL CONT CABLE 04.785 (A) ID=16 L=28	0-95235-552-0	01	1	1308-
729	03.451 COLLAR; JOINT	8-97118-760-0	01	1	1308-

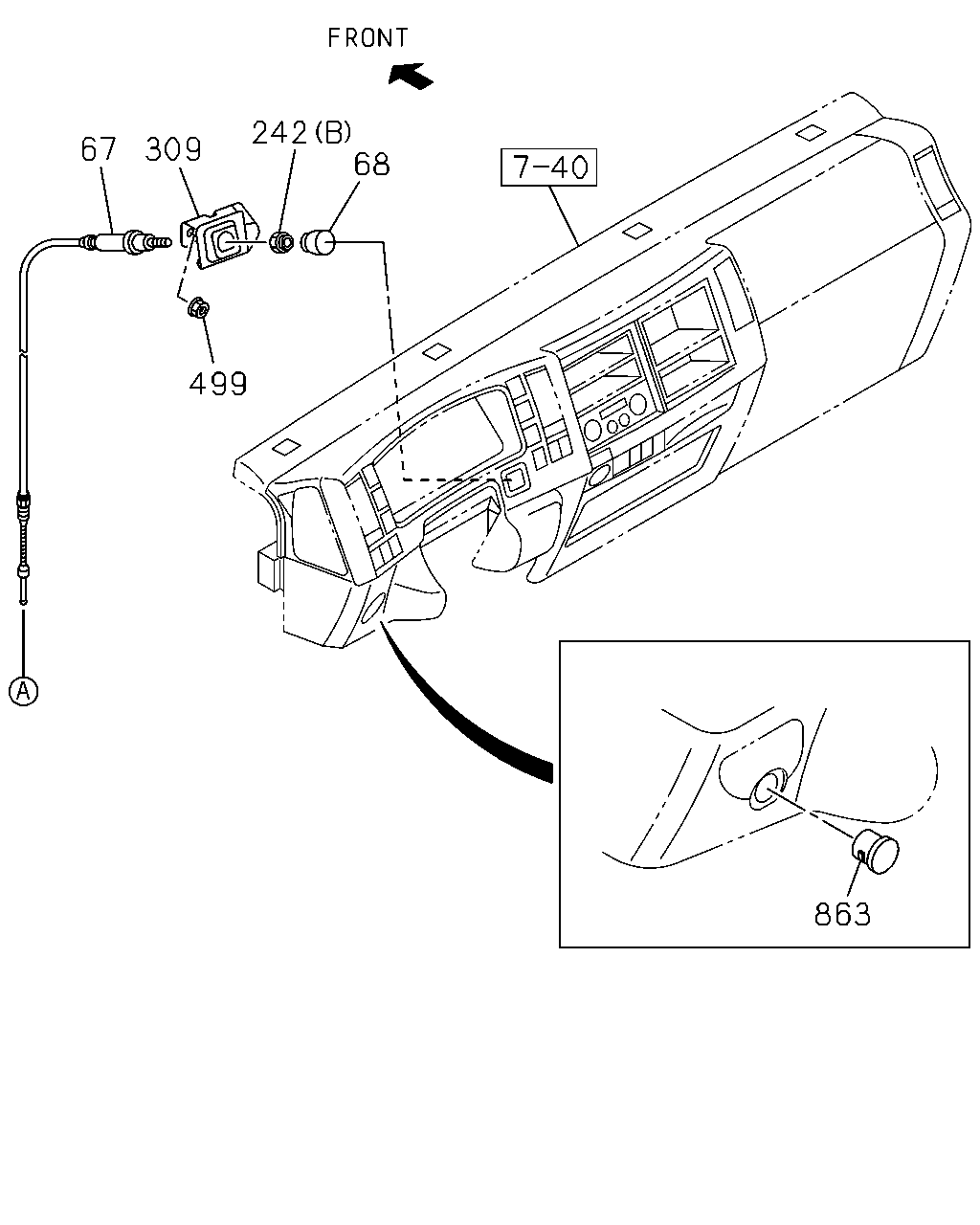

863 499 309 67 242 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
67	03.480 CABLE ASM; IDLE CONT EGY	8-98124-109-3	01	1	1308-
68	03.480 KNOB; IDLE CONT EGY	8-97853-765-1	01	1	1308-
242	03.483 NUT; ACCEL PEDAL (B) M18 EGY	8-97853-233-0	01	1	1308-
242	03.483 NUT; ACCEL PEDAL 02.559 (A) M8 FLANGE EGY	8-98040-024-0	01	1	1308-
309	03.483 BRACKET; IDLE CONT CABLE EGY	8-98124-979-1	01	1	1308-
499	03.483 NUT; IDLE CONT CABLE 01.062 M6 FLANGE EGY	0-91180-106-0	02	1	1308-
863	03.463 COVER; SENSOR GRAY	8-97408-816-0	01	1	1308-
