Sayfa 0-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51495 - NPR(GM EGYPT) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-80 - INJECTION PUMP ▶

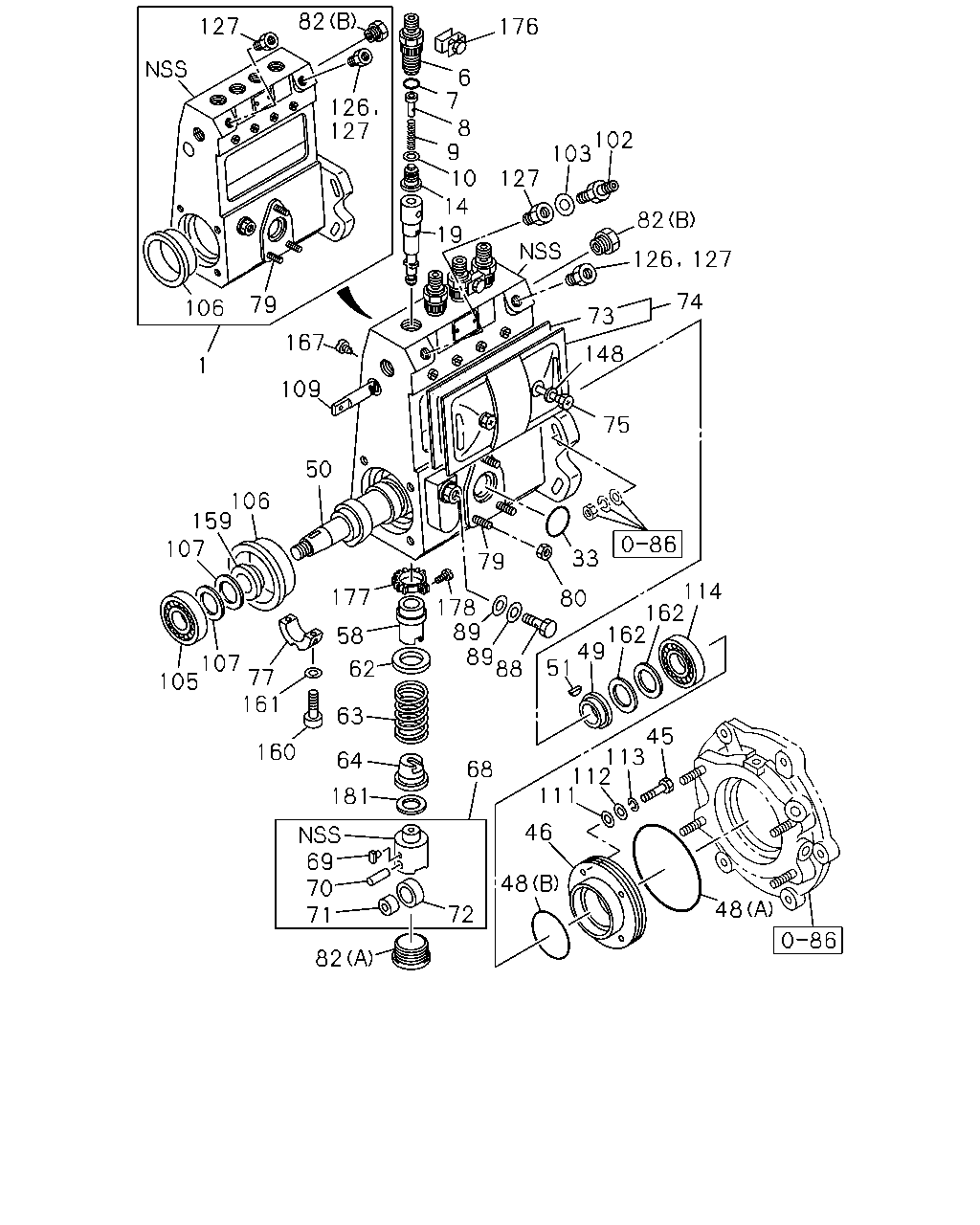

0-80 — INJECTION PUMP (#130665) — 103 parça

48 48 46 111 112 113 45 51 49 162 162 114 68 88 89 89 72 82 71 70 69 181 64 63 62 58 177 160 161 77 107 105 107 159 106 50 109 167 79 178 80 33 75 148 73 74 127 126 82 127 103 102 19 14 10 9 8 7 6 176 126 127 79 1 106 127 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.330 HOUSING; PUMP,FUEL INJ ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97185-010-0	01	1	-
6	03.306 HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15644-009-0	04	1	-
7	03.306 GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81235-046-0	04	1	-
8	03.302 STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15649-005-0	04	1	-
9	03.302 SPRING; DELIVERY VLV ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15634-011-0	04	1	-
10	03.340 GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15619-103-0	04	1	-
14	03.302 VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15619-401-0	04	1	-
19	03.330 PLUNGER ASM; INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97185-011-0	04	1	-
33	03.904 GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15629-058-0	01	1	-
45	03.302 BOLT; FRT COVER TO HSG ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97085-000-0	04	1	-
46	03.300 COVER; FRT,PUMP HSG ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97084-999-0	01	1	-
48	03.306 GASKET; FRT COVER TO HSG (B) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15629-076-0	01	1	-
48	03.306 GASKET; FRT COVER TO HSG (A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97085-113-0	01	1	-
49	03.306 RING; FRT BRG,CM/SHF ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97084-990-0	01	1	-
50	03.306 CAMSHAFT; INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97185-012-0	01	1	-
51	03.340 KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15629-009-0	01	1	-
58	03.330 SLEEVE; CONT,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81231-523-0	04	1	-
62	03.320 SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15639-022-0	04	1	-
63	03.302 SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15634-007-0	04	1	-
64	03.320 SEAT; PLUNGER SPRING LWR,INJ PUM ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15639-023-0	04	1	-
68	03.300 TAPPET; CM/SHF,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97214-450-0	04	1	-
69	03.300 GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15629-018-0	04	1	-
70	03.300 PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81215-185-0	04	1	-
71	03.300 BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15619-162-0	04	1	-
72	03.300 ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15629-010-0	04	1	-
73	03.306 GASKET; COVER TO HSG ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-94386-596-0	01	1	-
74	03.300 COVER; HSG,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-94171-109-0	01	1	-
75	03.330 SCREW; COVER TO HSG 00.015 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15619-003-0	02	1	-
77	03.306 BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15619-264-0	02	1	-
79	03.302 STUD; FUEL FEED PUMP TO HSG 03.901 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81215-115-0	03	1	-
80	03.901 NUT; FUEL FEED PUMP FIX ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-94171-110-0	03	1	-
82	03.306 PLUG; HSG,INJ PUMP 03.302, (B) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15619-073-0	01	1	-
82	03.306 PLUG; HSG,INJ PUMP 03.901, (A) ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15619-160-0	04	1	-
88	01.531 BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15619-092-0	01	1	-
89	01.531 GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15719-093-0	02	1	-
102	03.318 VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15619-290-0	01	1	-
103	03.332 GASKET; OVERFLOW VLV,INJ PUMP 03.163, ID=14.2 OD=19.2 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-09630-085-0	01	1	-
105	03.306 BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15629-002-0	01	1	-
105	03.306 BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15629-003-0	01	1	-
106	03.306 RING; HSG,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15619-159-0	01	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15629-007-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15629-008-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15629-105-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81225-049-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81225-050-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81225-051-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81225-052-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81225-053-0	AR	1	-
107	03.306 SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81225-054-0	AR	1	-
109	03.300 RACK; CONT,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97214-451-0	01	1	-
111	03.306 GASKET; FRT COVER FIX ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15629-024-0	04	1	-
112	03.302 SHIM; FRT COVER FIX ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97085-001-0	04	1	-
113	03.302 WASHER; LK,FRT COVER TO HSG ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-94128-928-0	04	1	-
114	03.306 BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97084-989-0	01	1	-
126	03.302 ADAPTER; EYE BOLT,PUMP HSG ASM PART: B = 8-97212-102-0, 97212102	1-15619-190-0	01	1	-
127	03.330 ADAPTER; FUEL PIPE 03.302 ASM PART: A = 8-97212-101-0, 97212101	1-15619-190-0	02	1	-
127	03.330 ADAPTER; FUEL PIPE 03.302 ASM PART: B = 8-97212-102-0, 97212102	1-15619-190-0	01	1	-
148	03.306 GASKET; COVER FIX BOLT ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81215-144-0	02	1	-
159	03.306 RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15629-004-0	01	1	-
160	03.330 SCREW; CENTER BRG,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15629-017-0	04	1	-
161	03.306 GASKET; SCREW,CENTER BRG ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81225-043-0	04	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97084-991-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97084-992-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97084-993-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97084-994-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97084-995-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97084-996-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97084-997-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97084-998-0	AR	1	-
162	03.306 SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	8-97121-620-0	AR	1	-
167	03.330 BOLT; CONT RACK,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	1-15639-003-0	01	1	-
176	03.302 PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15625-001-0	02	1	-
177	03.330 PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81225-057-0	04	1	-
178	03.320 SCREW; PINION,INJ PUMP ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81235-003-0	04	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-001-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-002-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-003-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-004-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-005-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-007-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-008-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-009-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-010-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-011-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-012-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-013-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-015-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-025-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-026-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-027-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-034-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-035-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-036-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-037-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-106-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-107-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-108-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-109-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	5-15619-110-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81235-042-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81235-043-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81235-044-0	AR	1	-
181	03.306 SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 8-97212-101-0, 97212101, B = 8-97212-102-0, 97212102	9-81235-045-0	AR	1	-
