Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

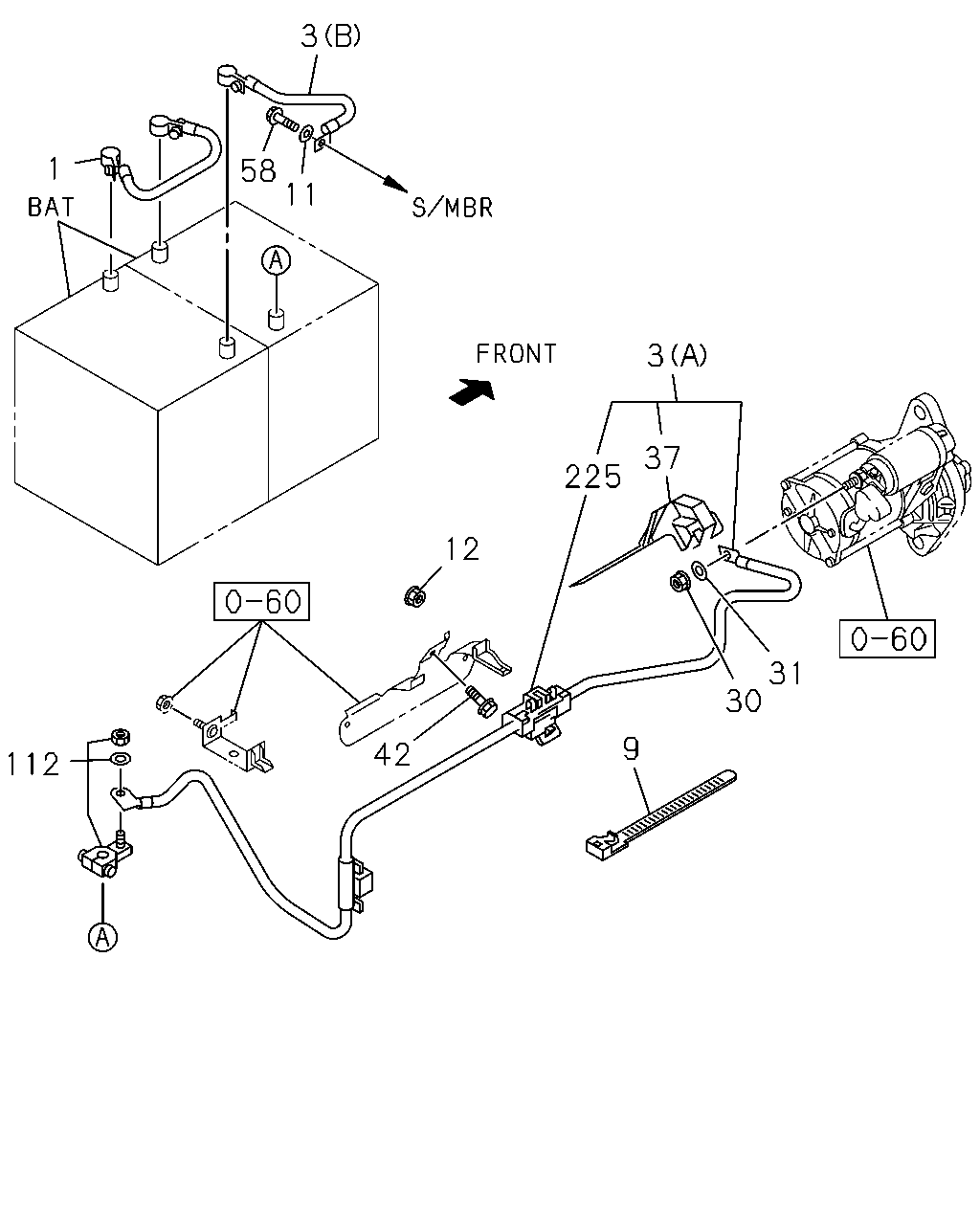

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#130662) — 15 parça
31
30
9
12
42
112
1
11
58
3
3
37
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.341 CABLE; BATTERY
L=280 EGY
8-98025-412-3
01
1
1308-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
(A)
8-98135-430-2
01
1
1308-1409
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
(A)
8-98294-693-0
01
1
1410-
3
02.525 HARNESS; CABLE,BATTERY TO STARTE
(B)
8-98135-436-2
01
1
1308-
9
02.343 CLIP; BATTERY CABLE
02.559 L=250
5-09707-030-1
07
1
1308-
11
02.343 WASHER; BATTERY CABLE EARTH
8-98099-007-0
01
1
1308-
12
02.343 NUT; BATTERY CABLE CLIP
03.162 M10 FLANGE EGY
0-91180-110-0
02
1
1308-
30
02.334 NUT; CABLE,STARTER TO BATTERY
M8 EGY
0-91110-508-0
01
1
1308-
31
02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2
0-91510-808-0
01
1
1308-
37
02.343 CAP; TERMINAL,BATTERY CABLE
8-98042-507-0
01
1
1308-
42
02.343 BOLT; BRKT,BATTERY CABLE
02.500 M6X16 FLANGE
8-97329-599-0
01
1
1308-
58
02.343 BOLT; CABLE,BATTERY
M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1308-
112
02.343 TERMINAL; BATTERY
<+>
8-97365-771-0
01
1
1308-
225
02.343 BLOCK; TERMINAL
8-98029-689-0
01
1
1308-1409
225
02.343 BLOCK; TERMINAL
8-98294-524-0
01
1
1410-
