Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
0 - Engine, Emission, Engine Electrical
▶
0-40 - FUEL INJECTION SYSTEM
▶
0-40 — FUEL INJECTION SYSTEM
(#130653) — 47 parça
◀

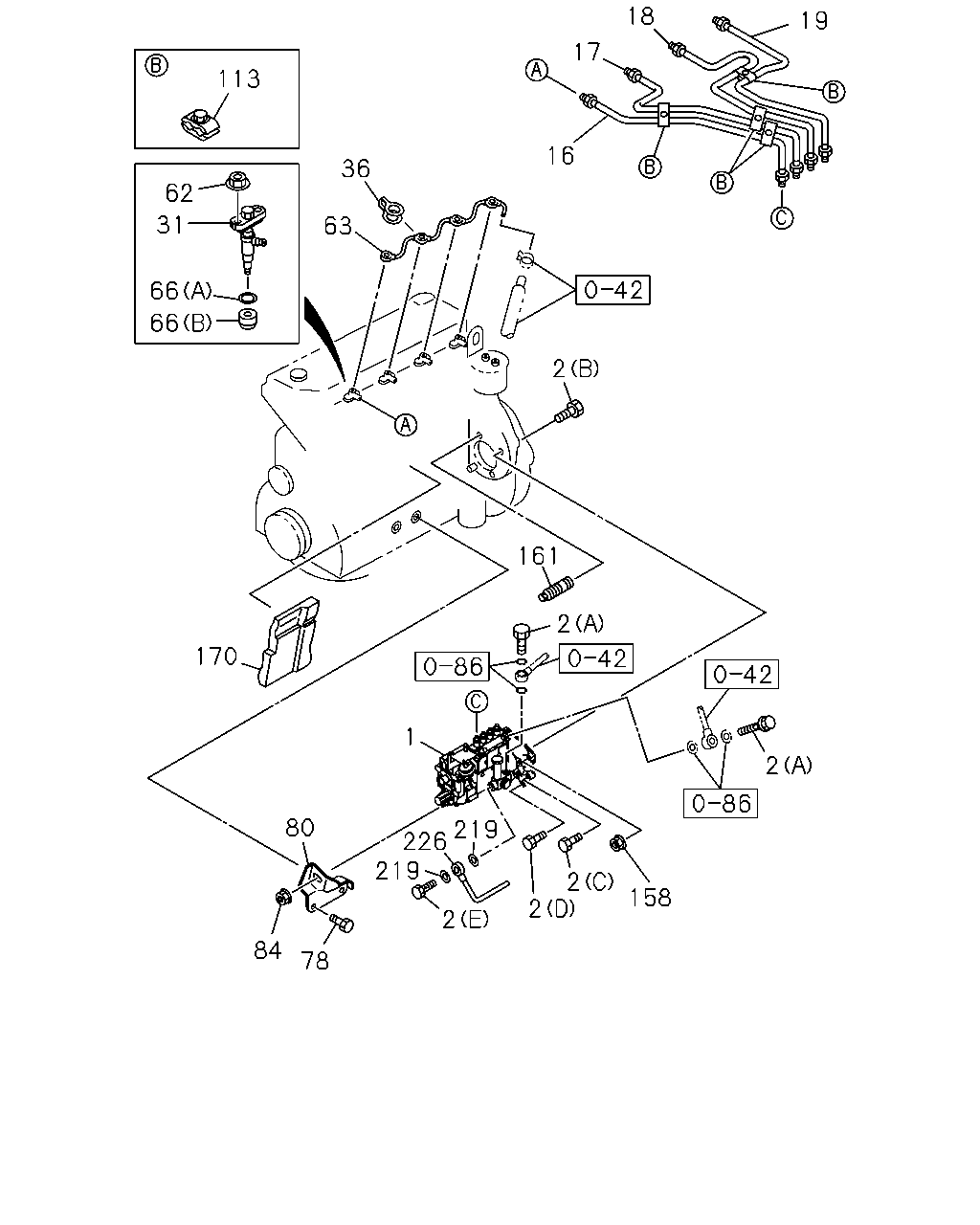

[040A] INJ PUMP,PIPE AND NOZZLE (28 parça)
[040A] COMPONENT (19 parça)
▶
19
18
17
16
113
62
31
66
66
36
63
2
161
170
1
2
2
158
2
2
2
219
226
219
80
84
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HIGH ALTITUDE COMPENSATOR(EE2)
8-97212-101-0
01
1
1308-
1
03.306 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. HIGH ALTITUDE COMPENSATOR(EE2)
8-97212-102-0
01
1
1308-
2
03.330 BOLT; INJ PUMP
02.277 (B) M10X70 FLANGE
0-28151-070-0
01
1
1308-
2
03.330 BOLT; INJ PUMP
00.206 (C) M12X70 FLANGE
0-28151-270-0
01
1
1308-
2
03.330 BOLT; INJ PUMP
(D) M12X90 FLANGE
0-28151-290-0
01
1
1308-
2
03.330 BOLT; INJ PUMP
03.162 (A) M14X27 FLANGE
1-09675-086-0
02
1
1308-
2
03.330 BOLT; INJ PUMP
03.162 (E) M14X30
8-97203-957-0
01
1
1308-
16
03.330 PIPE; INJ NO.1
8-97123-374-0
01
1
1308-
17
03.330 PIPE; INJ NO.2
8-97123-375-0
01
1
1308-
18
03.330 PIPE; INJ NO.3
8-97123-376-0
01
1
1308-
19
03.330 PIPE; INJ NO.4
8-97123-377-1
01
1
1308-
31
03.332 NOZZLE ASM; INJ
8-97119-811-0
04
1
1308-
36
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6
8-94395-214-0
04
1
1308-1312
36
03.332 GASKET; RETURN PIPE,NOZZLE HOLDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6
8-98246-930-0
04
1
1401-
62
03.332 NUT; NOZZLE HOLDER
01.062 M8 FLANGE EGY
0-91180-108-0
08
1
1308-
63
03.163 PIPE; FUEL,NOZZLE LEAK OFF
8-97118-895-0
01
1
1308-
66
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)
8-94326-439-0
04
1
1308-
66
03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=7.2 OD=15.0 T=6.6
8-97171-331-0
04
1
1308-
78
03.330 BOLT; BRKT TO C/BL
02.343 M10X20 FLANGE
0-28751-020-0
02
1
1308-
80
03.306 BRACKET; PUMP
8-97136-677-0
01
1
1308-
84
03.330 NUT; BRKT TO BRKT
04.085 M10 FLANGE
0-91180-210-0
01
1
1308-
113
03.162 CLIP; INJ PIPE
8-97213-050-0
04
1
1308-
158
03.330 NUT; INJ PUMP
03.162 M10 FLANGE EGY
0-91180-110-0
02
1
1308-
161
03.340 STUD; INJ PUMP
00.724 M10X46.5 L=58.5
8-97066-386-1
02
1
1308-
170
03.332 INSULATOR; INJ PUMP
8-97130-296-2
01
1
1308-
219
03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2
1-09630-085-0
02
1
1308-1312
219
03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 01.531 ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
226
03.163 PIPE; FUEL
8-97203-567-0
01
1
1308-
31
32
34
58
140
43
44
146
46
33
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
03.332 NOZZLE ASM; INJ
8-97119-811-0
04
1
1308-
32
03.332 HOLDER ASM; NOZZLE
8-94311-966-2
04
1
1308-
33
03.332 NOZZLE; INJ
8-97119-809-0
04
1
1308-
34
03.330 BOLT; EYE,NOZZLE HOLDER
1-15339-009-0
04
1
1308-
35
03.330 NUT; NOZZLE RET,NOZZLE HOLDER
8-94174-184-0
04
1
1308-
43
03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE
8-94329-555-0
04
1
1308-
44
03.330 SPRING; NOZZLE,NOZZLE HOLDER
8-94174-141-0
04
1
1308-
46
03.330 PIN; NOZZLE SET,NOZZLE HOLDER
8-94174-139-0
08
1
1308-
58
03.332 FLANGE; INJ,NOZZLE HOLDER
8-97065-713-0
04
1
1308-
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.10
8-97027-432-0
AR
1
1308-
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.20
8-97027-433-0
AR
1
1308-
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.30
8-97027-434-0
AR
1
1308-
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.40
8-97027-435-0
AR
1
1308-
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.50
8-97027-436-0
AR
1
1308-
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.52
8-97027-437-0
AR
1
1308-
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.54
8-97027-438-0
AR
1
1308-
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.56
8-97027-439-0
AR
1
1308-
140
03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE
03.332 T=0.58
8-97027-440-0
AR
1
1308-
146
03.332 SPACER; NOZZLE
8-94344-439-0
04
1
1308-
