◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11048 - EXZ LHD EURO4 WITH 2STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-32 - WATER PIPING; ENGINE ▶
0-32 — WATER PIPING; ENGINE (#13064) — 211 parça

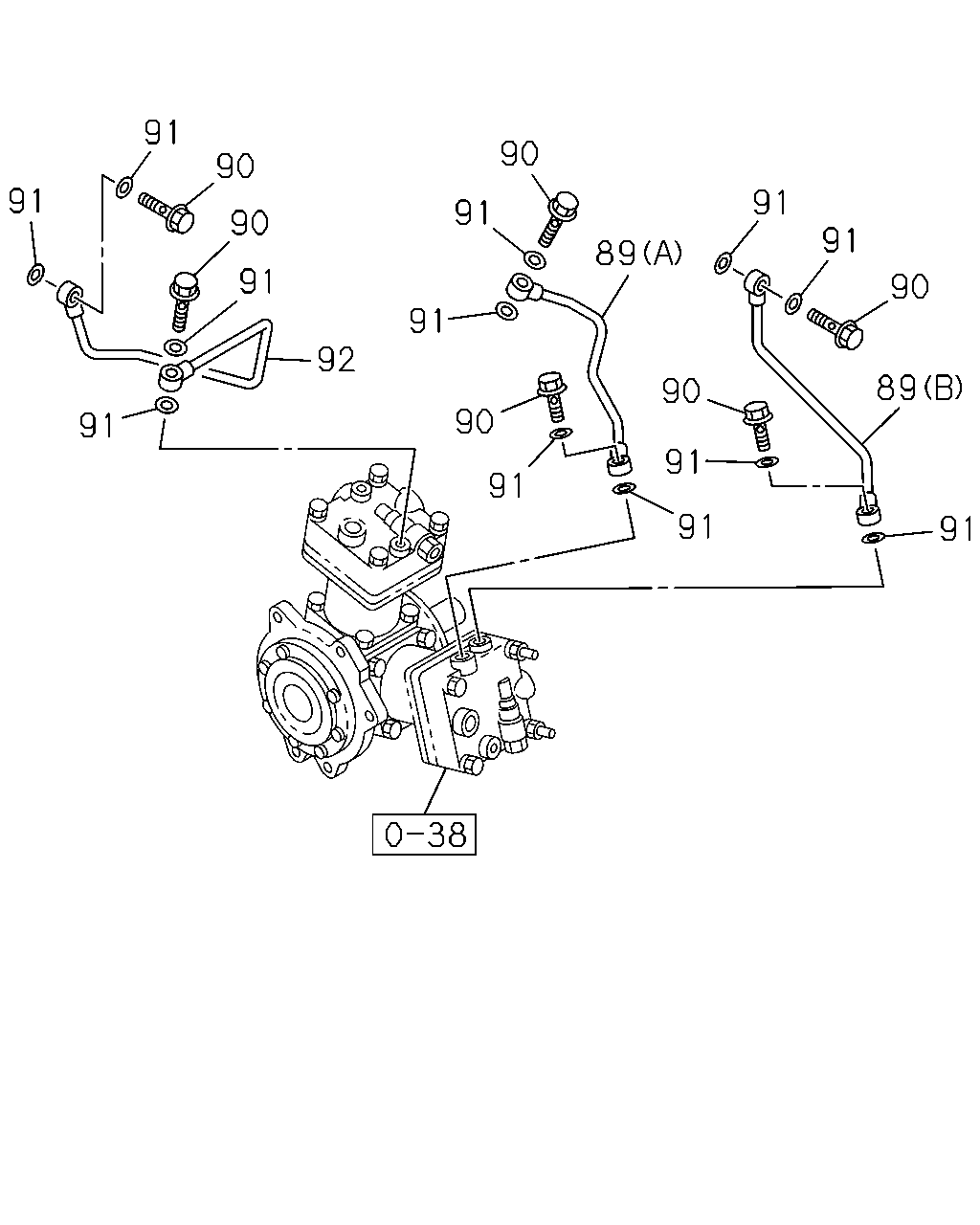

çizim 91706
91 90 90 91 91 91 90 91 89 91 90 91 92 89 90 90 91 91 91 91 91
BalonParca AdiParca NoAdetTipApplied Date
89 PIPE; WATER,AIR CMPR,IN
(B) 		1-13722-007-0 01 1 0611-
89 PIPE; WATER,AIR CMPR,IN
(A) 		1-13722-008-0 01 1 0611-
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 06 1 0611-
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 12 1 0611-
92 PIPE; WATER,AIR CMPR,OUT 1-13722-009-0 01 1 0611-

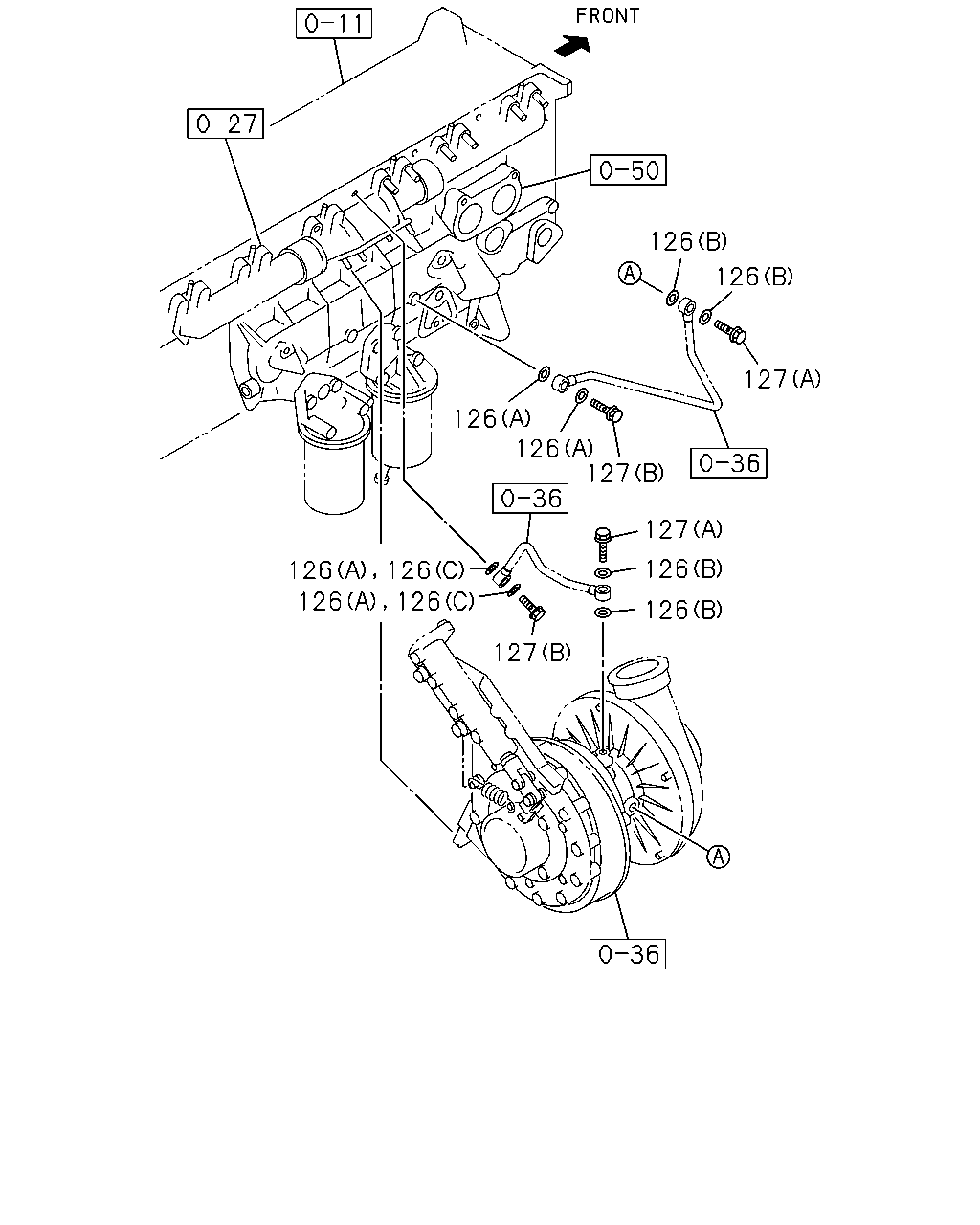

çizim 92033
126 126 127 126 126 127 127 126 126 126 126 126 126 127
BalonParca AdiParca NoAdetTipApplied Date
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0704-1312
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 04 1 0611-
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 04 1 0611-0703
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25 		1-09630-141-0 02 1 0704-
127 BOLT; EYE
(A) M16X30 FLANGE 		1-09675-095-1 02 1 0611-
127 BOLT; EYE
(B) M14X27 EYE-BOLT 		1-09675-193-0 02 1 0611-

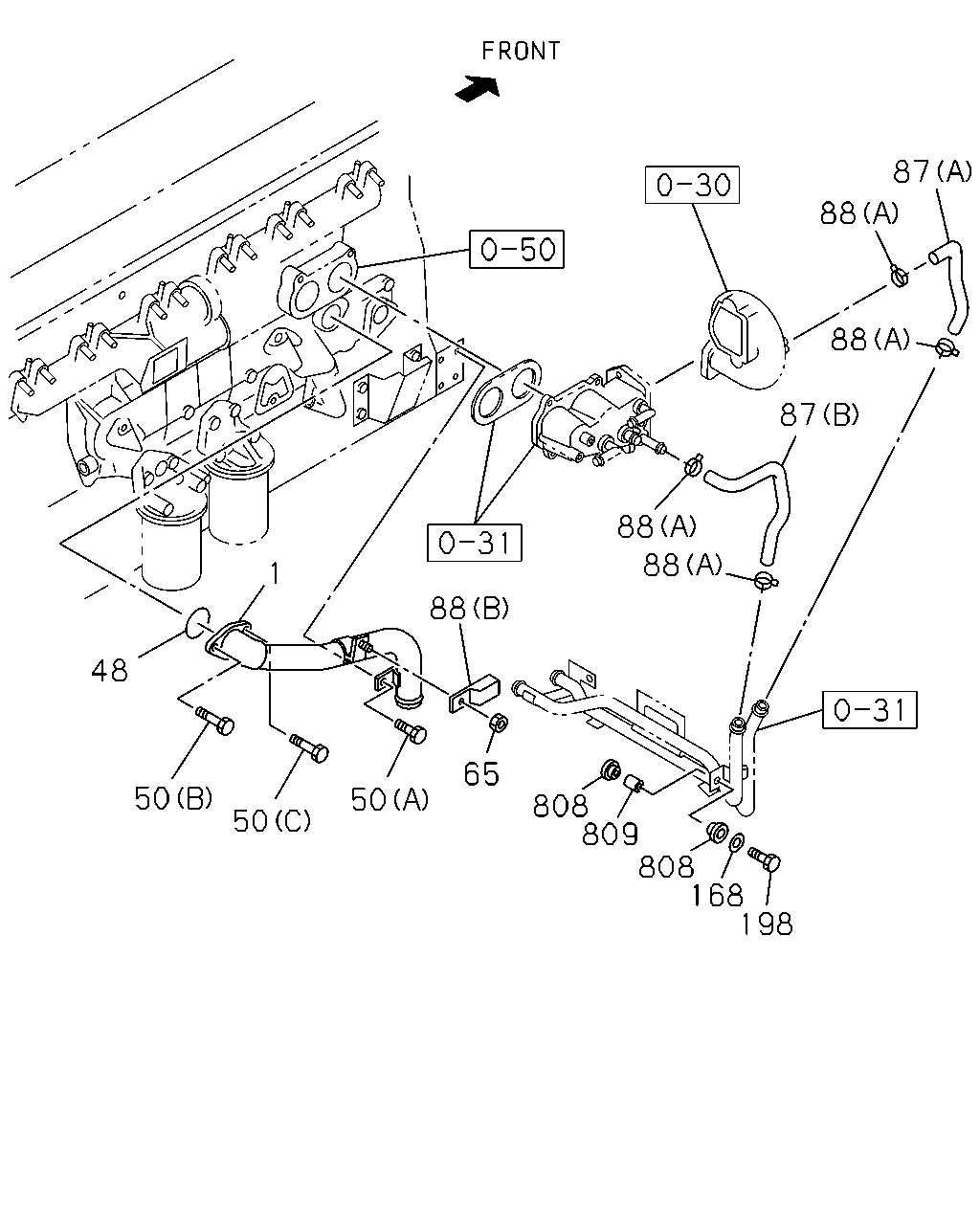

çizim 92055
87 88 88 87 88 88 1 88 48 65 50 50 808 809 808 168 198 50
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; WATER PUMP,INL 8-97606-255-2 01 1 0611-
48 GASKET; PIPE TO PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 0611-
50 BOLT; WATER PIPE INL
(B) M10X30 FLANGE 		0-28151-030-0 01 1 0611-
50 BOLT; WATER PIPE INL
(C) M10X80 FLANGE 		0-28151-080-0 01 1 0611-
50 BOLT; WATER PIPE INL
(A) M14X25 FLANGE 		0-28951-425-0 01 1 0611-
65 NUT
M10 FLANGE 		0-91180-110-0 01 1 0611-
87 HOSE; RUBBER,HTR
(B) 		1-83565-572-0 01 1 0611-
87 HOSE; RUBBER,HTR
(A) 		1-83565-577-0 01 1 0611-
88 CLIP; HOSE,HTR
(A) ID=20 		1-09707-084-1 04 1 0611-
88 CLIP; HOSE,HTR
(B) 		9-09915-663-0 01 1 0611-1206
88 CLIP; HOSE,HTR
(B) 		8-98166-024-0 01 1 1207-
168 WASHER; PL,PIPE
ID=10.5 OD=26 		0-91614-710-0 02 1 0611-
198 BOLT; PIPE
M10X45 FLANGE 		0-28051-045-0 02 1 0611-
808 RUBBER; MTG 1-09337-017-0 04 1 0611-
809 TUBE; DIST
ID=11.8 L=27 		1-21559-149-0 02 1 0611-

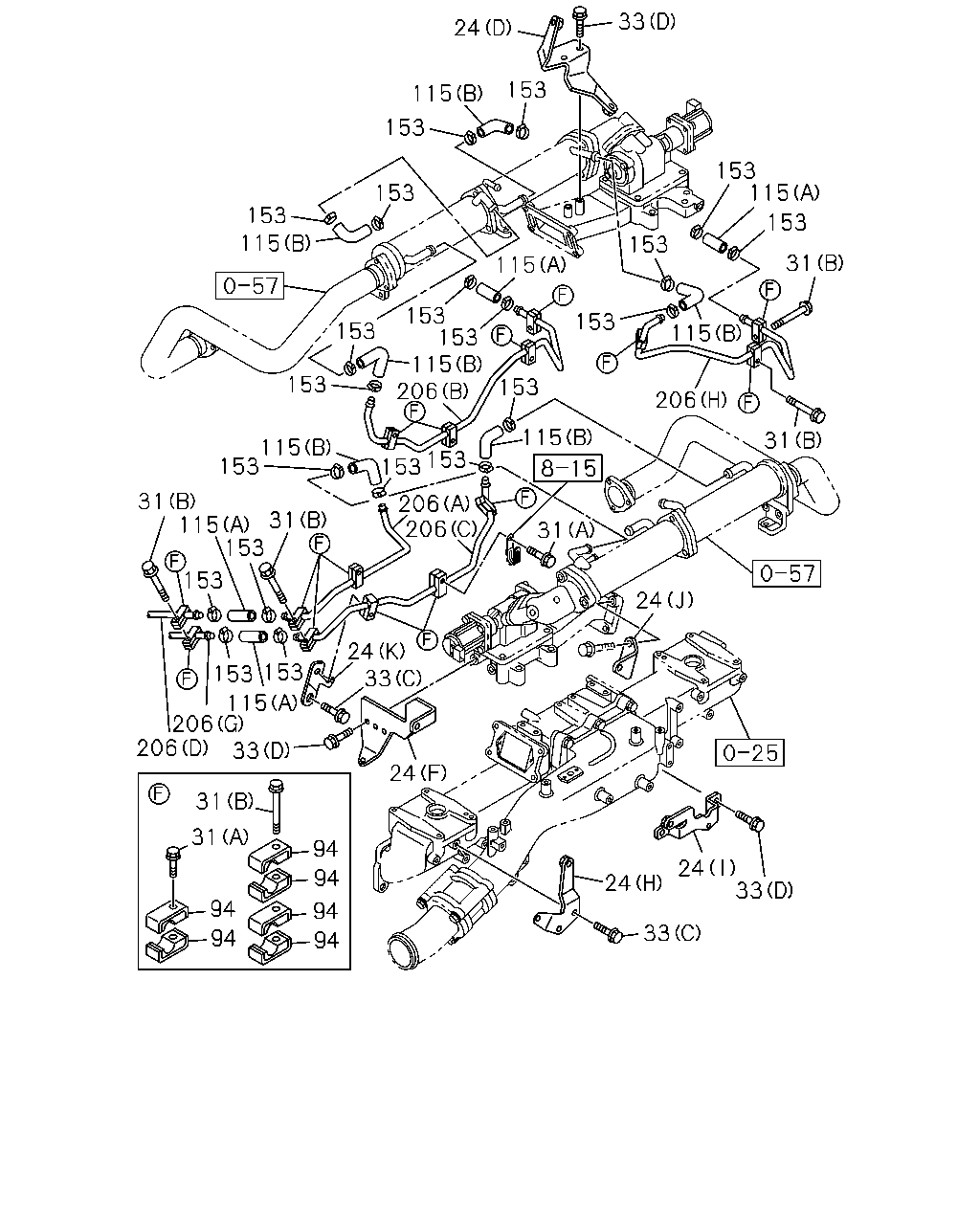

çizim 92071
24 33 153 115 153 153 153 115 153 153 153 115 153 153 153 115 153 31 115 206 31 115 206 153 115 153 153 153 115 153 206 206 31 24 24 33 24 33 24 33 24 31 31 115 153 153 153 153 115 206 206 33 31 31 94 94 94 94 94 94
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 0611-
24 BRACKET; WATER PIPE
(A) 		8-97609-581-1 01 1 0611-
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 0611-
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 0611-
24 BRACKET; WATER PIPE
(D) 		8-97611-050-0 01 1 0611-
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 0611-
24 BRACKET; WATER PIPE
(F) 		8-97613-005-1 01 1 0611-
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 0611-
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 0611-
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 0611-
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 0611-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 13 1 0611-
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 0611-
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 0611-
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 06 1 0611-
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 0611-
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 0611-
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 0611-
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 0611-
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 0611-
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 0611-
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 07 1 0611-0805
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 0806-
115 HOSE; RUBBER
(B) 		8-97604-063-0 07 1 0611-0805
115 HOSE; RUBBER
(B) 		8-97604-063-0 06 1 0806-
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 0611-
206 PIPE; WATER,EGR COOLER
(A) 		8-97608-891-1 01 1 0611-
206 PIPE; WATER,EGR COOLER
(G) 		8-97608-892-1 01 1 0611-
206 PIPE; WATER,EGR COOLER
(C) 		8-97608-893-2 01 1 0611-
206 PIPE; WATER,EGR COOLER
(D) 		8-97613-003-0 01 1 0611-
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 0611-
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 0611-
206 PIPE; WATER,EGR COOLER
(B) 		8-97613-528-2 01 1 0611-
206 PIPE; WATER,EGR COOLER
(H) 		8-97613-529-1 01 1 0611-

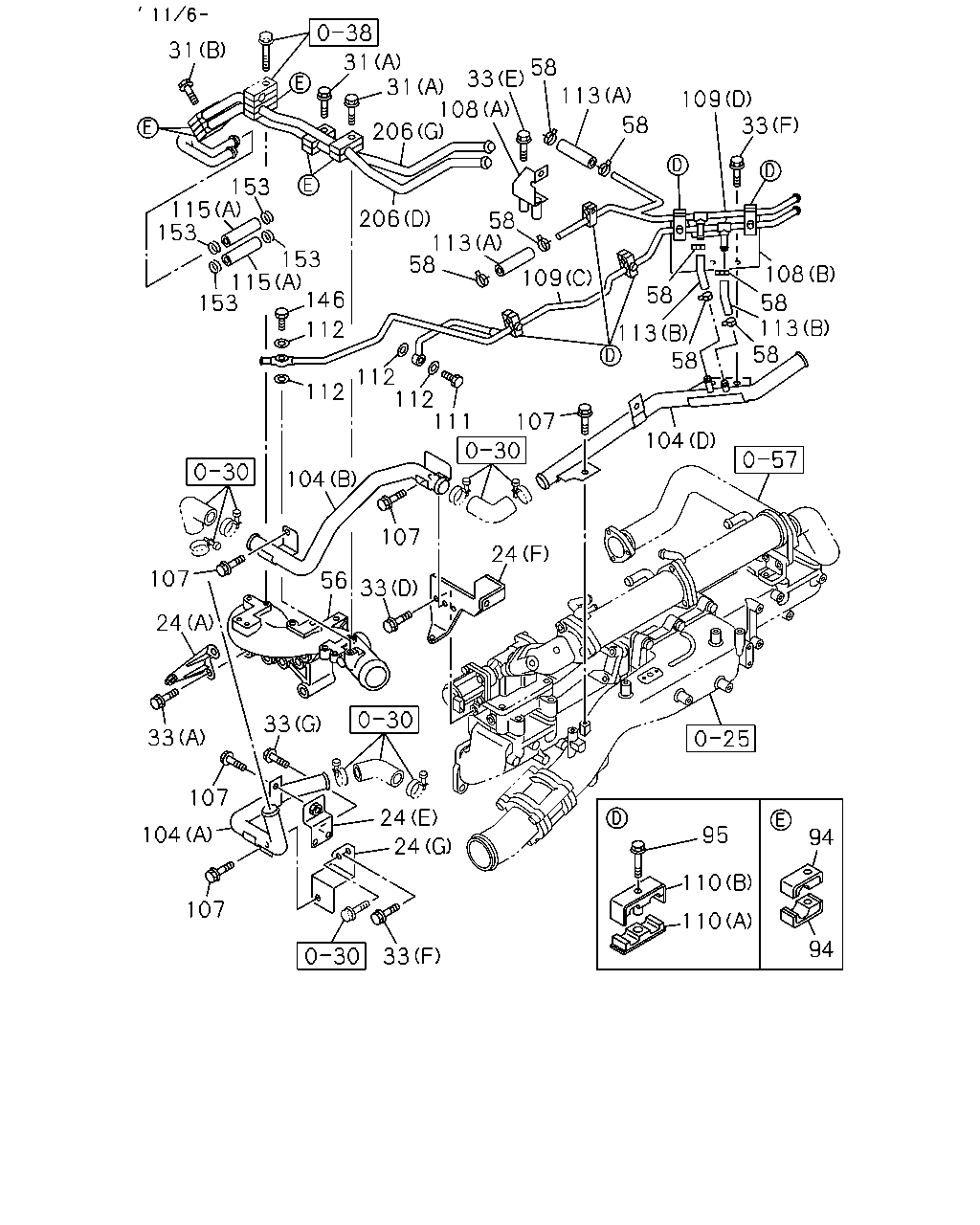

çizim 105628
31 31 31 33 58 113 108 206 58 109 33 108 58 113 58 58 113 58 109 58 113 58 206 153 115 153 153 115 153 146 112 112 112 111 107 104 112 104 107 24 56 33 107 24 33 107 33 24 24 104 107 33 95 94 94 110 110
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 0611-
24 BRACKET; WATER PIPE
(A) 		8-97609-581-1 01 1 0611-
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 0611-
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 0611-
24 BRACKET; WATER PIPE
(D) 		8-97611-050-0 01 1 0611-
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 0611-
24 BRACKET; WATER PIPE
(F) 		8-97613-005-1 01 1 0611-
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 0611-
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 0611-
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 0611-
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 0611-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 13 1 0611-
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 0611-
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 0611-
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 06 1 0611-
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 0611-
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 0611-
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 0611-
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 0611-
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 0611-
56 PIPE; WATER OUTLET 8-98038-588-0 01 1 0611-
58 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 04 1 0611-1105
58 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 08 1 1106-
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 0611-
95 BOLT; CLIP
M6X40 FLANGE 		0-28050-640-0 05 1 0611-0707
95 BOLT; CLIP
M6X35 FLANGE 		0-28050-635-0 05 1 0708-
104 PIPE; WATER CHARGE
(B) 		8-97613-001-1 01 1 0611-
104 PIPE; WATER CHARGE
(C) 		8-97613-002-1 01 1 0611-1105
104 PIPE; WATER CHARGE
(D) 		8-98191-341-0 01 1 1106-
104 PIPE; WATER CHARGE
(A) 		8-97617-188-0 01 1 0611-
107 BOLT; WATER PIPE
M10X20 FLANGE 		0-28151-020-0 05 1 0611-
108 BRACKET; WATER CHARGE
(A) 		8-97613-672-0 01 1 0611-
108 BRACKET; WATER CHARGE
(B) 		8-97615-508-2 01 1 0611-
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(A) 		8-97611-167-2 01 1 0611-1105
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(C) 		8-98191-495-0 01 1 1106-1209
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(C) 		8-98226-681-0 01 1 1210-
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(B) 		8-97613-671-2 01 1 0611-1105
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(D) 		8-98191-496-0 01 1 1106-
110 CLIP; AIR PIPE
(A) ID=9 & 9 L=25 		1-09701-180-0 05 1 0611-
110 CLIP; AIR PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 05 1 0611-
111 BOLT; EYE,LEAK,THERMOSTAT HSG
M14X27 EYE-BOLT 		1-09675-193-0 01 1 0611-
112 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 04 1 0611-
113 HOSE; RUBBER,AIR LEAK
(B) 		8-98191-351-0 02 1 1106-
113 HOSE; RUBBER,AIR LEAK
(A) L=70 SERVICED BY L=3000 		0-03559-300-0 02 1 0611-
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 07 1 0611-0805
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 0806-
115 HOSE; RUBBER
(B) 		8-97604-063-0 07 1 0611-0805
115 HOSE; RUBBER
(B) 		8-97604-063-0 06 1 0806-
146 BOLT; EYE
M14X27 EYE-BOLT 		1-09675-193-0 01 1 0611-
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 0611-
206 PIPE; WATER,EGR COOLER
(A) 		8-97608-891-1 01 1 0611-
206 PIPE; WATER,EGR COOLER
(G) 		8-97608-892-1 01 1 0611-
206 PIPE; WATER,EGR COOLER
(C) 		8-97608-893-2 01 1 0611-
206 PIPE; WATER,EGR COOLER
(D) 		8-97613-003-0 01 1 0611-
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 0611-
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 0611-
206 PIPE; WATER,EGR COOLER
(B) 		8-97613-528-2 01 1 0611-
206 PIPE; WATER,EGR COOLER
(H) 		8-97613-529-1 01 1 0611-

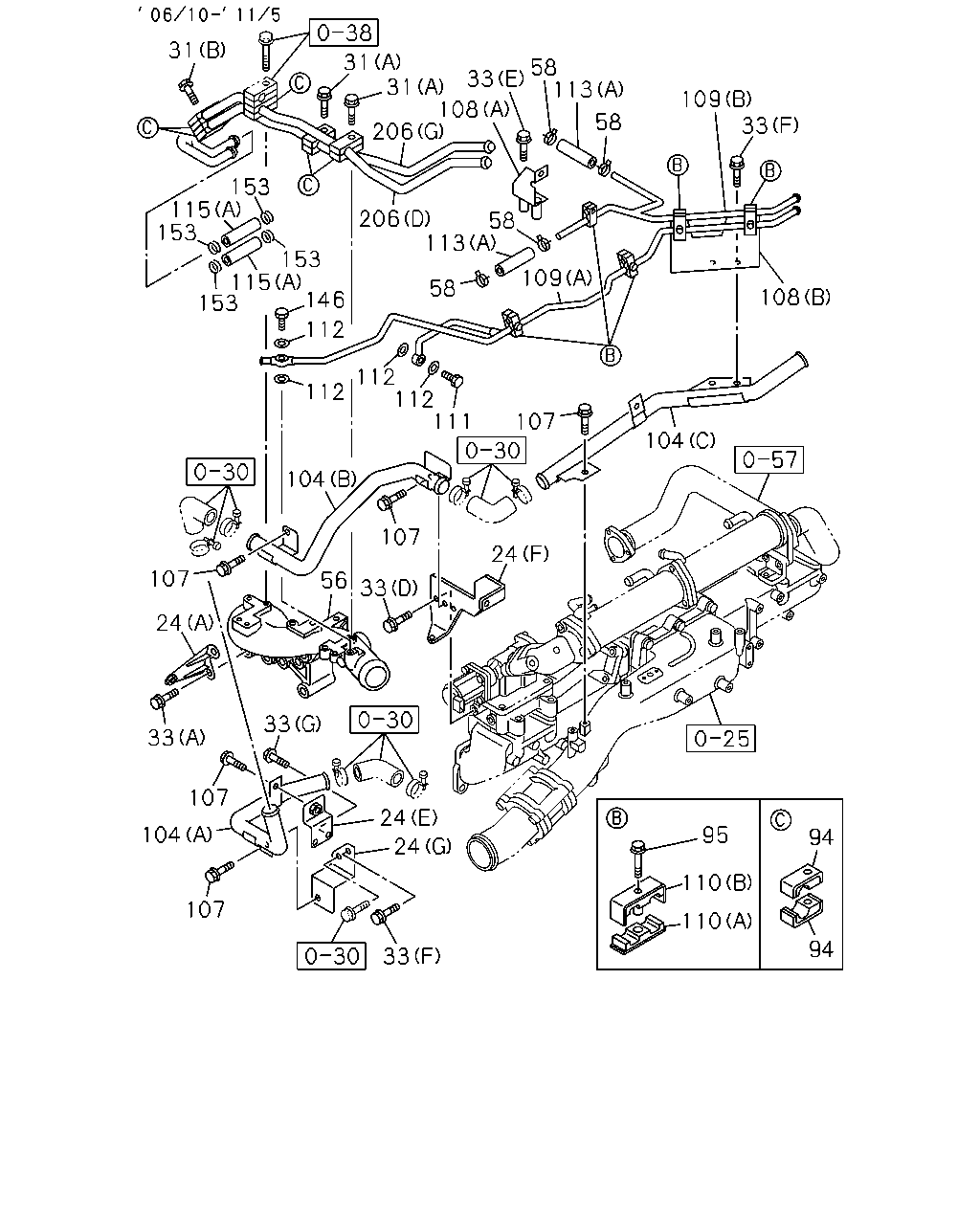

çizim 105629
31 31 31 33 58 113 58 109 33 108 109 58 113 206 206 108 153 115 153 153 115 153 146 112 112 112 112 111 107 58 104 24 107 104 107 24 56 33 33 33 107 104 107 33 24 24 95 110 110 94 94
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 0611-
24 BRACKET; WATER PIPE
(A) 		8-97609-581-1 01 1 0611-
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 0611-
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 0611-
24 BRACKET; WATER PIPE
(D) 		8-97611-050-0 01 1 0611-
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 0611-
24 BRACKET; WATER PIPE
(F) 		8-97613-005-1 01 1 0611-
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 0611-
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 0611-
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 0611-
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 0611-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 13 1 0611-
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 0611-
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 0611-
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 06 1 0611-
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 0611-
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 0611-
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 0611-
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 0611-
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 0611-
56 PIPE; WATER OUTLET 8-98038-588-0 01 1 0611-
58 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 04 1 0611-1105
58 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 08 1 1106-
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 0611-
95 BOLT; CLIP
M6X40 FLANGE 		0-28050-640-0 05 1 0611-0707
95 BOLT; CLIP
M6X35 FLANGE 		0-28050-635-0 05 1 0708-
104 PIPE; WATER CHARGE
(B) 		8-97613-001-1 01 1 0611-
104 PIPE; WATER CHARGE
(C) 		8-97613-002-1 01 1 0611-1105
104 PIPE; WATER CHARGE
(D) 		8-98191-341-0 01 1 1106-
104 PIPE; WATER CHARGE
(A) 		8-97617-188-0 01 1 0611-
107 BOLT; WATER PIPE
M10X20 FLANGE 		0-28151-020-0 05 1 0611-
108 BRACKET; WATER CHARGE
(A) 		8-97613-672-0 01 1 0611-
108 BRACKET; WATER CHARGE
(B) 		8-97615-508-2 01 1 0611-
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(A) 		8-97611-167-2 01 1 0611-1105
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(C) 		8-98191-495-0 01 1 1106-1209
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(C) 		8-98226-681-0 01 1 1210-
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(B) 		8-97613-671-2 01 1 0611-1105
109 PIPE; AIR,LEAK,THERMOSTAT HSG
(D) 		8-98191-496-0 01 1 1106-
110 CLIP; AIR PIPE
(A) ID=9 & 9 L=25 		1-09701-180-0 05 1 0611-
110 CLIP; AIR PIPE
(B) ID=9 & 9 L=25 		8-94393-280-3 05 1 0611-
111 BOLT; EYE,LEAK,THERMOSTAT HSG
M14X27 EYE-BOLT 		1-09675-193-0 01 1 0611-
112 GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 04 1 0611-
113 HOSE; RUBBER,AIR LEAK
(B) 		8-98191-351-0 02 1 1106-
113 HOSE; RUBBER,AIR LEAK
(A) L=70 SERVICED BY L=3000 		0-03559-300-0 02 1 0611-
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 07 1 0611-0805
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 0806-
115 HOSE; RUBBER
(B) 		8-97604-063-0 07 1 0611-0805
115 HOSE; RUBBER
(B) 		8-97604-063-0 06 1 0806-
146 BOLT; EYE
M14X27 EYE-BOLT 		1-09675-193-0 01 1 0611-
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 0611-
206 PIPE; WATER,EGR COOLER
(A) 		8-97608-891-1 01 1 0611-
206 PIPE; WATER,EGR COOLER
(G) 		8-97608-892-1 01 1 0611-
206 PIPE; WATER,EGR COOLER
(C) 		8-97608-893-2 01 1 0611-
206 PIPE; WATER,EGR COOLER
(D) 		8-97613-003-0 01 1 0611-
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 0611-
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 0611-
206 PIPE; WATER,EGR COOLER
(B) 		8-97613-528-2 01 1 0611-
206 PIPE; WATER,EGR COOLER
(H) 		8-97613-529-1 01 1 0611-

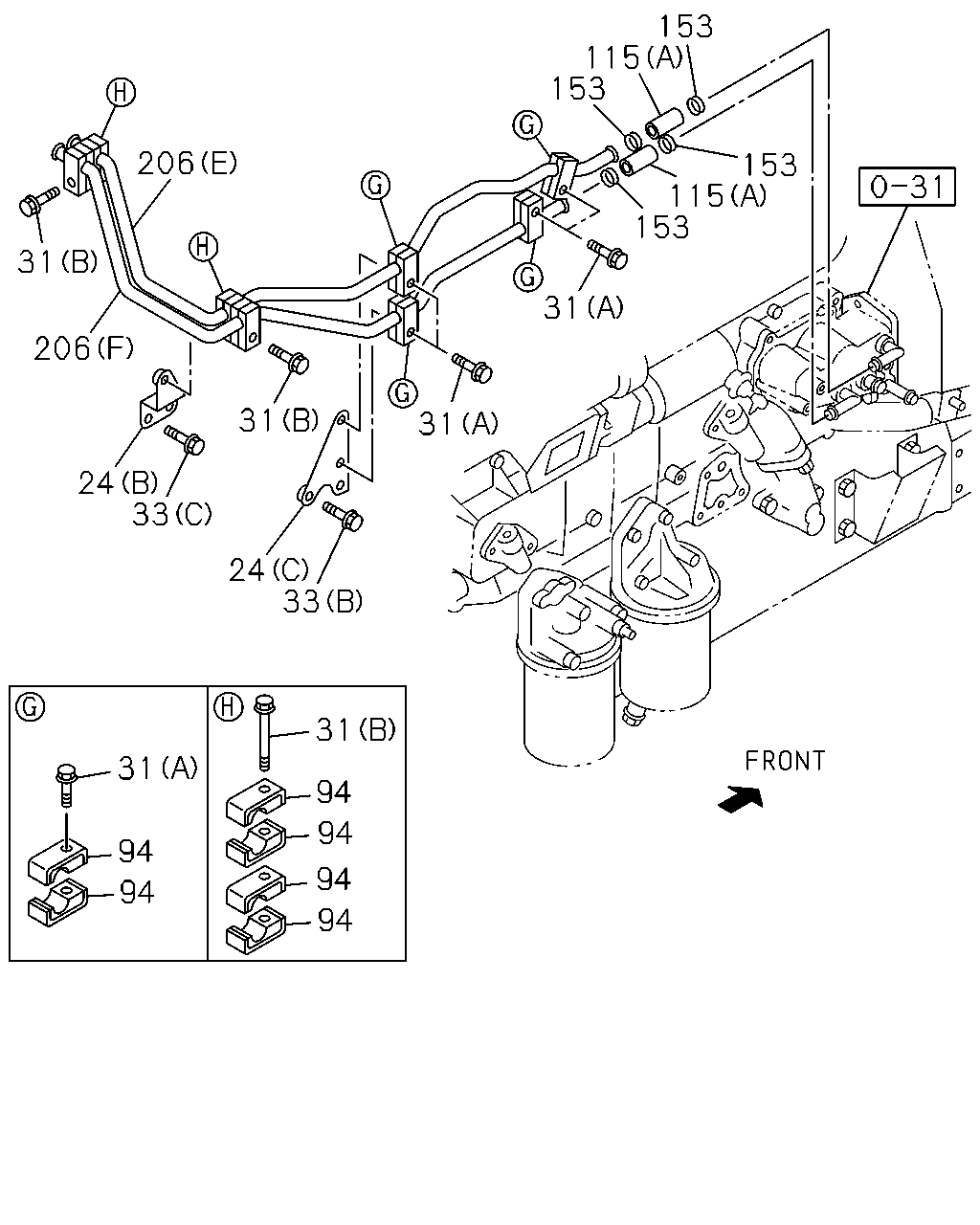

çizim 321093
153 115 153 153 115 153 31 31 33 24 33 24 31 206 31 206 31 94 94 94 94 31 94 94
BalonParca AdiParca NoAdetTipApplied Date
24 BRACKET; WATER PIPE
(K) 		8-97618-746-0 01 1 0611-
24 BRACKET; WATER PIPE
(A) 		8-97609-581-1 01 1 0611-
24 BRACKET; WATER PIPE
(B) 		8-97610-306-1 01 1 0611-
24 BRACKET; WATER PIPE
(C) 		8-97610-307-1 01 1 0611-
24 BRACKET; WATER PIPE
(D) 		8-97611-050-0 01 1 0611-
24 BRACKET; WATER PIPE
(E) 		8-97613-004-0 01 1 0611-
24 BRACKET; WATER PIPE
(F) 		8-97613-005-1 01 1 0611-
24 BRACKET; WATER PIPE
(G) 		8-97613-007-1 01 1 0611-
24 BRACKET; WATER PIPE
(H) 		8-97613-530-0 01 1 0611-
24 BRACKET; WATER PIPE
(I) 		8-97613-531-0 01 1 0611-
24 BRACKET; WATER PIPE
(J) 		8-97615-507-0 01 1 0611-
31 BOLT; CLIP
(A) M8X40 FLANGE 		0-28050-840-0 13 1 0611-
31 BOLT; CLIP
(B) M8X70 FLANGE 		0-28050-870-0 07 1 0611-
33 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 05 1 0611-
33 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 06 1 0611-
33 BOLT; BRKT
(G) M10X20 FLANGE 		0-28051-020-0 02 1 0611-
33 BOLT; BRKT
(A) M10X50 FLANGE 		0-28051-050-0 02 1 0611-
33 BOLT; BRKT
(F) M10X25 FLANGE 		0-28151-025-0 03 1 0611-
33 BOLT; BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 0611-
33 BOLT; BRKT
(E) M10X90 FLANGE 		0-28151-090-0 02 1 0611-
94 CLIP; WATER PIPE
ID=17 L=17 		1-09701-284-0 56 1 0611-
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 07 1 0611-0805
115 HOSE; RUBBER
(A) L=55 SERVICED BY L=3000 		0-03566-300-0 08 1 0806-
115 HOSE; RUBBER
(B) 		8-97604-063-0 07 1 0611-0805
115 HOSE; RUBBER
(B) 		8-97604-063-0 06 1 0806-
153 CLIP; RUBBER HOSE
ID=25 		8-97177-581-0 28 1 0611-
206 PIPE; WATER,EGR COOLER
(A) 		8-97608-891-1 01 1 0611-
206 PIPE; WATER,EGR COOLER
(G) 		8-97608-892-1 01 1 0611-
206 PIPE; WATER,EGR COOLER
(C) 		8-97608-893-2 01 1 0611-
206 PIPE; WATER,EGR COOLER
(D) 		8-97613-003-0 01 1 0611-
206 PIPE; WATER,EGR COOLER
(E) 		8-97613-292-0 01 1 0611-
206 PIPE; WATER,EGR COOLER
(F) 		8-97613-294-0 01 1 0611-
206 PIPE; WATER,EGR COOLER
(B) 		8-97613-528-2 01 1 0611-
206 PIPE; WATER,EGR COOLER
(H) 		8-97613-529-1 01 1 0611-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
