Isuzu WW
▶
TRUCKS
▶
NPR
▶
51495 - NPR(GM EGYPT)
▶
0 - Engine, Emission, Engine Electrical
▶
0-10 - CYLINDER HEAD COVER
▶

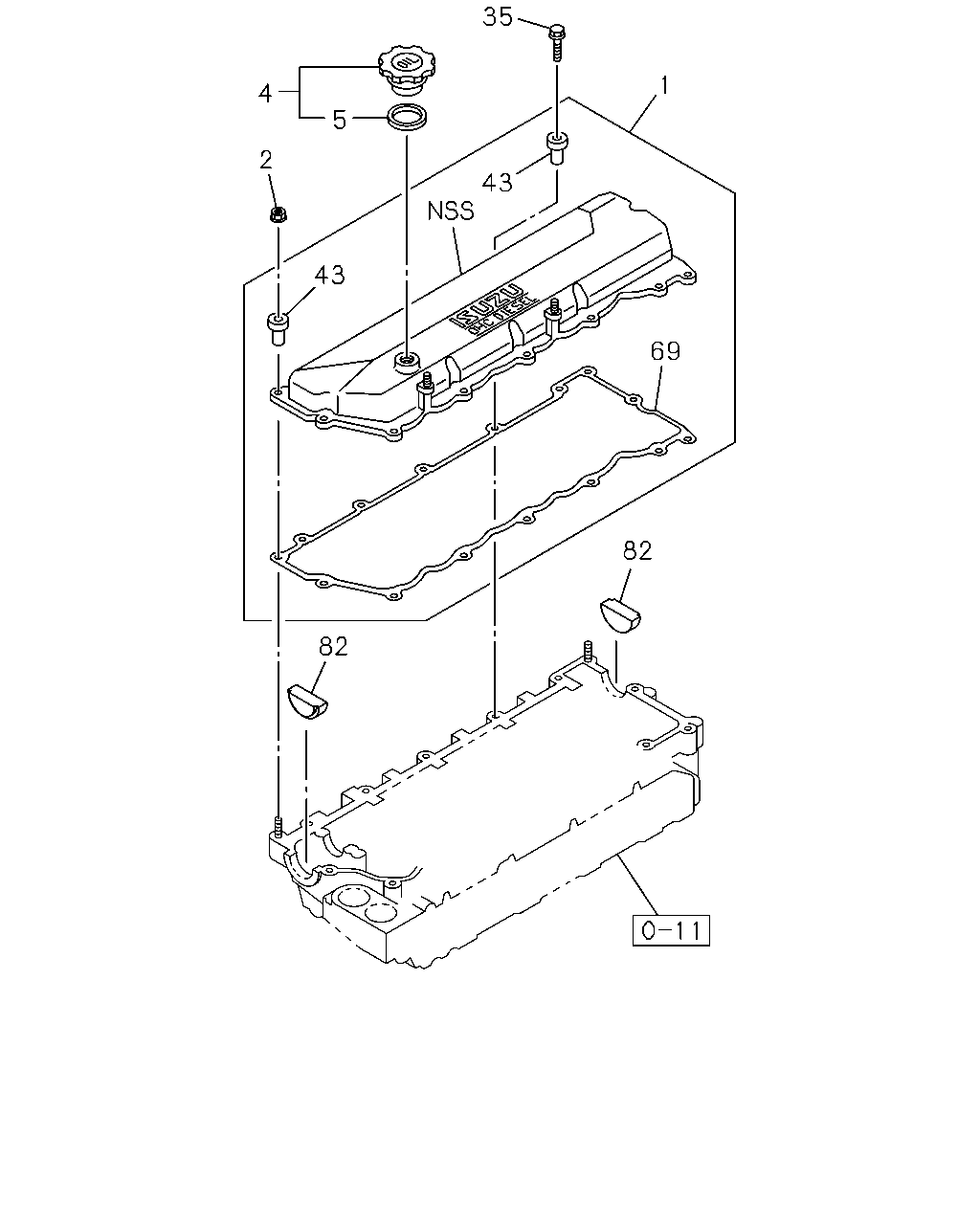

0-10 — CYLINDER HEAD COVER
(#130638) — 8 parça
35
1
43
4
5
2
43
69
82
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.386 COVER; CYL HD
8-98171-615-0
01
1
1308-
2
00.413 NUT; COVER,HD
01.062 M8 FLANGE EGY
0-91180-108-0
02
1
1308-
4
01.758 CAP; OIL FILLER
8-94133-207-5
01
1
1308-
5
01.758 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40 EGY
8-94123-623-1
01
1
1308-
35
00.293 BOLT; NOISE SHIELD COVER
03.403 M8X30 FLANGE
0-28650-830-0
13
1
1308-
43
00.413 RUBBER; MTG,HD COVER,OUTER
03.265 OD=23
8-97105-689-6
15
1
1308-
69
00.423 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97105-690-2
01
1
1308-
82
00.386 PLUG; CYL HD COVER
8-98163-813-0
02
1
1308-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
