8-73 — BLOWER UNIT (#130628) — 56 parça

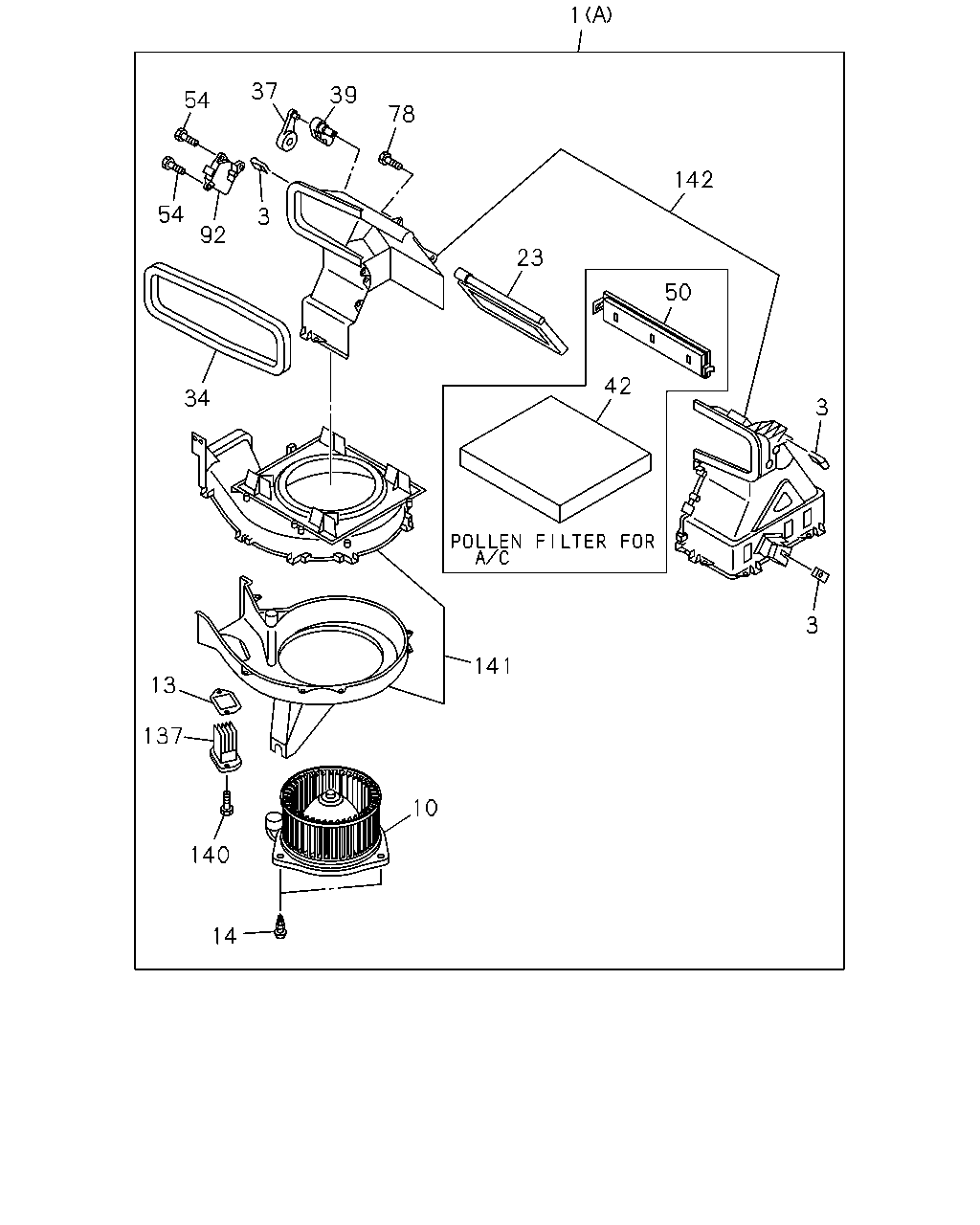

1 142 23 50 42 3 3 141 10 14 140 137 34 13 92 54 54 37 78 39 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.855 BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-050-1	01	1	1310-	●	●
1	08.855 BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-051-1	01	1	1310-	●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A)	8-98233-046-1	01	1	1310-	●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A)	8-98233-041-1	01	1	1310-	●	●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1310-	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98139-427-0	01	1	1310-	●	●
13	08.856 LINING; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98157-116-1	01	1	1310-	●	●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1310-	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98196-258-0	01	1	1310-1410	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98294-587-0	01	1	1411-	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-413-0	01	1	1310-1410	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98294-586-0	01	1	1411-	●	●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1310-	●	●
37	09.786 LEVER; MODE LEVER AIR CONDITIONER MANUAL CONT(C60)	8-98139-417-0	01	1	1310-	●	●
37	09.786 LEVER; MODE LEVER AIR CONDITIONER AUTOMATIC CONT(C61)	8-98195-045-0	01	1	1310-	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98139-416-0	01	1	1310-	●	●
42	08.857 FILTER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-428-0	01	1	1310-	●	●
50	08.857 COVER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-650-0	01	1	1310-	●	●
54	08.856 SCREW; ACTUATOR TO CASE AIR CONDITIONER AUTOMATIC CONT(C61) 08.852	8-98139-395-1	02	1	1310-	●	●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1310-	●	●
92	08.857 ACTUATOR; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-424-0	01	1	1310-	●	●
137	08.855 MODULE ASM; BLOWER AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-431-1	01	1	1310-	●	●
140	08.857 SCREW; MODULE AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-421-0	02	1	1310-	●	●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-640-0	01	1	1310-	●	●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-641-0	01	1	1310-	●	●
142	08.857 CASE ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-648-0	01	1	1310-	●	●
142	08.857 CASE ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-649-0	01	1	1310-	●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-646-0	01	1	1310-	●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-643-0	01	1	1310-	●	●

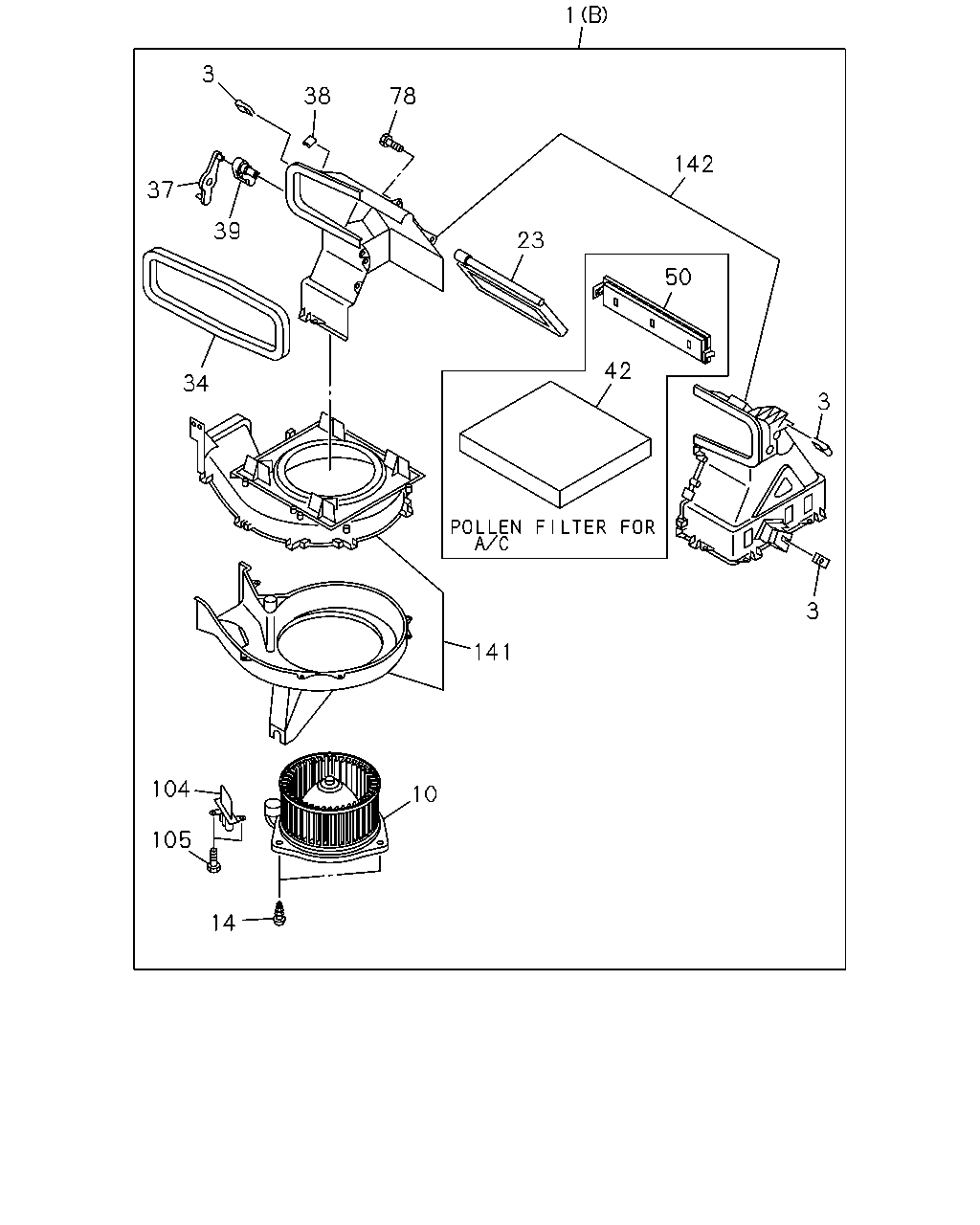

1 142 23 78 38 3 37 34 39 104 105 14 10 141 3 3 42 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.855 BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-050-1	01	1	1310-	●	●
1	08.855 BLOWER ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B)	8-98233-051-1	01	1	1310-	●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A)	8-98233-046-1	01	1	1310-	●	●
1	08.855 BLOWER ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A)	8-98233-041-1	01	1	1310-	●	●
3	08.855 NUT; CASE 08.845	8-98139-394-1	03	1	1310-	●	●
10	08.855 MOTOR ASM; FAN,BLOWER UNIT	8-98139-427-0	01	1	1310-	●	●
14	08.857 SCREW; COVER TO CASE 08.852	8-98139-395-1	03	1	1310-	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98196-258-0	01	1	1310-1410	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98294-587-0	01	1	1411-	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98139-413-0	01	1	1310-1410	●	●
23	08.857 SHUTTER; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98294-586-0	01	1	1411-	●	●
34	08.856 LINING; BLOWER UNIT	8-98139-426-1	01	1	1310-	●	●
37	09.786 LEVER; MODE LEVER AIR CONDITIONER MANUAL CONT(C60)	8-98139-417-0	01	1	1310-	●	●
37	09.786 LEVER; MODE LEVER AIR CONDITIONER AUTOMATIC CONT(C61)	8-98195-045-0	01	1	1310-	●	●
38	09.787 CLIP; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98139-422-1	01	1	1310-	●	●
39	09.786 LEVER; SHUTTER,BLOWER UNIT	8-98139-416-0	01	1	1310-	●	●
42	08.857 FILTER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98139-428-0	01	1	1310-	●	●
50	08.857 COVER; BLOWER UNIT POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-650-0	01	1	1310-	●	●
78	08.857 SCREW; CASE TO CASE 08.852	8-98139-395-1	01	1	1310-	●	●
104	08.855 RESISTOR; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98183-234-0	01	1	1310-	●	●
105	08.855 SCREW; RESISTOR AIR CONDITIONER MANUAL CONT(C60) 08.852	8-98139-395-1	02	1	1310-	●	●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98233-640-0	01	1	1310-	●	●
141	08.857 CASE ASM; BLOWER UNIT AIR CONDITIONER AUTOMATIC CONT(C61)	8-98233-641-0	01	1	1310-	●	●
142	08.857 CASE ASM AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-648-0	01	1	1310-	●	●
142	08.857 CASE ASM AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-649-0	01	1	1310-	●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-646-0	01	1	1310-	●	●
142	08.857 CASE ASM AIR CONDITIONER AUTOMATIC CONT(C61) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM>	8-98233-643-0	01	1	1310-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
