◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-72 - COOLER UNIT ▶
8-72 — COOLER UNIT (#130627) — 29 parça

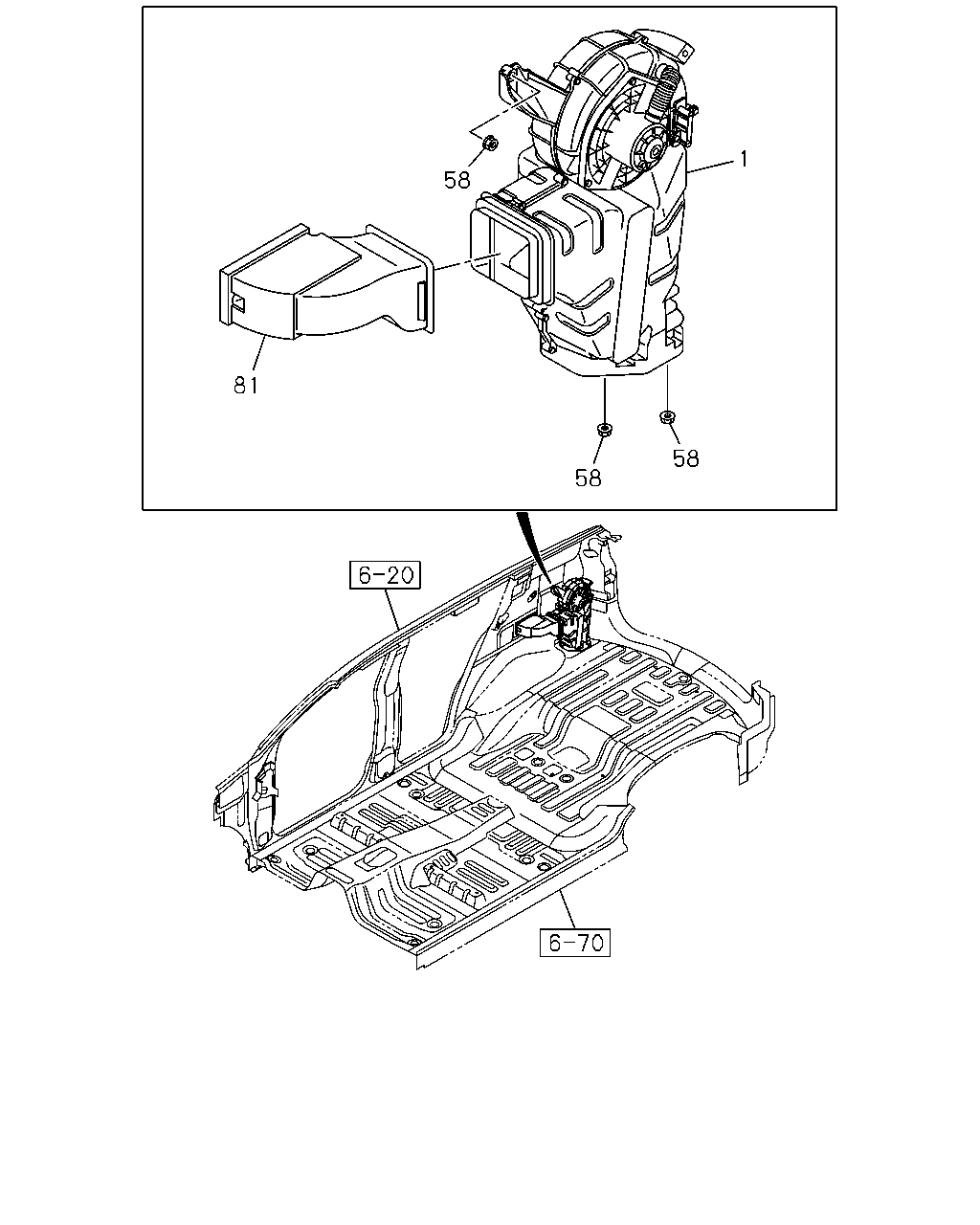

çizim 386002
58 81 58 58 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.218 COOLING UNIT; RR
REAR COOLER WO/HEATER<C69> 		8-98192-297-3 01 1 1310- ● ●
58 08.852 NUT; CASE
REAR COOLER WO/HEATER<C69> 08.915 M6 FLANGE 		8-98055-704-0 03 1 1310- ● ●
81 09.215 DUCT; RR COOLER
REAR COOLER WO/HEATER<C69> 		8-98192-306-1 01 1 1310- ● ●

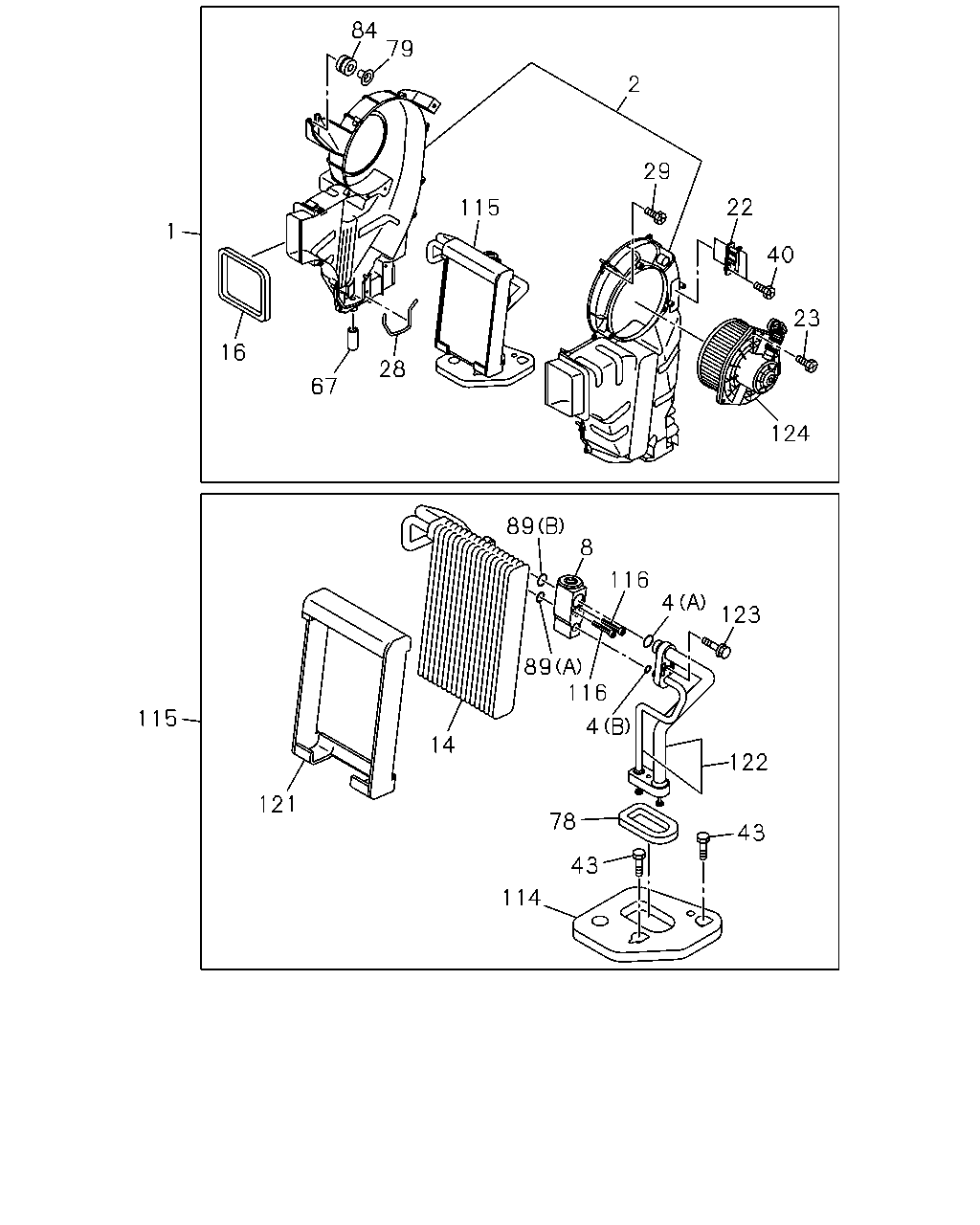

çizim 386677
84 1 16 28 67 115 79 2 29 40 22 23 124 89 8 116 4 123 89 14 121 115 114 78 43 43 4 122 116
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.218 COOLING UNIT; RR
REAR COOLER WO/HEATER<C69> 		8-98192-297-3 01 1 1310- ● ●
2 08.854 CASE; RR COOLER
REAR COOLER WO/HEATER<C69> 		8-98249-810-0 01 1 1310- ● ●
4 09.214 GASKET; VLV TO PIPE
REAR COOLER WO/HEATER<C69> (A) ID=13.6 		8-98249-825-0 01 1 1310- ● ●
4 09.214 GASKET; VLV TO PIPE
REAR COOLER WO/HEATER<C69> (B) ID=6.8 		8-98249-826-0 01 1 1310- ● ●
8 09.213 VALVE; EXPANSION
REAR COOLER WO/HEATER<C69> 		8-98249-821-0 01 1 1310- ● ●
14 09.213 EVAPORATOR; RR COOLER
REAR COOLER WO/HEATER<C69> 		8-98249-820-0 01 1 1310- ● ●
16 09.211 LINING; CASE
REAR COOLER WO/HEATER<C69> 		8-98249-817-0 01 1 1310- ● ●
22 08.855 RESISTOR; RR COOLER
REAR COOLER WO/HEATER<C69> 		8-97321-273-0 01 1 1310- ● ●
23 08.852 SCREW; CASE TO MOTOR
REAR COOLER WO/HEATER<C69> 		8-98249-818-0 03 1 1310- ● ●
28 09.211 LINING; CASE
REAR COOLER WO/HEATER<C69> 		8-98249-815-0 01 1 1310- ● ●
29 08.852 SCREW; CASE
REAR COOLER WO/HEATER<C69> 		8-98249-818-0 13 1 1310- ● ●
40 08.852 SCREW; RESISTOR FIX,COOLER UNIT
REAR COOLER WO/HEATER<C69> 		8-98249-818-0 02 1 1310- ● ●
43 09.215 BOLT; COOLER UNIT
REAR COOLER WO/HEATER<C69> 		8-98249-830-0 02 1 1310- ● ●
67 08.854 HOSE; DRAIN
REAR COOLER WO/HEATER<C69> 		8-98249-814-0 01 1 1310- ● ●
78 08.852 GROMMET; COOLER UNIT
REAR COOLER WO/HEATER<C69> 08.552 		8-98249-827-0 01 1 1310- ● ●
79 09.190 COLLAR; COOLER UNIT
REAR COOLER WO/HEATER<C69> 		8-98249-813-0 01 1 1310- ● ●
84 09.215 RUBBER
REAR COOLER WO/HEATER<C69> 		8-98249-812-0 01 1 1310- ● ●
89 09.214 GASKET; EVAP TO VLV
REAR COOLER WO/HEATER<C69> (A) ID=10.7 		8-98249-823-0 01 1 1310- ● ●
89 09.214 GASKET; EVAP TO VLV
REAR COOLER WO/HEATER<C69> (B) ID=14.3 		8-98249-824-0 01 1 1310- ● ●
114 09.215 SEAL; CASE
REAR COOLER WO/HEATER<C69> 		8-98249-816-0 01 1 1310- ● ●
115 09.210 EVAPORATOR ASM; COOLING UNIT
REAR COOLER WO/HEATER<C69> 		8-98249-819-0 01 1 1310- ● ●
116 09.215 BOLT; EXPANSION VALVE
REAR COOLER WO/HEATER<C69> 		8-98249-822-0 02 1 1310- ● ●
121 08.855 INSULATOR; EVAP
REAR COOLER WO/HEATER<C69> 		8-98251-842-0 01 1 1310- ● ●
122 09.211 PIPE ASM; EVAP
REAR COOLER WO/HEATER<C69> 		8-98251-843-0 01 1 1310- ● ●
123 08.852 SCREW
REAR COOLER WO/HEATER<C69> 		8-98249-828-0 01 1 1310- ● ●
124 08.855 BLOWER ASM
REAR COOLER WO/HEATER<C69> 		8-98249-829-0 01 1 1310- ● ●
