8-60 — HEATER UNIT; FRONT (#130624) — 59 parça

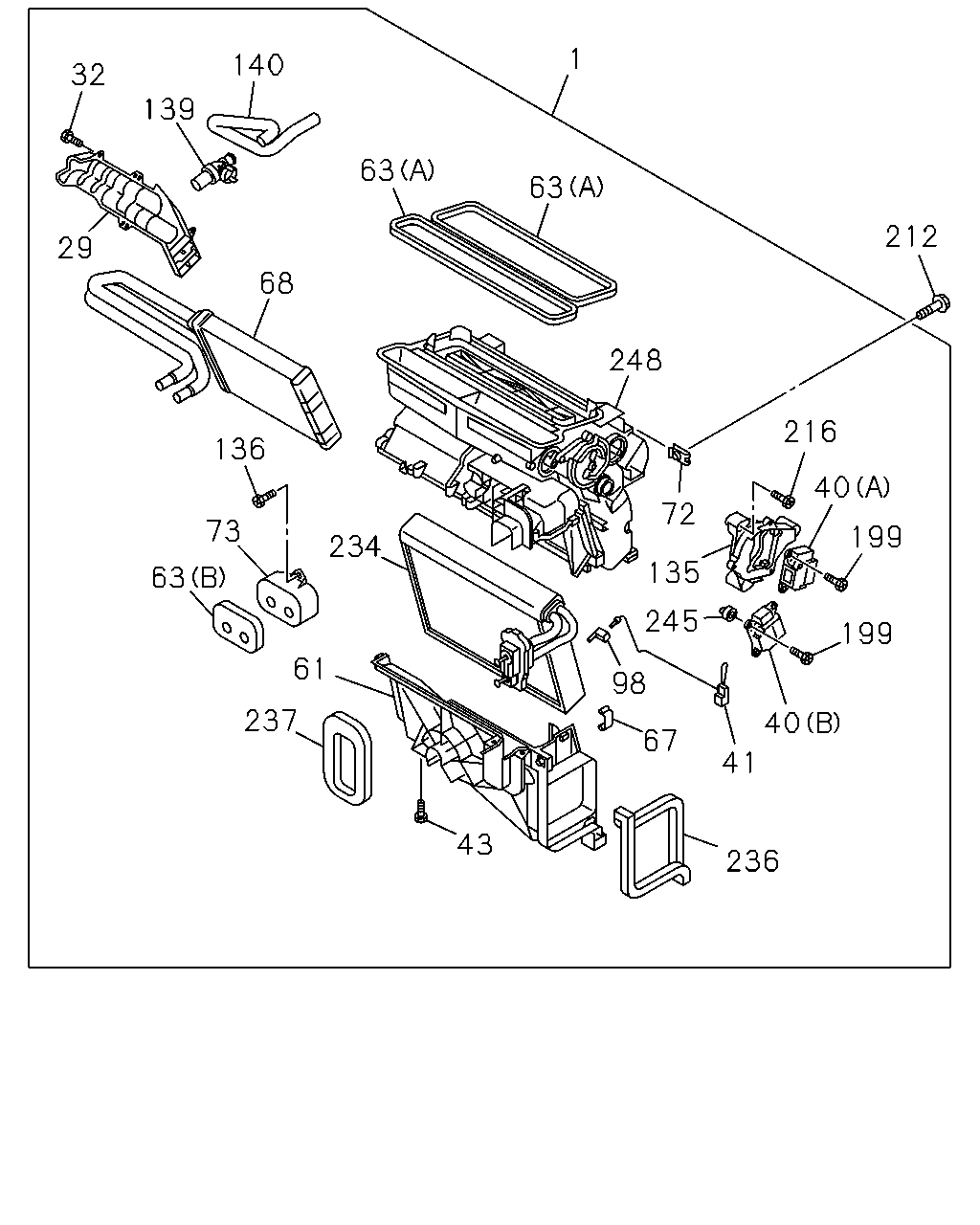

çizim 386782
1 212 63 248 216 40 199 199 72 135 245 98 67 41 236 43 61 237 234 136 68 63 140 139 32 29 73 63 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-034-1 01 1 1310- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-036-1 01 1 1310- ● ●
29 08.857 COVER; HTR UNIT 8-98233-590-0 01 1 1310- ● ●
32 08.852 SCREW; HTR UNIT 8-98233-593-0 04 1 1310- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (A) 		8-98139-385-0 01 1 1310- ● ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (B) 		8-98139-386-0 01 1 1310- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1310- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1310- ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 15 1 1310- ● ●
61 08.854 CASE; HTR UNIT 8-98233-572-0 01 1 1310- ● ●
63 08.856 LINING; HTR UNIT
(A) 		8-98139-358-0 02 1 1310- ● ●
63 08.856 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1310- ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1310- ● ●
68 08.854 CORE; HTR UNIT 8-98139-374-0 01 1 1310- ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1310- ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1310- ● ●
98 08.854 CLIP; HTR UNIT 8-98157-122-0 01 1 1310- ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1310- ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1310- ● ●
139 08.845 ASPIRATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-392-1 01 1 1310- ● ●
140 08.845 HOSE; AIR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-393-1 01 1 1310- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1310- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1310- ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1310- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1310- ● ●
234 08.854 EVAPORATOR ASM; HEATER 8-98139-376-1 01 1 1310- ● ●
236 08.855 GASKET; HEATER 8-98139-357-0 01 1 1310- ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1310- ● ●
245 08.854 ADAPTER; HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-390-0 01 1 1310- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-569-0 01 1 1310- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-571-0 01 1 1310- ● ●

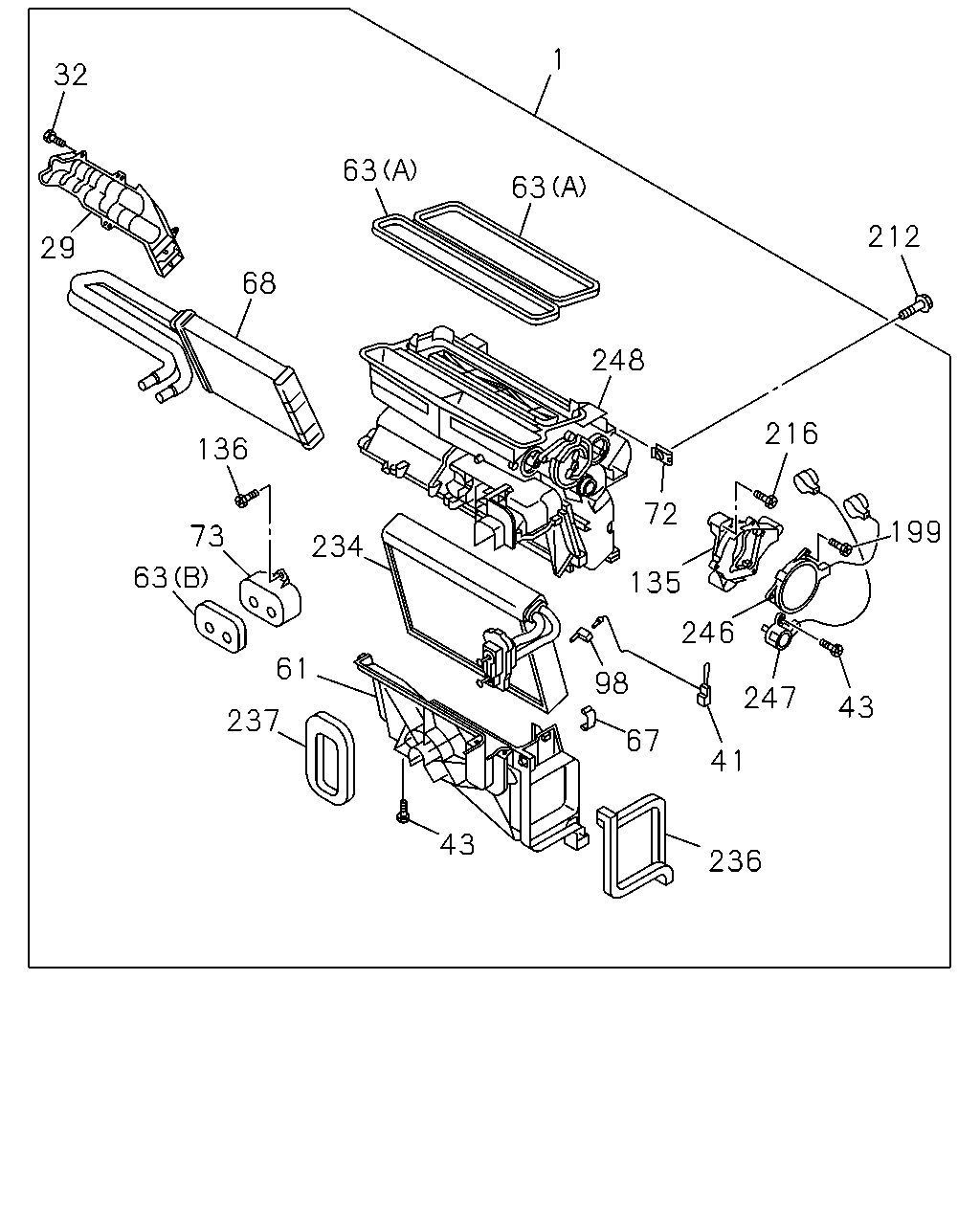

çizim 386802
1 212 63 63 32 29 68 248 216 199 72 43 247 246 135 136 234 73 63 61 237 43 236 41 67 98
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-034-1 01 1 1310- ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-036-1 01 1 1310- ● ●
29 08.857 COVER; HTR UNIT 8-98233-590-0 01 1 1310- ● ●
32 08.852 SCREW; HTR UNIT 8-98233-593-0 04 1 1310- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1310- ● ●
41 08.852 THERMOSTAT; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98139-382-0 01 1 1310- ● ●
43 09.786 SCREW; CASE,HTR UNIT
08.852 		8-98233-593-0 15 1 1310- ● ●
61 08.854 CASE; HTR UNIT 8-98233-572-0 01 1 1310- ● ●
63 08.856 LINING; HTR UNIT
(A) 		8-98139-358-0 02 1 1310- ● ●
63 08.856 LINING; HTR UNIT
(B) 		8-98139-361-1 01 1 1310- ● ●
67 08.854 CLIP; HTR UNIT 8-98157-123-0 01 1 1310- ● ●
68 08.854 CORE; HTR UNIT 8-98139-374-0 01 1 1310- ● ●
72 08.845 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1310- ● ●
73 08.845 PLATE; HTR UNIT 8-98233-591-0 01 1 1310- ● ●
98 08.854 CLIP; HTR UNIT 8-98157-122-0 01 1 1310- ● ●
135 08.854 COVER; HTR 8-98139-377-0 01 1 1310- ● ●
136 08.850 SCREW; PLATE
08.852 		8-98233-593-0 02 1 1310- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER MANUAL CONT(C60) 08.852 		8-98233-593-0 05 1 1310- ● ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 		8-98233-593-0 04 1 1310- ● ●
212 09.262 BOLT; HTR UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 05 1 1310- ● ●
216 08.845 SCREW; COVER,HEATER UNIT
08.852 		8-98233-593-0 03 1 1310- ● ●
234 08.854 EVAPORATOR ASM; HEATER 8-98139-376-1 01 1 1310- ● ●
236 08.855 GASKET; HEATER 8-98139-357-0 01 1 1310- ● ●
237 08.855 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1310- ● ●
246 08.852 ACTUATOR; MODE
AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1310- ● ●
247 08.852 ACTUATOR; TEMP
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1310- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-569-0 01 1 1310- ● ●
248 08.854 CASE ASM; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98233-571-0 01 1 1310- ● ●
