Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#130623) — 61 parça

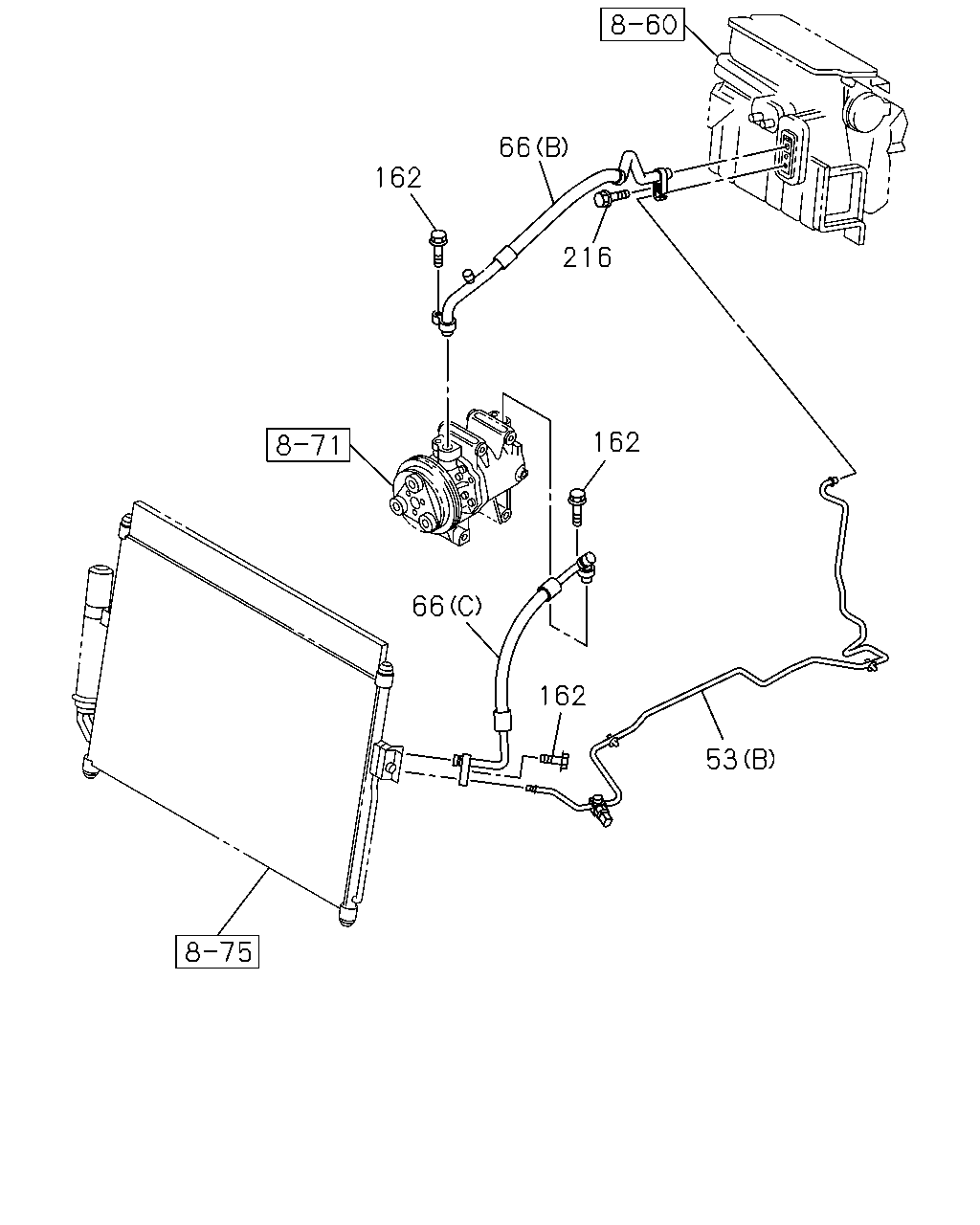

162 66 216 162 66 162 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	09.220 PIPE; RECEIVER TANK TO EVAP REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE	8-98197-724-1	01	1	1310-	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE	8-98129-150-4	01	1	1310-	●	●
66	09.225 HOSE; FLEX,A/C EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE	8-98209-993-0	01	1	1310-	●	●
66	09.225 HOSE; FLEX,A/C REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE	8-98197-721-1	01	1	1310-	●	●
66	09.225 HOSE; FLEX,A/C (C) HIGH PRESSURE	8-98129-345-1	01	1	1310-	●	●
162	09.173 BOLT; FLEX HOSE 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1310-	●	●
216	09.173 BOLT; HOSE FIX 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1310-	●	●

67 67 147 66 66 53 67 147 67 202 122 146 123 123 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	09.220 PIPE; RECEIVER TANK TO EVAP REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE	8-98197-724-1	01	1	1310-	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE	8-98129-150-4	01	1	1310-	●	●
66	09.225 HOSE; FLEX,A/C EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE	8-98209-993-0	01	1	1310-	●	●
66	09.225 HOSE; FLEX,A/C REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE	8-98197-721-1	01	1	1310-	●	●
66	09.225 HOSE; FLEX,A/C (C) HIGH PRESSURE	8-98129-345-1	01	1	1310-	●	●
67	09.260 GASKET; FLEX HOSE REAR COOLER WO/HEATER<C69> 09.195 (D) SCAL	8-97919-270-0	01	1	1310-	●	●
67	09.260 GASKET; FLEX HOSE (B)	8-98164-687-0	01	1	1310-	●	●
67	09.260 GASKET; FLEX HOSE (C)	8-98164-688-0	01	1	1310-	●	●
67	09.260 GASKET; FLEX HOSE (A)	8-98193-624-0	02	1	1310-	●	●
122	09.225 GASKET	8-98164-690-0	01	1	1310-	●	●
123	09.195 GASKET; RECEIVER PIPE EXC. REAR COOLER WO/HEATER<C69>	8-98164-689-0	02	1	1310-	●	●
123	09.195 GASKET; RECEIVER PIPE REAR COOLER WO/HEATER<C69>	8-98164-689-0	03	1	1310-	●	●
146	09.196 CLIP; RECEIVER PIPE REAR COOLER WO/HEATER<C69> (A)	8-97370-357-0	01	1	1310-	●	●
146	09.196 CLIP; RECEIVER PIPE (B)	8-98193-622-0	02	1	1310-	●	●
147	09.242 CAP; FLEX HOSE (A)	8-98193-623-0	01	1	1310-	●	●
147	09.242 CAP; FLEX HOSE (B)	8-98193-625-0	01	1	1310-	●	●
202	09.275 SWITCH; PRESSURE	8-98164-691-0	01	1	1310-	●	●

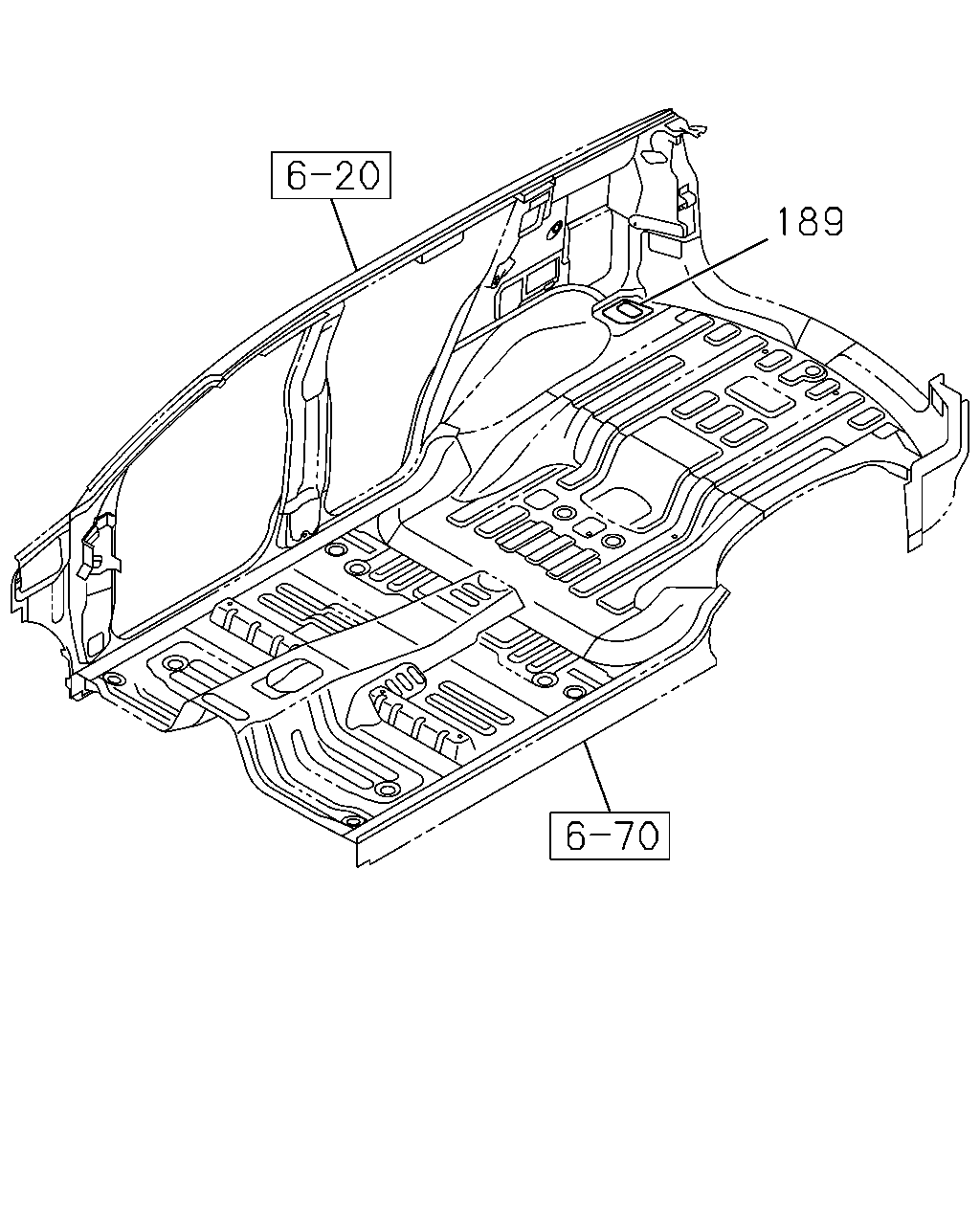

189

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	189	09.225 GROMMET EXC. REAR COOLER WO/HEATER<C69>	8-98192-298-0	01	1	1310-	●	●

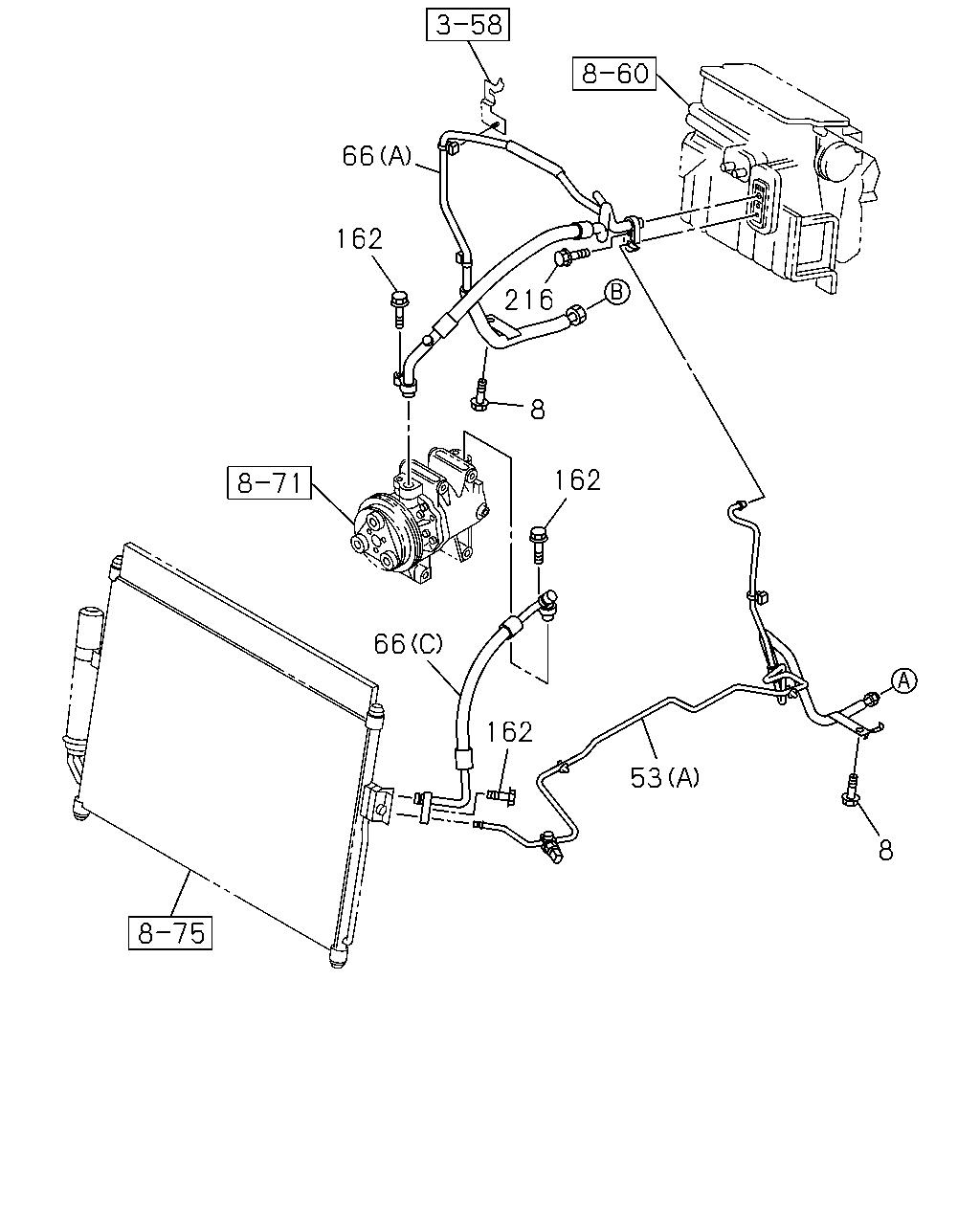

66 162 216 8 162 66 162 53 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	09.242 BOLT; CLIP REAR COOLER WO/HEATER<C69> 03.162 M6X20 FLANGE	0-28650-620-0	10	1	1310-	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE	8-98197-724-1	01	1	1310-	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE	8-98129-150-4	01	1	1310-	●	●
66	09.225 HOSE; FLEX,A/C EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE	8-98209-993-0	01	1	1310-	●	●
66	09.225 HOSE; FLEX,A/C REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE	8-98197-721-1	01	1	1310-	●	●
66	09.225 HOSE; FLEX,A/C (C) HIGH PRESSURE	8-98129-345-1	01	1	1310-	●	●
162	09.173 BOLT; FLEX HOSE 06.216 M8X25 FLANGE	0-28650-825-0	03	1	1310-	●	●
216	09.173 BOLT; HOSE FIX 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1310-	●	●

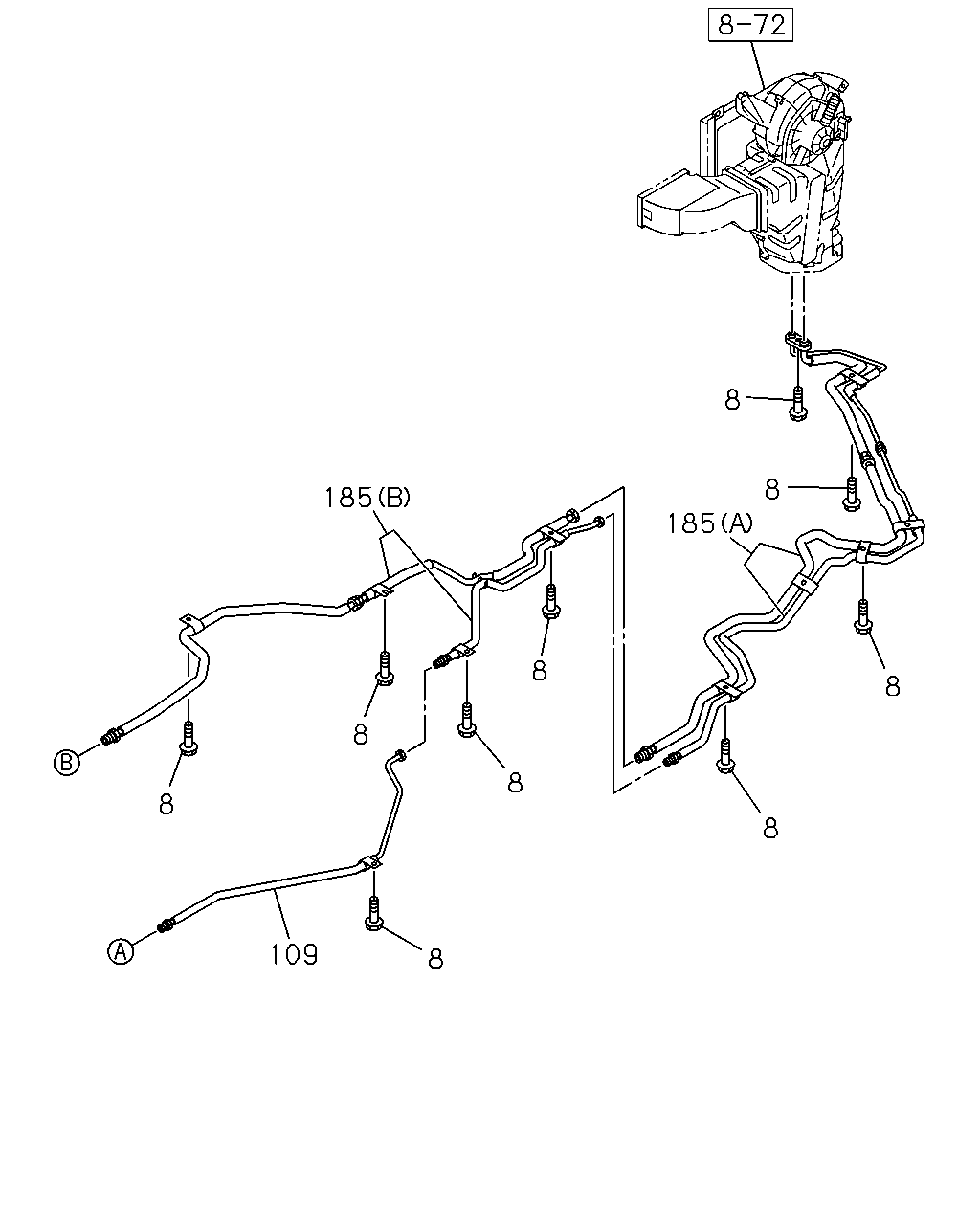

8 109 8 8 185 8 8 8 8 185 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	09.242 BOLT; CLIP REAR COOLER WO/HEATER<C69> 03.162 M6X20 FLANGE	0-28650-620-0	10	1	1310-	●	●
109	09.220 PIPE; PIPE TO PIPE REAR COOLER WO/HEATER<C69>	8-98197-727-0	01	1	1310-	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO REAR COOLER WO/HEATER<C69> (A)	8-98197-725-1	01	1	1310-	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO REAR COOLER WO/HEATER<C69> (B)	8-98197-726-1	01	1	1310-	●	●

66 66 53 123 146 123 123 146 146 122 202 67 150 150 147 67 67 147 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	09.220 PIPE; RECEIVER TANK TO EVAP REAR COOLER WO/HEATER<C69> (A) HIGH PRESSURE	8-98197-724-1	01	1	1310-	●	●
53	09.220 PIPE; RECEIVER TANK TO EVAP EXC. REAR COOLER WO/HEATER<C69> (B) HIGH PRESSURE	8-98129-150-4	01	1	1310-	●	●
66	09.225 HOSE; FLEX,A/C EXC. REAR COOLER WO/HEATER<C69> (B) LOW PRESSURE	8-98209-993-0	01	1	1310-	●	●
66	09.225 HOSE; FLEX,A/C REAR COOLER WO/HEATER<C69> (A) LOW PRESSURE	8-98197-721-1	01	1	1310-	●	●
66	09.225 HOSE; FLEX,A/C (C) HIGH PRESSURE	8-98129-345-1	01	1	1310-	●	●
67	09.260 GASKET; FLEX HOSE REAR COOLER WO/HEATER<C69> 09.195 (D) SCAL	8-97919-270-0	01	1	1310-	●	●
67	09.260 GASKET; FLEX HOSE (B)	8-98164-687-0	01	1	1310-	●	●
67	09.260 GASKET; FLEX HOSE (C)	8-98164-688-0	01	1	1310-	●	●
67	09.260 GASKET; FLEX HOSE (A)	8-98193-624-0	02	1	1310-	●	●
122	09.225 GASKET	8-98164-690-0	01	1	1310-	●	●
123	09.195 GASKET; RECEIVER PIPE EXC. REAR COOLER WO/HEATER<C69>	8-98164-689-0	02	1	1310-	●	●
123	09.195 GASKET; RECEIVER PIPE REAR COOLER WO/HEATER<C69>	8-98164-689-0	03	1	1310-	●	●
146	09.196 CLIP; RECEIVER PIPE REAR COOLER WO/HEATER<C69> (A)	8-97370-357-0	01	1	1310-	●	●
146	09.196 CLIP; RECEIVER PIPE (B)	8-98193-622-0	02	1	1310-	●	●
147	09.242 CAP; FLEX HOSE (A)	8-98193-623-0	01	1	1310-	●	●
147	09.242 CAP; FLEX HOSE (B)	8-98193-625-0	01	1	1310-	●	●
150	09.242 CLIP; HOSE REAR COOLER WO/HEATER<C69> 09.196	8-97370-357-0	02	1	1310-	●	●
202	09.275 SWITCH; PRESSURE	8-98164-691-0	01	1	1310-	●	●

109 116 116 116 116 116 185 185 116 116 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
109	09.220 PIPE; PIPE TO PIPE REAR COOLER WO/HEATER<C69>	8-98197-727-0	01	1	1310-	●	●
116	09.225 GASKET; PIPE REAR COOLER WO/HEATER<C69> 09.260 (A)	8-97321-351-0	01	1	1310-	●	●
116	09.225 GASKET; PIPE REAR COOLER WO/HEATER<C69> 09.260 (B)	8-97321-353-0	03	1	1310-	●	●
116	09.225 GASKET; PIPE REAR COOLER WO/HEATER<C69> 09.195 (C) SCAL	8-97919-270-0	04	1	1310-	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO REAR COOLER WO/HEATER<C69> (A)	8-98197-725-1	01	1	1310-	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO REAR COOLER WO/HEATER<C69> (B)	8-98197-726-1	01	1	1310-	●	●
