◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#130621) — 20 parça

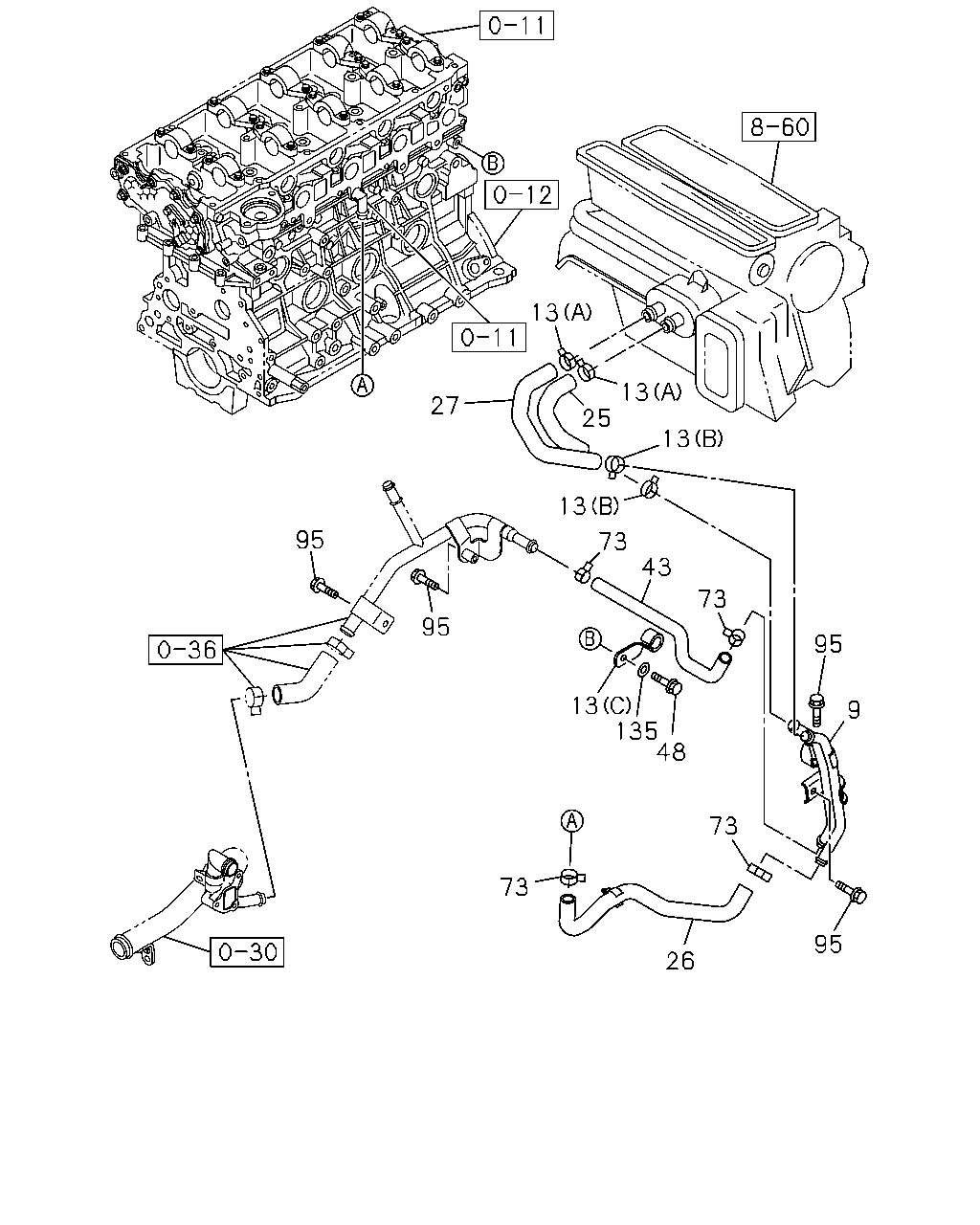

çizim 386780
27 13 13 25 13 13 73 43 73 95 9 95 73 26 73 13 135 48 95 95
BalonParca AdiParca NoAdetTipApplied Date A B
9 08.846 PIPE; HTR
A/T 5 SPEED-AISIN(MA1) 		8-98228-412-0 01 1 1310- ●
9 08.846 PIPE; HTR 8-98228-412-0 01 1 1310- ●
13 08.846 CLIP; HTR HOSE
A/T 5 SPEED-AISIN(MA1) 02.559 (C) ID=25 L=54 		1-09700-392-1 01 1 1310- ●
13 08.846 CLIP; HTR HOSE
02.559 (C) ID=25 L=54 		1-09700-392-1 01 1 1310- ●
13 08.846 CLIP; HTR HOSE
03.278 (A) ID=22 		8-97359-141-0 02 1 1310- ● ●
13 08.846 CLIP; HTR HOSE
03.417 (B) ID=20.8 		8-98133-607-0 02 1 1310- ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT 8-98129-341-3 01 1 1310- ● ●
26 08.846 HOSE; HTR
A/T 5 SPEED-AISIN(MA1) 		8-98228-459-0 01 1 1310- ●
26 08.846 HOSE; HTR 8-98228-459-0 01 1 1310- ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI 8-98129-339-3 01 1 1310- ● ●
43 08.846 HOSE; WATER,OUTLET,HTR
A/T 5 SPEED-AISIN(MA1) 		8-98239-131-0 01 1 1310- ●
43 08.846 HOSE; WATER,OUTLET,HTR 8-98239-131-0 01 1 1310- ●
48 09.262 BOLT; CLIP FIX
A/T 5 SPEED-AISIN(MA1) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1310- ●
48 09.262 BOLT; CLIP FIX
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1310- ●
73 08.846 CLIP; HTR HOSE
A/T 5 SPEED-AISIN(MA1) ID=20.8 		8-97944-127-0 04 1 1310- ●
73 08.846 CLIP; HTR HOSE
ID=20.8 		8-97944-127-0 04 1 1310- ●
95 08.866 BOLT; BYPASS PIPE
A/T 5 SPEED-AISIN(MA1) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1310- ●
95 08.866 BOLT; BYPASS PIPE
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 1310- ●
135 08.846 WASHER; PL
A/T 5 SPEED-AISIN(MA1) 03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1310- ●
135 08.846 WASHER; PL
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1310- ●
