◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#130619) — 14 parça

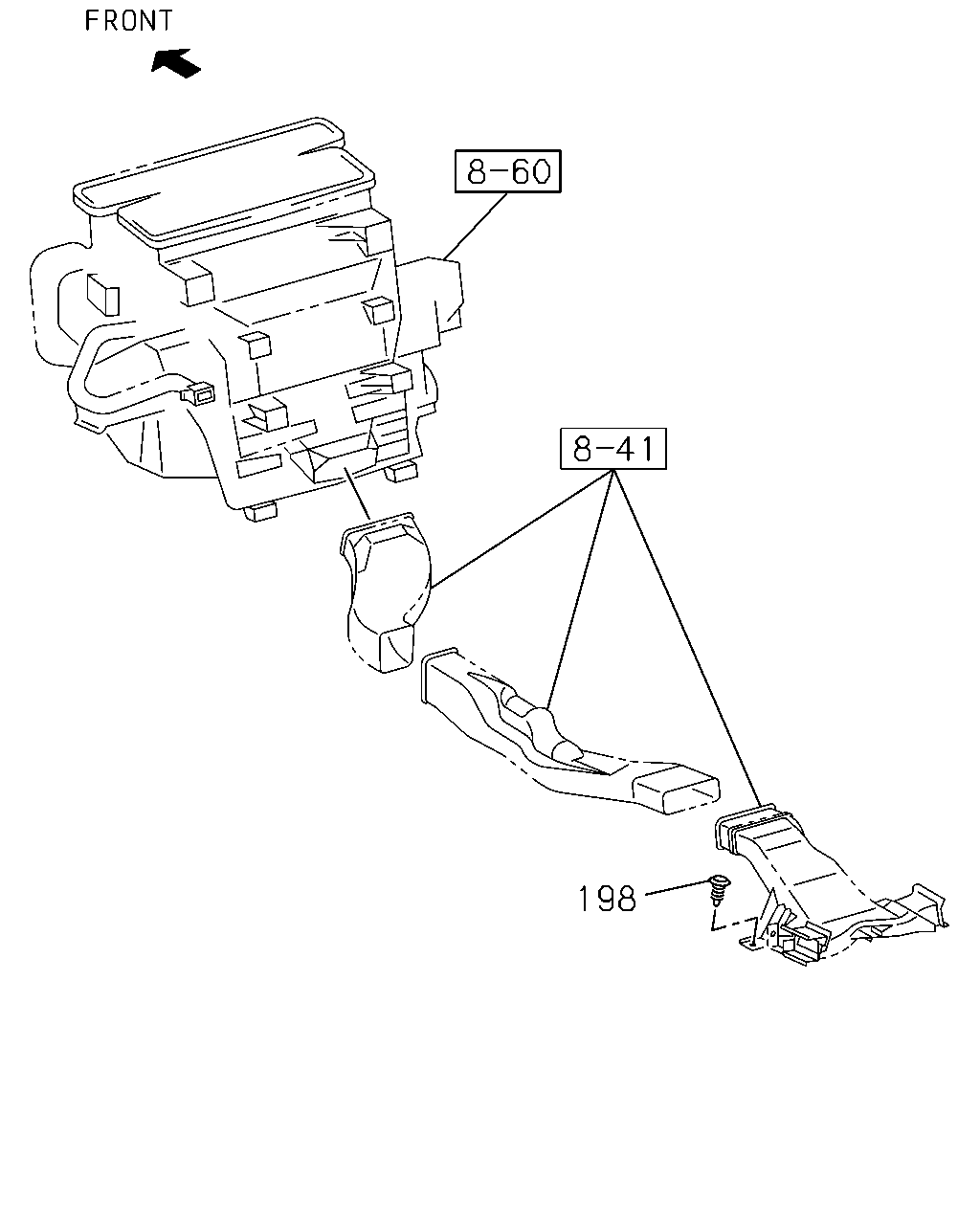

çizim 386032
198
BalonParca AdiParca NoAdetTipApplied Date A B
198 09.787 CLIP; DUCT 8-98147-301-0 02 1 1310- ● ●

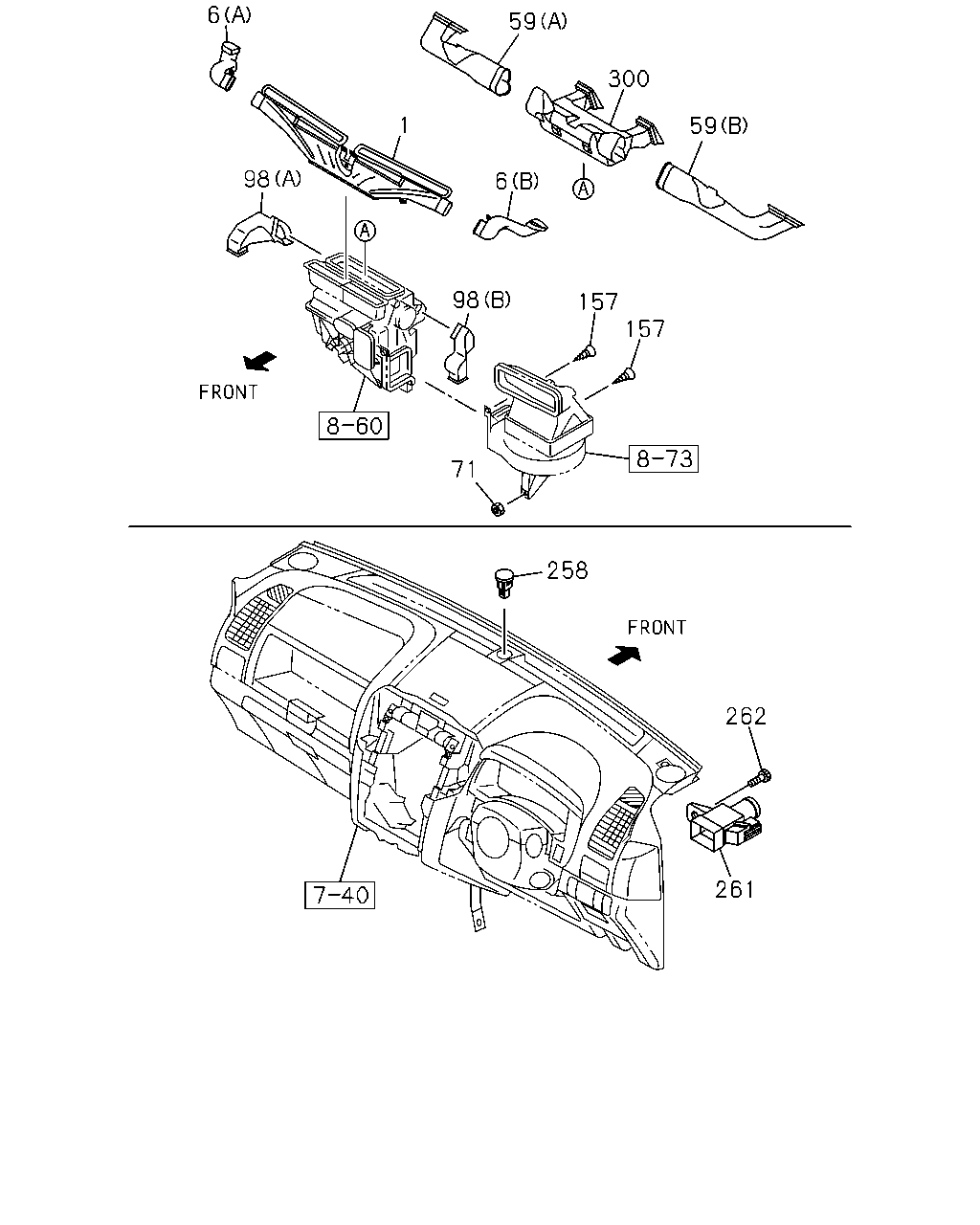

çizim 386673
300 59 157 157 71 98 6 1 98 59 6 258 262 261
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.779 NOZZLE; DEFROSTER,INST PNL 8-98187-101-2 01 1 1310- ● ●
6 09.779 DUCT; SIDE DEFROSTER
(A) 		8-98187-102-0 01 1 1310- ● ●
6 09.779 DUCT; SIDE DEFROSTER
(B) 		8-98187-103-0 01 1 1310- ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(A) 		8-98187-099-0 01 1 1310- ● ●
59 09.786 DUCT; VENT,ASSIST SIDE
(B) 		8-98187-100-0 01 1 1310- ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
03.417 M6 FLANGE 		8-94279-514-0 01 1 1310- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
(B) 		8-98233-054-0 01 1 1310- ● ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
(A) 		8-98233-055-0 01 1 1310- ● ●
157 09.264 SCREW
16.650 M5X16 		8-98167-220-0 02 1 1310- ● ●
258 08.845 SENSOR; SUN
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98103-691-0 01 1 1310- ● ●
261 08.845 SENSOR; IN CAR
AIR CONDITIONER AUTOMATIC CONT(C61) 		8-98103-694-0 01 1 1310- ● ●
262 08.845 SCREW; IN CAR SENSOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.083 M5X16 TAPPING 		8-98167-449-0 01 1 1310- ● ●
300 09.264 DUCT; VENT,CENTER 8-98187-098-0 01 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
