◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#130618) — 18 parça

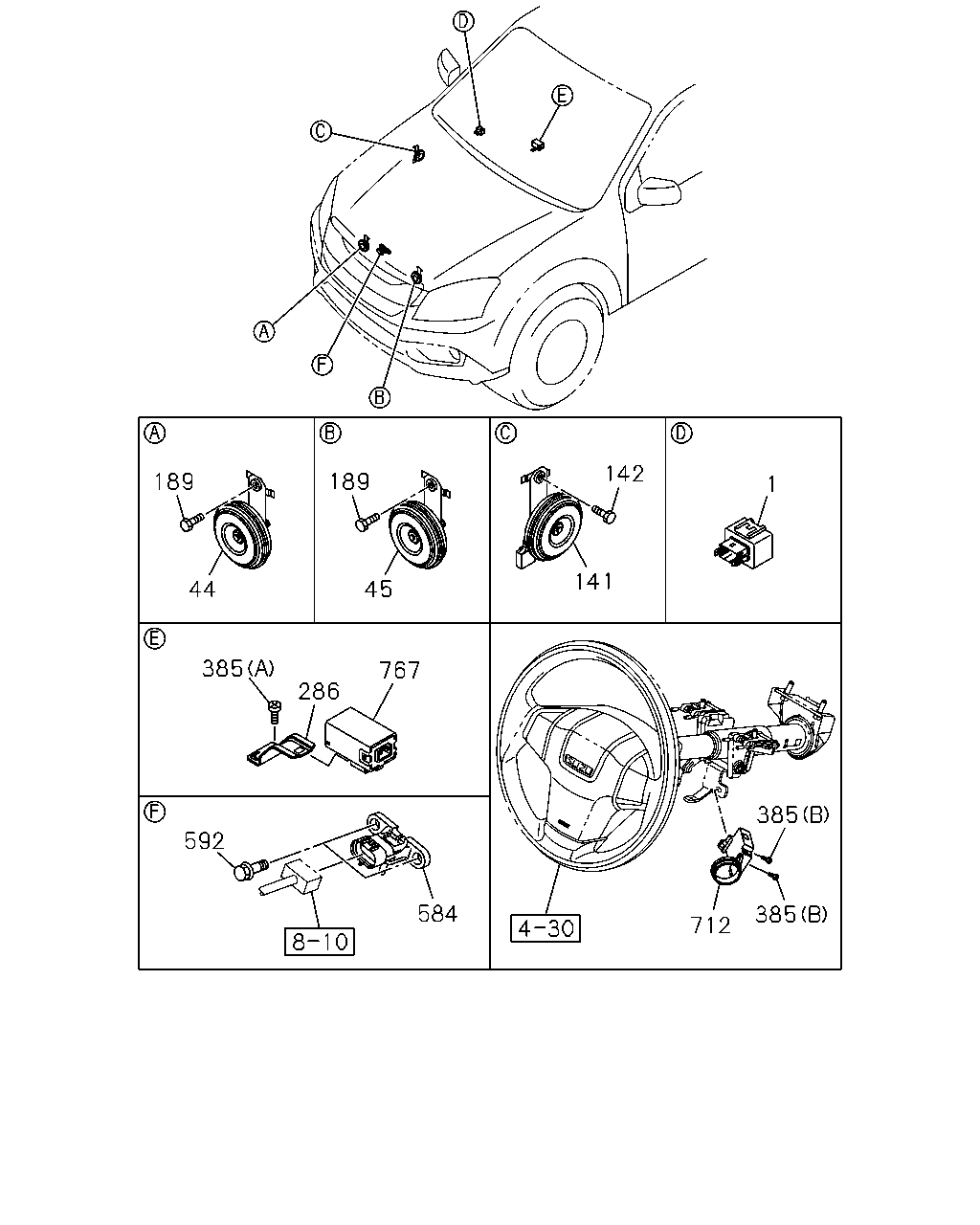

çizim 386725
189 44 189 45 142 141 1 385 286 767 712 385 385 584 592
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER 8-98080-978-0 01 1 1310- ● ●
44 02.810 HORN; HIGH NOTE 8-98084-022-1 01 1 1310- ● ●
45 02.810 HORN; LOW NOTE 8-98084-023-0 01 1 1310- ● ●
141 02.810 HORN; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98164-588-0 01 1 1310- ● ●
142 02.810 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1310-1501 ● ●
142 02.810 BOLT; HORN,ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 02.559 M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1310-1501 ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 1310-1501 ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ●
189 02.812 BOLT; HORN
02.559 M6X14 W/PL WASHER 		8-98164-836-0 01 1 1502- ● ●
286 03.670 BRACKET 8-98102-503-0 01 1 1310- ● ●
385 03.670 BOLT; CONT UNIT
02.510 (B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1310- ● ●
385 03.670 BOLT; CONT UNIT
08.083 (A) M5X16 TAPPING 		8-98167-449-0 01 1 1310- ● ●
584 02.440 SENSOR; PRESSURE
03.331 		8-98020-514-0 01 1 1310- ● ●
592 02.490 BOLT; SENSOR
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1310- ● ●
712 03.670 CONTROL UNIT; ANTI THEFT 8-98123-260-5 01 1 1310-1411 ● ●
712 03.670 CONTROL UNIT; ANTI THEFT 8-98293-154-0 01 1 1412- ● ●
767 07.450 RECEIVER ASM; KEYLESS ENTRY 8-98076-338-1 01 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
