◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#130617) — 15 parça

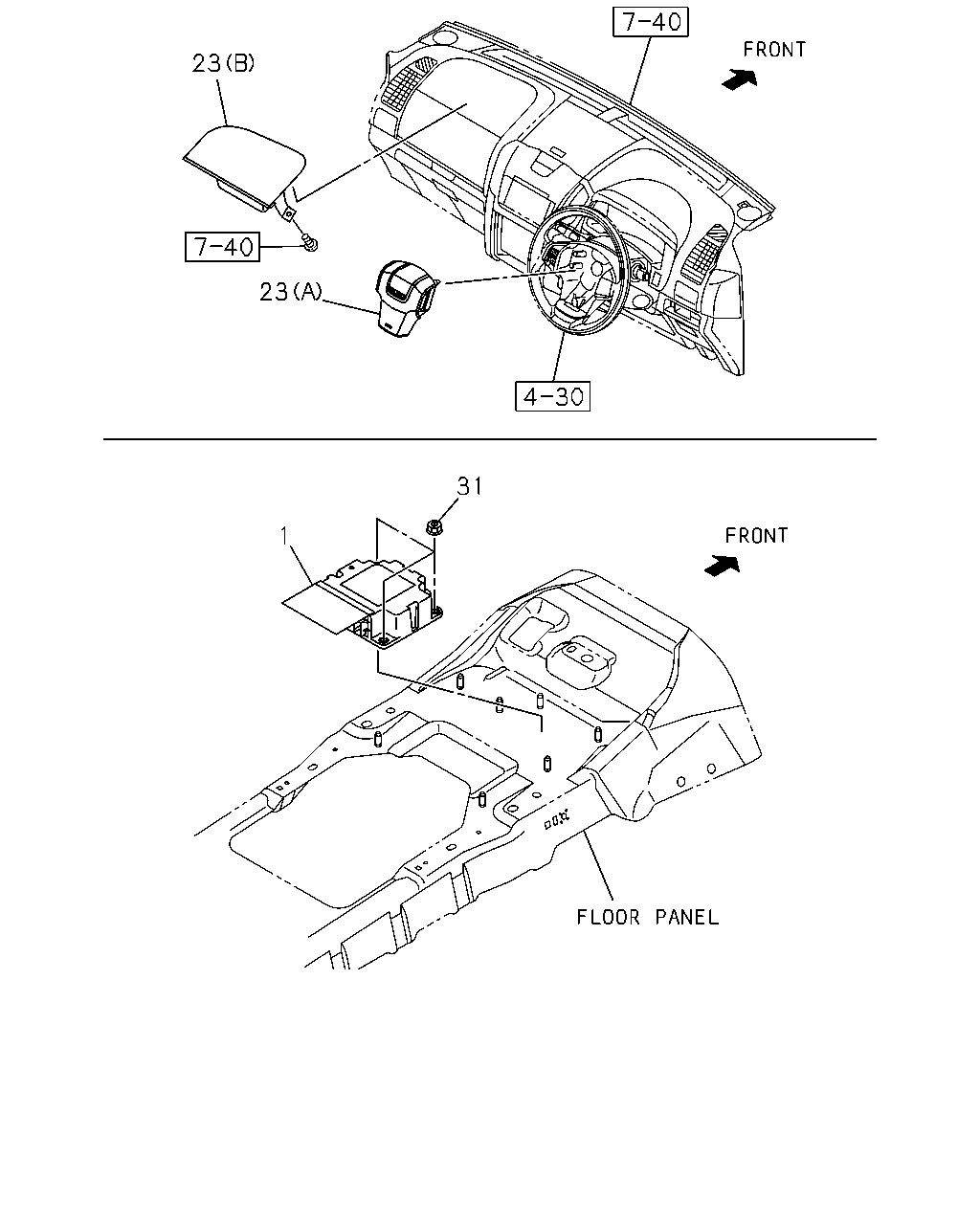

çizim 386225
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.559 CONTROL UNIT; SIR 8-98220-043-1 01 1 1310-1404 ● ●
1 02.559 CONTROL UNIT; SIR 8-98261-127-0 01 1 1405- ● ●
23 02.559 AIR BAG UNIT
(B) BLACK 		8-97428-397-0 01 1 1310- ● ●
23 02.559 AIR BAG UNIT
(A) BLACK 		8-97424-332-0 01 1 1310- ● ●
23 02.559 AIR BAG UNIT
(C) 		8-98187-777-0 01 1 1310- ● ●
23 02.559 AIR BAG UNIT
(C) 		8-98187-778-0 01 1 1310- ● ●
31 14.865 NUT
01.540 M6 FLANGE 		0-91180-206-0 03 1 1310- ● ●
çizim 386672
52 54 23 53
BalonParca AdiParca NoAdetTipApplied Date A B
23 02.559 AIR BAG UNIT
(B) BLACK 		8-97428-397-0 01 1 1310- ● ●
23 02.559 AIR BAG UNIT
(A) BLACK 		8-97424-332-0 01 1 1310- ● ●
23 02.559 AIR BAG UNIT
(C) 		8-98187-777-0 01 1 1310- ● ●
23 02.559 AIR BAG UNIT
(C) 		8-98187-778-0 01 1 1310- ● ●
52 02.559 BOLT; AIR BAG
03.162 M6X20 FLANGE 		0-28650-620-0 06 1 1310- ● ●
53 06.870 PAD; PILLAR
16.165 		8-98232-399-0 01 1 1310- ● ●
53 06.870 PAD; PILLAR
16.165 		8-98232-400-0 01 1 1310- ● ●
54 06.870 CLIP; PAD
16.650 BLACK 		8-97416-699-0 02 1 1310- ● ●
