8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#130616) — 38 parça

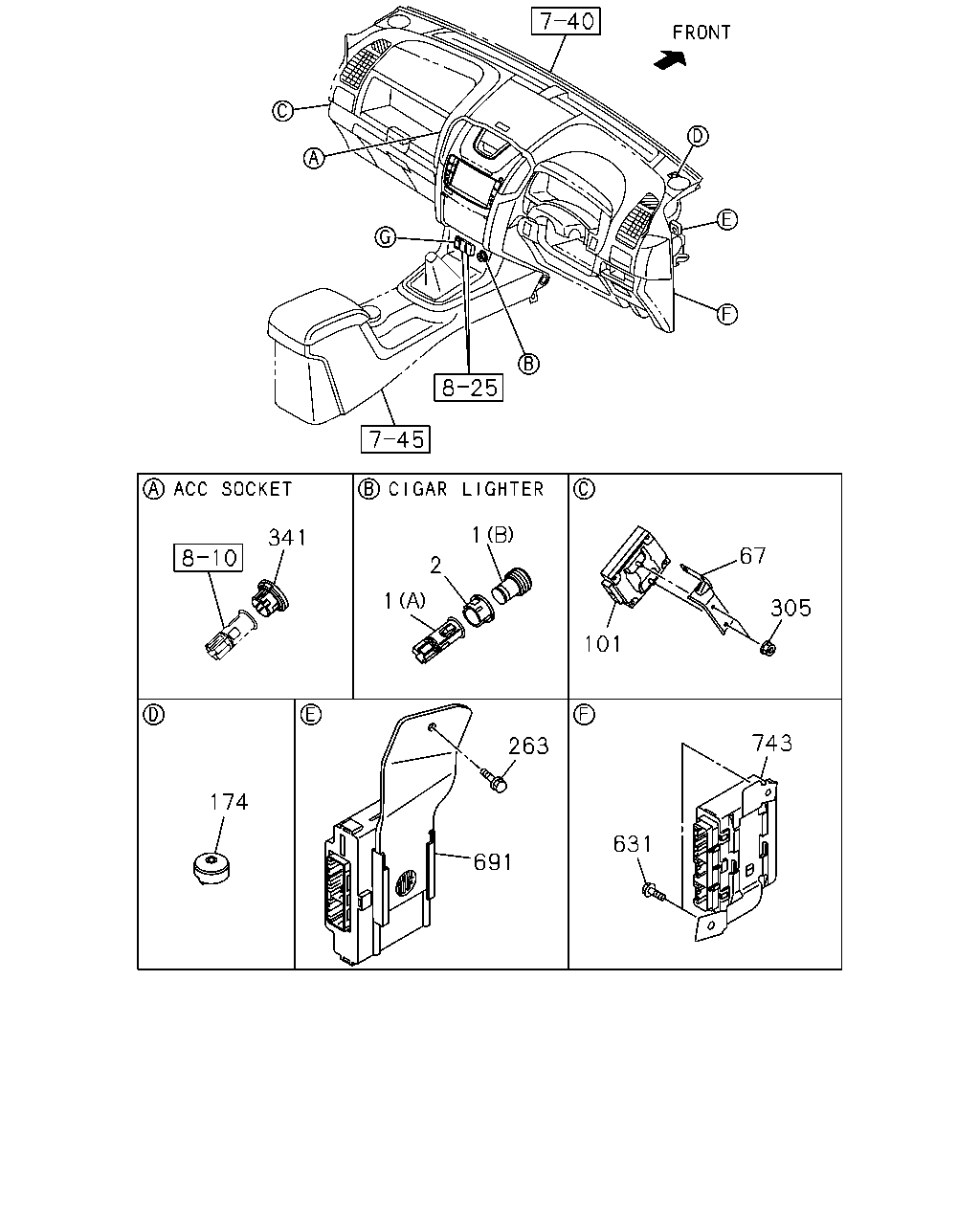

çizim 386820
174 691 263 631 743 67 305 101 1 2 1 341
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.709 LIGHTER; CIGAR
(A) 		8-98123-114-0 01 1 1310- ● ●
1 09.709 LIGHTER; CIGAR
(B) 		8-98123-117-0 01 1 1310- ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98123-118-0 01 1 1310- ● ●
67 03.887 BRACKET; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 		8-98113-342-0 01 1 1310- ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
A/T 5 SPEED-AISIN(MA1) 		8-98239-693-0 01 1 1310-1502 ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
A/T 5 SPEED-AISIN(MA1) 		8-98239-696-0 01 1 1503- ● ●
174 10.485 INDICATOR; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98153-855-0 01 1 1310- ● ●
263 04.115 BOLT; CONT UNIT
02.343 M6X16 FLANGE 		0-28650-616-0 01 1 1310- ●
305 08.915 NUT; CONT UNIT
A/T 5 SPEED-AISIN(MA1) 01.062 M6 FLANGE 		0-91180-106-0 02 1 1310- ● ●
341 04.115 COVER ASM 8-98123-123-0 01 1 1310- ● ●
631 04.054 BOLT; CONT UNIT
09.171 M6X16 FLANGE 		0-28450-616-0 02 1 1310- ● ●
691 04.115 CONTROLLER; TRANSFER 8-98186-110-0 01 1 1310- ●
743 02.510 CONTROL UNIT; BCM 8-98190-500-1 01 1 1310- ● ●

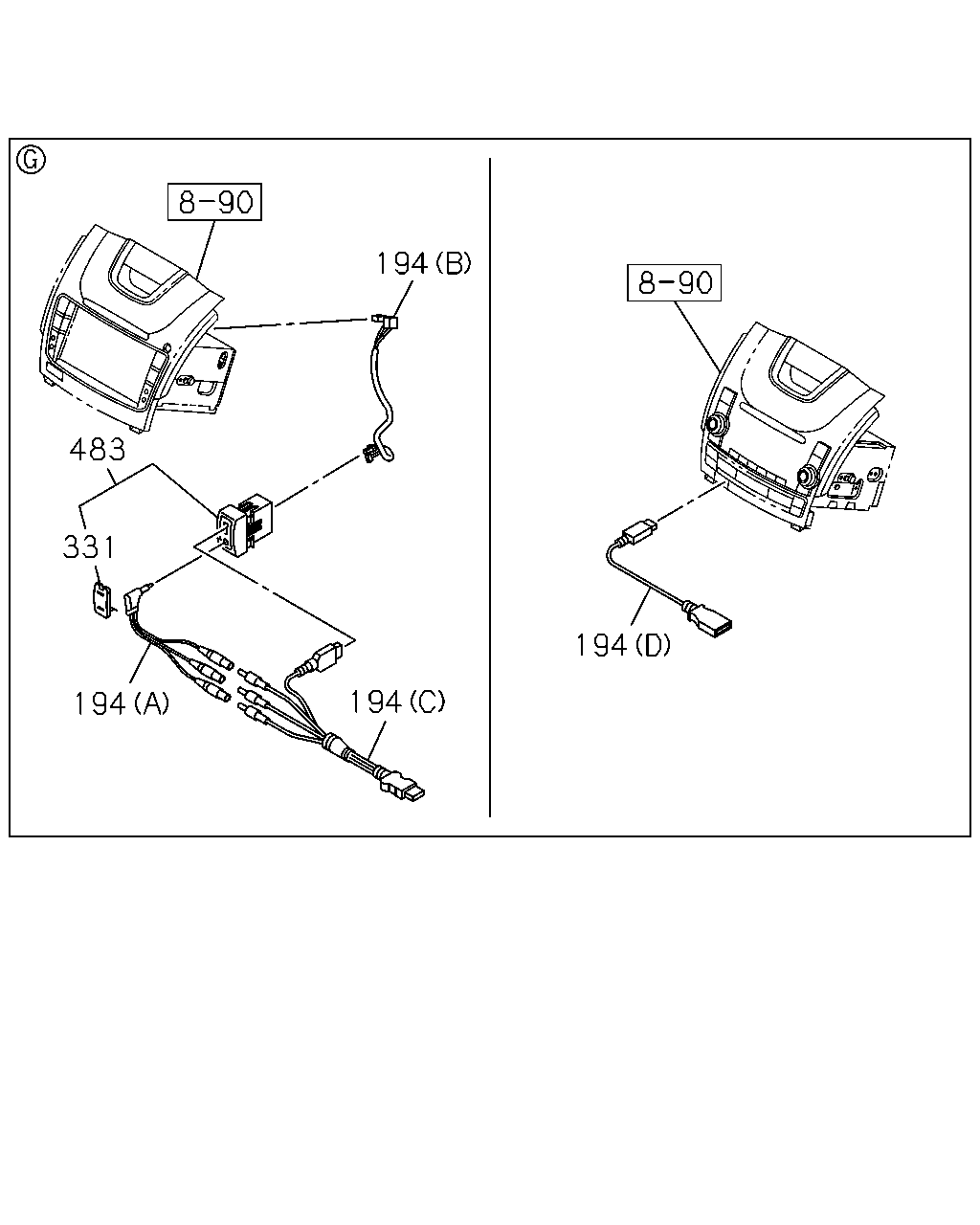

çizim 386863
194 194 194 331 483 194
BalonParca AdiParca NoAdetTipApplied Date A B
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 09.665 (C) 		8-98235-372-0 01 1 1310- ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 09.665 (D) 		8-98193-631-0 01 1 1310- ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (B) 		8-98209-263-0 01 1 1310- ● ●
194 02.480 CABLE; EXT,SOUND PLAY BOX
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) (A) 		8-98209-351-0 01 1 1310- ● ●
331 16.081 COVER; SW
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98217-463-0 01 1 1310- ● ●
483 09.755 SWITCH
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98209-259-1 01 1 1310- ● ●

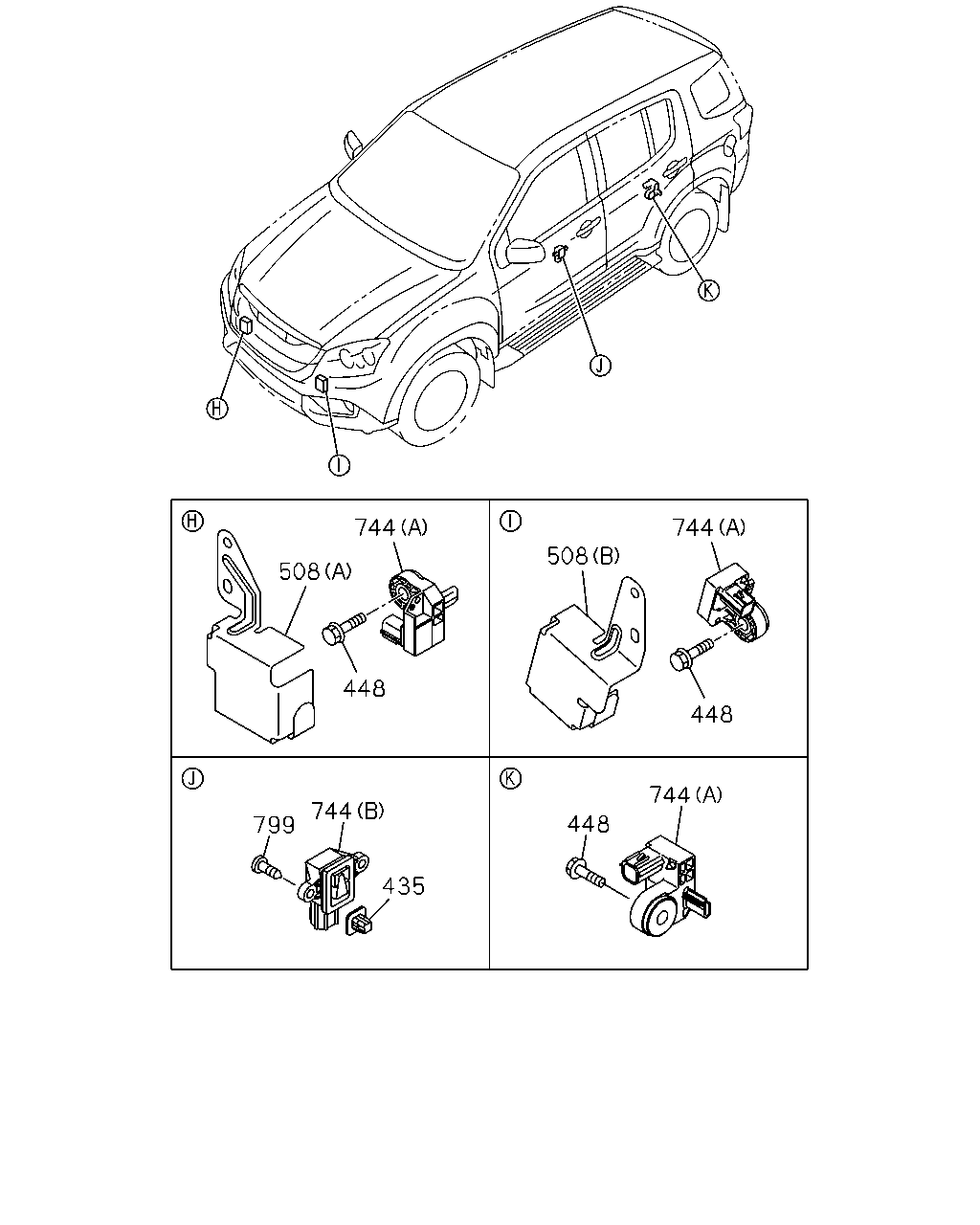

çizim 386903
744 508 508 744 448 744 448 744 435 799 448
BalonParca AdiParca NoAdetTipApplied Date A B
435 04.342 GROMMET
12.182 D=7.9X7.9 L=11.4 M5 		8-94367-528-0 04 1 1310- ● ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1310- ● ●
448 02.500 BOLT; SENSOR
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 1310- ● ●
508 03.682 PROTECTOR
(A) 		8-98165-179-0 01 1 1310- ● ●
508 03.682 PROTECTOR
(B) 		8-98165-180-0 01 1 1310- ● ●
744 03.682 SENSOR; AIR BAG
(B) 		8-98146-939-1 02 1 1310- ● ●
744 03.682 SENSOR; AIR BAG
(A) 		8-98156-002-0 04 1 1310- ● ●
799 03.682 SCREW; SENSOR
08.083 M5X16 TAPPING 		8-98167-449-0 04 1 1310- ● ●

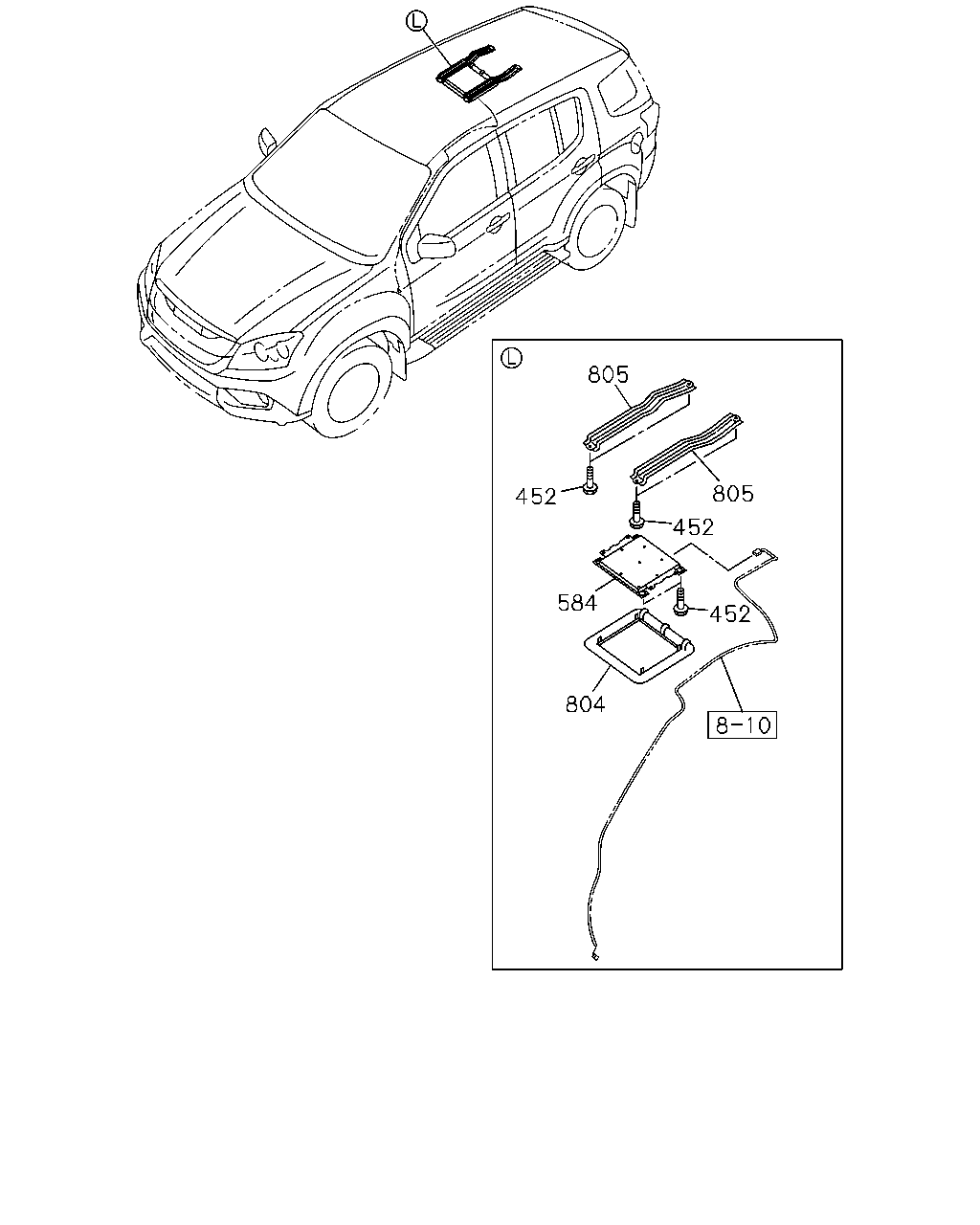

çizim 386923
805 452 584 452 805 452 804
BalonParca AdiParca NoAdetTipApplied Date A B
452 08.900 BOLT; BRKT
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1310- ● ●
452 08.900 BOLT; BRKT
2ND SEAT DVD MONITOR<U48> 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1310- ● ●
584 09.766 DISPLAY
2ND SEAT DVD MONITOR<U48> 		8-98197-955-2 01 1 1310-1409 ● ●
584 09.766 DISPLAY
2ND SEAT DVD MONITOR<U48> 		8-98291-255-0 01 1 1410- ● ●
804 02.487 BEZEL; DISPLAY
2ND SEAT DVD MONITOR<U48> 		8-98197-957-1 01 1 1310- ● ●
805 02.510 BRACKET; DISPLAY 8-98197-956-1 01 1 1310- ● ●
805 02.510 BRACKET; DISPLAY 8-98211-399-1 01 1 1310- ● ●

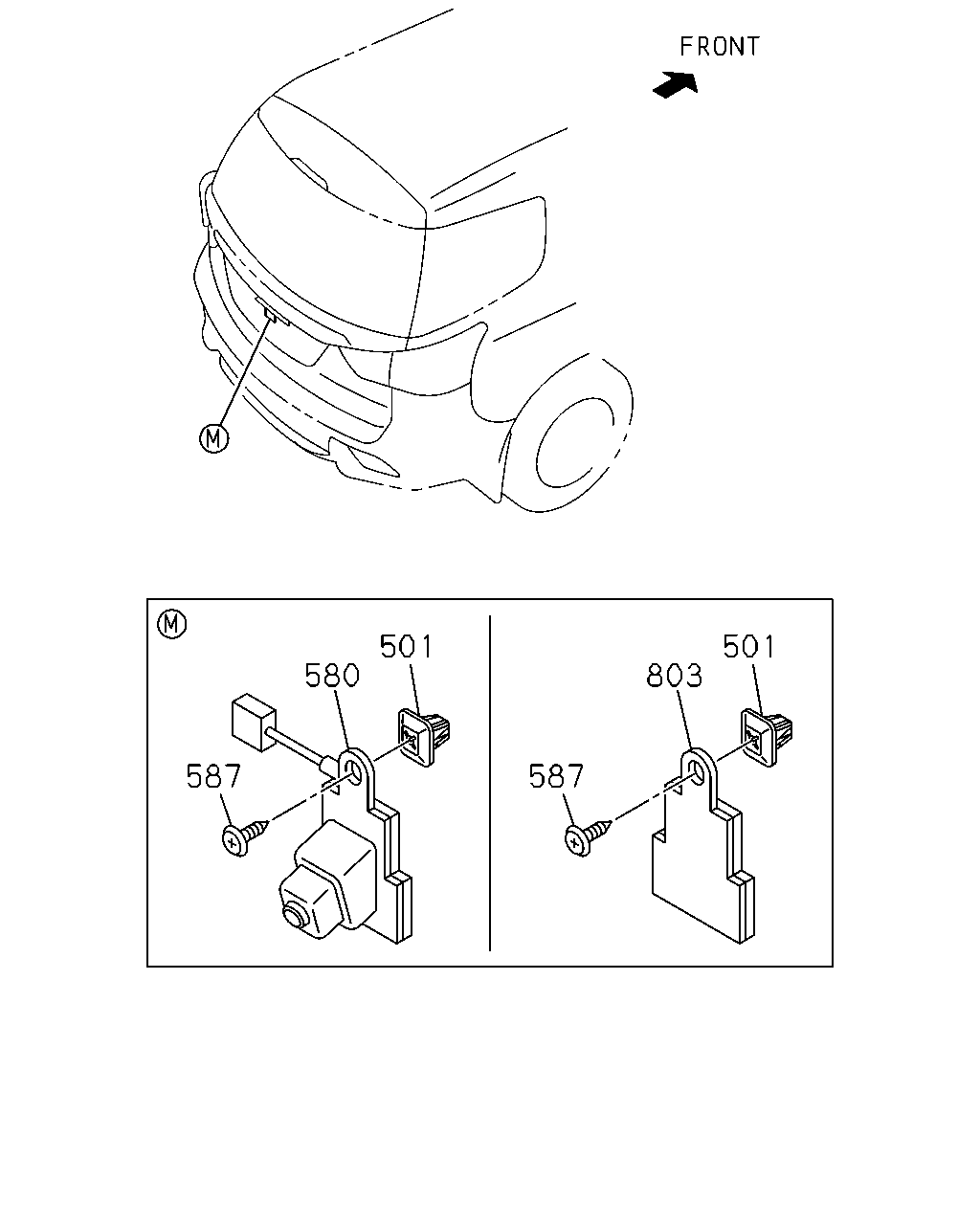

çizim 498288
501 580 587 803 587 501
BalonParca AdiParca NoAdetTipApplied Date A B
501 04.342 GROMMET; SCREW
09.655 		8-98163-895-0 01 1 1310- ● ●
580 02.510 CAMERA; REAR
2ND SEAT DVD MONITOR<U48> 		8-98210-822-0 01 1 1310- ● ●
587 02.500 SCREW; CAMERA
12.182 M5X14 		8-94152-495-0 01 1 1310- ● ●
803 09.744 COVER; CAMERA
EXC. 2ND SEAT DVD MONITOR<U48> 		8-98210-821-0 01 1 1310- ● ●
