8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#130615) — 26 parça
çizim 386028
99
BalonParca AdiParca NoAdetTipApplied Date A B
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1310- ● ●

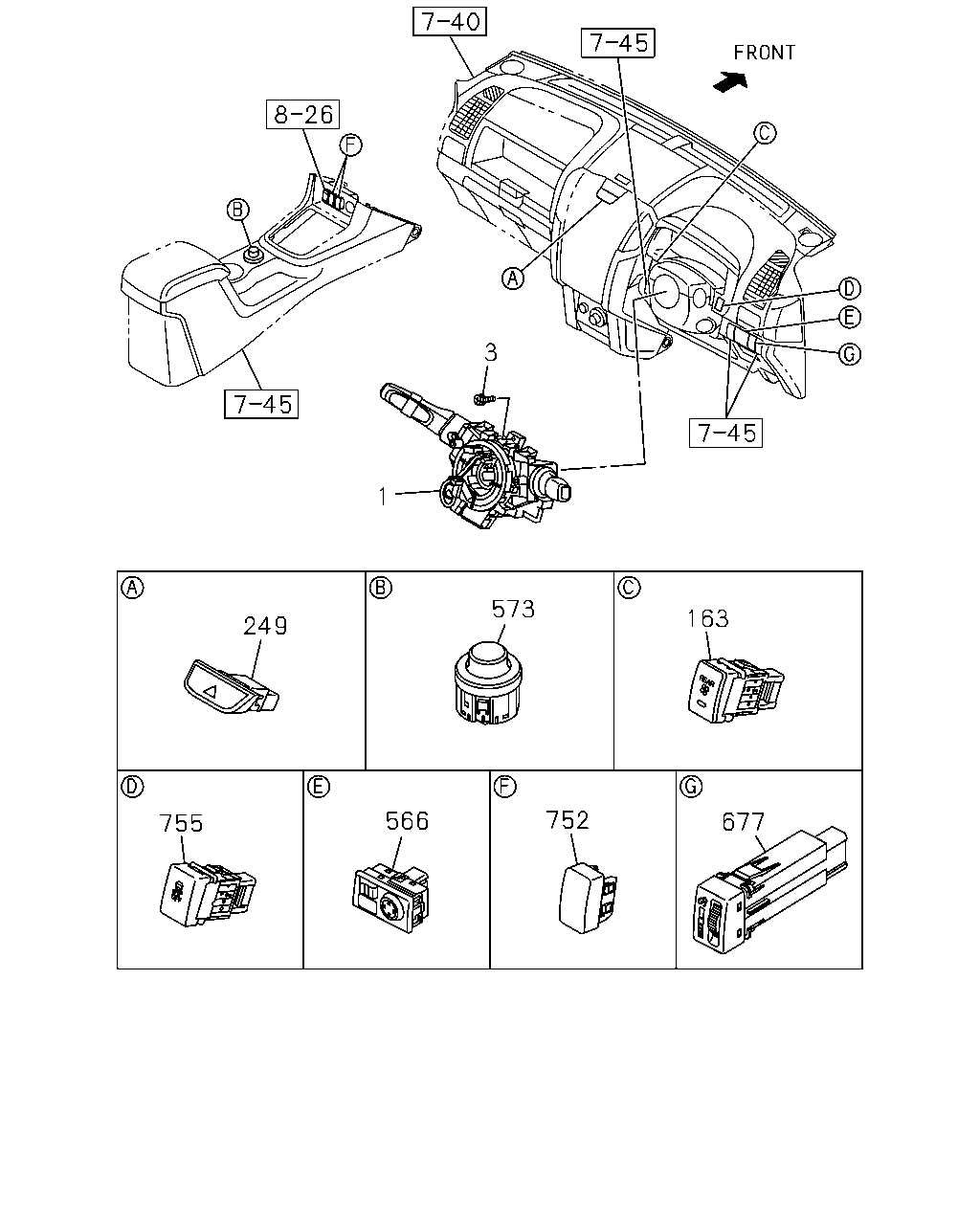

çizim 386621
1 3 249 573 163 677 752 566 755
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB
EXC. FOG LAMP<T96> 		8-98248-656-0 01 1 1310- ● ●
1 02.895 SWITCH; COMB
FOG LAMP<T96> 		8-98191-735-1 01 1 1310- ● ●
3 02.897 SCREW; COMB SW
09.744 M5X20 W/LK&PL WASHER 		0-36230-520-0 01 1 1310- ● ●
163 08.852 SWITCH; RR COOLER
REAR COOLER WO/HEATER<C69> 		8-98196-980-0 01 1 1310- ● ●
249 02.485 SWITCH; HAZARD
BLACK 		8-97416-805-0 01 1 1310- ● ●
566 02.895 SWITCH; MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> 		8-98058-078-1 01 1 1310- ● ●
566 02.895 SWITCH; MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 		8-98106-392-1 01 1 1310- ● ●
573 09.755 SWITCH; 4WD
FLOOR CONSOLE W/LID<D55> 		8-98065-836-2 01 1 1310- ●
677 02.485 SWITCH; ILLUMINATION 8-98058-084-2 01 1 1310- ● ●
752 08.840 COVER; SEAT HTR
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 		8-98141-215-1 02 1 1310- ● ●
755 03.883 SWITCH; ESC OFF 8-98058-081-1 01 1 1310- ● ●

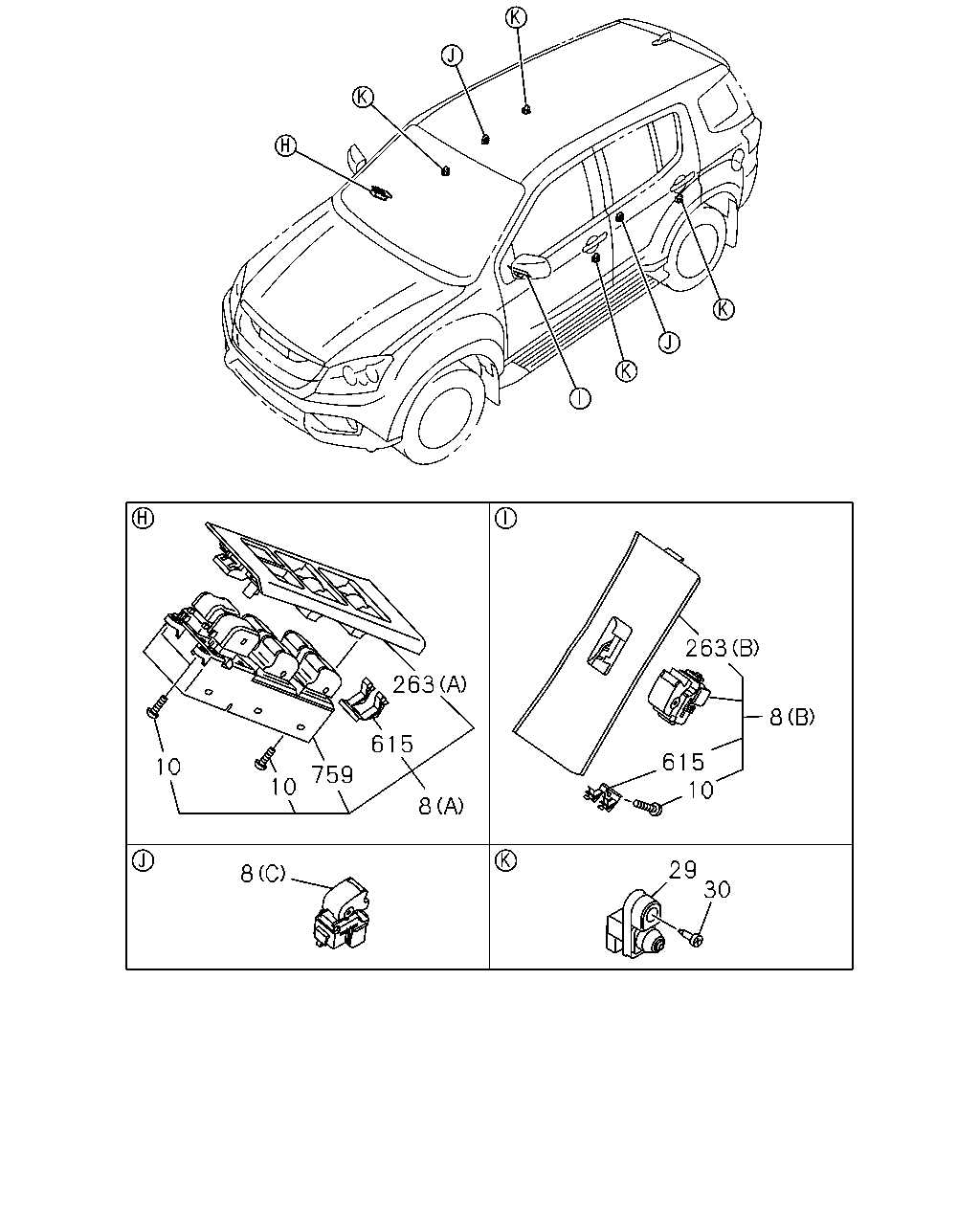

çizim 386691
263 615 759 10 10 8 29 30 10 615 263 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.263 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> (A) BLACK 		8-97416-975-0 01 1 1310- ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) BLACK 		8-97416-810-0 01 1 1310- ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (C) BLACK 		8-97417-004-0 02 1 1310- ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) BLACK 		8-97416-976-0 01 1 1310- ● ●
10 03.885 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-450-0 03 1 1310- ● ●
10 03.885 SCREW; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-450-0 03 1 1310- ● ●
29 16.263 SWITCH; DOOR 8-97313-208-0 04 1 1310- ● ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 04 1 1310- ● ●
263 16.081 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (A) 		8-98192-244-0 01 1 1310- ● ●
263 16.081 COVER; SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> (B) 		8-98192-247-0 01 1 1310- ● ●
615 16.263 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-268-0 01 1 1310- ● ●
615 16.263 SPRING; POWER WINDOW SW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-268-0 01 1 1310- ● ●
759 16.263 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> 		8-98192-251-0 01 1 1310- ● ●
759 16.263 SWITCH ASM; WINDOW
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98192-252-0 01 1 1310- ● ●
