◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#130614) — 12 parça

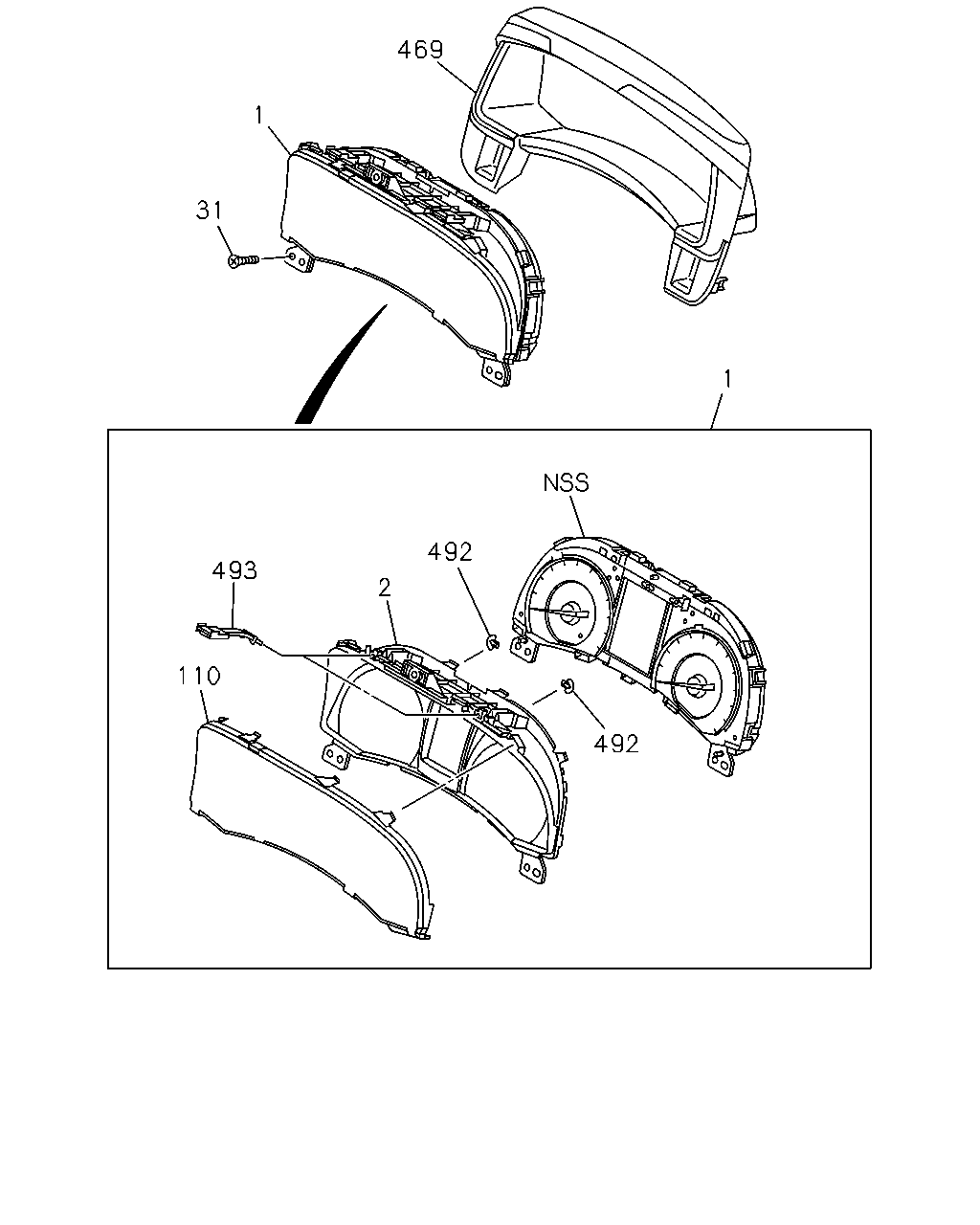

çizim 386899
469 1 1 2 31 492 493 110 492
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.735 METER COMPL; CLUSTER
A/T 5 SPEED-AISIN(MA1) 		8-98196-942-0 01 1 1310- ● ●
1 09.735 METER COMPL; CLUSTER
M/T MUX 5 SPEED 5S(MZJ) 		8-98196-943-0 01 1 1310- ●
2 09.735 PANEL; CLUSTER
A/T 5 SPEED-AISIN(MA1) 		8-98270-046-0 01 1 1310- ●
2 09.735 PANEL; CLUSTER 8-98270-046-0 01 1 1310- ●
31 09.761 SCREW; METER,INST PANEL
08.083 M5X16 TAPPING 		8-98167-449-0 03 1 1310- ● ●
110 09.748 GLASS; CLUSTER METER
A/T 5 SPEED-AISIN(MA1) 		8-98270-045-0 01 1 1310- ●
110 09.748 GLASS; CLUSTER METER 8-98270-045-0 01 1 1310- ●
469 16.080 PLATE; INSTRUMENT PANEL
BLACK 		8-97424-331-0 01 1 1310- ● ●
492 09.743 PANEL; TURN LENS
A/T 5 SPEED-AISIN(MA1) 		8-98163-886-0 02 1 1310- ●
492 09.743 PANEL; TURN LENS 8-98163-886-0 02 1 1310- ●
493 09.743 PANEL; TOP LIGHT PRISM
A/T 5 SPEED-AISIN(MA1) 		8-98163-887-0 02 1 1310- ●
493 09.743 PANEL; TOP LIGHT PRISM 8-98163-887-0 02 1 1310- ●
