8-10 — WIRING HARNESS AND FUSE (#130612) — 121 parça

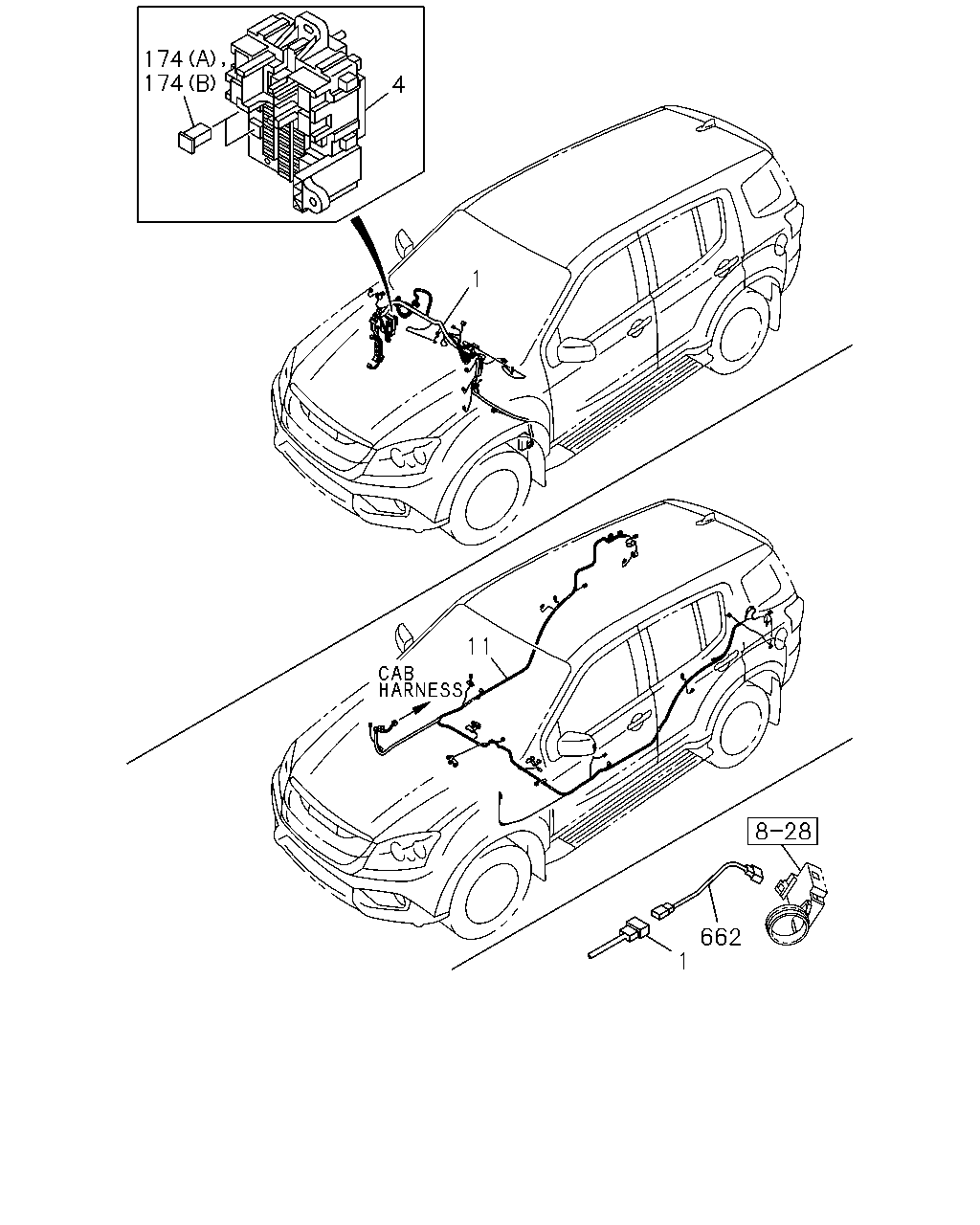

çizim 385858
174 174 4 1 11 662 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. REAR COOLER WO/HEATER<C69> 		8-98247-743-2 01 1 1310- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> EXC. REAR COOLER WO/HEATER<C69>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98247-744-2 01 1 1310- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> 		8-98247-747-2 01 1 1310- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98247-748-0 01 1 1310-1406 ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98281-590-1 01 1 1407- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER AUTOMATIC CONT(C61) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. REAR COOLER WO/HEATER<C69> 		8-98247-741-2 01 1 1310- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER AUTOMATIC CONT(C61) AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> EXC. REAR COOLER WO/HEATER<C69>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98247-742-2 01 1 1310- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER AUTOMATIC CONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> 		8-98247-745-2 01 1 1310- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER AUTOMATIC CONT(C61) AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98247-746-2 01 1 1310- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-149-5 01 1 1310- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-151-5 01 1 1310- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48> 		8-98198-168-5 01 1 1310- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-170-5 01 1 1310- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-143-3 01 1 1310-1406 ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98281-587-1 01 1 1407- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-145-5 01 1 1310- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48> 		8-98198-162-3 01 1 1310-1406 ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 2ND SEAT DVD MONITOR<U48> 		8-98281-588-1 01 1 1407- ● ●
1 02.480 HARNESS; CAB
AIR CONDITIONER AUTOMATIC CONT(C61) REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 2ND SEAT DVD MONITOR<U48>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-164-5 01 1 1310- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-751-0 01 1 1310- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> EXC. REAR COOLER WO/HEATER<C69> 		8-98247-843-2 01 1 1310- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> 		8-98247-844-2 01 1 1310- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> EXC. REAR COOLER WO/HEATER<C69> 		8-98247-845-2 01 1 1310- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> 		8-98247-962-2 01 1 1310- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> 		8-98212-019-6 01 1 1310- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET POWER ASSIST<AQ9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 2ND SEAT DVD MONITOR<U48> 		8-98198-025-6 01 1 1310- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> 		8-98198-026-6 01 1 1310- ● ●
11 02.480 HARNESS; BODY
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 2ND SEAT DVD MONITOR<U48> 		8-98198-027-6 01 1 1310- ● ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1310- ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1310-1406 ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1310- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-98079-192-0 AR 1 1310- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-98079-193-0 AR 1 1310- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 1310- ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-98197-288-0 AR 1 1310- ● ●
662 02.525 HARNESS; IMMOBILIZER 8-98163-074-0 01 1 1310- ● ●

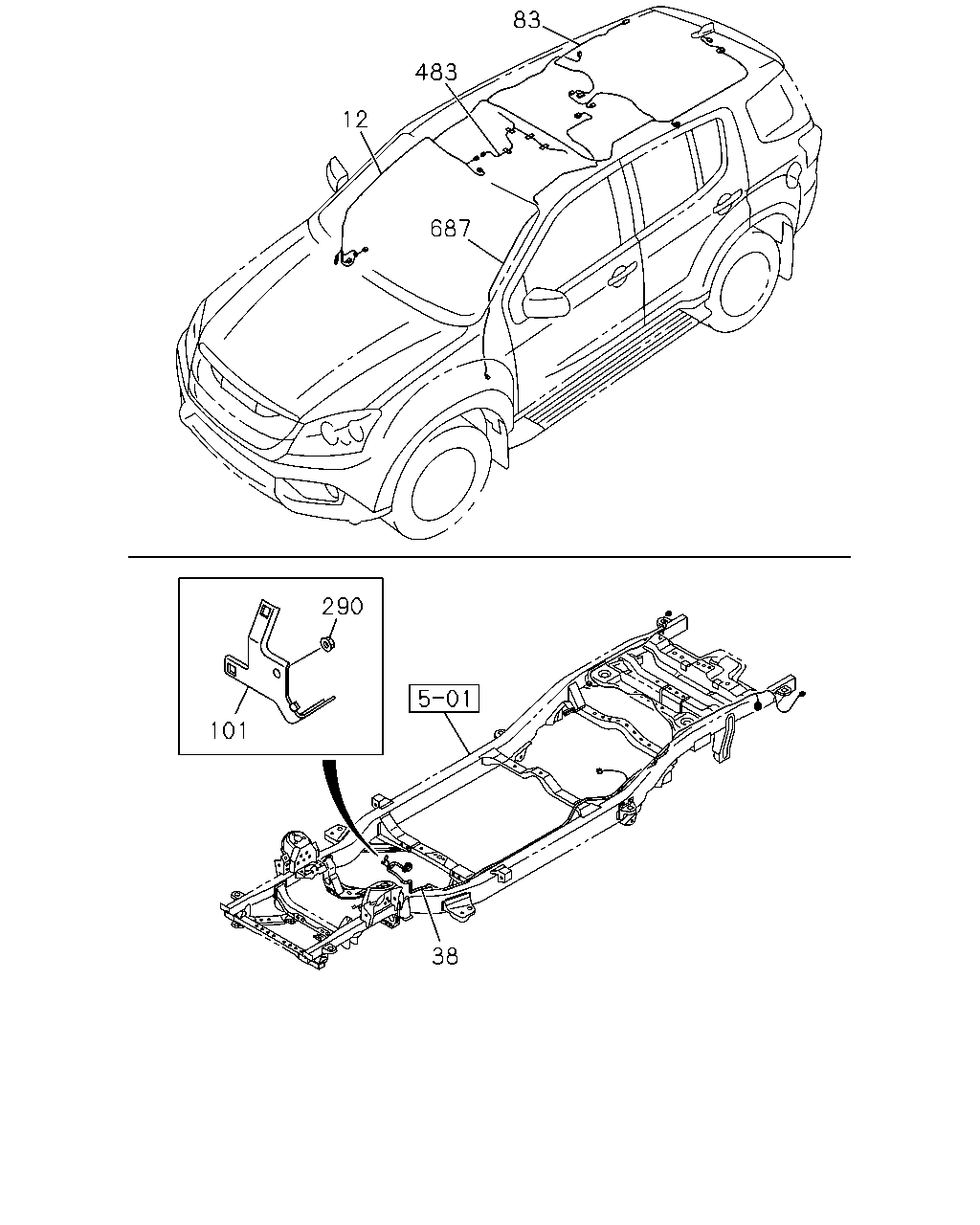

çizim 386442
83 483 12 687 290 101 38
BalonParca AdiParca NoAdetTipApplied Date A B
12 02.480 HARNESS; ROOF
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 6-SPEAKER SYSTEM BASE<UW5> 		8-98247-847-2 01 1 1310- ● ●
12 02.480 HARNESS; ROOF
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98198-178-4 01 1 1310- ● ●
12 02.480 HARNESS; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 6-SPEAKER SYSTEM BASE<UW5> 		8-98238-469-3 01 1 1310- ● ●
12 02.480 HARNESS; ROOF
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) 8-SPEAKER SYSTEM CUSTOM<U87> 		8-98198-179-4 01 1 1310- ● ●
38 02.480 HARNESS; CHAS 8-98198-064-2 01 1 1310- ● ●
83 02.480 HARNESS; AIR CONDITIONER
REAR COOLER WO/HEATER<C69> 		8-98198-188-2 01 1 1310- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR 8-98102-999-0 01 1 1310- ● ●
290 02.483 NUT; BRKT
BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1310- ● ●
483 02.480 HARNESS; EXT,RADIO
8-SPEAKER SYSTEM CUSTOM<U87> 		8-98201-891-0 01 1 1310- ● ●
687 02.480 HARNESS; VIDEO DISC PLYR
2ND SEAT DVD MONITOR<U48> 		8-98211-400-2 01 1 1310- ● ●

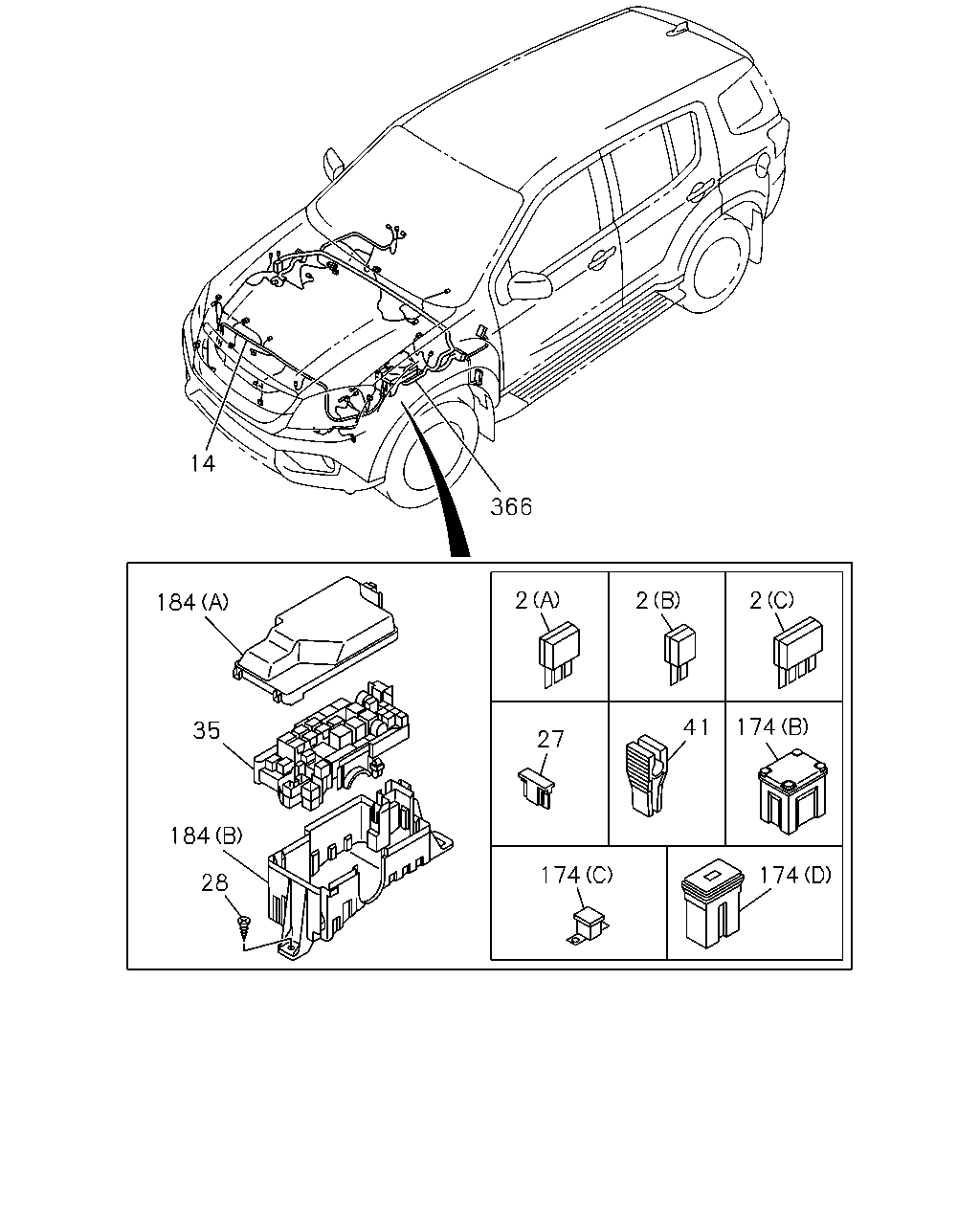

çizim 386665
14 366 184 35 184 28 2 2 2 174 41 27 174 174
BalonParca AdiParca NoAdetTipApplied Date A B
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 4P-1.5A 		8-94381-730-0 01 1 1407- ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1310- ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1310- ● ●
14 02.727 HARNESS; HEADLAMP
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-349-1 01 1 1310- ● ●
14 02.727 HARNESS; HEADLAMP
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-348-1 01 1 1310- ● ●
27 08.965 FUSE UNIT
5A ORANGE 		8-98281-195-0 AR 1 1407- ● ●
27 08.965 FUSE UNIT
02.485 10A RED 		8-98054-257-0 AR 1 1310- ● ●
27 08.965 FUSE UNIT
02.485 15A BLUE 		8-98054-258-0 AR 1 1310- ● ●
27 08.965 FUSE UNIT
02.485 20A YELLOW 		8-98054-259-0 AR 1 1310- ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 1310- ● ●
35 02.530 BOX; RELAY & FUSE 8-98113-097-0 01 1 1310- ● ●
41 08.821 PULLER; FUSE 8-98054-260-0 01 1 1310- ● ●
174 08.965 FUSE; SLOW BLOW
(C) 120A WHITE 		1-82516-028-1 AR 1 1310- ● ●
174 08.965 FUSE; SLOW BLOW
(A) 20A BLUE 		8-98079-189-0 AR 1 1310-1406 ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-98079-191-0 AR 1 1310- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-98079-192-0 AR 1 1310- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-98079-193-0 AR 1 1310- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 1310- ● ●
174 08.965 FUSE; SLOW BLOW
(D) 60A YELLOW 		8-98197-288-0 AR 1 1310- ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-98113-098-0 01 1 1310- ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-98113-099-0 01 1 1310- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98211-418-3 01 1 1310-1406 ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98281-596-1 01 1 1407- ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98211-417-3 01 1 1310-1406 ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98281-595-1 01 1 1407- ●

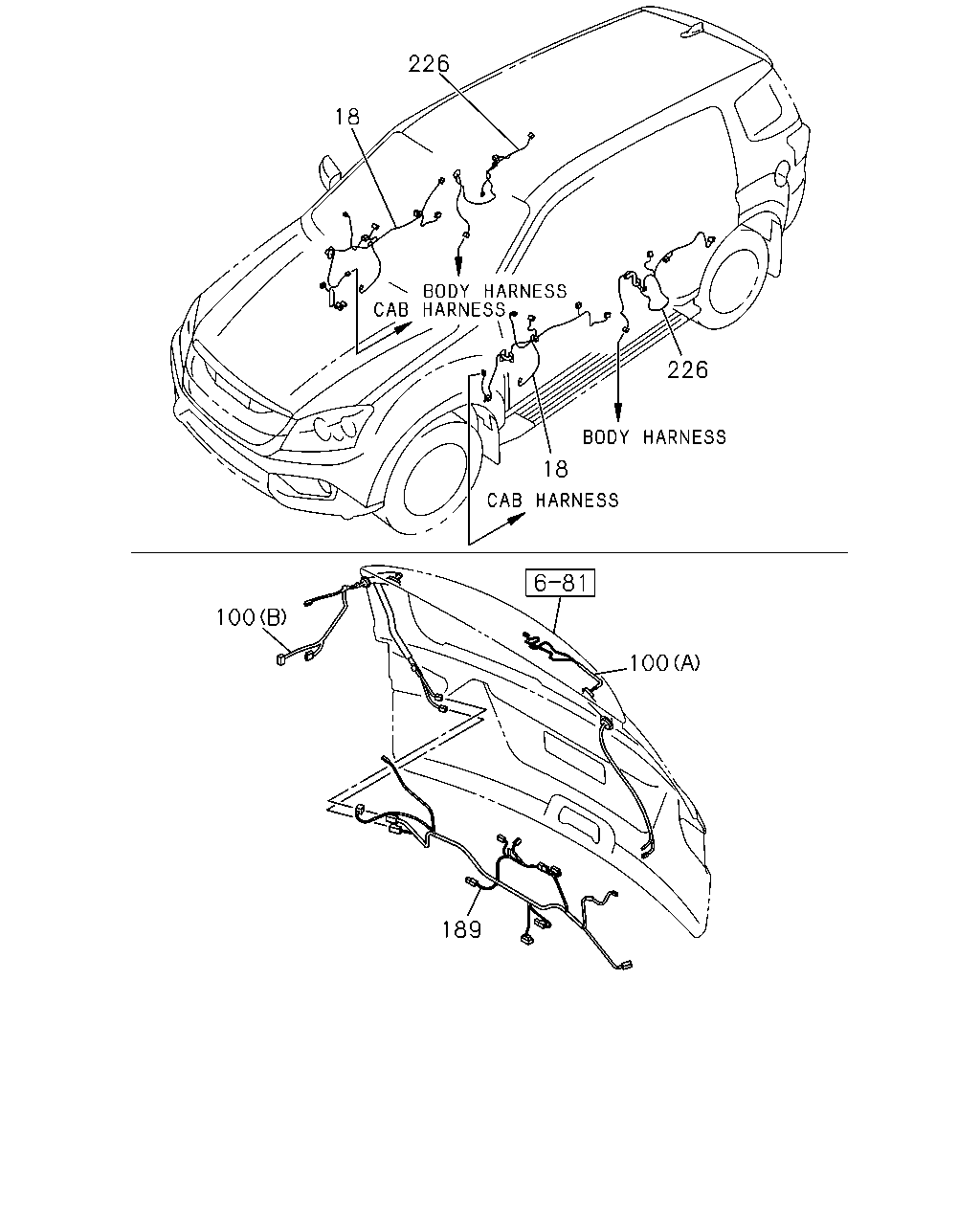

çizim 386719
226 18 226 100 100 189 18
BalonParca AdiParca NoAdetTipApplied Date A B
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98200-116-2 01 1 1310- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98229-245-3 01 1 1310- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98159-487-4 01 1 1310- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98230-581-1 01 1 1310- ● ●
100 02.480 HARNESS; RR GATE
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> EXC. REAR COOLER WO/HEATER<C69> (B) 		8-98221-441-1 01 1 1310- ● ●
100 02.480 HARNESS; RR GATE
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. REAR COOLER WO/HEATER<C69>,2ND SEAT DVD MONITOR<U48> (B) 		8-98221-441-1 01 1 1310- ● ●
100 02.480 HARNESS; RR GATE
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> (B) 		8-98200-686-1 01 1 1310- ● ●
100 02.480 HARNESS; RR GATE
FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 2ND SEAT DVD MONITOR<U48> (B) 		8-98200-686-1 01 1 1310- ● ●
100 02.480 HARNESS; RR GATE
(A) 		8-98198-222-2 01 1 1310- ● ●
189 02.480 HARNESS; EXT
AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> 		8-98198-220-1 01 1 1310- ● ●
189 02.480 HARNESS; EXT
AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 2ND SEAT DVD MONITOR<U48> 		8-98198-221-1 01 1 1310- ● ●
226 02.480 HARNESS; RR DOOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-213-3 01 1 1310- ● ●
226 02.480 HARNESS; RR DOOR
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-215-3 01 1 1310- ● ●
226 02.480 HARNESS; RR DOOR
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-212-3 01 1 1310- ● ●
226 02.480 HARNESS; RR DOOR
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98198-214-3 01 1 1310- ● ●

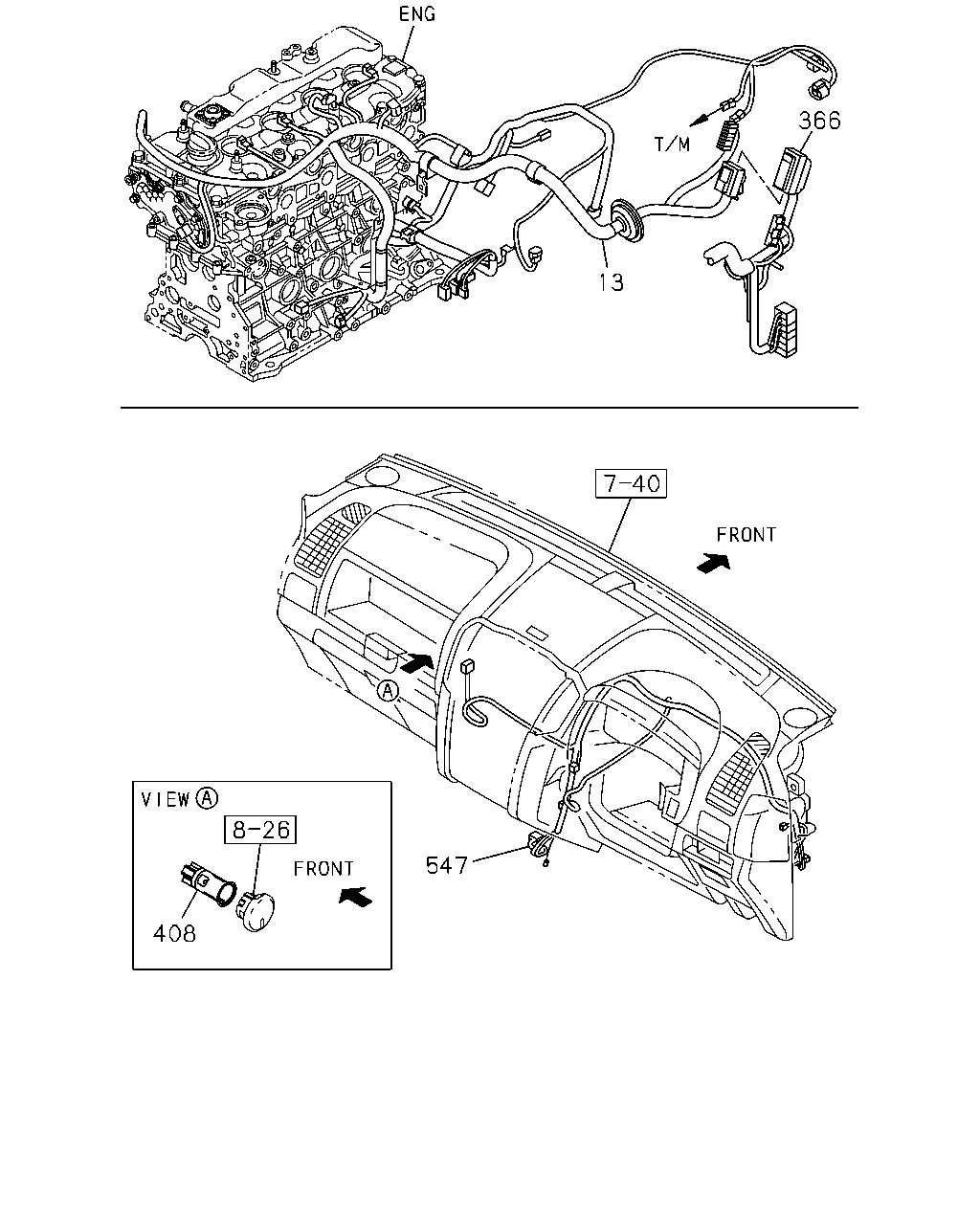

çizim 386756
547 408 13 366
BalonParca AdiParca NoAdetTipApplied Date A B
13 02.525 HARNESS; ENG
A/T 5 SPEED-AISIN(MA1) 		8-98240-688-2 01 1 1310- ●
13 02.525 HARNESS; ENG
A/T 5 SPEED-AISIN(MA1) 		8-98240-689-1 01 1 1310-1401 ●
13 02.525 HARNESS; ENG
A/T 5 SPEED-AISIN(MA1) 		8-98260-520-0 01 1 1402- ●
13 02.525 HARNESS; ENG
M/T MUX 5 SPEED 5S(MZJ) 		8-98240-687-1 01 1 1310-1401 ●
13 02.525 HARNESS; ENG
M/T MUX 5 SPEED 5S(MZJ) 		8-98260-519-0 01 1 1402- ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98211-418-3 01 1 1310-1406 ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98281-596-1 01 1 1407- ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98211-417-3 01 1 1310-1406 ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98281-595-1 01 1 1407- ●
408 02.575 SOCKET ASM; ACCESSORY 8-98123-115-0 02 1 1310- ● ●
547 02.480 HARNESS; CABLE,SRS 8-98212-268-2 01 1 1310- ● ●
çizim 386757
588 430
BalonParca AdiParca NoAdetTipApplied Date A B
430 02.575 COVER ASM; SOCKET,ACCESSORY
04.115 		8-98123-123-0 01 1 1310- ● ●
588 02.480 SEAL; LOCATION HOLE
16.165 OD=25 BLACK 		1-76798-019-0 03 1 1310- ● ●
çizim 386793
734 750 749 758 759 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 02.483 BOX ASM; FUSE,HARNESS 8-98166-751-0 01 1 1310- ● ●
734 02.694 RELAY; ACC SOCKET
09.778 12V YAZAKI 		8-97309-293-0 01 1 1310- ● ●
749 02.694 RELAY; POWER WINDOW
09.778 12V YAZAKI 		8-97309-293-0 01 1 1310- ● ●
750 02.694 RELAY; RR DEFOGGER
09.778 12V YAZAKI 		8-97309-293-0 01 1 1310- ● ●
758 02.694 RELAY; RR WIPER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1310- ● ●
759 02.694 RELAY; RR COOLER
REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,DVD,NAVI W/DISPLAY(UCY) 2ND SEAT DVD MONITOR<U48> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1310- ● ●
759 02.694 RELAY; RR COOLER
REAR COOLER WO/HEATER<C69> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ) EXC. 2ND SEAT DVD MONITOR<U48> 09.778 12V YAZAKI 		8-97309-293-0 01 1 1310- ● ●
çizim 386813
366 736 738 739 741 743 742 746 737 745 747 748
BalonParca AdiParca NoAdetTipApplied Date A B
366 02.525 HARNESS; CABLE,ENG ROOM 8-98211-418-3 01 1 1310-1406 ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98281-596-1 01 1 1407- ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98211-417-3 01 1 1310-1406 ●
366 02.525 HARNESS; CABLE,ENG ROOM 8-98281-595-1 01 1 1407- ●
736 02.694 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 1310- ● ●
737 02.694 RELAY; DIMMER
02.485 12V YAZAKI 		8-97309-292-0 01 1 1310- ● ●
738 02.694 RELAY; HEADLAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1310- ● ●
739 02.694 RELAY; TAIL LAMP
09.778 12V YAZAKI 		8-97309-293-0 01 1 1310- ● ●
741 02.694 RELAY; HORN
09.778 12V YAZAKI 		8-97309-293-0 01 1 1310- ● ●
742 02.694 RELAY; THERMO
09.778 12V YAZAKI 		8-97309-293-0 01 1 1310- ● ●
743 02.694 RELAY; A/C COMPRESSOR
09.778 12V YAZAKI 		8-97309-293-0 01 1 1310- ● ●
745 02.694 RELAY; HEATER
03.670 12V YAZAKI 		8-98146-834-0 01 1 1310- ● ●
746 02.694 RELAY; ECM,MAIN
03.670 12V YAZAKI 		8-98146-834-0 01 1 1310- ● ●
747 02.694 RELAY; GLOW
02.100 12V YAZAKI 		8-98146-837-0 01 1 1310- ● ●
748 02.694 RELAY; STARTER
02.100 12V YAZAKI 		8-98146-837-0 01 1 1310- ● ●
