8-03 — LAMP; REAR AND REAR SIDE (#130610) — 39 parça

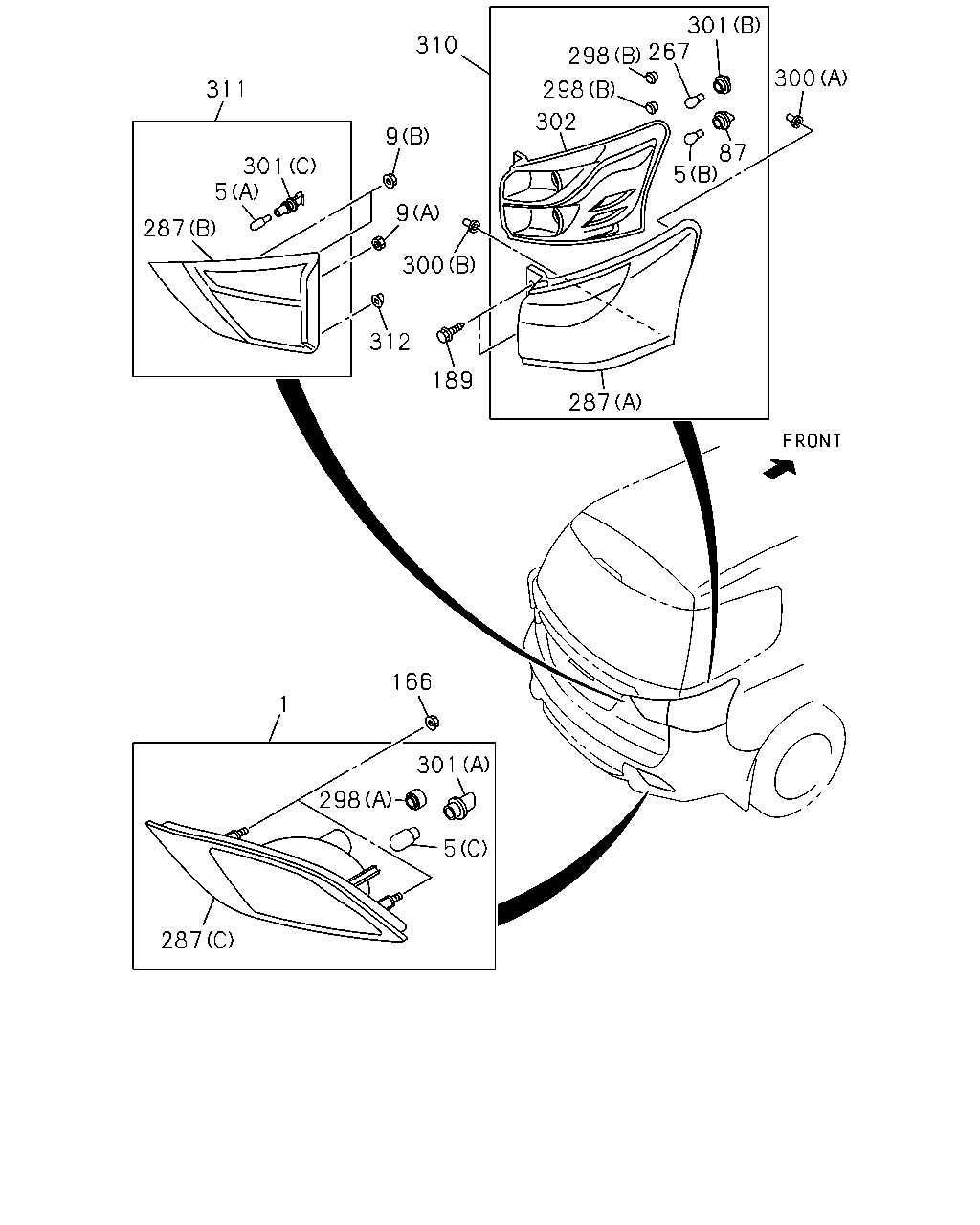

çizim 386773
166 301 298 5 1 287 287 5 301 311 9 310 9 300 312 287 189 302 298 298 267 301 300 87 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.679 LAMP ASM; RR COMB 8-98187-247-1 01 1 1310- ● ●
1 02.679 LAMP ASM; RR COMB 8-98187-248-1 01 1 1310- ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 5W 		8-94124-595-0 02 1 1310-1405 ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 5W 		8-98257-815-0 02 1 1406- ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 1310- ● ●
5 08.991 BULB; RR COMB LAMP
(C) 12V 18W 		8-94372-897-0 02 1 1310- ● ●
9 02.689 NUT; LAMP,RR COMB
08.155 (A) M6 CAP NUT 		8-98049-850-0 02 1 1310- ● ●
9 02.689 NUT; LAMP,RR COMB
08.915 (B) M6 FLANGE 		8-98055-704-0 04 1 1310- ● ●
87 02.694 SOCKET; STOP LAMP 8-97332-380-0 02 1 1310- ● ●
166 02.697 NUT; BACKUP LAMP
08.915 M6 FLANGE 		8-98055-704-0 04 1 1310- ● ●
189 02.664 BOLT; FIX
16.650 M6X18 W/LK&PL WASHER 		8-98061-682-0 04 1 1310- ● ●
267 08.991 BULB; TURN SIGNAL
12V 21W 		8-97179-967-0 02 1 1310- ● ●
287 02.679 LAMP UNIT; RR COMB
(A) 		8-98218-264-0 01 1 1310- ● ●
287 02.679 LAMP UNIT; RR COMB
(A) 		8-98218-265-0 01 1 1310- ● ●
287 02.679 LAMP UNIT; RR COMB
(B) 		8-98218-266-0 01 1 1310- ● ●
287 02.679 LAMP UNIT; RR COMB
(B) 		8-98218-267-0 01 1 1310- ● ●
287 02.679 LAMP UNIT; RR COMB
(C) 		8-98218-505-0 01 1 1310- ● ●
287 02.679 LAMP UNIT; RR COMB
(C) 		8-98218-506-0 01 1 1310- ● ●
298 02.727 CAP; BREATHER,RR COMB LAMP
(B) 		8-98001-464-0 04 1 1310- ● ●
298 02.727 CAP; BREATHER,RR COMB LAMP
(A) 		8-98186-378-0 02 1 1310- ● ●
300 16.494 HOLDER; LAMP
02.664 (A) 		8-97175-217-0 02 1 1310- ● ●
300 16.494 HOLDER; LAMP
(B) 		8-98014-041-0 02 1 1310- ● ●
301 02.694 SOCKET ASM; RR COMB
02.596 (A) 		8-97184-970-0 02 1 1310- ● ●
301 02.694 SOCKET ASM; RR COMB
02.575 (B) 		8-97332-446-0 02 1 1310- ● ●
301 02.694 SOCKET ASM; RR COMB
(C) 		8-98218-268-0 02 1 1310- ● ●
302 02.727 FILTER; BREATHER,RR COMB LAMP 8-98001-518-0 04 1 1310- ● ●
310 02.679 LAMP ASM; RR COMB,BODY SIDE 8-98187-243-2 01 1 1310- ● ●
310 02.679 LAMP ASM; RR COMB,BODY SIDE 8-98187-244-2 01 1 1310- ● ●
311 02.679 LAMP ASM; RR COMB,GATE SIDE 8-98187-245-0 01 1 1310- ● ●
311 02.679 LAMP ASM; RR COMB,GATE SIDE 8-98187-246-0 01 1 1310- ● ●
312 02.689 CLIP; RR COMB LAMP
16.494 		8-98014-041-0 02 1 1310- ● ●

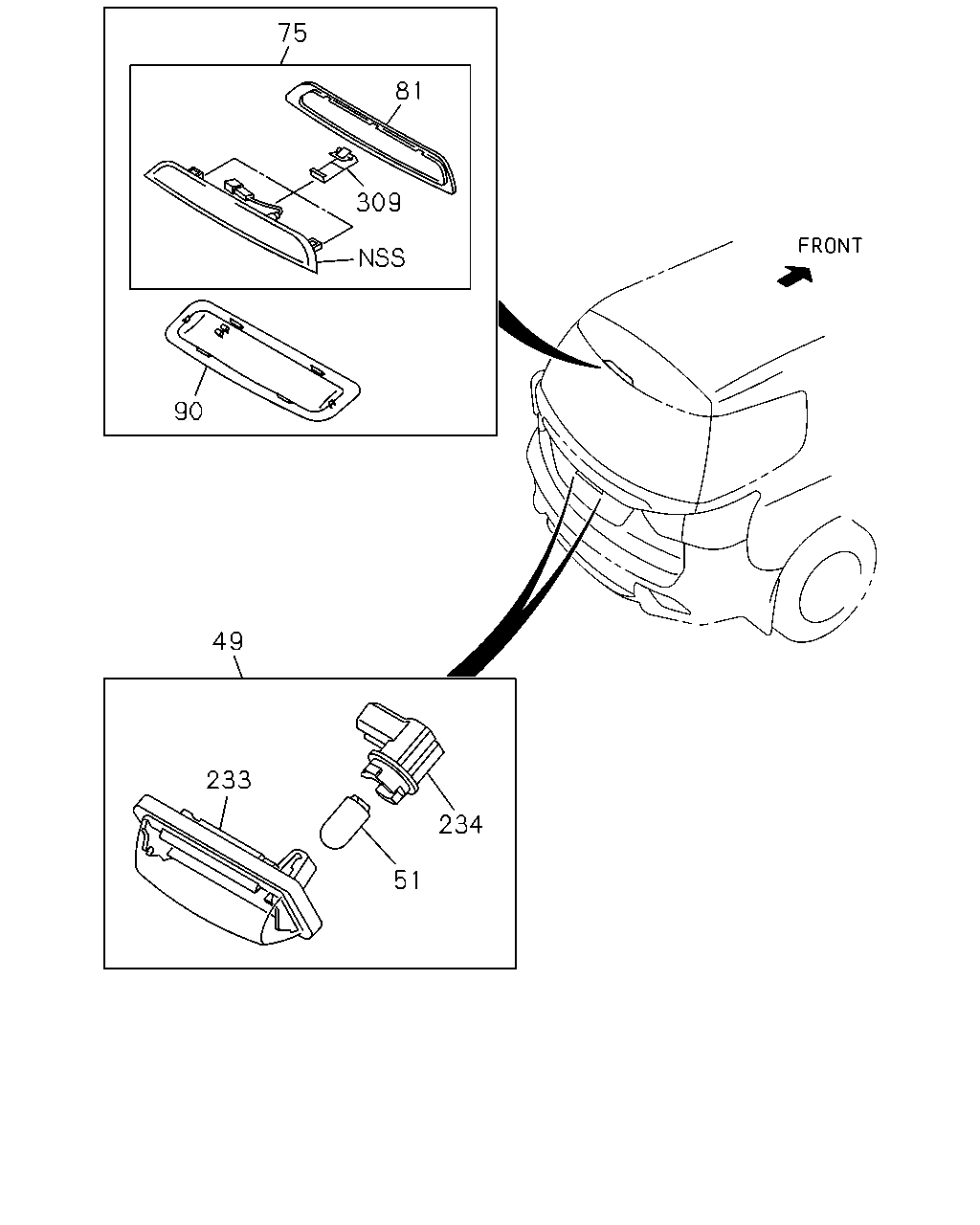

çizim 386810
75 81 309 90 49 233 234 51
BalonParca AdiParca NoAdetTipApplied Date A B
49 02.700 LAMP; LICENSE PLATE 8-98248-476-0 02 1 1310- ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 5W 		8-94124-595-0 02 1 1310- ● ●
75 02.679 LAMP ASM; STOP,HIGHMOUNTED 8-98187-249-3 01 1 1310- ● ●
81 02.694 GASKET; STOP LAMP 8-98223-658-0 01 1 1310- ● ●
90 02.680 COVER; STOP LAMP 8-98203-808-1 01 1 1310- ● ●
233 02.705 LAMP UNIT; LICENSE PLATE 8-98251-881-0 02 1 1310- ● ●
234 02.596 SOCKET ASM; LICENSE PLATE LAMP 8-98251-882-0 02 1 1310- ● ●
309 02.662 STAY; STOP LAMP 8-98223-657-0 03 1 1310- ● ●
