Sayfa 7-55 - Isuzu EPC

7-55 — REAR SEAT (#130607) — 273 parça

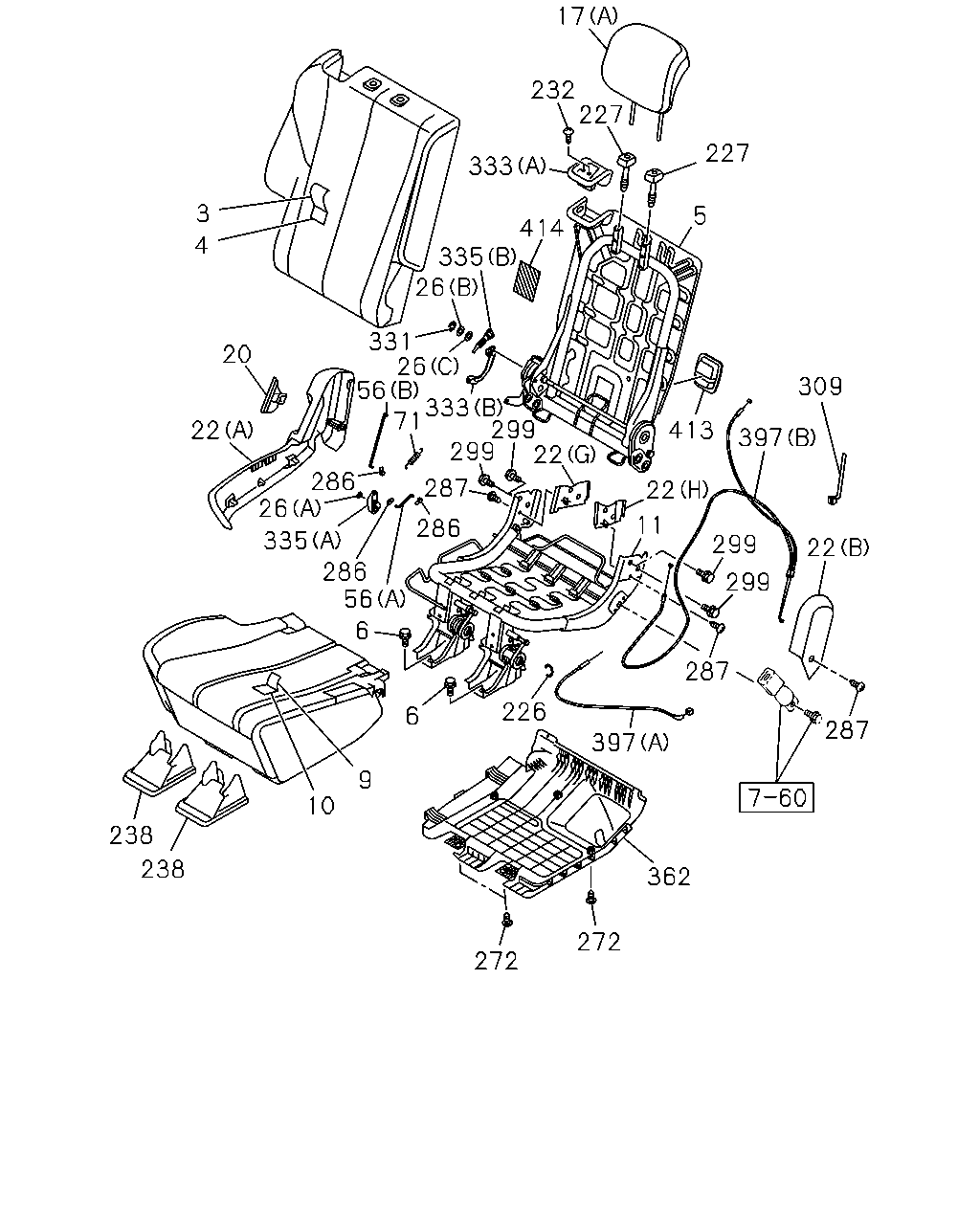

17 232 333 414 227 227 26 335 20 3 4 22 26 335 286 287 299 299 333 71 26 331 56 286 56 6 6 9 10 238 238 272 272 362 287 287 397 226 299 299 22 397 309 413 22 11 22 286 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-260-0	01	1	1310-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-261-0	01	1	1310-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-243-0	01	1	1310-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-244-0	01	1	1310-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-230-0	01	1	1310-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-231-0	01	1	1310-	●	●
4	16.720 PAD; RR,SEAT BACK SEAT TRIM LEATHER<6TB>	8-98253-599-0	01	1	1310-	●	●
4	16.720 PAD; RR,SEAT BACK SEAT TRIM LEATHER<6TB>	8-98253-600-0	01	1	1310-	●	●
4	16.720 PAD; RR,SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98253-598-0	01	1	1310-	●	●
4	16.720 PAD; RR,SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98253-597-0	01	1	1310-	●	●
5	16.720 FRAME ASM; RR SEAT BACK	8-98253-595-2	01	1	1310-	●	●
5	16.720 FRAME ASM; RR SEAT BACK	8-98253-596-2	01	1	1310-	●	●
6	16.679 BOLT; RR SEAT 16.682 M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1310-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-215-1	01	1	1310-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-255-1	01	1	1310-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-237-1	01	1	1310-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-238-1	01	1	1310-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-224-1	01	1	1310-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-225-1	01	1	1310-	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>	8-98253-546-0	01	1	1310-	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>	8-98253-547-0	01	1	1310-	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98253-544-0	01	1	1310-	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98253-545-0	01	1	1310-	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT	8-98253-542-1	01	1	1310-	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT	8-98253-543-1	01	1	1310-1407	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT	8-98288-447-0	01	1	1408-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY	8-97428-266-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY	8-97428-266-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (B) GRAY	8-97428-268-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK	8-97428-249-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK	8-97428-249-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (B) BLACK	8-97428-251-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY	8-97428-212-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY	8-97428-212-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY	8-97428-214-0	01	1	1310-	●	●
20	16.682 KNOB; RECLINING DEVICE BLACK	8-97428-220-0	01	1	1310-1402	●	●
20	16.682 KNOB; RECLINING DEVICE BLACK	8-97429-755-0	01	1	1403-	●	●
20	16.682 KNOB; RECLINING DEVICE BLACK	8-97428-221-0	01	1	1310-1402	●	●
20	16.682 KNOB; RECLINING DEVICE BLACK	8-97429-756-0	01	1	1403-	●	●
22	16.682 COVER; RECLINING ADJ (G) 2ND BLACK	8-97428-192-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (J) 2ND BLACK	8-97428-193-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (H) 2ND BLACK	8-97428-194-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (I) 2ND BLACK	8-97428-195-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (A) 2ND BLACK	8-97428-216-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (D) 2ND BLACK	8-97428-217-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (B) 2ND BLACK	8-97428-218-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (C) 2ND BLACK	8-97428-219-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (E) 3RD BLACK	8-97428-149-0	02	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (F) 3RD BLACK	8-97428-150-0	02	1	1310-	●	●
26	16.682 WASHER; LK,RECLINING TO SEAT (B)	8-98271-947-0	01	1	1403-	●	●
26	16.682 WASHER; LK,RECLINING TO SEAT (B)	8-98271-947-0	01	1	1403-	●	●
26	16.682 WASHER; LK,RECLINING TO SEAT (C)	8-98271-948-0	01	1	1403-	●	●
26	16.682 WASHER; LK,RECLINING TO SEAT (C)	8-98271-948-0	01	1	1403-	●	●
26	16.682 WASHER; LK,RECLINING TO SEAT (A)	8-98253-645-0	01	1	1310-	●	●
26	16.682 WASHER; LK,RECLINING TO SEAT (A)	8-98253-645-0	01	1	1310-	●	●
56	16.724 WIRE; RELEASE,RR SEAT (B)	8-98253-632-1	01	1	1310-1402	●	●
56	16.724 WIRE; RELEASE,RR SEAT (B)	8-98253-632-1	01	1	1310-1402	●	●
56	16.724 WIRE; RELEASE,RR SEAT (B)	8-98271-613-0	01	1	1403-	●	●
56	16.724 WIRE; RELEASE,RR SEAT (B)	8-98271-613-0	01	1	1403-	●	●
56	16.724 WIRE; RELEASE,RR SEAT (A)	8-98253-644-0	01	1	1310-	●	●
56	16.724 WIRE; RELEASE,RR SEAT (A)	8-98253-644-0	01	1	1310-	●	●
71	16.717 SPRING; HOOK,FLOOR LOCK,RR SEAT	8-98255-645-0	01	1	1310-	●	●
71	16.717 SPRING; HOOK,FLOOR LOCK,RR SEAT	8-98255-645-0	01	1	1310-	●	●
226	16.674 RING; HOG SEAT TRIM LEATHER<6TB> 16.724	8-98220-068-0	16	1	1310-	●	●
226	16.674 RING; HOG SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724	8-98220-068-0	12	1	1310-	●	●
226	16.674 RING; HOG 16.724	8-98220-068-0	21	1	1310-1312	●	●
226	16.674 RING; HOG SEAT TRIM LEATHER<6TB> 16.724	8-98220-068-0	21	1	1401-	●	●
226	16.674 RING; HOG SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724	8-98220-068-0	19	1	1401-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT FREE BLACK	8-97428-204-0	01	1	1310-1402	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT FREE BLACK	8-97429-754-0	01	1	1403-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT FREE BLACK	8-97428-204-0	02	1	1310-1402	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT FREE BLACK	8-97429-754-0	02	1	1403-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT LOCK BLACK	8-97428-205-0	01	1	1310-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT LOCK BLACK	8-97428-205-0	02	1	1310-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 3RD SEAT FREE BLACK	8-97428-147-0	02	1	1310-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 3RD SEAT LOCK BLACK	8-97428-148-0	02	1	1310-	●	●
232	16.680 SCREW; RR SEAT	8-98253-634-0	02	1	1310-	●	●
232	16.680 SCREW; RR SEAT	8-98253-634-0	02	1	1310-	●	●
238	16.674 COVER; LEG BLACK	8-97424-474-1	04	1	1310-	●	●
272	16.720 SCREW; COVER 16.680	8-98253-634-0	05	1	1310-	●	●
272	16.720 SCREW; COVER 16.680	8-98253-634-0	06	1	1310-	●	●
286	16.716 COVER; HINGE	8-98253-646-0	03	1	1310-	●	●
286	16.716 COVER; HINGE	8-98253-646-0	03	1	1310-	●	●
287	16.716 SCREW; COVER 16.680	8-98253-634-0	02	1	1310-	●	●
287	16.716 SCREW; COVER 16.680	8-98253-634-0	04	1	1310-	●	●
299	16.716 BOLT; LEG	8-98253-643-0	04	1	1310-	●	●
299	16.716 BOLT; LEG	8-98253-643-0	04	1	1310-	●	●
309	11.628 CLIP; SEAT 16.686	8-98220-048-0	01	1	1310-	●	●
309	11.628 CLIP; SEAT 16.686	8-98220-048-0	01	1	1310-	●	●
331	16.724 RING; SNAP,PIN	8-98271-945-0	01	1	1403-	●	●
331	16.724 RING; SNAP,PIN	8-98271-945-0	01	1	1403-	●	●
333	16.724 LEVER ASM; RR SEAT (B)	8-98271-923-0	01	1	1403-	●	●
333	16.724 LEVER ASM; RR SEAT (B)	8-98271-924-0	01	1	1403-	●	●
333	16.724 LEVER ASM; RR SEAT (A) BLACK	8-97428-206-0	01	1	1310-	●	●
333	16.724 LEVER ASM; RR SEAT (A) BLACK	8-97428-206-0	01	1	1310-	●	●
335	17.204 LINK ASM; RR SEAT (B)	8-98271-616-0	01	1	1403-	●	●
335	17.204 LINK ASM; RR SEAT (B)	8-98271-617-0	01	1	1403-	●	●
335	17.204 LINK ASM; RR SEAT (A)	8-98253-647-0	01	1	1310-	●	●
335	17.204 LINK ASM; RR SEAT (A)	8-98253-648-0	01	1	1310-	●	●
362	16.682 COVER; REAR SEAT LATCH BLACK	8-97428-198-0	01	1	1310-	●	●
362	16.682 COVER; REAR SEAT LATCH BLACK	8-97428-199-0	01	1	1310-	●	●
397	16.686 CABLE; SEAT (B)	8-98253-601-0	01	1	1310-	●	●
397	16.686 CABLE; SEAT (B)	8-98253-601-0	01	1	1310-	●	●
397	16.686 CABLE; SEAT (A)	8-98253-553-0	01	1	1310-	●	●
397	16.686 CABLE; SEAT (A)	8-98253-554-0	01	1	1310-	●	●
413	16.724 COVER; TETHER BLACK	8-97428-208-0	01	1	1310-	●	●
413	16.724 COVER; TETHER BLACK	8-97428-208-0	02	1	1310-	●	●
414	07.831 INSULATOR; RR SEAT BACK	8-98253-631-0	01	1	1310-	●	●
414	07.831 INSULATOR; RR SEAT BACK	8-98253-631-0	01	1	1310-	●	●

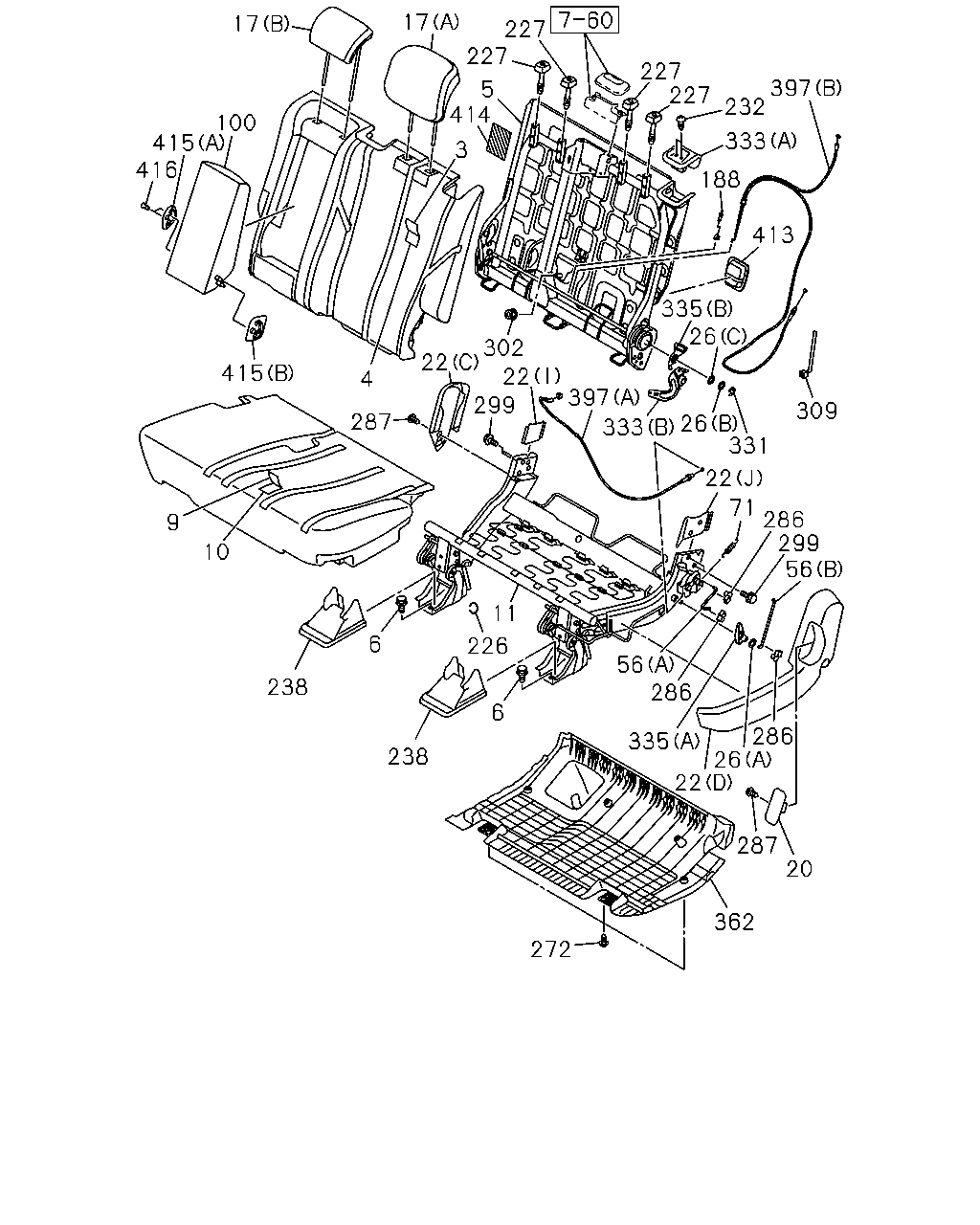

17 100 17 227 227 414 5 22 302 397 335 413 188 333 232 397 227 227 415 416 415 4 287 299 22 333 26 22 331 309 26 286 71 299 56 56 226 11 6 238 10 9 3 286 335 22 286 26 287 20 362 272 238 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-260-0	01	1	1310-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-261-0	01	1	1310-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-243-0	01	1	1310-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-244-0	01	1	1310-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-230-0	01	1	1310-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-231-0	01	1	1310-	●	●
4	16.720 PAD; RR,SEAT BACK SEAT TRIM LEATHER<6TB>	8-98253-599-0	01	1	1310-	●	●
4	16.720 PAD; RR,SEAT BACK SEAT TRIM LEATHER<6TB>	8-98253-600-0	01	1	1310-	●	●
4	16.720 PAD; RR,SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98253-598-0	01	1	1310-	●	●
4	16.720 PAD; RR,SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98253-597-0	01	1	1310-	●	●
5	16.720 FRAME ASM; RR SEAT BACK	8-98253-595-2	01	1	1310-	●	●
5	16.720 FRAME ASM; RR SEAT BACK	8-98253-596-2	01	1	1310-	●	●
6	16.679 BOLT; RR SEAT 16.682 M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1310-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-215-1	01	1	1310-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-255-1	01	1	1310-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-237-1	01	1	1310-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-238-1	01	1	1310-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-224-1	01	1	1310-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-225-1	01	1	1310-	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>	8-98253-546-0	01	1	1310-	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM LEATHER<6TB>	8-98253-547-0	01	1	1310-	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98253-544-0	01	1	1310-	●	●
10	16.716 PAD; CUSHION,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98253-545-0	01	1	1310-	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT	8-98253-542-1	01	1	1310-	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT	8-98253-543-1	01	1	1310-1407	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT	8-98288-447-0	01	1	1408-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY	8-97428-266-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (A) GRAY	8-97428-266-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> (B) GRAY	8-97428-268-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK	8-97428-249-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (A) BLACK	8-97428-249-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> (B) BLACK	8-97428-251-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY	8-97428-212-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (A) LIGHT GRAY	8-97428-212-0	01	1	1310-	●	●
17	16.718 REST; HD,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> (B) LIGHT GRAY	8-97428-214-0	01	1	1310-	●	●
20	16.682 KNOB; RECLINING DEVICE BLACK	8-97428-220-0	01	1	1310-1402	●	●
20	16.682 KNOB; RECLINING DEVICE BLACK	8-97429-755-0	01	1	1403-	●	●
20	16.682 KNOB; RECLINING DEVICE BLACK	8-97428-221-0	01	1	1310-1402	●	●
20	16.682 KNOB; RECLINING DEVICE BLACK	8-97429-756-0	01	1	1403-	●	●
22	16.682 COVER; RECLINING ADJ (G) 2ND BLACK	8-97428-192-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (J) 2ND BLACK	8-97428-193-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (H) 2ND BLACK	8-97428-194-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (I) 2ND BLACK	8-97428-195-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (A) 2ND BLACK	8-97428-216-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (D) 2ND BLACK	8-97428-217-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (B) 2ND BLACK	8-97428-218-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (C) 2ND BLACK	8-97428-219-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (E) 3RD BLACK	8-97428-149-0	02	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (F) 3RD BLACK	8-97428-150-0	02	1	1310-	●	●
26	16.682 WASHER; LK,RECLINING TO SEAT (B)	8-98271-947-0	01	1	1403-	●	●
26	16.682 WASHER; LK,RECLINING TO SEAT (B)	8-98271-947-0	01	1	1403-	●	●
26	16.682 WASHER; LK,RECLINING TO SEAT (C)	8-98271-948-0	01	1	1403-	●	●
26	16.682 WASHER; LK,RECLINING TO SEAT (C)	8-98271-948-0	01	1	1403-	●	●
26	16.682 WASHER; LK,RECLINING TO SEAT (A)	8-98253-645-0	01	1	1310-	●	●
26	16.682 WASHER; LK,RECLINING TO SEAT (A)	8-98253-645-0	01	1	1310-	●	●
56	16.724 WIRE; RELEASE,RR SEAT (B)	8-98253-632-1	01	1	1310-1402	●	●
56	16.724 WIRE; RELEASE,RR SEAT (B)	8-98253-632-1	01	1	1310-1402	●	●
56	16.724 WIRE; RELEASE,RR SEAT (B)	8-98271-613-0	01	1	1403-	●	●
56	16.724 WIRE; RELEASE,RR SEAT (B)	8-98271-613-0	01	1	1403-	●	●
56	16.724 WIRE; RELEASE,RR SEAT (A)	8-98253-644-0	01	1	1310-	●	●
56	16.724 WIRE; RELEASE,RR SEAT (A)	8-98253-644-0	01	1	1310-	●	●
71	16.717 SPRING; HOOK,FLOOR LOCK,RR SEAT	8-98255-645-0	01	1	1310-	●	●
71	16.717 SPRING; HOOK,FLOOR LOCK,RR SEAT	8-98255-645-0	01	1	1310-	●	●
100	15.039 REST; ARM,RR SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-263-0	01	1	1310-	●	●
100	15.039 REST; ARM,RR SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-246-0	01	1	1310-	●	●
100	15.039 REST; ARM,RR SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97428-209-0	01	1	1310-	●	●
188	16.674 WIRE ASM; RR SEAT	8-98253-613-1	01	1	1310-	●	●
226	16.674 RING; HOG SEAT TRIM LEATHER<6TB> 16.724	8-98220-068-0	16	1	1310-	●	●
226	16.674 RING; HOG SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724	8-98220-068-0	12	1	1310-	●	●
226	16.674 RING; HOG 16.724	8-98220-068-0	21	1	1310-1312	●	●
226	16.674 RING; HOG SEAT TRIM LEATHER<6TB> 16.724	8-98220-068-0	21	1	1401-	●	●
226	16.674 RING; HOG SEAT TRIM HIGH GRADE CLOTH<8LM> 16.724	8-98220-068-0	19	1	1401-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT FREE BLACK	8-97428-204-0	01	1	1310-1402	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT FREE BLACK	8-97429-754-0	01	1	1403-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT FREE BLACK	8-97428-204-0	02	1	1310-1402	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT FREE BLACK	8-97429-754-0	02	1	1403-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT LOCK BLACK	8-97428-205-0	01	1	1310-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT LOCK BLACK	8-97428-205-0	02	1	1310-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 3RD SEAT FREE BLACK	8-97428-147-0	02	1	1310-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 3RD SEAT LOCK BLACK	8-97428-148-0	02	1	1310-	●	●
232	16.680 SCREW; RR SEAT	8-98253-634-0	02	1	1310-	●	●
232	16.680 SCREW; RR SEAT	8-98253-634-0	02	1	1310-	●	●
238	16.674 COVER; LEG BLACK	8-97424-474-1	04	1	1310-	●	●
272	16.720 SCREW; COVER 16.680	8-98253-634-0	05	1	1310-	●	●
272	16.720 SCREW; COVER 16.680	8-98253-634-0	06	1	1310-	●	●
286	16.716 COVER; HINGE	8-98253-646-0	03	1	1310-	●	●
286	16.716 COVER; HINGE	8-98253-646-0	03	1	1310-	●	●
287	16.716 SCREW; COVER 16.680	8-98253-634-0	02	1	1310-	●	●
287	16.716 SCREW; COVER 16.680	8-98253-634-0	04	1	1310-	●	●
299	16.716 BOLT; LEG	8-98253-643-0	04	1	1310-	●	●
299	16.716 BOLT; LEG	8-98253-643-0	04	1	1310-	●	●
302	16.715 NUT; RR SEAT	8-98253-635-0	01	1	1310-	●	●
309	11.628 CLIP; SEAT 16.686	8-98220-048-0	01	1	1310-	●	●
309	11.628 CLIP; SEAT 16.686	8-98220-048-0	01	1	1310-	●	●
331	16.724 RING; SNAP,PIN	8-98271-945-0	01	1	1403-	●	●
331	16.724 RING; SNAP,PIN	8-98271-945-0	01	1	1403-	●	●
333	16.724 LEVER ASM; RR SEAT (B)	8-98271-923-0	01	1	1403-	●	●
333	16.724 LEVER ASM; RR SEAT (B)	8-98271-924-0	01	1	1403-	●	●
333	16.724 LEVER ASM; RR SEAT (A) BLACK	8-97428-206-0	01	1	1310-	●	●
333	16.724 LEVER ASM; RR SEAT (A) BLACK	8-97428-206-0	01	1	1310-	●	●
335	17.204 LINK ASM; RR SEAT (B)	8-98271-616-0	01	1	1403-	●	●
335	17.204 LINK ASM; RR SEAT (B)	8-98271-617-0	01	1	1403-	●	●
335	17.204 LINK ASM; RR SEAT (A)	8-98253-647-0	01	1	1310-	●	●
335	17.204 LINK ASM; RR SEAT (A)	8-98253-648-0	01	1	1310-	●	●
362	16.682 COVER; REAR SEAT LATCH BLACK	8-97428-198-0	01	1	1310-	●	●
362	16.682 COVER; REAR SEAT LATCH BLACK	8-97428-199-0	01	1	1310-	●	●
397	16.686 CABLE; SEAT (B)	8-98253-601-0	01	1	1310-	●	●
397	16.686 CABLE; SEAT (B)	8-98253-601-0	01	1	1310-	●	●
397	16.686 CABLE; SEAT (A)	8-98253-553-0	01	1	1310-	●	●
397	16.686 CABLE; SEAT (A)	8-98253-554-0	01	1	1310-	●	●
413	16.724 COVER; TETHER BLACK	8-97428-208-0	01	1	1310-	●	●
413	16.724 COVER; TETHER BLACK	8-97428-208-0	02	1	1310-	●	●
414	07.831 INSULATOR; RR SEAT BACK	8-98253-631-0	01	1	1310-	●	●
414	07.831 INSULATOR; RR SEAT BACK	8-98253-631-0	01	1	1310-	●	●
415	16.724 COVER; ARM REST (A)	8-98253-628-0	01	1	1310-	●	●
415	16.724 COVER; ARM REST (B)	8-98253-629-0	01	1	1310-	●	●
416	16.714 BOLT; ARM REST	8-98253-642-0	02	1	1310-	●	●

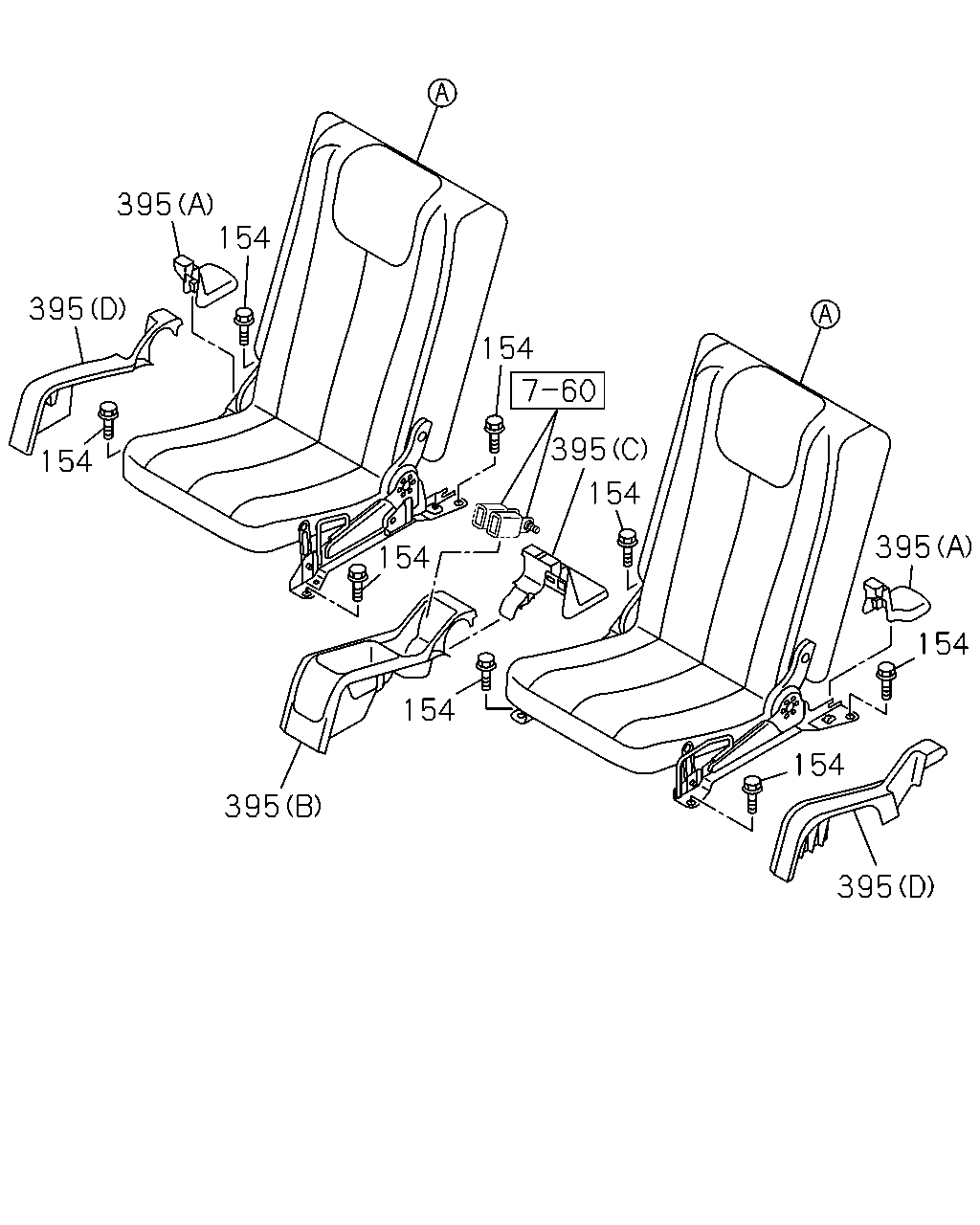

395 395 154 154 154 395 154 154 154 395 395 154 154 395

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
154	16.674 BOLT; STRIKER TO FLOOR 16.682 M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1310-	●	●
395	16.686 COVER; 3RD SEAT (A) BLACK	8-97424-468-3	01	1	1310-	●	●
395	16.686 COVER; 3RD SEAT (A) BLACK	8-97424-469-3	01	1	1310-	●	●
395	16.686 COVER; 3RD SEAT (B) BLACK	8-97424-470-2	01	1	1310-	●	●
395	16.686 COVER; 3RD SEAT (C) BLACK	8-97424-471-2	01	1	1310-	●	●
395	16.686 COVER; 3RD SEAT (D) BLACK	8-97424-472-2	01	1	1310-	●	●
395	16.686 COVER; 3RD SEAT (D) BLACK	8-97424-473-2	01	1	1310-	●	●

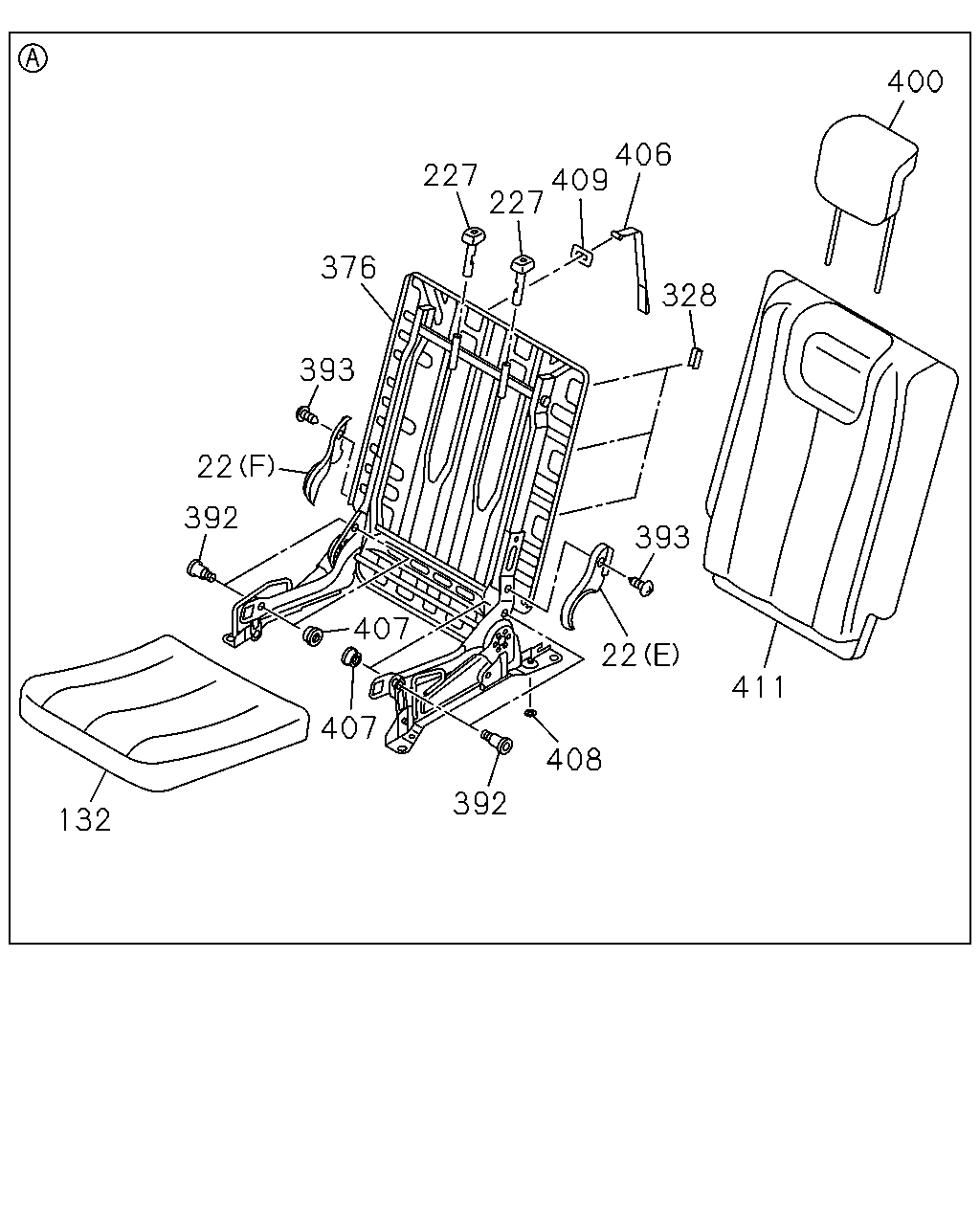

227 376 393 22 392 132 227 409 406 407 407 328 393 22 408 392 411 400

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	16.682 COVER; RECLINING ADJ (G) 2ND BLACK	8-97428-192-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (J) 2ND BLACK	8-97428-193-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (H) 2ND BLACK	8-97428-194-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (I) 2ND BLACK	8-97428-195-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (A) 2ND BLACK	8-97428-216-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (D) 2ND BLACK	8-97428-217-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (B) 2ND BLACK	8-97428-218-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (C) 2ND BLACK	8-97428-219-0	01	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (E) 3RD BLACK	8-97428-149-0	02	1	1310-	●	●
22	16.682 COVER; RECLINING ADJ (F) 3RD BLACK	8-97428-150-0	02	1	1310-	●	●
132	16.715 CUSHION; RR SEAT,3RD SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-171-0	02	1	1310-	●	●
132	16.715 CUSHION; RR SEAT,3RD SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-163-0	02	1	1310-	●	●
132	16.715 CUSHION; RR SEAT,3RD SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-157-0	02	1	1310-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT FREE BLACK	8-97428-204-0	01	1	1310-1402	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT FREE BLACK	8-97429-754-0	01	1	1403-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT FREE BLACK	8-97428-204-0	02	1	1310-1402	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT FREE BLACK	8-97429-754-0	02	1	1403-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT LOCK BLACK	8-97428-205-0	01	1	1310-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 2ND SEAT LOCK BLACK	8-97428-205-0	02	1	1310-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 3RD SEAT FREE BLACK	8-97428-147-0	02	1	1310-	●	●
227	16.718 HOLDER; GUIDE,RR HD REST 3RD SEAT LOCK BLACK	8-97428-148-0	02	1	1310-	●	●
328	16.674 FASTENER; MAGIC	8-98253-019-0	12	1	1310-	●	●
376	16.720 FRAME ASM; 3RD SEAT BACK	8-98253-001-0	01	1	1310-	●	●
376	16.720 FRAME ASM; 3RD SEAT BACK	8-98253-002-0	01	1	1310-	●	●
392	16.716 BOLT; 3RD SEAT	8-98253-079-0	08	1	1310-	●	●
393	16.680 SCREW; 3RD SEAT	8-98253-008-0	04	1	1310-	●	●
400	16.718 REST; HD,3RD SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-166-0	02	1	1310-	●	●
400	16.718 REST; HD,3RD SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-158-0	02	1	1310-	●	●
400	16.718 REST; HD,3RD SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-152-0	02	1	1310-	●	●
406	16.682 STRAP BLACK	8-97428-139-0	02	1	1310-	●	●
407	16.682 COLLAR; CUSHION FRONT	8-98253-021-0	04	1	1310-	●	●
407	16.682 COLLAR; CUSHION REAR	8-98253-022-0	04	1	1310-	●	●
408	16.682 SPONGE	8-98253-023-0	02	1	1310-	●	●
409	16.682 COVER; STRAP BLACK	8-97428-151-0	02	1	1310-	●	●
411	16.715 PAD & TRIM; 3RD SEAT BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-169-0	01	1	1310-	●	●
411	16.715 PAD & TRIM; 3RD SEAT BACK SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-184-0	01	1	1310-	●	●
411	16.715 PAD & TRIM; 3RD SEAT BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-161-0	01	1	1310-	●	●
411	16.715 PAD & TRIM; 3RD SEAT BACK SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-181-0	01	1	1310-	●	●
411	16.715 PAD & TRIM; 3RD SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-155-0	01	1	1310-	●	●
411	16.715 PAD & TRIM; 3RD SEAT BACK SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK	8-97428-178-0	01	1	1310-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
