Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#130606) — 176 parça

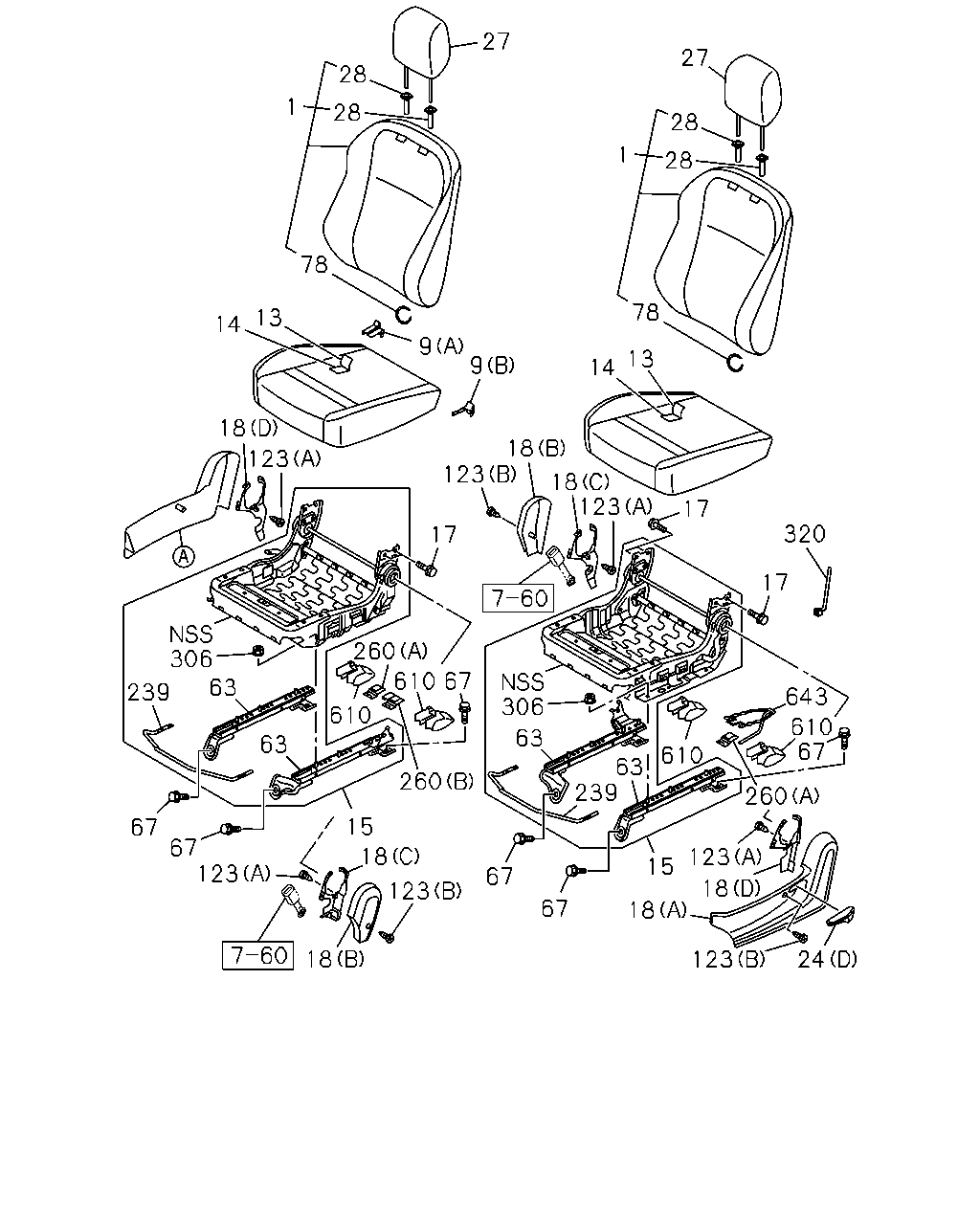

27 28 28 1 78 13 14 9 9 27 28 28 1 78 13 18 123 123 18 18 123 17 320 17 643 610 67 260 123 18 123 24 18 15 610 63 239 67 67 63 260 610 67 260 17 306 63 63 610 15 18 123 18 123 67 67 239 14 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-323-0	01	1	1310-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-349-0	01	1	1310-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-324-0	01	1	1310-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-350-0	01	1	1310-	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-293-0	01	1	1310-	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-291-0	01	1	1310-	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) OUTER BLACK	8-97428-377-0	01	1	1310-	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) INNER BLACK	8-97428-379-0	01	1	1310-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) OUTER BLACK	8-97428-373-0	01	1	1310-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) INNER BLACK	8-97428-375-0	01	1	1310-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-343-0	01	1	1310-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-369-0	01	1	1310-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-344-0	01	1	1310-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-370-0	01	1	1310-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-314-0	01	1	1310-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-313-0	01	1	1310-	●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-561-0	01	1	1310-	●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-711-0	01	1	1310-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98187-702-0	01	1	1310-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98187-559-0	01	1	1310-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98245-144-0	01	1	1310-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98245-145-1	01	1	1310-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98245-143-1	01	1	1310-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1310-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1310-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-097-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-607-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-609-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-094-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-582-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-585-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-591-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-595-0	01	1	1310-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1310-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1310-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1310-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1310-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1310-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1310-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1310-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1310-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1310-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1310-	●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98245-147-1	01	1	1310-	●	●
63	16.682 ADJUSTER; SEAT SLIDE INNER	8-98245-149-1	01	1	1310-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) OUTER	8-98224-309-1	01	1	1310-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) INNER	8-98224-313-1	01	1	1310-	●	●
67	16.682 BOLT; FRT SEAT TO BODY FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1310-	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	17	1	1310-	●	●
78	16.680 RING; SNAP FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> 16.724	8-98220-068-0	16	1	1310-	●	●
78	16.680 RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) 16.724	8-98220-068-0	18	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1310-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1310-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1310-	●	●
260	16.682 CLIP; HARNESS (A)	8-98224-267-0	01	1	1310-	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98224-267-0	01	1	1310-	●	●
260	16.682 CLIP; HARNESS (B)	8-98224-497-0	01	1	1310-	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1310-	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1310-	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	AR	1	1310-	●	●
610	16.682 COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97416-785-4	04	1	1310-	●	●
643	16.682 SENSOR; REMINDER	8-98184-734-0	01	1	1310-	●	●

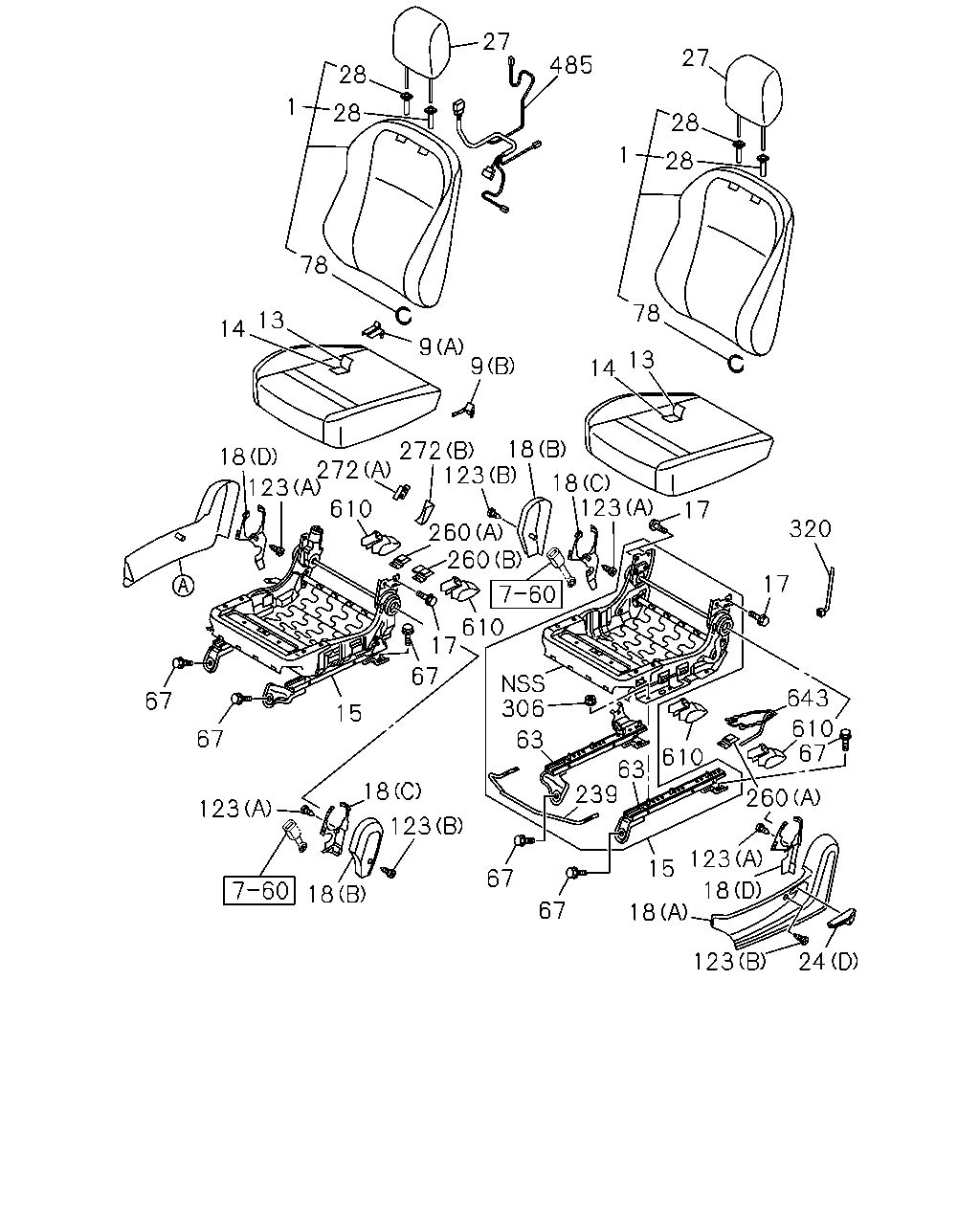

1 28 28 27 485 27 28 1 28 78 13 14 17 320 17 643 610 67 260 123 18 24 123 18 15 63 610 239 63 306 123 18 18 9 9 78 13 14 18 123 272 272 123 610 260 260 610 17 67 15 67 67 123 18 123 18 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-323-0	01	1	1310-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-349-0	01	1	1310-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-324-0	01	1	1310-	●	●
1	16.720 BACK ASM; SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-350-0	01	1	1310-	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-293-0	01	1	1310-	●	●
1	16.720 BACK ASM; SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-291-0	01	1	1310-	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) OUTER BLACK	8-97428-377-0	01	1	1310-	●	●
9	16.682 COVER; SIDE FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) INNER BLACK	8-97428-379-0	01	1	1310-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) OUTER BLACK	8-97428-373-0	01	1	1310-	●	●
9	16.682 COVER; SIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) INNER BLACK	8-97428-375-0	01	1	1310-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-343-0	01	1	1310-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-369-0	01	1	1310-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-344-0	01	1	1310-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97428-370-0	01	1	1310-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-314-0	01	1	1310-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97428-313-0	01	1	1310-	●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-561-0	01	1	1310-	●	●
14	16.716 PAD; FRT SEAT CUSHION FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98187-711-0	01	1	1310-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98187-702-0	01	1	1310-	●	●
14	16.716 PAD; FRT SEAT CUSHION SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98187-559-0	01	1	1310-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98245-144-0	01	1	1310-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT	8-98245-145-1	01	1	1310-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91)	8-98245-143-1	01	1	1310-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1310-	●	●
17	16.682 BOLT; RECLINING	8-98220-045-0	04	1	1310-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-097-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-607-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-609-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-094-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-582-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-585-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-591-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-595-0	01	1	1310-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1310-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> SEAT TRIM COLOR IVORY<8PS> GRAY	8-97428-316-0	01	1	1310-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1310-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM LEATHER<6TB> EXC. SEAT TRIM COLOR IVORY<8PS> BLACK	8-97426-524-0	01	1	1310-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1310-	●	●
27	16.718 REST; HD,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> LIGHT GRAY	8-97424-664-0	01	1	1310-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1310-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 LOCK BLACK	8-97424-665-0	01	1	1310-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1310-	●	●
28	16.718 HOLDER; GUIDE,HD REST 16.716 FREE BLACK	8-97424-666-0	01	1	1310-	●	●
63	16.682 ADJUSTER; SEAT SLIDE OUTER	8-98245-147-1	01	1	1310-	●	●
63	16.682 ADJUSTER; SEAT SLIDE INNER	8-98245-149-1	01	1	1310-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) OUTER	8-98224-309-1	01	1	1310-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) INNER	8-98224-313-1	01	1	1310-	●	●
67	16.682 BOLT; FRT SEAT TO BODY FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> M12X27.5 W/PL WASHER	8-98050-319-0	08	1	1310-	●	●
78	16.680 RING; SNAP 16.724	8-98220-068-0	17	1	1310-	●	●
78	16.680 RING; SNAP FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> 16.724	8-98220-068-0	16	1	1310-	●	●
78	16.680 RING; SNAP SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) 16.724	8-98220-068-0	18	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1310-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT	8-98220-104-0	01	1	1310-	●	●
239	16.682 HANDLE; SIDE SUPPORT,FRT SEAT SEAT TRIM HIGH GRADE CLOTH<8LM>	8-98220-104-0	01	1	1310-	●	●
260	16.682 CLIP; HARNESS (A)	8-98224-267-0	01	1	1310-	●	●
260	16.682 CLIP; HARNESS SEAT TRIM HIGH GRADE CLOTH<8LM> (A)	8-98224-267-0	01	1	1310-	●	●
260	16.682 CLIP; HARNESS (B)	8-98224-497-0	01	1	1310-	●	●
272	16.682 COVER; SEAT RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97428-381-0	01	1	1310-	●	●
272	16.682 COVER; SEAT RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97428-383-0	01	1	1310-	●	●
306	16.682 NUT; SEAT ADJ M8 FLANGE	8-98220-087-0	07	1	1310-	●	●
306	16.682 NUT; SEAT ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> M8 FLANGE	8-98220-087-0	07	1	1310-	●	●
320	16.679 CLIP; BAND,SEAT 16.686	8-98220-048-0	AR	1	1310-	●	●
485	16.682 HARNESS; FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98224-265-0	01	1	1310-	●	●
610	16.682 COVER; LEG,FRT SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9>, FRONTSEAT BUCKET MANUAL HEIGHT CONT<AR9> BLACK	8-97416-785-4	04	1	1310-	●	●
643	16.682 SENSOR; REMINDER	8-98184-734-0	01	1	1310-	●	●

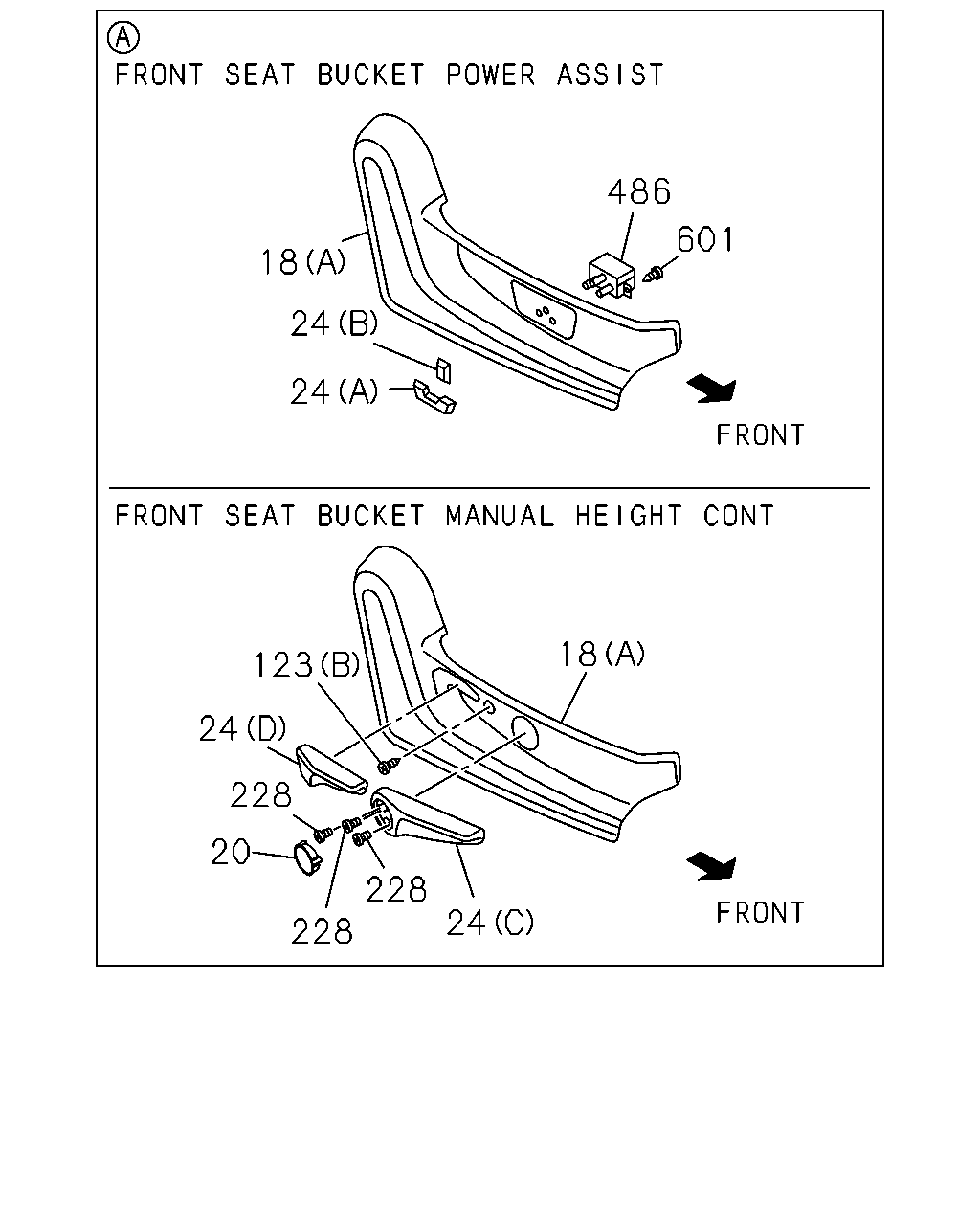

18 24 24 601 486 18 24 228 228 20 24 123 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	16.682 COVER; RECLINING (B) BLACK	8-97424-579-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-097-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (D) BLACK	8-97424-607-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (C) BLACK	8-97424-609-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING (A) BLACK	8-97424-092-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING (D) BLACK	8-97424-515-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING (C) BLACK	8-97424-516-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING (B) BLACK	8-97424-517-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (A) BLACK	8-97424-094-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-582-0	01	1	1310-	●	●
18	16.682 COVER; RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-585-0	01	1	1310-	●	●
20	16.682 CAP; RECLINING ADJ SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) BLACK	8-97424-598-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (A) BLACK	8-97424-611-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) BLACK	8-97424-612-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT (D) BLACK	8-97424-518-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (D) BLACK	8-97424-591-0	01	1	1310-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (C) BLACK	8-97424-595-0	01	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING (A) M4X8	8-98220-085-0	02	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> (B) M4X10	8-98220-086-0	04	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING (B) M4X10	8-98220-086-0	03	1	1310-	●	●
123	16.686 SCREW; COVER,RECLINING SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) (B) M4X10	8-98220-086-0	05	1	1310-	●	●
228	16.714 SCREW; KNOB SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9> FRONT SEAT BACK POCKET(E91) M5X10	8-98224-268-0	03	1	1310-	●	●
486	16.682 SWITCH; POWER SEAT FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB>	8-98224-262-0	01	1	1310-	●	●
601	16.682 SCREW; SWITCH FRONT SEAT BUCKET POWER ASSIST<AQ9> FRONT SEAT BACK POCKET(E91) SEAT TRIM LEATHER<6TB> M4X12	8-98224-269-0	02	1	1310-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
