◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#130601) — 16 parça

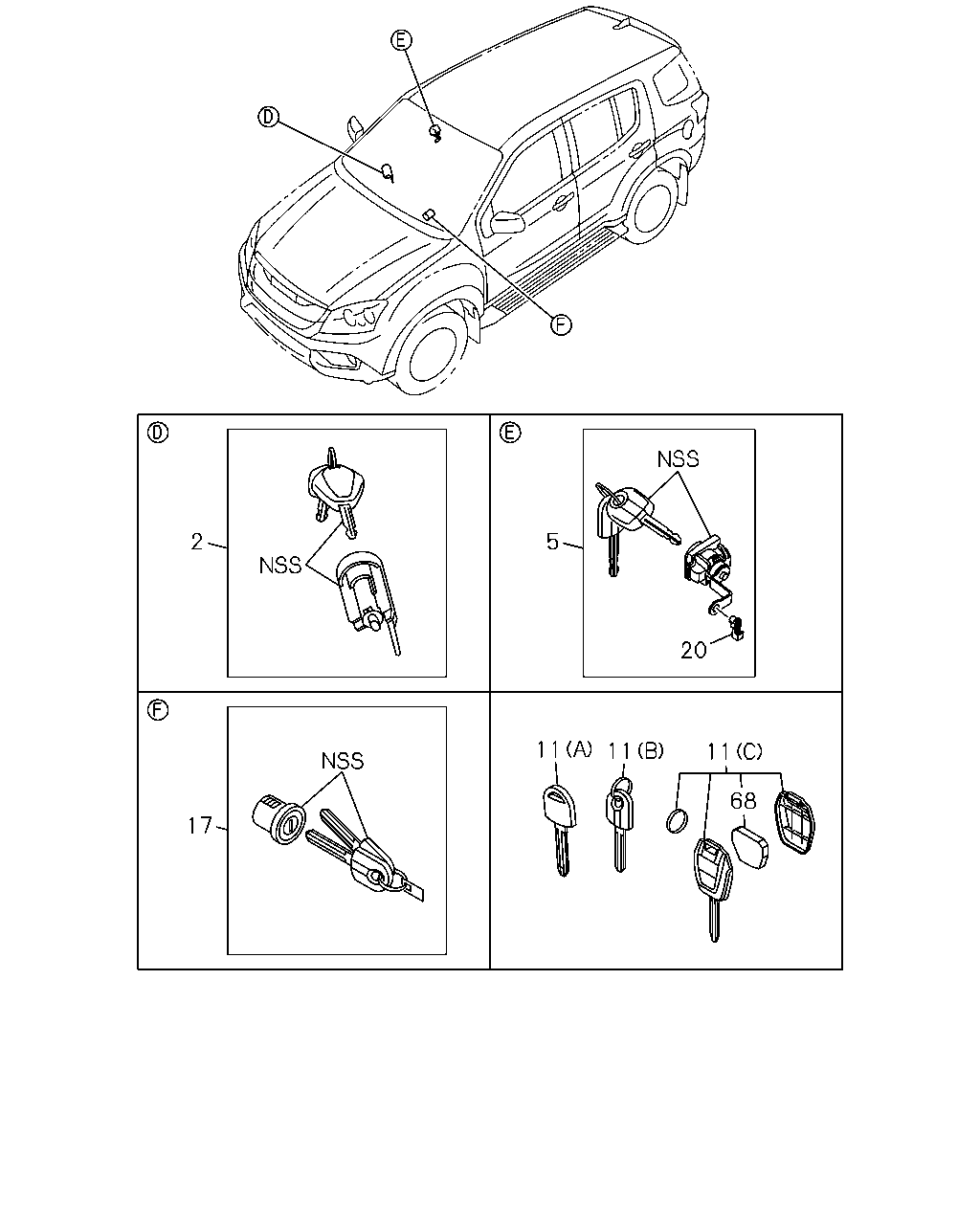

çizim 385888
2 17 5 20 11 11 68 11
BalonParca AdiParca NoAdetTipApplied Date A B
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98193-734-0 01 1 1310-1411 ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-98274-647-0 01 1 1412- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK 8-98193-736-0 01 1 1310-1411 ● ●
5 16.328 CYLINDER ASM; DOOR LOCK 8-98274-649-0 01 1 1412- ● ●
11 02.187 KEY; BLANK
(A) 		8-97350-352-0 AR 1 1310- ● ●
11 02.187 KEY; BLANK
(B) IMMOBILIZER 		8-98007-939-1 AR 1 1310-1411 ● ●
11 02.187 KEY; BLANK
(B) IMMOBILIZER 		8-98274-332-0 AR 1 1412- ● ●
11 02.187 KEY; BLANK
(C) REMOTE CONT DOOR LOCK W/IMMOBILIZER 		8-98136-339-1 AR 1 1310-1411 ● ●
11 02.187 KEY; BLANK
(C) REMOTE CONT DOOR LOCK W/IMMOBILIZER 		8-98274-338-0 AR 1 1412- ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO 8-98193-735-0 01 1 1310-1411 ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO 8-98274-648-0 01 1 1412- ● ●
20 16.328 SNAP; DOOR LOCK CYL
WHITE 		8-97350-044-0 01 1 1310- ● ●
68 02.440 TRANSMITTER; DOOR LOCK 8-98102-844-1 01 1 1310- ● ●

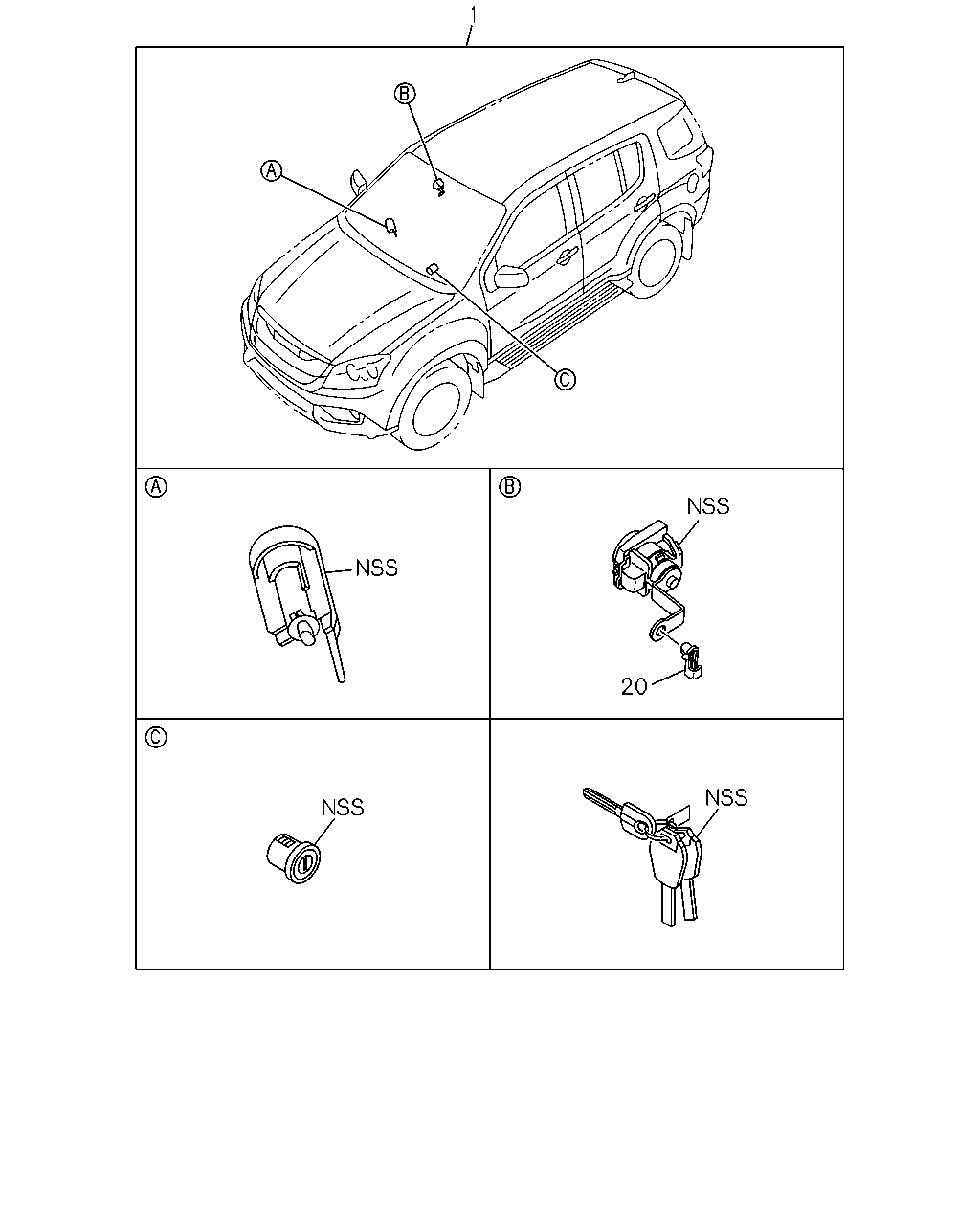

çizim 385922
1 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.188 CYLINDER SET; CAR LOCK 8-98103-833-0 01 1 1310-1411 ● ●
1 02.188 CYLINDER SET; CAR LOCK 8-98274-586-0 01 1 1412- ● ●
20 16.328 SNAP; DOOR LOCK CYL
WHITE 		8-97350-044-0 01 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
