◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#130600) — 22 parça

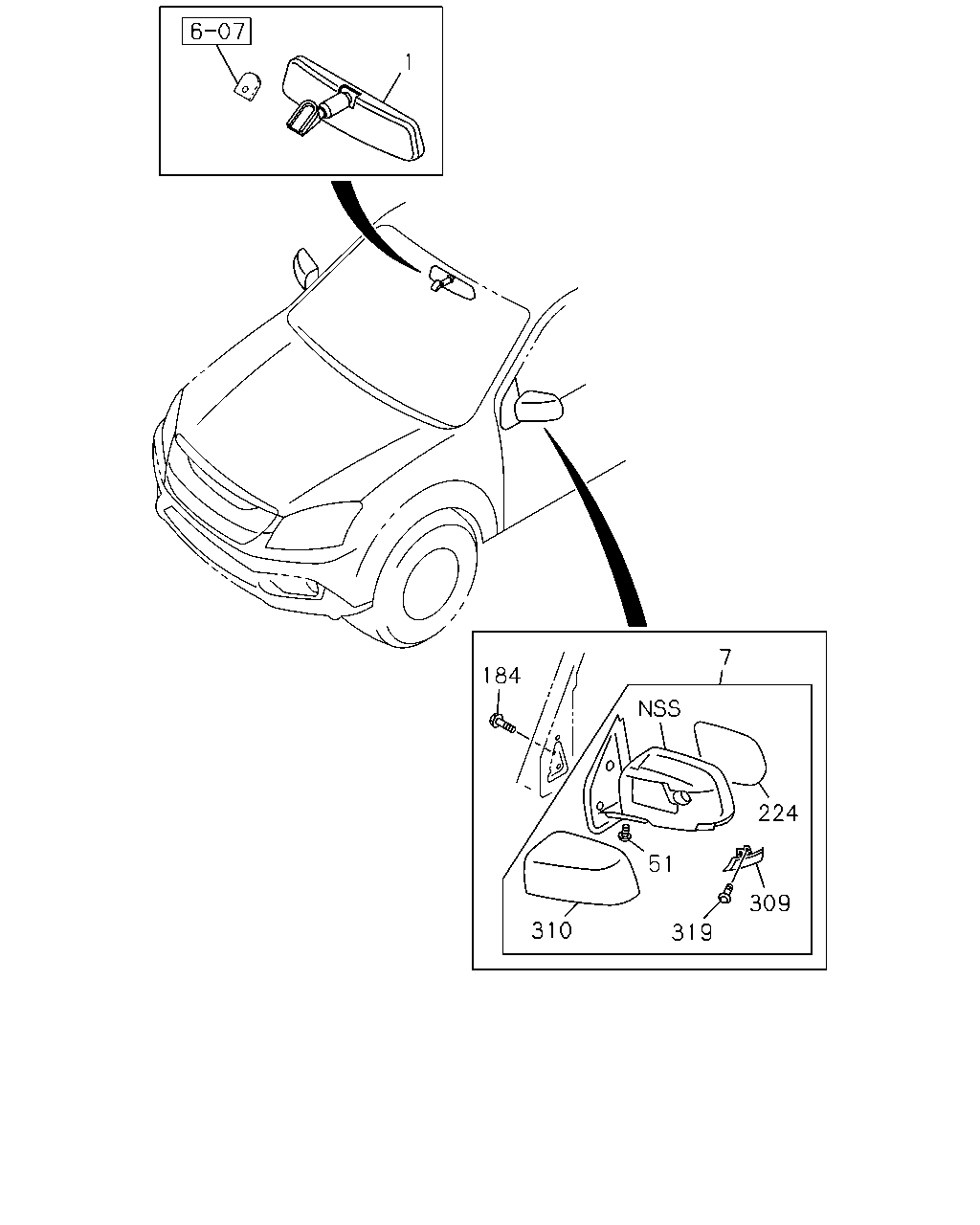

çizim 386521
1 184 7 224 309 51 310 319
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.068 MIRROR; ROOM 8-97237-560-0 01 1 1310- ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> 		8-98065-333-4 01 1 1310- ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> 		8-98065-334-4 01 1 1310- ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 		8-98193-672-0 01 1 1310- ● ●
7 16.068 MIRROR ASM; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 		8-98200-733-0 01 1 1310- ● ●
51 16.069 SCREW; MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> 		8-98193-685-0 02 1 1310- ● ●
51 16.069 SCREW; MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 		8-98193-685-0 02 1 1310- ● ●
184 16.069 BOLT; MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3>,DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 17.455 M6X14 FLANGE 		8-97247-698-0 06 1 1310- ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> 		8-98193-681-0 01 1 1310- ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 		8-98193-681-0 01 1 1310- ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> 		8-98193-682-0 01 1 1310- ● ●
224 16.068 MIRROR; DOOR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 		8-98193-682-0 01 1 1310- ● ●
309 16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> 		8-98193-683-0 01 1 1310- ● ●
309 16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 		8-98193-683-0 01 1 1310- ● ●
309 16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> 		8-98193-684-0 01 1 1310- ● ●
309 16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 		8-98193-684-0 01 1 1310- ● ●
310 16.069 COVER; DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> 		8-98193-686-0 01 1 1310- ● ●
310 16.069 COVER; DOOR MIRROR
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> 		8-98193-687-0 01 1 1310- ● ●
310 16.069 COVER; DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 		8-98203-335-0 01 1 1310- ● ●
310 16.069 COVER; DOOR MIRROR
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 		8-98203-336-0 01 1 1310- ● ●
319 16.069 SCREW; SIDE TURN LAMP
DOOR MIRROR POWER CHROME PLATING SIDE TUR N<DE3> 		8-98193-685-0 02 1 1310- ● ●
319 16.069 SCREW; SIDE TURN LAMP
DOOR MIRROR POWER BODY COLOR SIDE TURN<DF9> 		8-98193-685-0 02 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
