◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#130599) — 21 parça

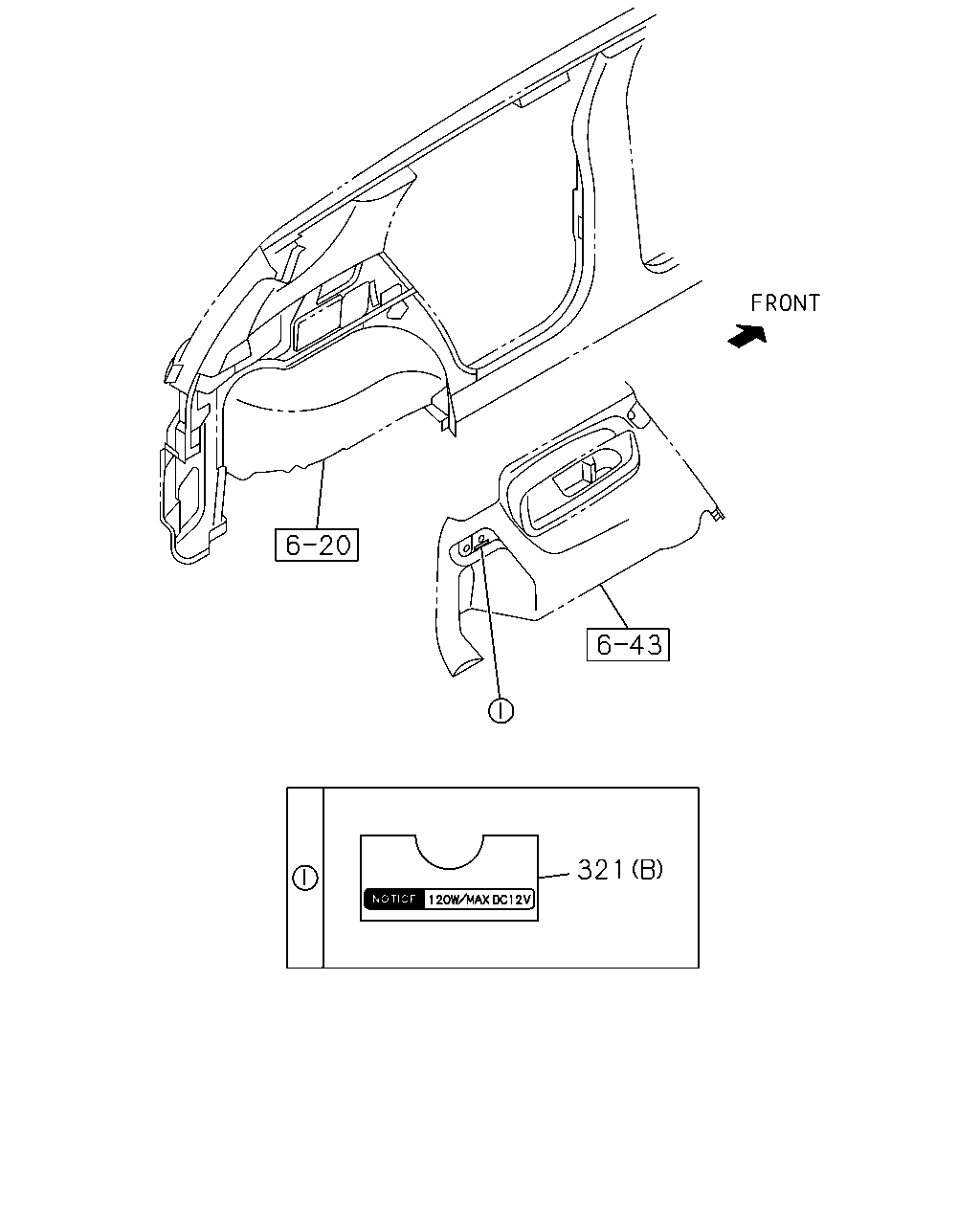

çizim 386164
321
BalonParca AdiParca NoAdetTipApplied Date A B
321 08.808 LABEL; WARNING,POWER
(A) 		8-98183-494-1 01 1 1310- ● ●
321 08.808 LABEL; WARNING,POWER
(B) 		8-98215-396-0 01 1 1310- ● ●
çizim 386519
109 88 140 16 321 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 03.680 LABEL; FUSE
(A) 		8-98242-746-0 01 1 1310-1406 ● ●
8 03.680 LABEL; FUSE
(A) 		8-98281-132-0 01 1 1407- ● ●
8 03.680 LABEL; FUSE
(B) 		8-98239-994-0 01 1 1310-1406 ● ●
8 03.680 LABEL; FUSE
(B) 		8-98281-097-0 01 1 1407- ● ●
16 08.808 PLATE; CAUTION,SIR 8-97378-569-0 01 1 1310- ● ●
88 08.808 LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98141-993-2 02 1 1310- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16(BZD) 		8-98197-217-0 01 1 1310- ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
FRT&RR 255/65R17(QZX) 		8-98197-218-0 01 1 1310- ● ●
140 08.808 PLATE; CAUTION,SRS 8-98179-251-2 02 1 1310- ● ●
321 08.808 LABEL; WARNING,POWER
(A) 		8-98183-494-1 01 1 1310- ● ●
321 08.808 LABEL; WARNING,POWER
(B) 		8-98215-396-0 01 1 1310- ● ●
çizim 386605
8 2 214 135
BalonParca AdiParca NoAdetTipApplied Date A B
2 03.680 LABEL; FUEL CAUTION 8-98147-133-0 01 1 1310-1510 ● ●
8 03.680 LABEL; FUSE
(A) 		8-98242-746-0 01 1 1310-1406 ● ●
8 03.680 LABEL; FUSE
(A) 		8-98281-132-0 01 1 1407- ● ●
8 03.680 LABEL; FUSE
(B) 		8-98239-994-0 01 1 1310-1406 ● ●
8 03.680 LABEL; FUSE
(B) 		8-98281-097-0 01 1 1407- ● ●
135 08.808 PLATE; CAUTION,ENGINE 8-98200-830-0 01 1 1310-1512 ● ●
135 08.808 PLATE; CAUTION,ENGINE 8-98302-557-0 01 1 1601- ● ●
214 08.808 LABEL; JACK 8-98192-980-2 01 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
