6-76 — FLOOR EQUIPMENT AND SEALING (#130588) — 37 parça

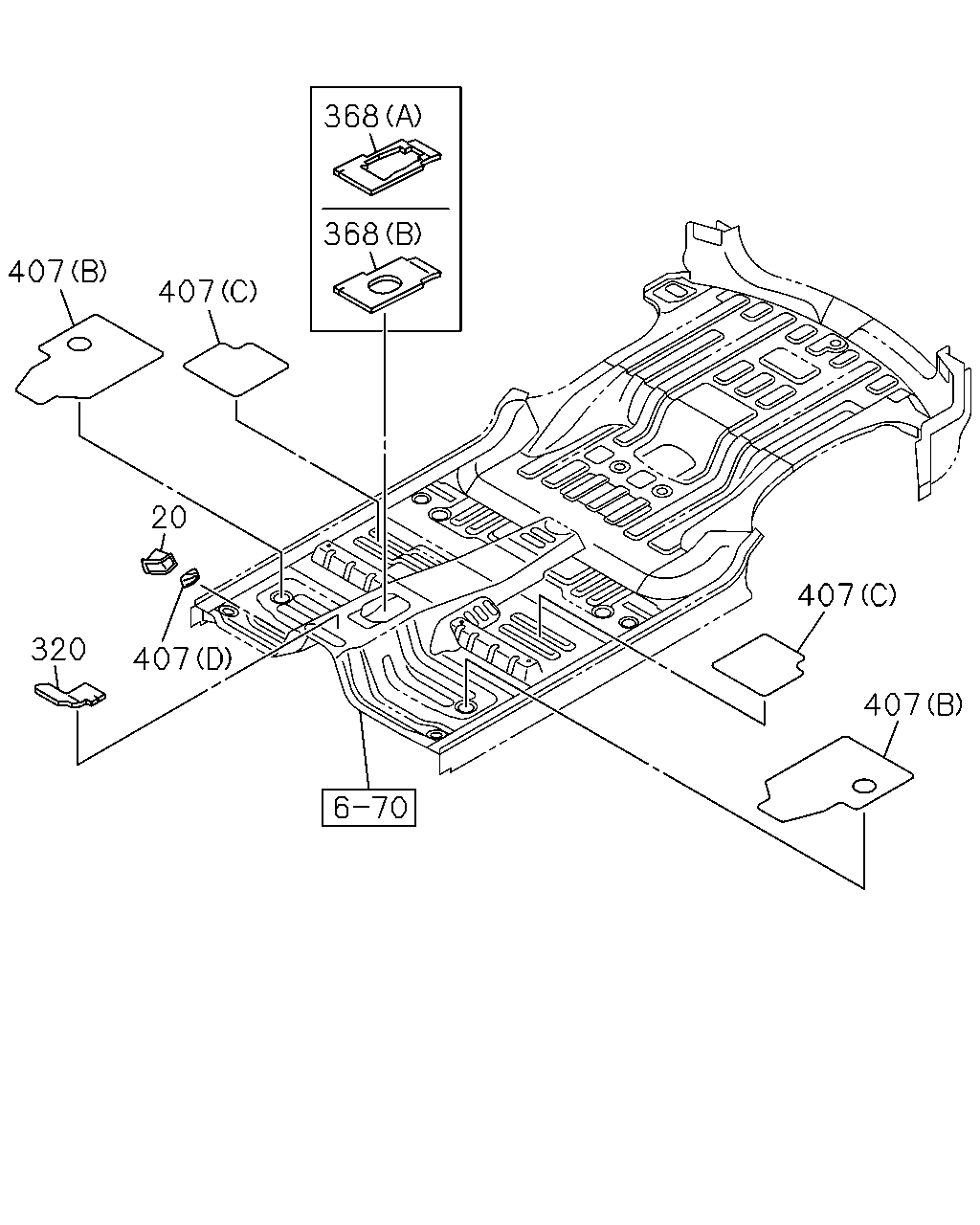

çizim 386494
407 407 407 20 320 407 407 368 368
BalonParca AdiParca NoAdetTipApplied Date A B
20 16.547 REST; FOOT 8-98064-439-2 01 1 1310- ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-98166-704-0 01 1 1310- ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) (A) 		8-98166-707-0 01 1 1310- ● ●
368 16.549 INSULATOR; FLOOR,RR
(C) 		8-98236-190-0 01 1 1310- ● ●
368 16.549 INSULATOR; FLOOR,RR
(D) 		8-98236-191-0 01 1 1310- ● ●
368 16.549 INSULATOR; FLOOR,RR
(E) 		8-98236-192-0 01 1 1310- ● ●
368 16.549 INSULATOR; FLOOR,RR
(F) 		8-98236-193-0 01 1 1310- ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98166-706-0 01 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN(MA1) (A) 		8-98244-858-0 02 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
(A) 		8-98244-858-0 02 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN(MA1) (B) 		8-98103-655-1 02 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
(B) 		8-98103-655-1 02 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN(MA1) (C) 		8-98155-918-0 02 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
(C) 		8-98155-918-0 02 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN(MA1) (D) 		8-98165-147-0 01 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
(D) 		8-98165-147-0 01 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN(MA1) (E) 		8-98199-856-0 04 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
(E) 		8-98199-856-0 04 1 1310- ●

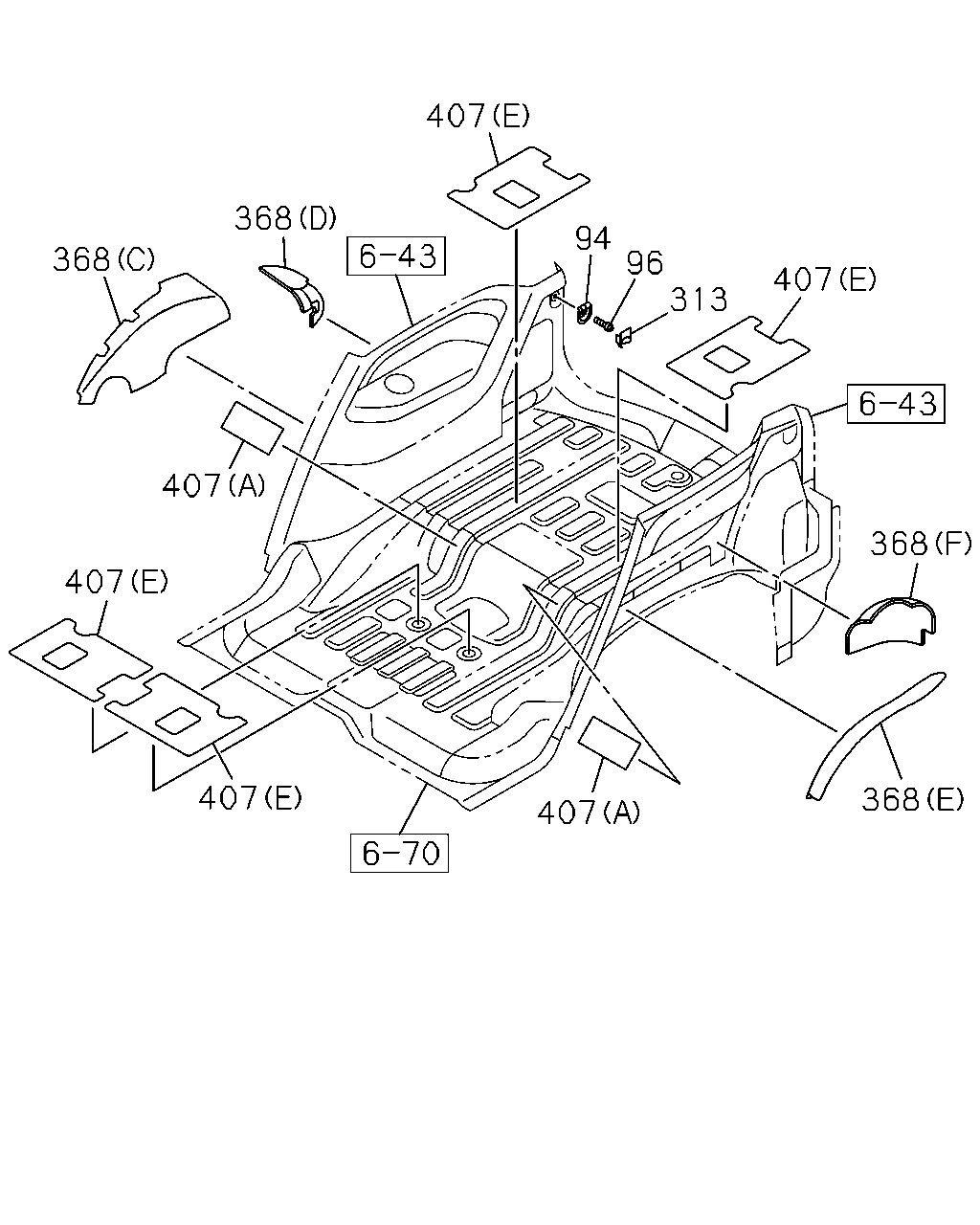

çizim 386581
368 368 407 407 407 407 313 96 94 407 368 368 407
BalonParca AdiParca NoAdetTipApplied Date A B
94 16.545 HOOK ASM; ROPE 8-98240-171-0 02 1 1310- ● ●
96 16.545 BOLT; ROPE HOOK FIX 8-98228-484-0 02 1 1310- ● ●
313 16.545 COVER; ROPE HOOK
BLACK 		8-97424-485-1 02 1 1310- ● ●
368 16.549 INSULATOR; FLOOR,RR
A/T 5 SPEED-AISIN(MA1) (A) 		8-98166-707-0 01 1 1310- ● ●
368 16.549 INSULATOR; FLOOR,RR
(C) 		8-98236-190-0 01 1 1310- ● ●
368 16.549 INSULATOR; FLOOR,RR
(D) 		8-98236-191-0 01 1 1310- ● ●
368 16.549 INSULATOR; FLOOR,RR
(E) 		8-98236-192-0 01 1 1310- ● ●
368 16.549 INSULATOR; FLOOR,RR
(F) 		8-98236-193-0 01 1 1310- ● ●
368 16.549 INSULATOR; FLOOR,RR
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98166-706-0 01 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN(MA1) (A) 		8-98244-858-0 02 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
(A) 		8-98244-858-0 02 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN(MA1) (B) 		8-98103-655-1 02 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
(B) 		8-98103-655-1 02 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN(MA1) (C) 		8-98155-918-0 02 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
(C) 		8-98155-918-0 02 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN(MA1) (D) 		8-98165-147-0 01 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
(D) 		8-98165-147-0 01 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
A/T 5 SPEED-AISIN(MA1) (E) 		8-98199-856-0 04 1 1310- ●
407 16.850 DEADENER; FLOOR PANEL
(E) 		8-98199-856-0 04 1 1310- ●
