◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#130573) — 39 parça

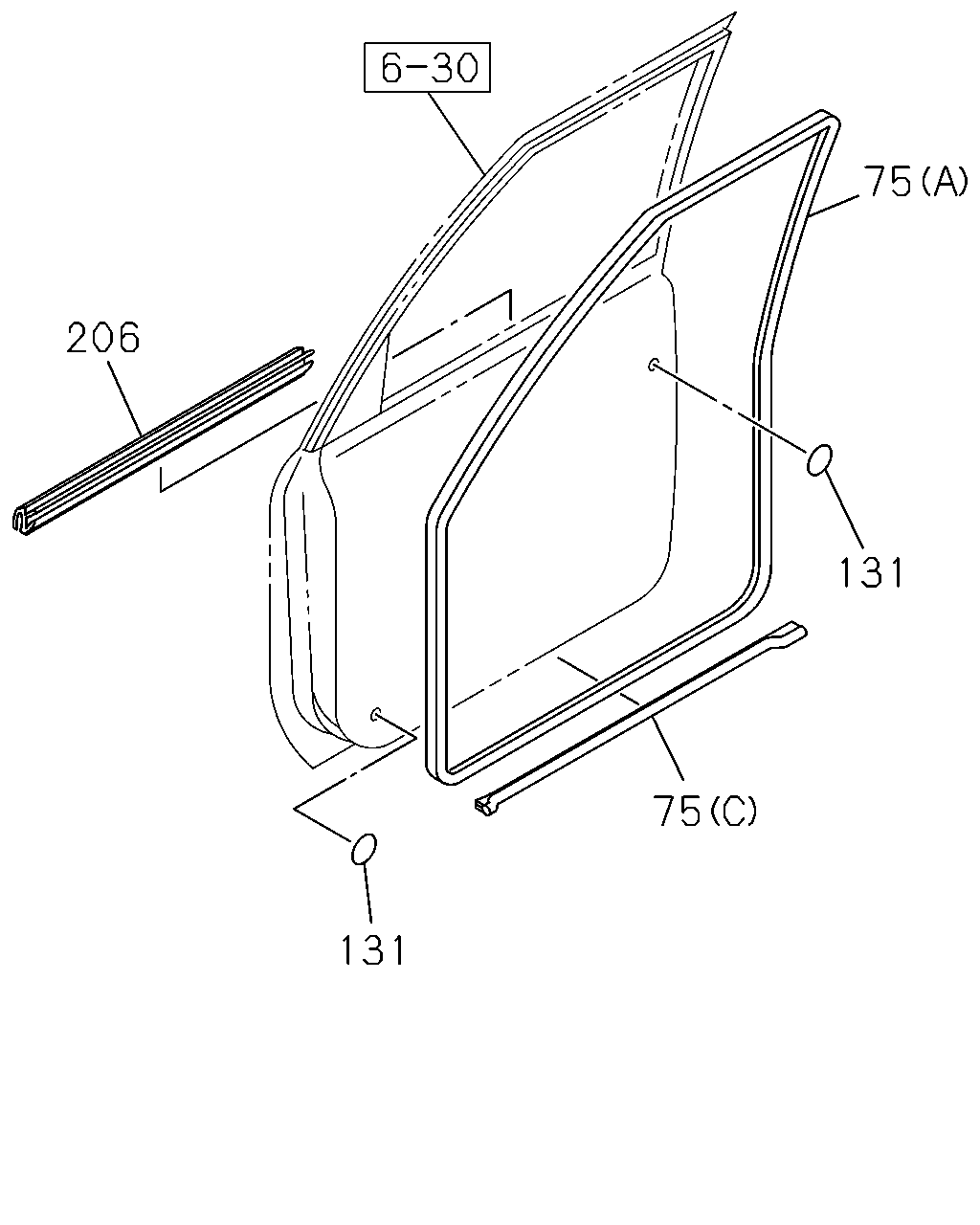

çizim 386077
131 75 131 75 206
BalonParca AdiParca NoAdetTipApplied Date A B
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98052-193-4 01 1 1310-1401 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98271-453-0 01 1 1402-1405 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-670-1 01 1 1406- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98052-194-4 01 1 1310-1401 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98271-454-0 01 1 1402-1405 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-671-1 01 1 1406- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-199-9 01 1 1310- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-200-9 01 1 1310- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-107-0 01 1 1310- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-108-0 01 1 1310- ● ●
131 16.183 SEAL; FRT DOOR
16.165 OD=25 BLACK 		1-76798-019-0 04 1 1310- ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98052-197-2 01 1 1310- ● ●
206 16.183 WEATHERSTRIP; FRT DOOR GLASS 8-98052-198-2 01 1 1310- ● ●

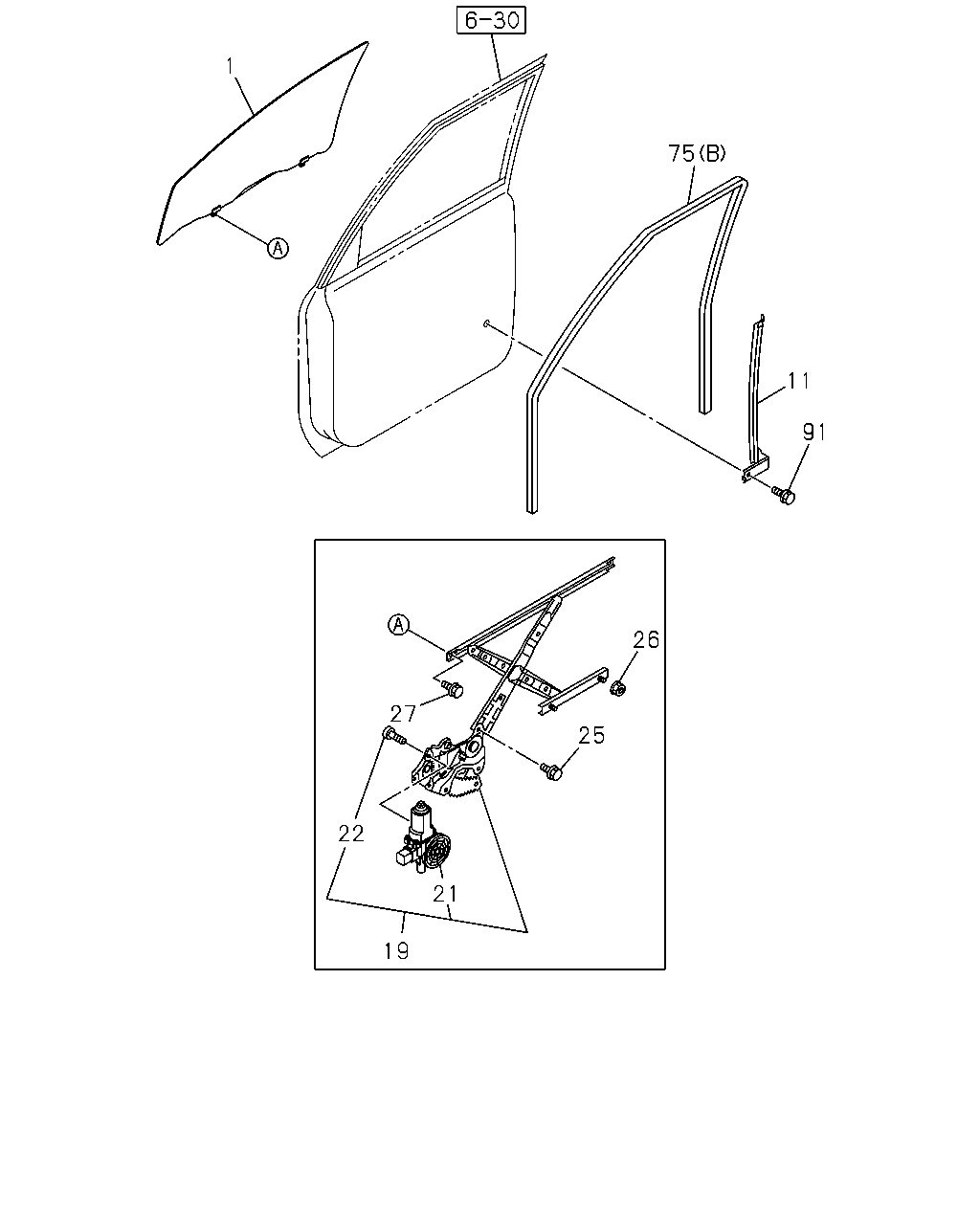

çizim 386332
11 75 1 27 22 21 19 25 26 91
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.180 GLASS; FRT DOOR 8-98073-843-2 01 1 1310- ● ●
1 16.180 GLASS; FRT DOOR 8-98073-844-2 01 1 1310- ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-98100-792-5 01 1 1310- ● ●
11 16.183 RAIL; RR GUIDE,FRT DOOR 8-98100-793-5 01 1 1310- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> 		8-98093-555-1 01 1 1310- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98093-554-1 01 1 1310- ● ●
19 16.260 REGULATOR; WINDOW,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98093-553-1 01 1 1310- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ> 		8-98160-725-0 01 1 1310- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98160-724-0 01 1 1310- ● ●
21 16.263 MOTOR; POWER WINDOW REG,FRT DOOR
DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98160-723-0 01 1 1310- ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98195-236-0 03 1 1310- ● ●
22 16.270 SCREW; POWER WINDOW MOTOR
DRIVER POWER WINDOW W/AUTO DOOR UP/DOWN<ABZ>,DRIVER POWER WINDOW W/AUTO DOOR DOWN<A31> 		8-98195-236-0 03 1 1310- ● ●
25 16.270 BOLT; WINDOW REG
M6X10 FLANGE 		8-98188-381-0 06 1 1310- ● ●
26 16.270 NUT; FLANGE,WINDOW REG
16.320 M6 FLANGE 		8-98049-362-0 04 1 1310- ● ●
27 16.270 BOLT; GLASS FIX
M6X10 FLANGE 		8-98188-381-0 04 1 1310- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98052-193-4 01 1 1310-1401 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98271-453-0 01 1 1402-1405 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-670-1 01 1 1406- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98052-194-4 01 1 1310-1401 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98271-454-0 01 1 1402-1405 ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-671-1 01 1 1406- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-199-9 01 1 1310- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-200-9 01 1 1310- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-107-0 01 1 1310- ● ●
75 16.183 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-108-0 01 1 1310- ● ●
91 16.183 BOLT; GUIDE RAIL TO DOOR
10.765 M6X8 FLANGE 		8-98048-996-0 02 1 1310- ● ●
