◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#130571) — 94 parça

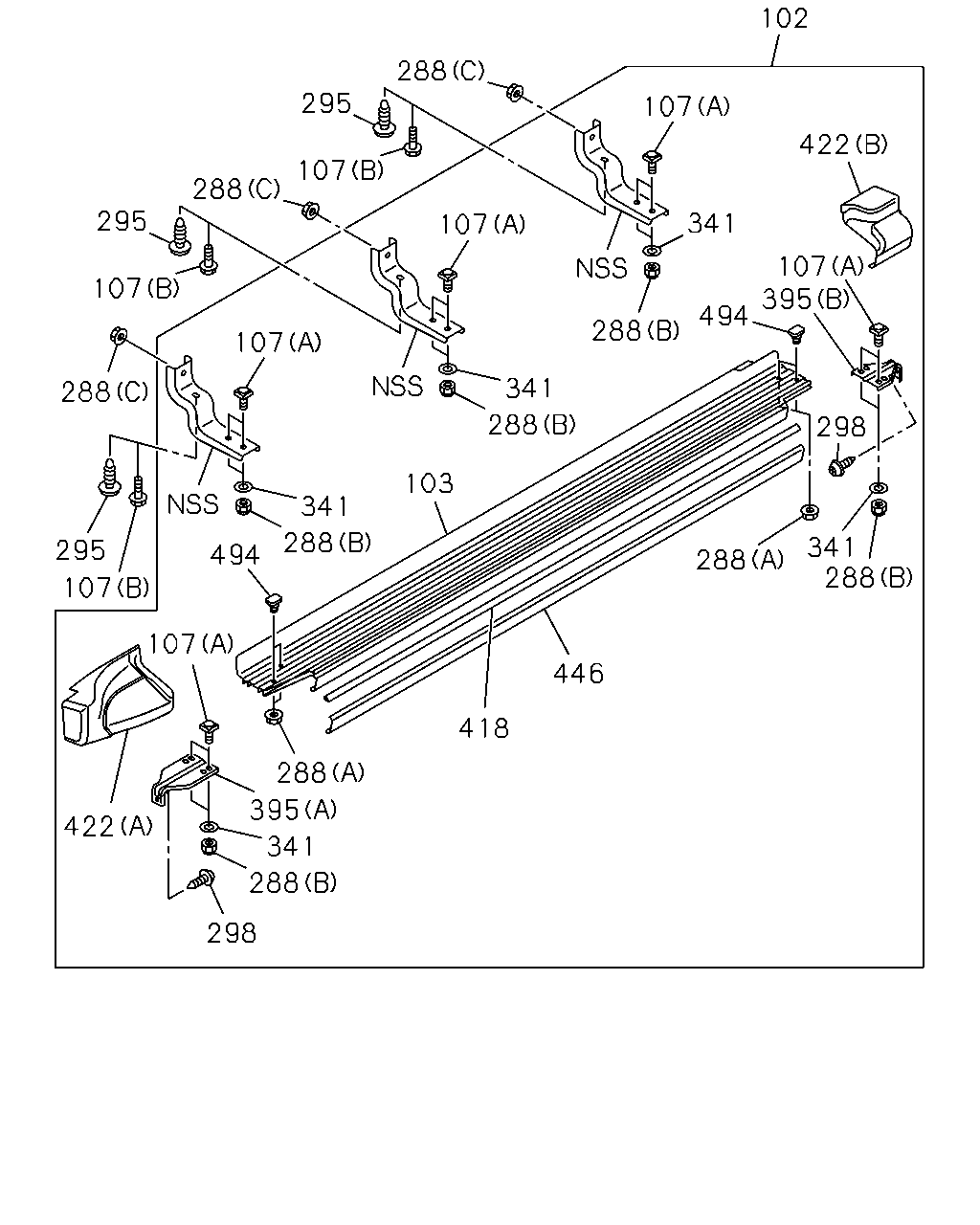

çizim 386030
295 288 107 288 295 107 107 288 295 107 494 288 341 103 446 418 288 395 422 341 288 298 107 341 288 107 102 341 422 107 395 494 298 341 288 288 288 107
BalonParca AdiParca NoAdetTipApplied Date A B
102 12.934 STEP; BODY SIDE
PRIMER 		8-98253-444-1 01 1 1310- ● ●
102 12.934 STEP; BODY SIDE
PRIMER 		8-98253-445-1 01 1 1310- ● ●
103 08.228 PLATE; STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> 		8-98251-434-0 01 1 1310- ● ●
103 08.228 PLATE; STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> 		8-98251-435-0 01 1 1310- ● ●
107 08.228 BOLT; SIDE STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A) 		8-98251-460-0 20 1 1310- ● ●
107 08.228 BOLT; SIDE STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) M8X25 FLANGE 		8-98048-998-0 06 1 1310- ● ●
288 08.225 NUT; STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> 01.062 (A) M6 FLANGE 		0-91180-106-0 08 1 1310- ● ●
288 08.225 NUT; STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> 01.062 (B) M8 FLANGE 		0-91180-108-0 20 1 1310- ● ●
288 08.225 NUT; STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> 01.540 (C) M8 FLANGE 		0-91180-208-0 06 1 1310- ● ●
295 08.225 CLIP; BODY SIDE STEP
EXC. SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> 16.800 OD=18 		8-94269-290-0 06 1 1310- ● ●
298 08.309 SCREW; SIDE STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> 01.269 M5X16 		8-98073-081-0 04 1 1310- ● ●
341 08.309 WASHER; PL,STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> 02.559 ID=8.4 OD=18 		0-91614-608-0 20 1 1310- ● ●
395 08.228 BRACKET; SIDE STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (A) FRONT 		8-98251-452-0 02 1 1310- ● ●
395 08.228 BRACKET; SIDE STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> (B) REAR 		8-98251-453-0 02 1 1310- ● ●
418 08.304 RUBBER; STEP
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> 		8-98251-462-1 02 1 1310- ● ●
422 08.228 COVER; SIDE STEP
(A) FRONT PRIMER 		8-98253-375-0 01 1 1310- ● ●
422 08.228 COVER; SIDE STEP
(B) REAR PRIMER 		8-98253-377-0 01 1 1310- ● ●
422 08.228 COVER; SIDE STEP
(A) FRONT PRIMER 		8-98253-376-0 01 1 1310- ● ●
422 08.228 COVER; SIDE STEP
(B) REAR PRIMER 		8-98253-378-0 01 1 1310- ● ●
446 08.228 FINISHER; STEP
PRIMER 		8-98253-379-0 02 1 1310- ● ●
494 08.228 STUD; BRKT
SIDE STEP FIXED ON BODY<6TC>,SIDE STEP COLOR<8PL> 08.077 		8-98056-035-0 08 1 1310- ● ●

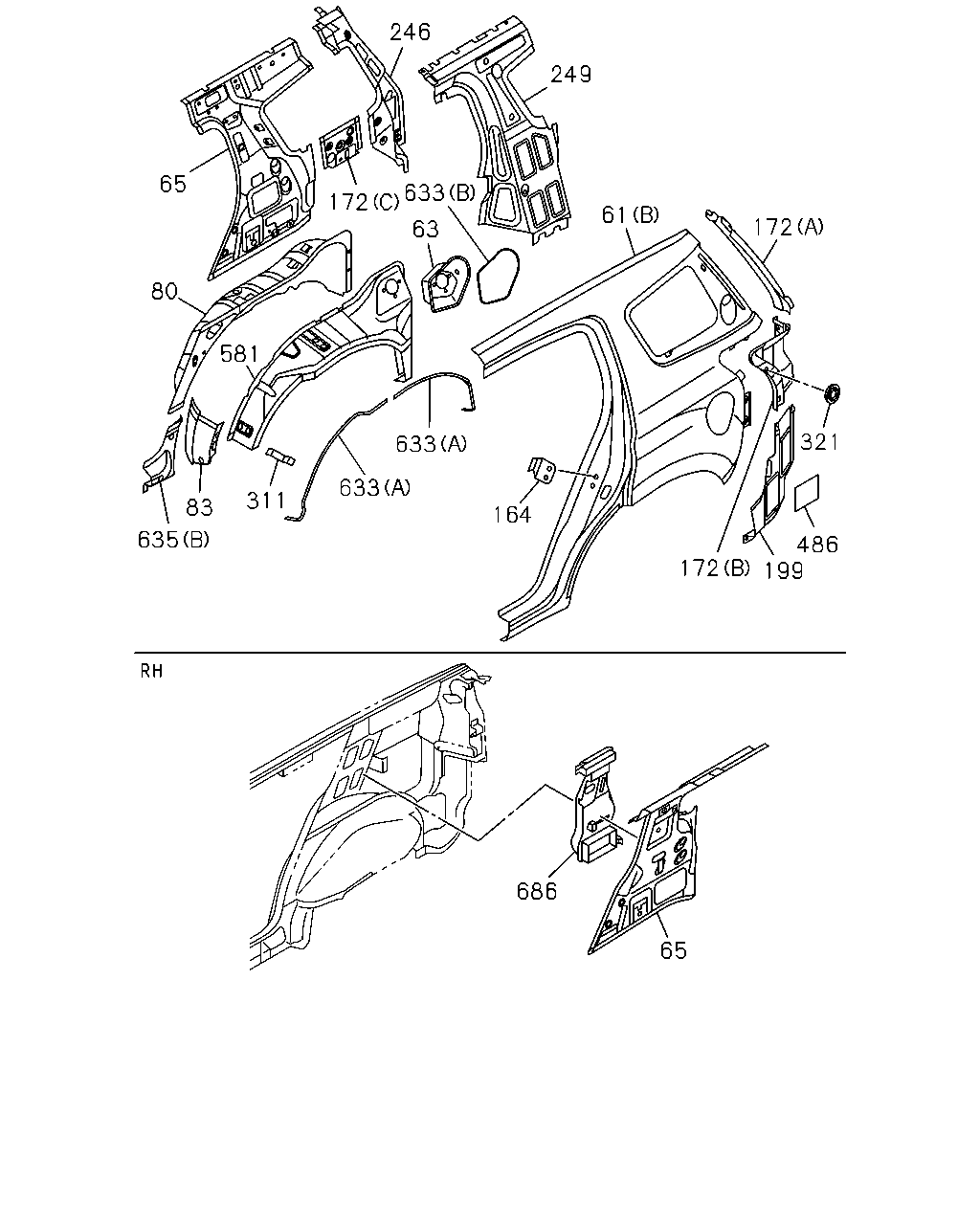

çizim 386511
172 199 321 172 61 686 635 311 633 633 164 63 633 172 65 80 246 249 581 83 65 486
BalonParca AdiParca NoAdetTipApplied Date A B
61 16.570 PANEL; SIDE OUTER
(A) 		8-98254-287-1 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-98254-288-1 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-98254-289-1 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-98254-290-1 01 1 1310- ● ●
63 16.152 PANEL; FUEL FILLER RECESS 8-98200-487-0 01 1 1310- ● ●
65 16.675 PANEL; QUARTER,INNER 8-98200-563-2 01 1 1310- ● ●
65 16.675 PANEL; QUARTER,INNER 8-98200-564-2 01 1 1310- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER 8-98200-427-0 01 1 1310- ● ●
80 08.153 PANEL; WHEEL HOUSE,INNER 8-98200-578-2 01 1 1310- ● ●
83 16.570 COVER; ROCKER RR 8-98200-432-0 01 1 1310- ● ●
83 16.570 COVER; ROCKER RR 8-98200-528-0 01 1 1310- ● ●
164 16.570 PLATE; SIDE PNL OUTER 8-98200-523-1 01 1 1310- ● ●
164 16.570 PLATE; SIDE PNL OUTER 8-98200-641-1 01 1 1310- ● ●
172 16.570 EXTENSION; QUARTER PANEL
(C) 		8-98200-436-0 01 1 1310- ● ●
172 16.570 EXTENSION; QUARTER PANEL
(B) 		8-98200-485-0 01 1 1310- ● ●
172 16.570 EXTENSION; QUARTER PANEL
(A) 		8-98200-489-1 01 1 1310- ● ●
172 16.570 EXTENSION; QUARTER PANEL
(C) 		8-98200-529-3 01 1 1310- ● ●
172 16.570 EXTENSION; QUARTER PANEL
(A) 		8-98200-530-1 01 1 1310- ● ●
172 16.570 EXTENSION; QUARTER PANEL
(B) 		8-98200-531-0 01 1 1310- ● ●
199 16.545 PANEL; RR SIDE 8-98200-484-0 01 1 1310- ● ●
199 16.545 PANEL; RR SIDE 8-98200-536-0 01 1 1310- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-98200-568-5 01 1 1310- ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-98200-569-6 01 1 1310- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98200-425-2 01 1 1310- ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98200-627-2 01 1 1310- ● ●
311 08.155 SEAL; WHEEL HOUSE 8-98200-636-0 01 1 1310- ● ●
311 08.155 SEAL; WHEEL HOUSE 8-98200-636-0 01 1 1310- ● ●
321 08.155 PLUG; HOLE
16.547 OD=15.0 		8-94279-040-0 02 1 1310- ● ●
486 16.570 SEAL; BODY SIDE 8-98317-385-0 01 1 1506- ● ●
581 08.175 PANEL; WHEEL HOUSE,OUTER 8-98200-433-1 01 1 1310- ● ●
581 08.175 PANEL; WHEEL HOUSE,OUTER 8-98200-579-2 01 1 1310- ● ●
633 16.592 SEALER
(A) 		8-98200-638-2 02 1 1310- ● ●
633 16.592 SEALER
(A) 		8-98200-638-2 02 1 1310- ● ●
633 16.592 SEALER
(B) 		8-98200-488-1 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-98200-431-0 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-98200-614-0 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-98200-615-0 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-98200-632-0 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-98206-306-1 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-98206-307-1 01 1 1310- ● ●
686 16.570 DUCT; AIR OUTLET
REAR COOLER WO/HEATER<C69> 		8-98192-299-1 01 1 1310- ● ●

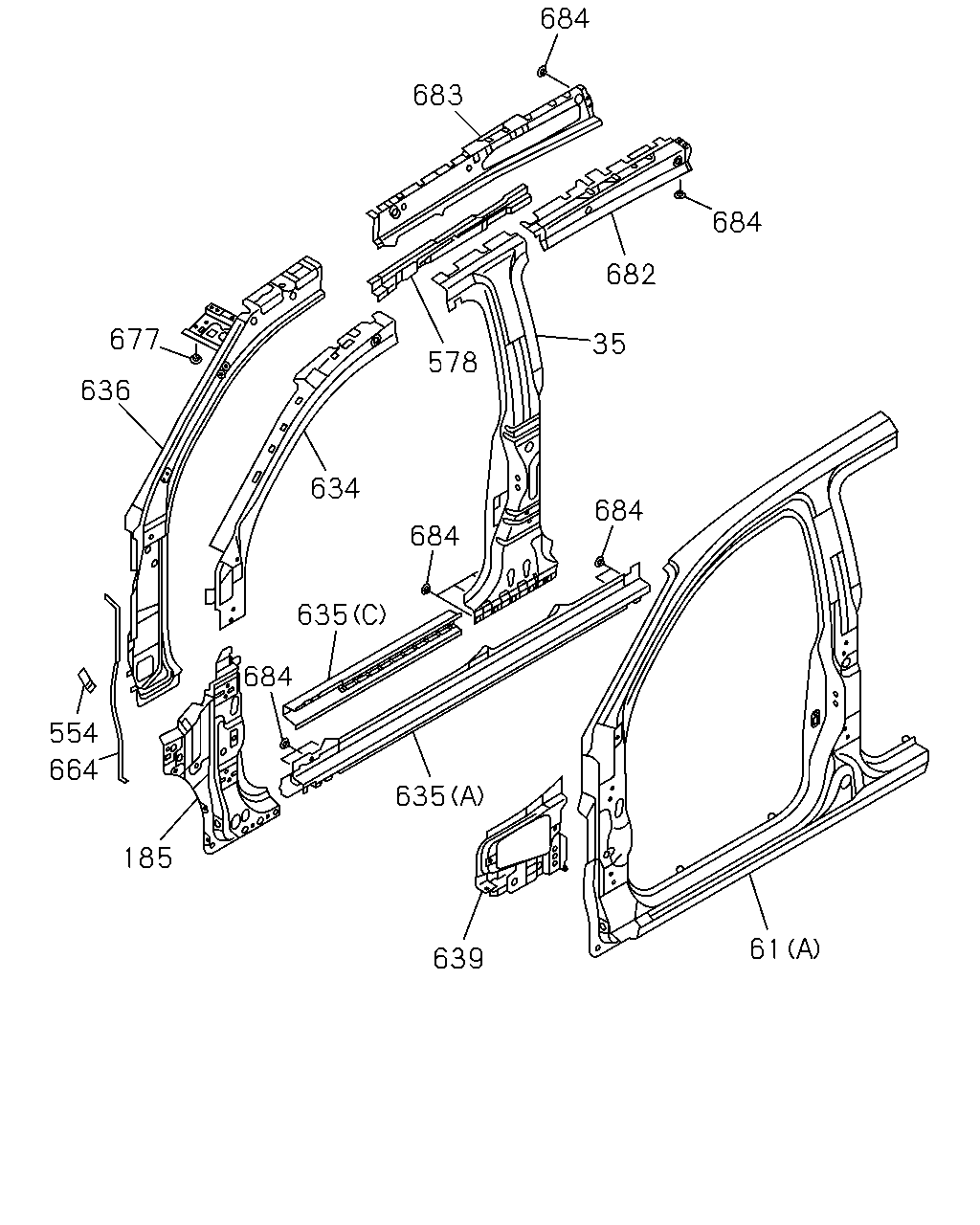

çizim 386552
684 683 677 636 554 664 185 684 682 35 578 634 684 635 684 684 635 639 61
BalonParca AdiParca NoAdetTipApplied Date A B
35 16.570 PANEL; CENTER PILLAR,INNER 8-98200-511-0 01 1 1310- ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-98200-542-0 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-98254-287-1 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-98254-288-1 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
(A) 		8-98254-289-1 01 1 1310- ● ●
61 16.570 PANEL; SIDE OUTER
(B) 		8-98254-290-1 01 1 1310- ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98214-680-0 01 1 1310- ● ●
185 16.570 REINFORCEMENT; SIDE INNER LWR 8-98214-681-0 01 1 1310- ● ●
554 16.570 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1310- ● ●
578 16.545 PATCH; REINF,ROCKER OUTER 8-98206-330-0 01 1 1310- ● ●
578 16.545 PATCH; REINF,ROCKER OUTER 8-98206-331-0 01 1 1310- ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98206-296-2 01 1 1310- ● ●
634 16.570 REINFORCEMENT; BODY SIDE INNER 8-98206-297-2 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-98200-431-0 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-98200-614-0 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
(A) 		8-98200-615-0 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
(B) 		8-98200-632-0 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-98206-306-1 01 1 1310- ● ●
635 16.570 REINFORCEMENT; ROCKER
(C) 		8-98206-307-1 01 1 1310- ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98200-549-3 01 1 1310- ● ●
636 16.570 PANEL; FRONT PILLAR INNER 8-98200-550-3 01 1 1310- ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1310- ● ●
639 16.570 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1310- ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1310- ● ●
664 08.155 SEAL; TAPE 8-98193-408-2 01 1 1310- ● ●
677 16.570 RIVET; PANEL
17.490 		8-98057-864-0 08 1 1310- ● ●
682 16.575 REINFORCEMENT; ROOF SIDE 8-98200-633-0 01 1 1310- ● ●
682 16.575 REINFORCEMENT; ROOF SIDE 8-98200-634-0 01 1 1310- ● ●
683 16.585 PANEL; HEADER 8-98200-574-0 01 1 1310- ● ●
683 16.585 PANEL; HEADER 8-98200-575-0 01 1 1310- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 14 1 1310- ● ●
684 12.971 FASTENER
17.490 		8-98057-864-0 14 1 1310- ● ●
