◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#130567) — 35 parça

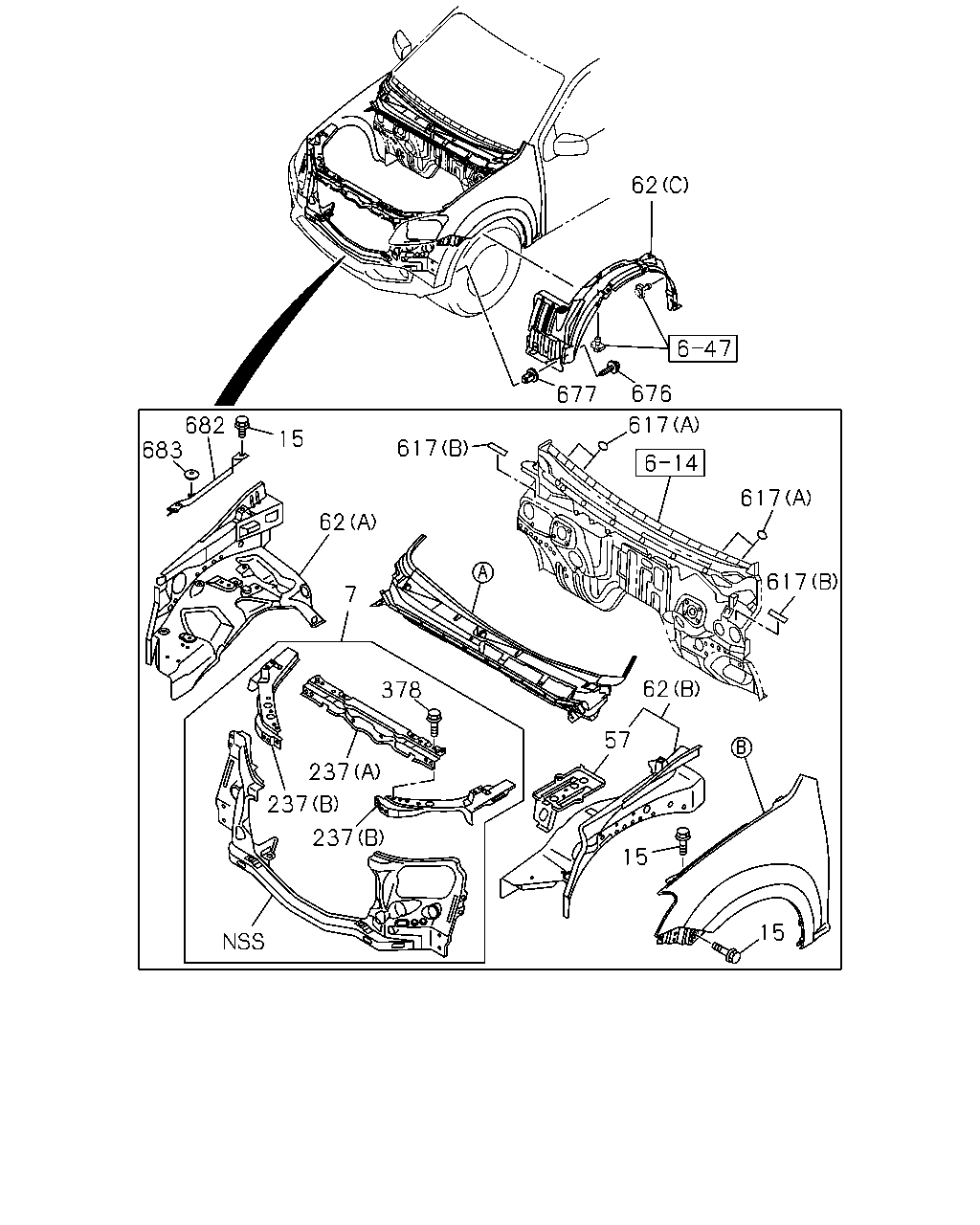

çizim 385613
62 677 617 62 682 683 15 378 237 237 237 15 15 57 617 617 62 617 676 7
BalonParca AdiParca NoAdetTipApplied Date A B
7 01.271 PANEL; DEFLECTOR 8-98103-202-0 01 1 1310- ● ●
15 08.143 BOLT; FENDER
M6X15 W/LK&PL WASHER 		8-98167-615-0 12 1 1310- ● ●
57 02.333 TRAY; BATTERY 8-98104-480-5 01 1 1310- ● ●
62 08.153 PANEL; WHEEL HOUSE
(C) 		8-98213-050-0 01 1 1310- ● ●
62 08.153 PANEL; WHEEL HOUSE
(C) 		8-98213-051-0 01 1 1310- ● ●
62 08.153 PANEL; WHEEL HOUSE
(A) 		8-98222-295-4 01 1 1310- ● ●
62 08.153 PANEL; WHEEL HOUSE
(B) 		8-98226-409-3 01 1 1310- ● ●
237 01.263 SUPPORT; DEFLECTOR
(A) 		8-98104-224-4 01 1 1310- ● ●
237 01.263 SUPPORT; DEFLECTOR
(B) 		8-98104-244-4 01 1 1310- ● ●
237 01.263 SUPPORT; DEFLECTOR
(B) 		8-98104-253-4 01 1 1310- ● ●
378 01.269 BOLT; SUPPORT
03.342 M6X12 FLANGE 		0-28060-612-0 08 1 1310- ● ●
617 08.131 SEAL; DASH
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 1310- ● ●
617 08.131 SEAL; DASH
(C) T=5.0 		8-98134-005-0 01 1 1310- ● ●
617 08.131 SEAL; DASH
(B) 110X10 		8-98192-905-0 02 1 1310- ● ●
676 16.125 BOLT; WHEEL HOUSE
07.874 M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1310- ● ●
677 16.125 NUT; WHEEL HOUSE 8-98189-379-0 02 1 1310- ● ●
682 08.228 PROTECTOR; HEAT,ENG 8-98139-849-3 01 1 1310- ● ●
683 08.228 RIVET; PROTECTOR,HEAT
17.490 		8-98057-864-0 02 1 1310- ● ●

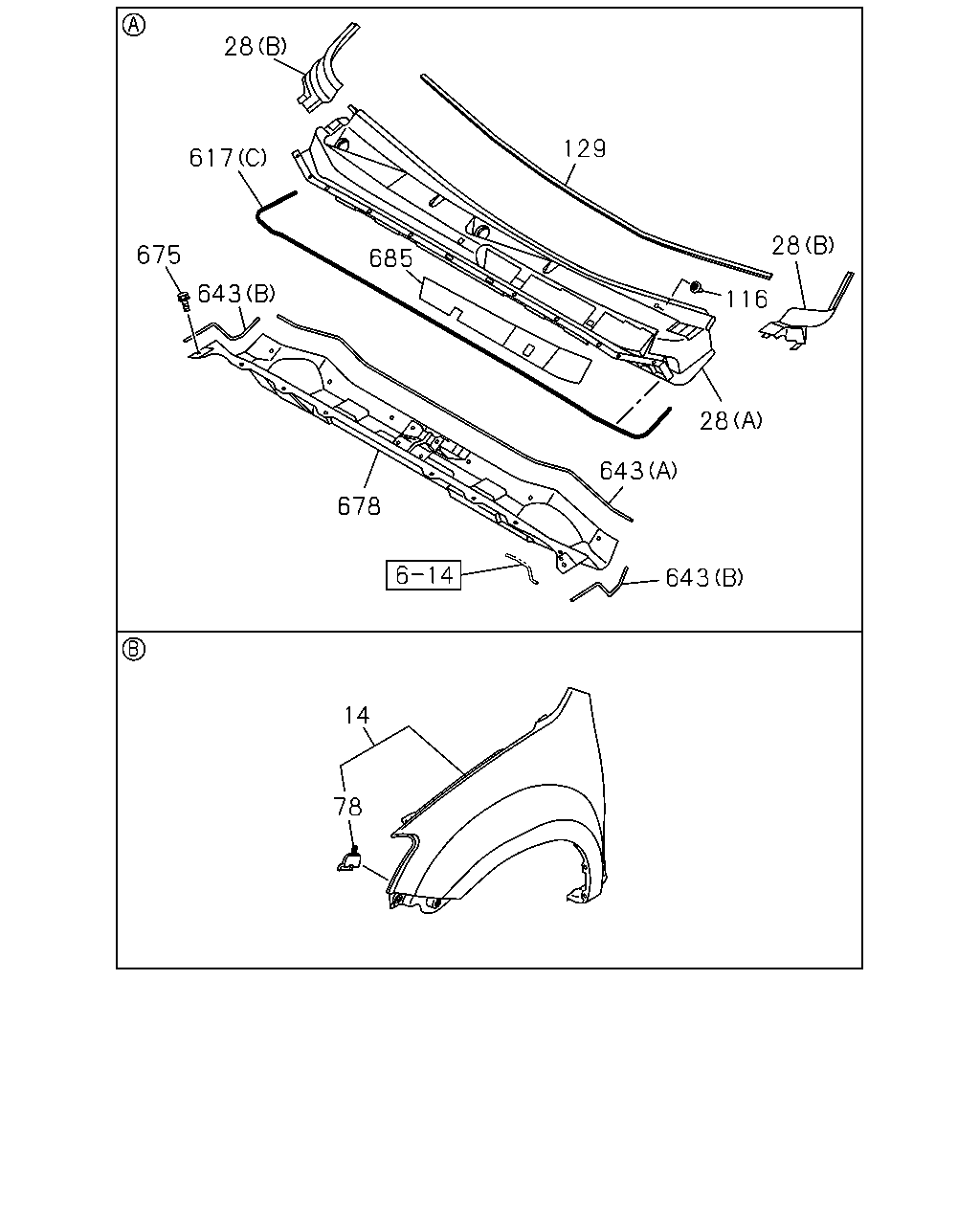

çizim 385666
28 129 28 116 28 643 643 678 643 675 617 685 78 14
BalonParca AdiParca NoAdetTipApplied Date A B
14 08.130 FENDER; FRT 8-98181-029-0 01 1 1310- ● ●
14 08.130 FENDER; FRT 8-98181-030-0 01 1 1310- ● ●
28 16.125 COVER; DASH COWL
(B) 		8-98133-981-6 01 1 1310- ● ●
28 16.125 COVER; DASH COWL
(B) 		8-98133-982-5 01 1 1310- ● ●
28 16.125 COVER; DASH COWL
(A) 		8-98133-983-0 01 1 1310- ● ●
78 16.125 BRACKET; FENDER 8-98104-033-1 01 1 1310- ● ●
78 16.125 BRACKET; FENDER 8-98104-034-1 01 1 1310- ● ●
116 12.800 CLIP; COWL COVER 8-98134-004-1 06 1 1310- ● ●
129 16.125 FINISHER; COWL COVER 8-98133-991-0 01 1 1310- ● ●
617 08.131 SEAL; DASH
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 1310- ● ●
617 08.131 SEAL; DASH
(C) T=5.0 		8-98134-005-0 01 1 1310- ● ●
617 08.131 SEAL; DASH
(B) 110X10 		8-98192-905-0 02 1 1310- ● ●
643 08.131 SEAL; COWL
(A) 		8-98110-283-1 01 1 1310- ● ●
643 08.131 SEAL; COWL
(B) 		8-98110-284-1 02 1 1310- ● ●
675 08.143 BOLT; PANEL
M6X12 W/PL WASHER 		8-98180-459-2 08 1 1310- ● ●
678 08.143 PANEL; COWL 8-98065-803-3 01 1 1310- ● ●
685 16.125 FINISHER; COWL 8-98133-993-0 01 1 1310- ● ●
