6-01 — FRONT BUMPER (#130565) — 26 parça

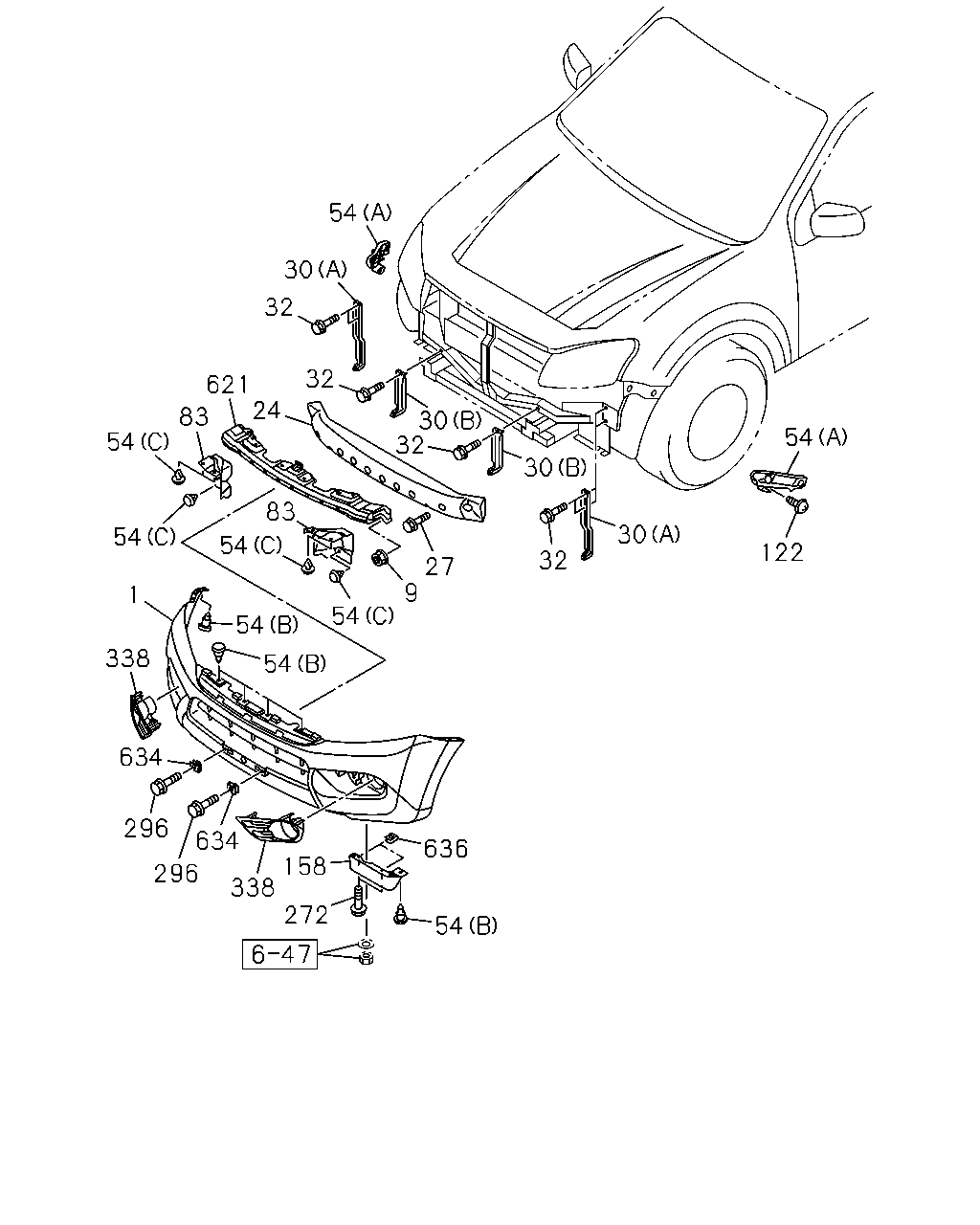

çizim 385901
54 122 30 32 27 54 54 54 83 32 30 32 30 32 30 54 621 83 24 54 54 338 54 634 634 296 338 296 158 272 54 636 9 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER<VT4> PRIMER 		8-98249-950-1 01 1 1310- ● ●
1 07.831 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER<VT4> UPR; PRIMER,LWR; COLOR PAINTED DARK GRAY 		8-98253-374-0 01 1 1310- ● ●
9 07.840 NUT; REINF,FRT BUMPER
01.062 M6 FLANGE 		0-91180-106-0 06 1 1310- ● ●
24 07.869 BAR; FRT BUMPER 8-98165-113-1 01 1 1310- ● ●
27 07.833 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE 		0-28661-025-0 04 1 1310- ● ●
30 07.869 BRACKET; FRT BUMPER
(A) 		8-98087-391-2 02 1 1310- ● ●
30 07.869 BRACKET; FRT BUMPER
(B) 		8-98087-392-0 02 1 1310- ● ●
32 07.874 BOLT; BRKT,BUMPER
02.343 M6X16 FLANGE 		0-28650-616-0 06 1 1310- ● ●
54 07.832 RETAINER; FRT BUMPER
(B) 		8-97301-188-0 10 1 1310- ● ●
54 07.832 RETAINER; FRT BUMPER
08.155 (C) 		8-98050-462-0 06 1 1310- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98210-025-0 01 1 1310- ● ●
54 07.832 RETAINER; FRT BUMPER
(A) 		8-98210-026-0 01 1 1310- ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98139-694-0 01 1 1310- ● ●
83 07.833 GUIDE; AIR,FRT BUMPER 8-98139-695-0 01 1 1310- ● ●
122 07.874 BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER 		0-74160-616-0 02 1 1310- ● ●
158 07.833 EXTENSION; FRT BUMPER 8-98101-950-0 01 1 1310- ● ●
158 07.833 EXTENSION; FRT BUMPER 8-98101-951-0 01 1 1310- ● ●
272 07.874 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1310- ● ●
296 07.800 BOLT; LICENSE PLATE,FRT
09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1310- ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> 		8-98187-265-0 01 1 1310- ● ●
338 07.832 BEZEL; FOG LAMP
FOG LAMP<T96> 		8-98187-266-0 01 1 1310- ● ●
338 07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> 		8-98187-267-0 01 1 1310- ● ●
338 07.832 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> 		8-98187-268-0 01 1 1310- ● ●
621 07.831 SUPPORT; FRT BUMPER 8-98087-390-1 01 1 1310- ● ●
634 07.831 NUT; LICENCE PLATE 8-98054-813-0 02 1 1310- ● ●
636 07.833 NUT; EXT,FRT BUMPER 8-98072-786-0 04 1 1310- ● ●
