Isuzu WW
▶
SUV
▶
UCR
▶
51489 - UCR/UCS-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

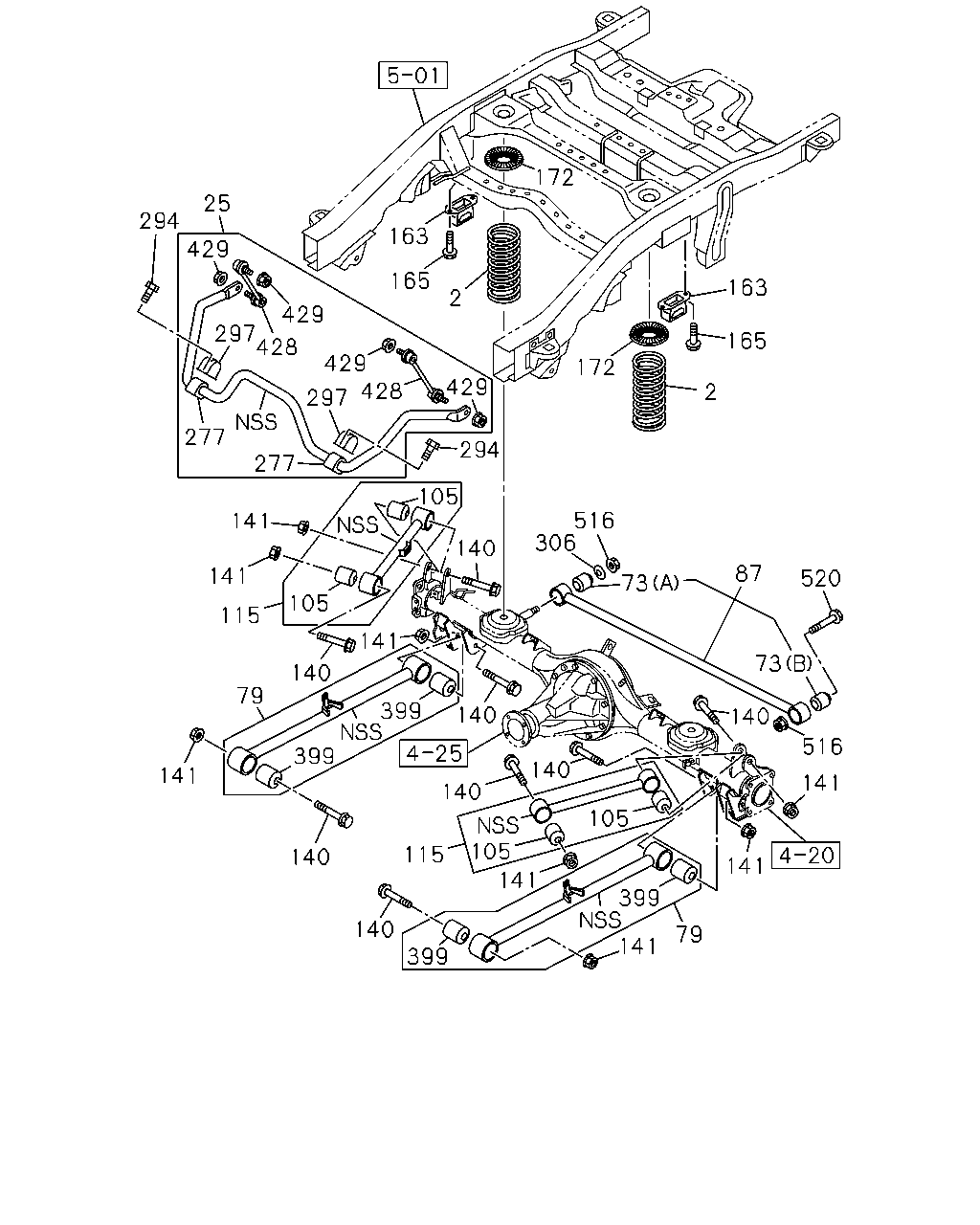

4-60 — REAR SUSPENSION
(#130556) — 22 parça
Tümü
A - UCB5VC
B - UCS5VC
25
294
429
297
429
428
428
429
429
297
277
277
294
172
2
165
163
2
172
163
165
516
87
520
73
306
140
105
141
141
115
79
141
399
140
105
141
399
140
140
73
140
516
141
141
399
79
141
105
140
140
115
141
140
399
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
07.503 SPRING; COIL,RR SUSP
8-97947-799-2
02
1
1310-
●
●
25
07.241 BAR ASM; STAB,RR SUSP
8-97947-792-0
01
1
1310-
●
●
73
07.243 BUSHING; LATERAL ROD,RR SUSP
(A)
8-97947-785-1
01
1
1310-
●
●
73
07.243 BUSHING; LATERAL ROD,RR SUSP
(B)
8-97947-786-0
01
1
1310-
●
●
79
07.240 LINK; TRAILING,RR SUSP
07.242
8-97947-369-0
02
1
1310-
●
●
87
17.204 LINK; LATERAL,RR SUSP
07.241
8-97947-365-2
01
1
1310-
●
●
105
07.240 BUSHING; UPR LINK
8-97947-787-0
04
1
1310-
●
●
115
07.240 LINK; UPR,W/BUSHING
07.242
8-97947-367-1
02
1
1310-
●
●
140
07.242 BOLT; CONT ARM TO BODY
8-97947-834-0
08
1
1310-
●
●
141
07.242 NUT; CONT ARM TO BODY
8-98217-474-0
08
1
1310-
●
●
163
07.529 RUBBER; HELPER,RR SPR
8-97947-790-0
02
1
1310-
●
●
165
07.529 BOLT; HELPER RUBBER
07.833 M10X25 FLANGE
0-28661-025-0
04
1
1310-
●
●
172
07.545 INSULATOR; RR SPR UPR
8-97947-789-0
02
1
1310-
●
●
277
07.243 BUSHING; STAB,RR UPR
8-97247-083-0
02
1
1310-
●
●
294
07.242 BOLT; STAB BAR TO RR AXLE
01.531 M8X20 FLANGE
0-28650-820-0
04
1
1310-
●
●
297
07.242 CAP; STAB BAR
8-97947-948-0
02
1
1310-
●
●
306
07.242 WASHER; ROD
8-97947-826-0
01
1
1310-
●
●
399
07.243 BUSHING; TRAILING ROD
8-97947-788-0
04
1
1310-
●
●
428
07.240 LINK; RR STABILIZER
8-97947-794-0
02
1
1310-
●
●
429
07.242 NUT; LINK
M12 LOCK NUT FLANGE
0-91380-012-0
04
1
1310-
●
●
516
07.242 NUT; ROD
8-98217-474-0
02
1
1310-
●
●
520
07.242 BOLT; ROD
0-29261-490-0
01
1
1310-
●
●
