◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#130549) — 24 parça

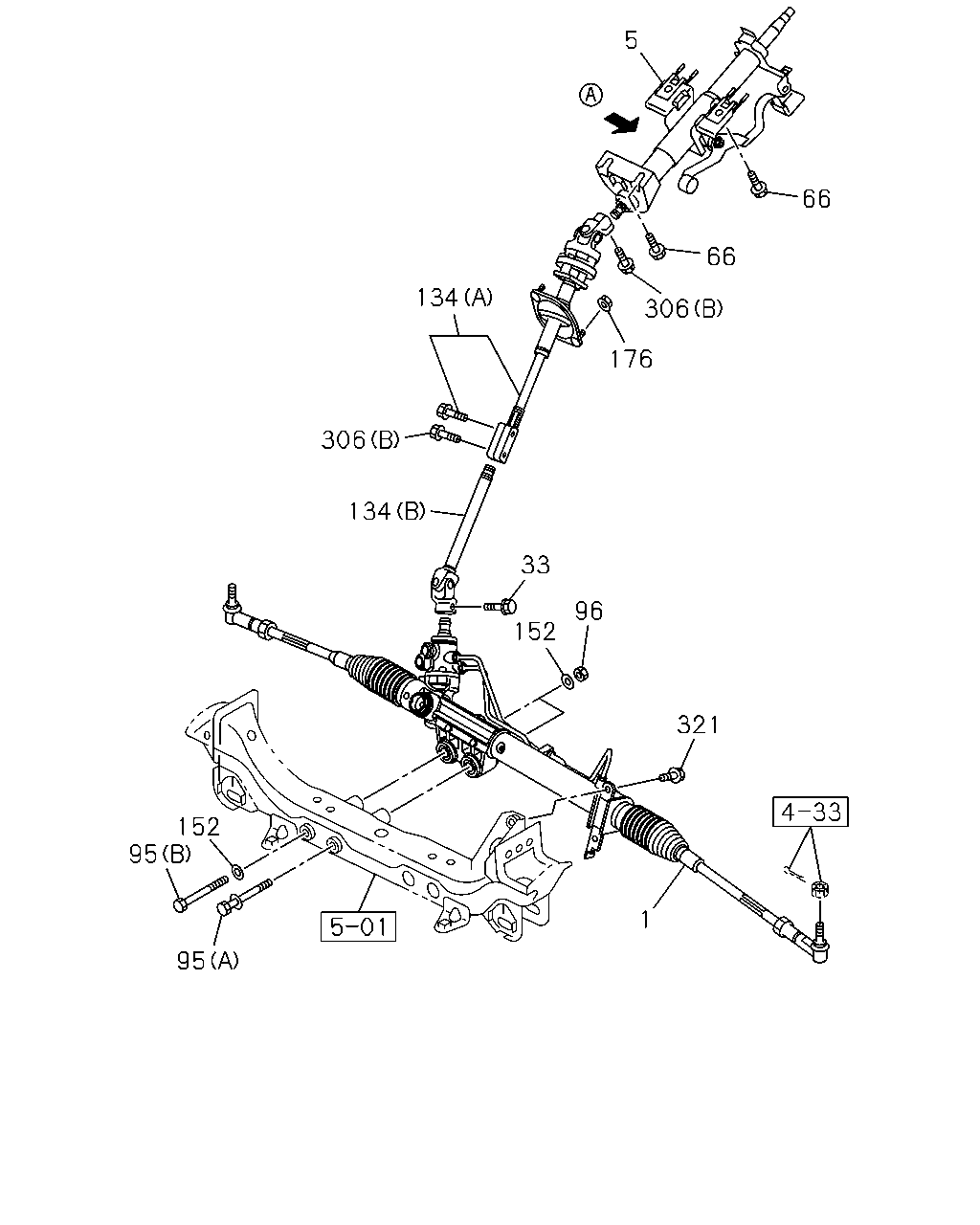

çizim 385603
66 66 5 306 176 134 306 134 33 96 152 321 1 152 95 95
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.508 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-98231-299-0 01 1 1310- ● ●
5 06.518 COLUMN; STRG 8-98273-329-0 01 1 1310- ● ●
33 06.525 BOLT; STRG SHAFT TO UNIT
M8X35 FLANGE 		8-97249-320-0 01 1 1310- ● ●
66 06.514 BOLT; STRG COLUMN
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 1310- ● ●
95 06.509 BOLT; STRG UNIT
(B) M16X186.5 		8-97947-503-0 01 1 1310- ● ●
95 06.509 BOLT; STRG UNIT
(A) M16X186.5 W/PL WASHER 		8-98162-884-1 01 1 1310- ● ●
96 06.509 NUT; STRG UNIT
M16 		0-91110-516-0 02 1 1310- ● ●
134 06.524 SHAFT; STRG,2ND
(B) 		8-98184-288-0 01 1 1310- ● ●
134 06.524 SHAFT; STRG,2ND
(A) 		8-98184-291-0 01 1 1310- ● ●
152 00.796 WASHER; LK,STRG UNIT
ID=17 		8-97947-501-0 03 1 1310-1504 ● ●
152 00.796 WASHER; LK,STRG UNIT
ID=17 		8-98296-670-0 03 1 1505- ● ●
176 06.509 NUT; STRG
01.062 M6 FLANGE 		0-91180-106-0 02 1 1310- ● ●
306 06.525 BOLT; STRG SHAFT
06.500 (A) M8X18.5 TWISTED OFF 		8-97945-749-0 02 1 1310- ● ●
306 06.525 BOLT; STRG SHAFT
(B) M8X35 FLANGE 		8-97249-320-0 02 1 1310- ● ●
321 06.514 BOLT; BRKT,STRG
06.509 M12X30 FLANGE 		0-28661-230-0 02 1 1310- ● ●

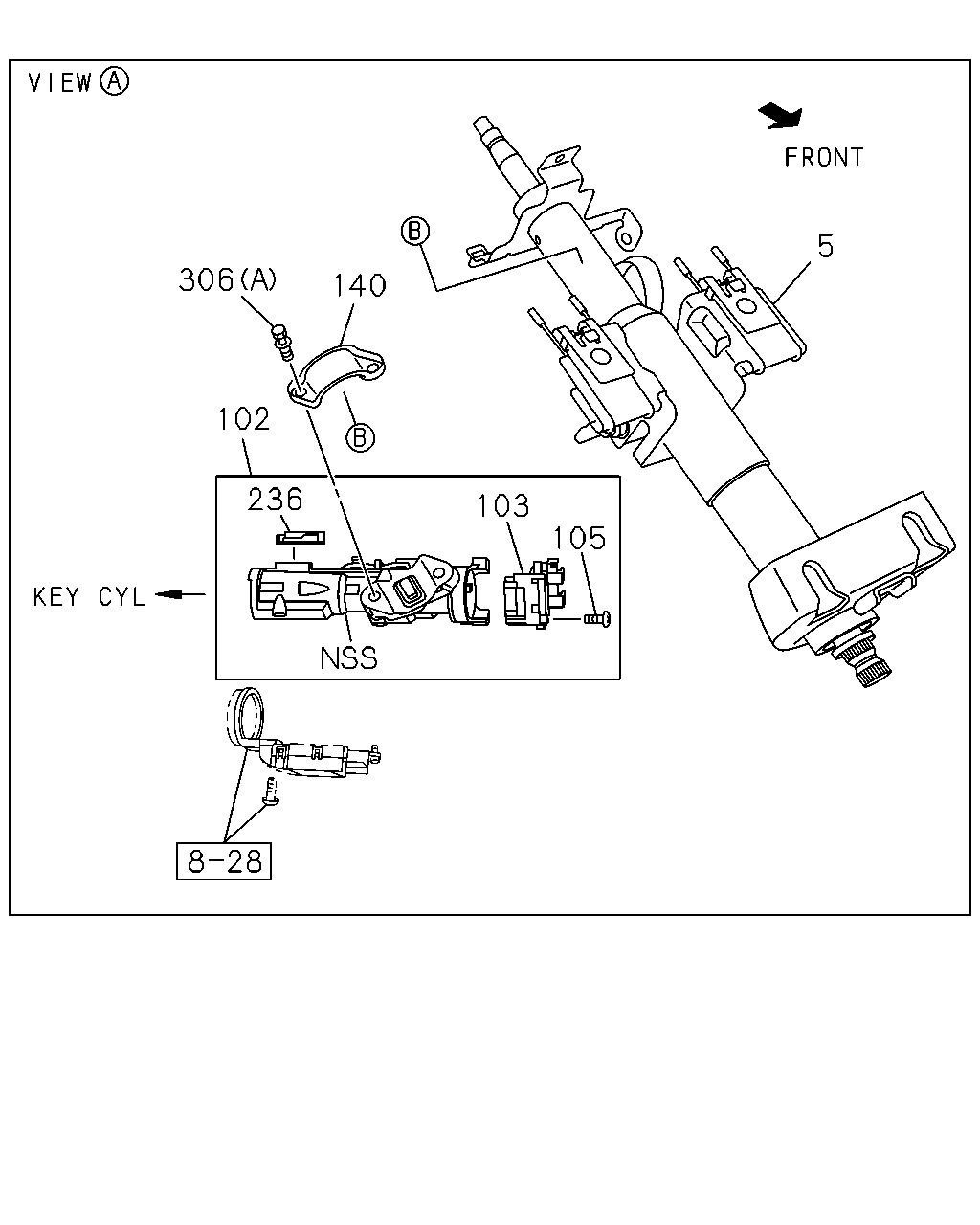

çizim 385644
5 140 306 102 236 103 105
BalonParca AdiParca NoAdetTipApplied Date A B
5 06.518 COLUMN; STRG 8-98273-329-0 01 1 1310- ● ●
102 06.500 LOCK ASM; STRG
A/T 5 SPEED-AISIN(MA1) 		8-98076-120-0 01 1 1310- ● ●
102 06.500 LOCK ASM; STRG
M/T MUX 5 SPEED 5S(MZJ) 		8-98076-117-0 01 1 1310- ●
103 02.188 SWITCH; IGNITION 8-98132-719-0 01 1 1310- ● ●
105 06.500 SCREW; IGN SW 8-98192-449-0 02 1 1310- ● ●
140 06.524 BRACKET; STRG COWL 8-98134-652-0 01 1 1310- ● ●
236 02.195 SWITCH; DOOR WARNING,STRG LOCK 8-98132-720-0 01 1 1310- ● ●
306 06.525 BOLT; STRG SHAFT
06.500 (A) M8X18.5 TWISTED OFF 		8-97945-749-0 02 1 1310- ● ●
306 06.525 BOLT; STRG SHAFT
(B) M8X35 FLANGE 		8-97249-320-0 02 1 1310- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
