3-55 — BRAKE PIPING; OIL,REAR (#130538) — 16 parça

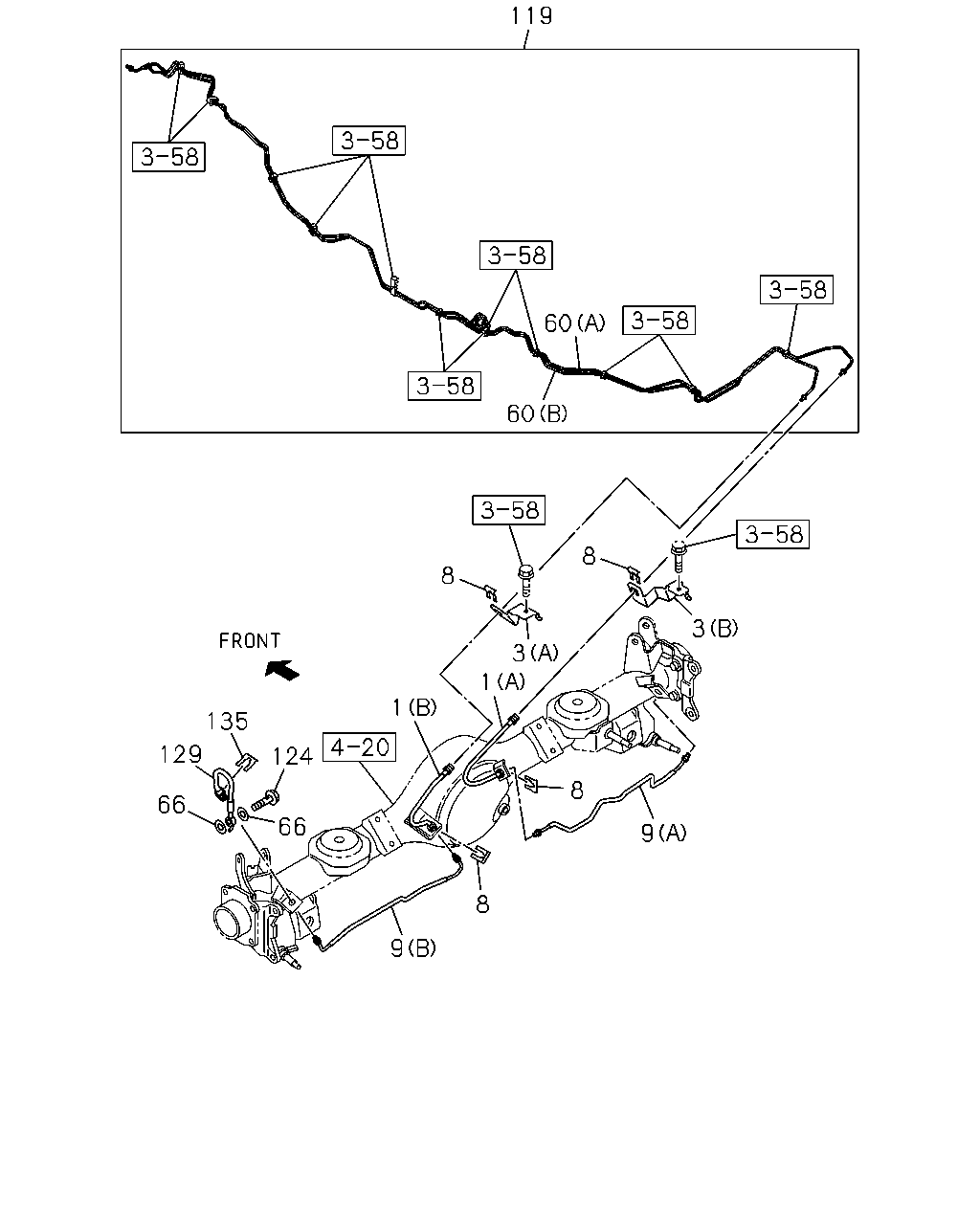

çizim 385790
119 60 60 8 8 3 3 1 1 135 129 66 124 66 9 8 8 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
(A) 		8-98198-321-0 01 1 1310- ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) 		8-98198-322-0 01 1 1310- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-98198-325-0 01 1 1310- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-98198-326-0 01 1 1310- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1310- ● ●
9 04.685 PIPE; BRK,RR AXLE
(A) 		8-98191-433-0 01 1 1310- ● ●
9 04.685 PIPE; BRK,RR AXLE
(B) 		8-98191-434-0 01 1 1310- ● ●
60 04.685 PIPE ASM; BRK
(B) 		8-98197-851-0 01 1 1310- ● ●
60 04.685 PIPE ASM; BRK
(A) 		8-98197-852-0 01 1 1310- ● ●
66 04.686 GASKET; BRK HOSE
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 1310- ● ●
119 04.685 PIPE; BRK,2WAY TO RR 8-98197-850-0 01 1 1310- ● ●
124 04.685 BOLT; EYE,FLEX HOSE,RR BRK
04.681 M10X22 		8-98014-005-0 02 1 1310- ● ●
129 04.680 HOSE; FLEX,RR DISC 8-98198-323-0 02 1 1310- ● ●
135 04.686 CLIP; FLEX HOSE 8-97360-054-0 02 1 1310- ● ●

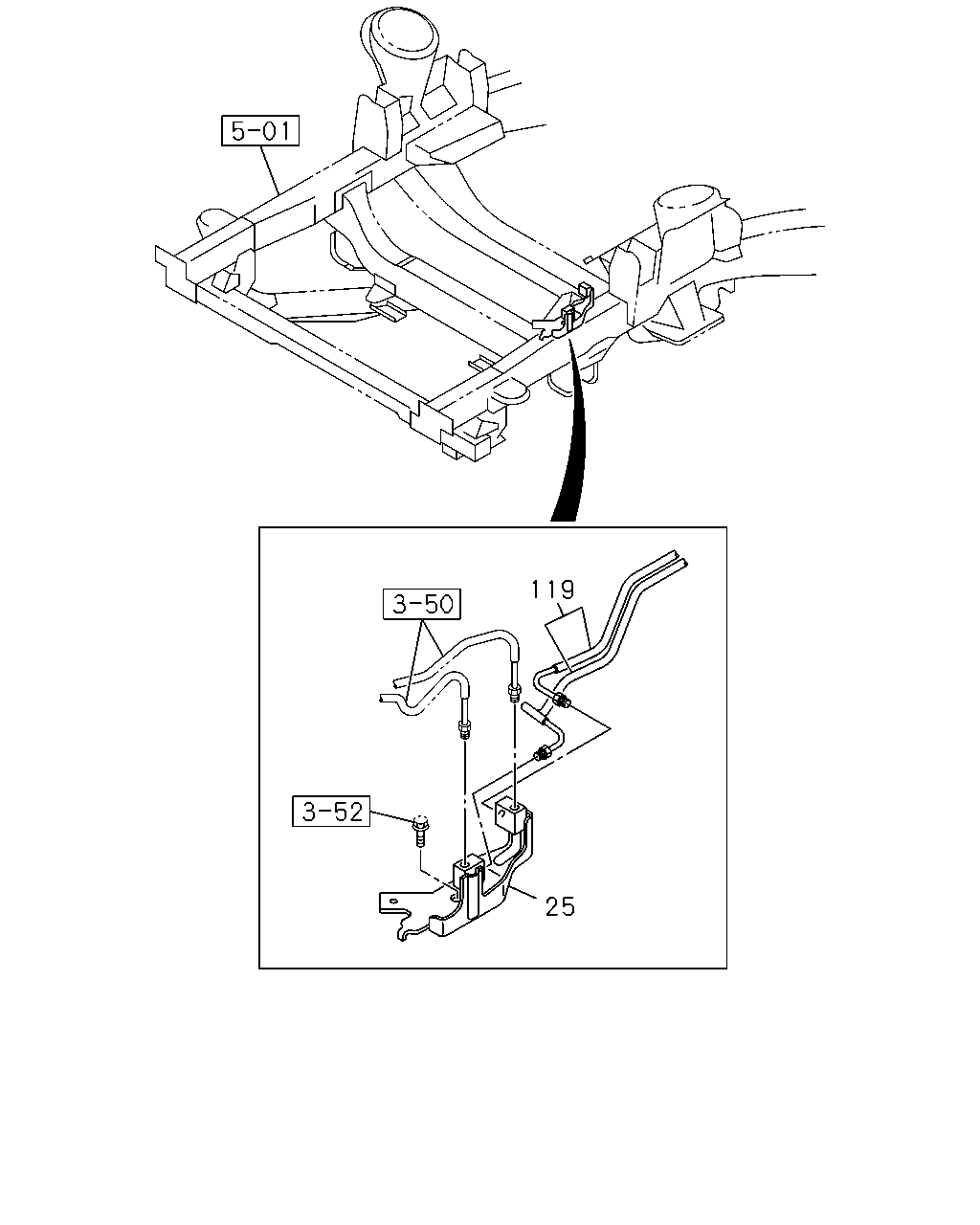

çizim 386083
119 25
BalonParca AdiParca NoAdetTipApplied Date A B
25 04.686 CONNECTOR 8-98099-785-1 01 1 1310- ● ●
119 04.685 PIPE; BRK,2WAY TO RR 8-98197-850-0 01 1 1310- ● ●
