3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#130536) — 24 parça
Tümü
A - UCB5VC
B - UCS5VC
◀

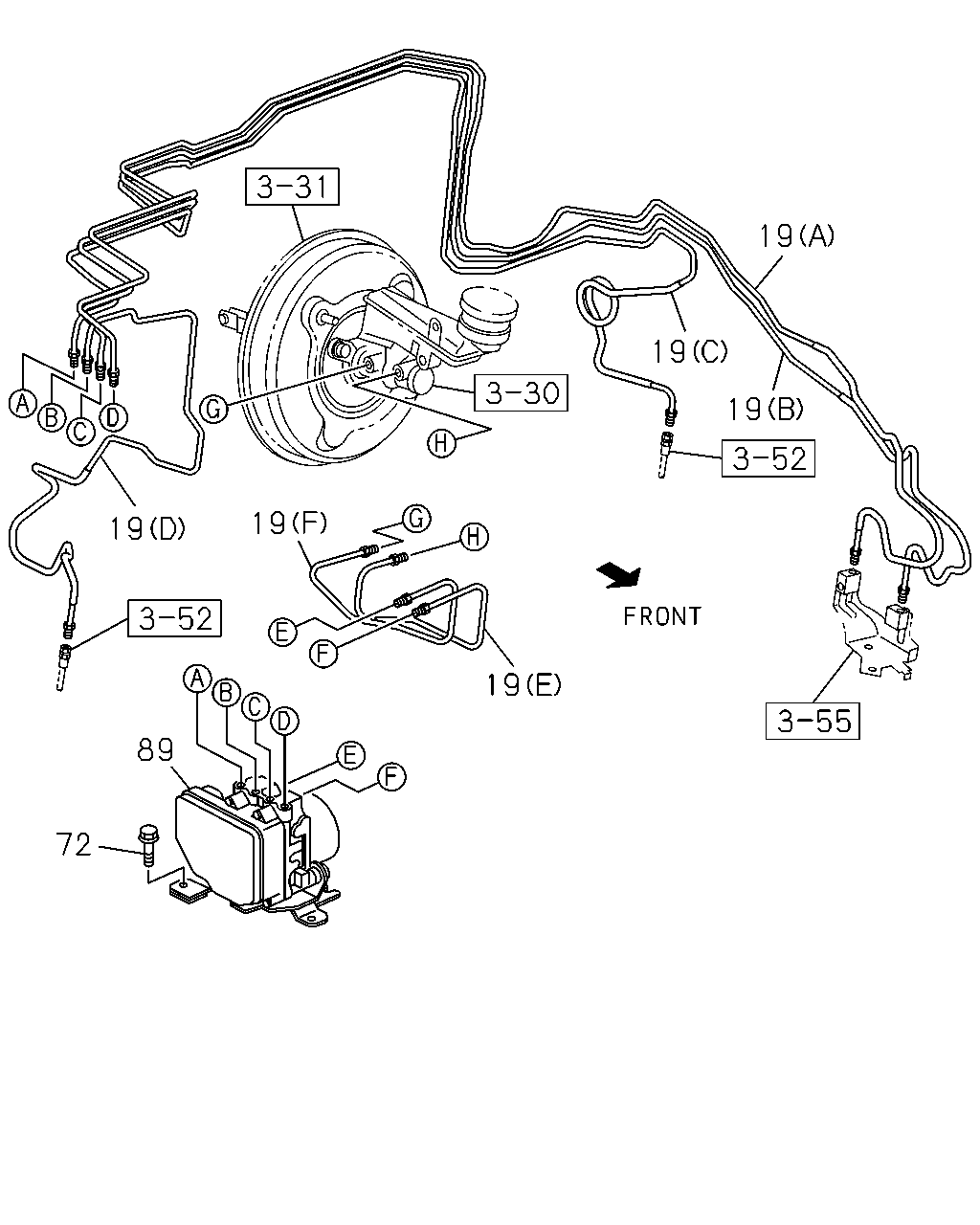

[350A] PIPING (9 parça)

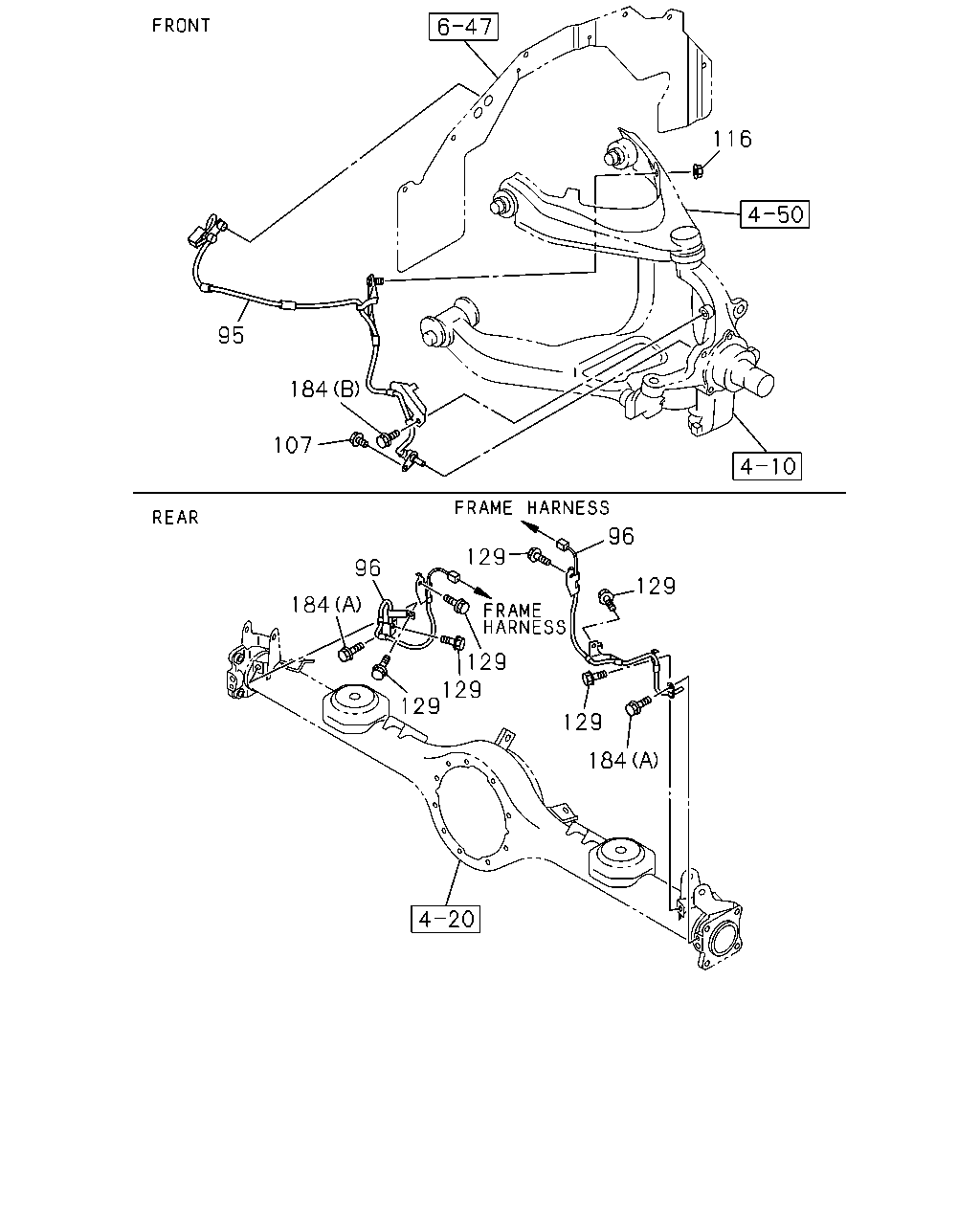

[350A] SENSOR;SPEED (13 parça)

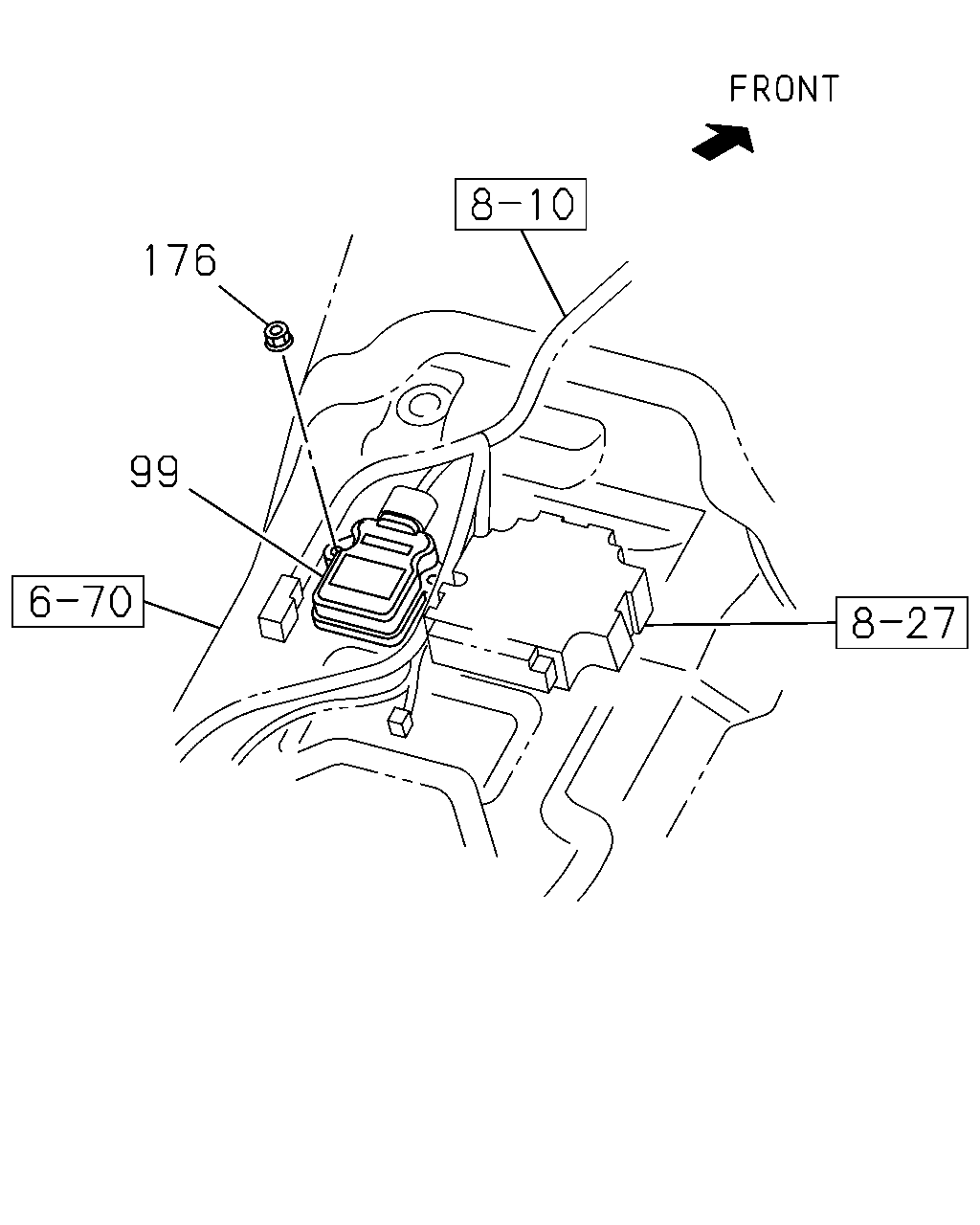

[350A] SENSOR;DECELERATION (2 parça)
▶
19
19
19
19
19
89
72
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
19
04.685 PIPE; BRK,M/CYL TO UNION
(E)
8-98099-738-0
01
1
1310-
●
●
19
04.685 PIPE; BRK,M/CYL TO UNION
(F)
8-98099-739-0
01
1
1310-
●
●
19
04.685 PIPE; BRK,M/CYL TO UNION
(A)
8-98099-730-0
01
1
1310-
●
●
19
04.685 PIPE; BRK,M/CYL TO UNION
(B)
8-98099-736-2
01
1
1310-
●
●
19
04.685 PIPE; BRK,M/CYL TO UNION
(D)
8-98099-744-2
01
1
1310-
●
●
19
04.685 PIPE; BRK,M/CYL TO UNION
(C)
8-98159-938-1
01
1
1310-
●
●
72
04.686 BOLT; BRKT TO BODY
02.343 M6X16 FLANGE
0-28650-616-0
03
1
1310-
●
●
89
04.730 HYDRAULIC UNIT; ANTI LOCK BRK
8-98197-805-1
01
1
1310-
●
89
04.730 HYDRAULIC UNIT; ANTI LOCK BRK
8-98197-806-1
01
1
1310-
●
129
184
129
129
129
184
129
96
129
96
107
184
95
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
95
04.710 SENSOR; SPD,FRT WHEEL
8-98052-119-1
01
1
1310-1509
●
●
95
04.710 SENSOR; SPD,FRT WHEEL
8-98292-432-0
01
1
1510-
●
●
95
04.710 SENSOR; SPD,FRT WHEEL
8-98052-120-1
01
1
1310-1509
●
●
95
04.710 SENSOR; SPD,FRT WHEEL
8-98292-433-0
01
1
1510-
●
●
96
04.710 SENSOR; SPD,RR WHEEL
8-98196-302-0
01
1
1310-
●
●
96
04.710 SENSOR; SPD,RR WHEEL
8-98196-303-0
01
1
1310-
●
●
107
04.710 BOLT; WHEEL SPD SENSOR
03.671 M6X10 FLANGE
0-28050-610-0
02
1
1310-1509
●
●
107
04.710 BOLT; WHEEL SPD SENSOR
03.162 M6X12 FLANGE
0-28050-612-0
02
1
1510-
●
●
116
04.686 NUT
01.062 M8 FLANGE
0-91180-108-0
02
1
1310-
●
●
129
04.710 BOLT; BRKT
02.343 M6X16 FLANGE
0-28650-616-0
06
1
1310-
●
●
184
04.681 BOLT; CLIP
03.671 (B) M6X10 FLANGE
0-28050-610-0
02
1
1310-1509
●
●
184
04.681 BOLT; CLIP
03.162 (B) M6X12 FLANGE
0-28050-612-0
02
1
1510-
●
●
184
04.681 BOLT; CLIP
02.343 (A) M6X16 FLANGE
0-28650-616-0
02
1
1310-
●
●
176
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
99
04.710 SENSOR; DECELERATION
8-98052-116-1
01
1
1310-
●
●
176
04.730 NUT; SENSOR
01.062 M6 FLANGE
0-91180-106-0
02
1
1310-
●
●
