◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 3 - Brakes, Brake System ▶ 3-06 - REAR DISC BRAKE CALIPER ▶
3-06 — REAR DISC BRAKE CALIPER (#130530) — 12 parça

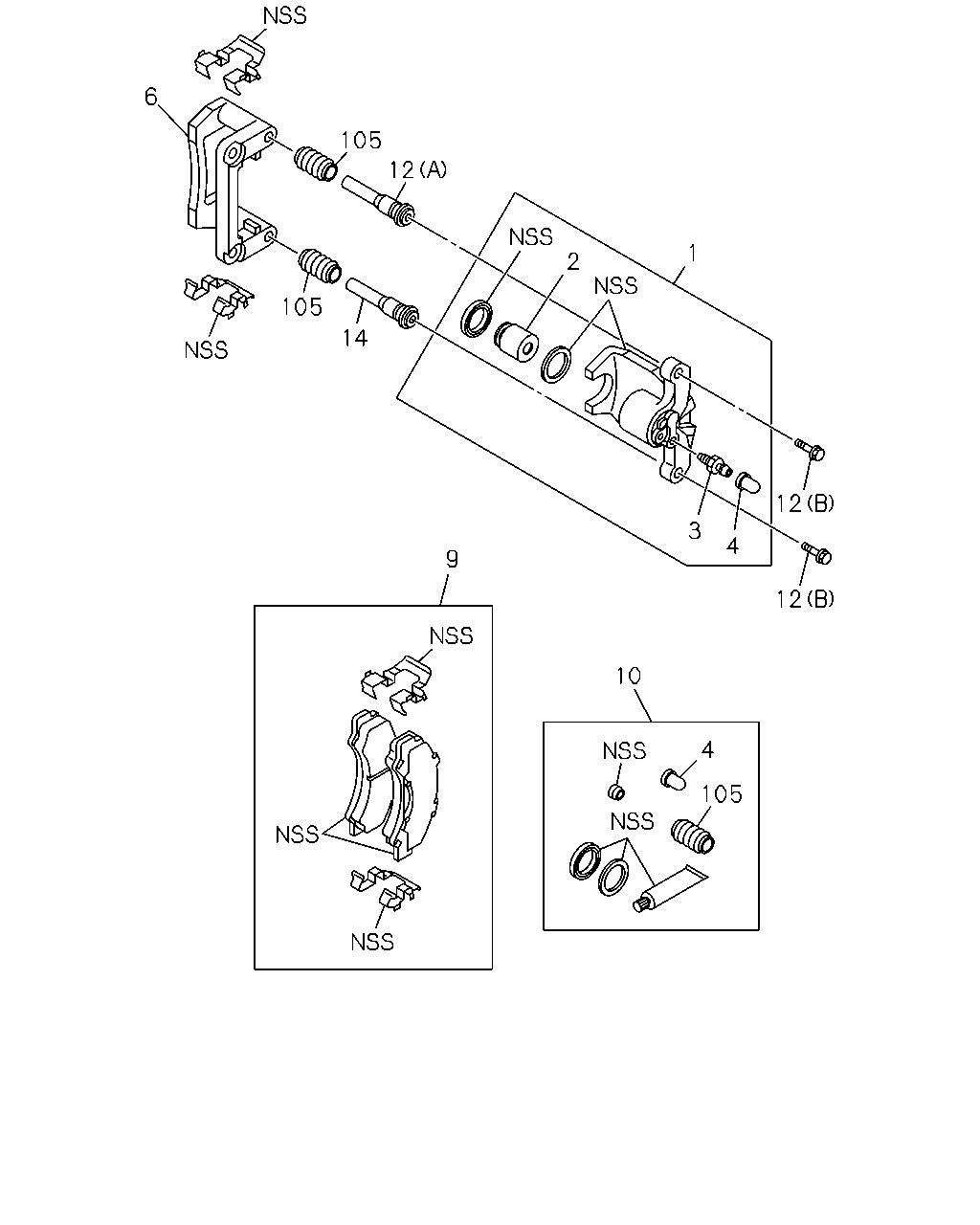

çizim 385508
1 12 12 4 3 2 12 105 14 105 6 9 10 4 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.665 CALIPER; RR DISC BRK 8-98232-525-0 01 1 1310- ● ●
1 04.665 CALIPER; RR DISC BRK 8-98232-526-0 01 1 1310- ● ●
2 04.665 PISTON; CALIPER,RR 8-98232-529-0 02 1 1310- ● ●
3 04.665 SCREW; BLEEDER,CALIPER,RR
04.666 		8-98050-476-0 02 1 1310- ● ●
4 04.665 CAP; BLEEDER SCREW,CALIPER,RR
04.666 		8-98050-479-0 02 1 1310- ● ●
6 04.665 BRACKET; SUPPORT,RR DISC BRK 8-98232-532-0 02 1 1310- ● ●
9 04.667 PAD KIT; CALIPER,RR 8-98232-543-0 01 1 1310- ● ●
10 04.665 REPAIR KIT; DISC BRK,RR 8-98232-545-0 01 1 1310- ● ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
(A) 		8-98078-176-0 02 1 1310- ● ●
12 04.665 PIN; RET,CALIPER,RR DISC BRK
(B) 		8-98078-192-0 04 1 1310- ● ●
14 04.665 PIN; GUIDE,CALIPER 8-98078-175-0 02 1 1310- ● ●
105 04.665 BOOT; PIN 8-98078-193-0 04 1 1310- ● ●
