2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#130526) — 26 parça

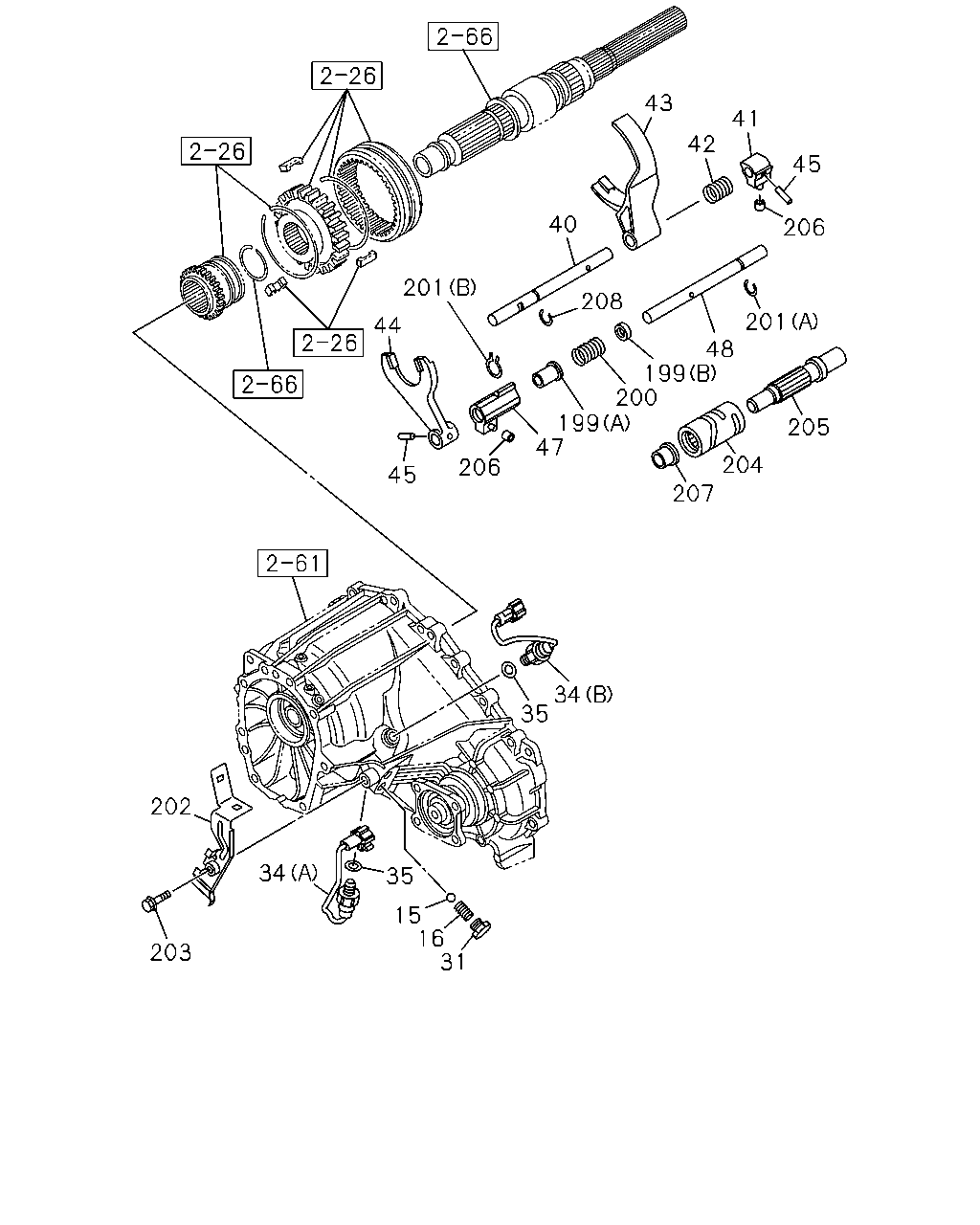

çizim 385502
44 45 206 47 201 199 40 208 43 199 200 48 42 41 45 206 201 205 204 207 34 35 35 34 202 203 15 16 31
BalonParca AdiParca NoAdetTipApplied Date
15 04.311 BALL; DETENT,SHIFT ROD,TRANSFER 8-94435-335-0 02 1 1310-
16 04.515 SPRING; DETENT,SHIFT ROD,TRANSFE
L=23.4 		8-97145-374-0 02 1 1310-
31 04.520 PLUG; DETENT BALL,TRANSFER
M12X9 		0-92002-412-0 02 1 1310-
34 04.075 SWITCH; TRANSFER INDICATOR
(A) 		8-98181-233-0 01 1 1310-
34 04.075 SWITCH; TRANSFER INDICATOR
(B) 		8-98181-234-0 01 1 1310-
35 04.075 GASKET; INDICATOR SWITCH,TRANSFE
08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 1310-
40 04.309 ROD; SHIFT,4X2-4X4,TRANSFER 8-97234-229-0 01 1 1310-
41 04.555 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97234-233-1 01 1 1310-
42 04.515 SPRING; GEAR LOCK RELEASE,TRANSF 8-97239-010-1 01 1 1310-
43 04.555 ARM; SHIFT,4X2-4X4,TRANSFER 8-97234-231-0 01 1 1310-
44 04.555 ARM; SHIFT,HIGH-LOW,TRANSFER 8-97300-106-1 01 1 1310-
45 04.303 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 02 1 1310-
47 04.555 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-98161-034-0 01 1 1310-
48 04.309 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97234-230-0 01 1 1310-
199 04.419 COLLAR; TRANSFER CONTROL
(A) 		8-97234-662-1 01 1 1310-
199 04.419 COLLAR; TRANSFER CONTROL
(B) 		8-97234-663-1 01 1 1310-
200 04.198 SPRING; SHIFT HIGH-LOW 8-97239-011-0 01 1 1310-
201 04.525 RING; SNAP,SHIFT
04.307 (A) ID=12 		8-94460-357-0 01 1 1310-
201 04.525 RING; SNAP,SHIFT
(B) ID=23 		8-97305-011-1 01 1 1310-
202 04.525 BRACKET; SWITCH 8-98118-922-1 01 1 1310-
203 04.570 BOLT; BRACKET,SWITCH
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1310-
204 05.555 DRUM; SHIFT 8-98158-123-0 01 1 1310-
205 05.555 SHAFT; SHIFT DRUM 8-98063-364-1 01 1 1310-
206 05.555 ROLLER; GUIDE,SHIFT 8-97234-499-0 02 1 1310-
207 04.570 BUSH; CONTROL SHAFT 8-98158-124-0 01 1 1310-
208 04.525 RING; SNAP,SHIFT
04.307 ID=12 		8-94460-357-0 01 1 1310-
