2-55 — AUTO TRANS SHIFT CONTROL LEVER (#130522) — 18 parça

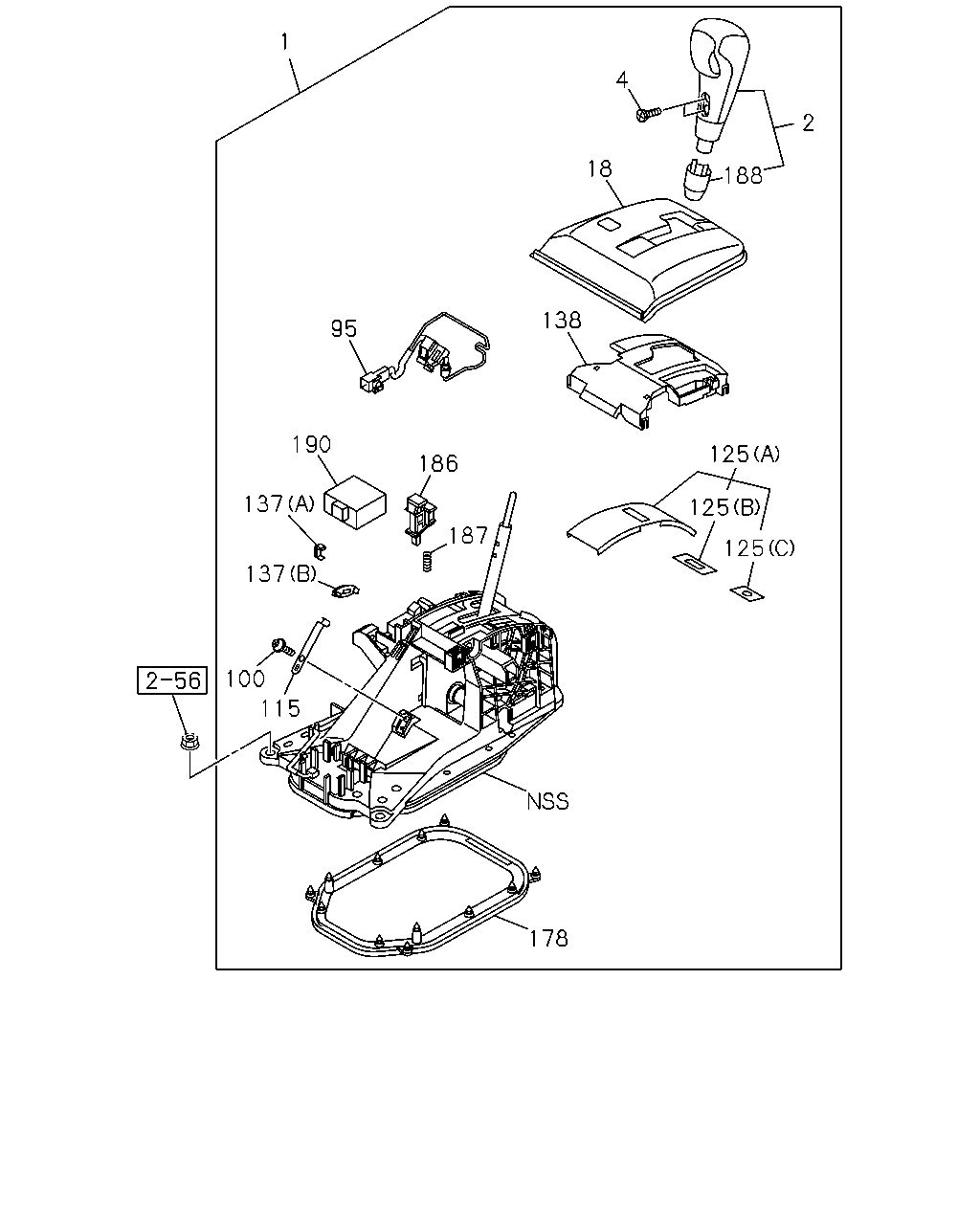

çizim 385499
1 4 18 188 2 138 125 125 125 95 186 187 190 137 137 100 115 178
BalonParca AdiParca NoAdetTipApplied Date
1 04.006 LEVER; SHIFT,A/T
SILVER 		8-97427-693-0 01 1 1310-
2 04.006 KNOB ASM; AUTO CONT LEVER
SILVER 		8-97421-017-0 01 1 1310-
4 04.006 SCREW; KNOB TO LEVER 8-98163-219-0 02 1 1310-
18 04.020 COVER; INDICATOR,UPR
SILVER 		8-97425-356-1 01 1 1310-
95 04.006 LAMP; INDICATOR 8-98163-211-0 01 1 1310-
100 04.012 SCREW 8-98163-221-0 01 1 1310-
115 04.008 PLATE; SPR,LEVER 8-98163-220-0 01 1 1310-
125 04.020 COVER; SHIFT LEVER
(A) 		8-98163-185-0 01 1 1310-
125 04.020 COVER; SHIFT LEVER
(C) 		8-98163-186-0 01 1 1310-
125 04.020 COVER; SHIFT LEVER
(B) 		8-98163-187-0 01 1 1310-
137 04.010 CUSHION
(A) 		8-98163-222-0 01 1 1310-
137 04.010 CUSHION
(B) 		8-98163-223-0 01 1 1310-
138 04.030 BOX; LAMP 8-98242-512-0 01 1 1310-
178 04.008 SHEET; SHIFT LEVER 8-98163-225-0 01 1 1310-
186 04.006 BUTTON; SHIFT LOCK
BLACK 		8-97421-016-0 01 1 1310-
187 04.008 SPRING; RETURN,SHIFT 8-98163-182-0 01 1 1310-
188 04.008 COVER; KNOB 8-98163-209-0 01 1 1310-
190 04.290 CONTROLLER; INTERLOCK 8-98163-217-0 01 1 1310-
