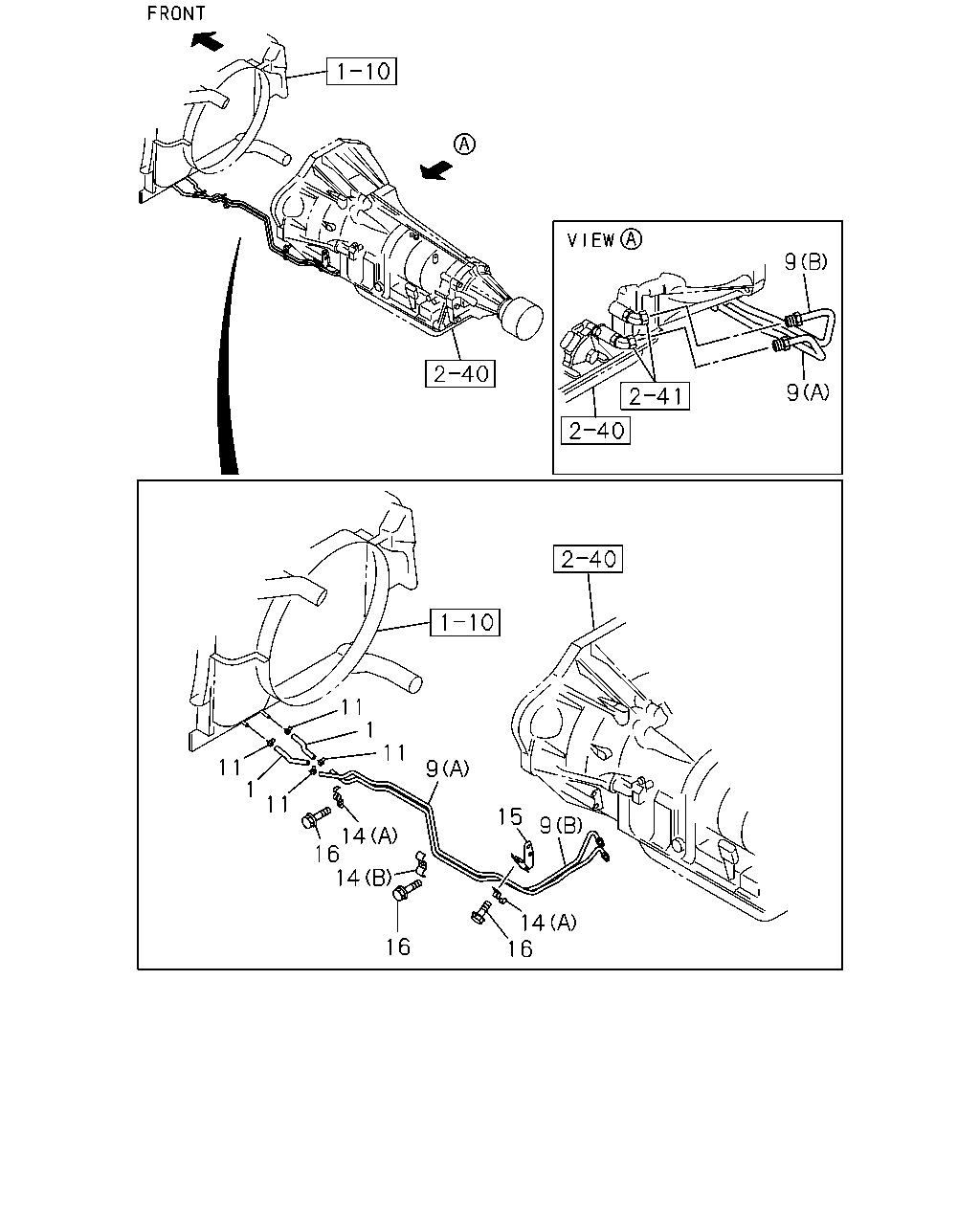

2-53 — TRANSMISSION OIL COOLER SYSTEM (#130521) — 8 parça

9 9 11 1 11 15 9 14 16 16 14 14 11 1 11 9 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.128 HOSE; ATF L=180 SERVICED BY L=3000	0-02259-300-0	02	1	1310-
9	04.128 PIPE; ATF,INL,A/T (A) INLET	8-98221-531-2	01	1	1310-
9	04.128 PIPE; ATF,INL,A/T (B) RETURN	8-98221-532-2	01	1	1310-
11	04.128 CLIP; PIPE	8-98008-165-0	04	1	1310-
14	04.128 CLIP; PIPE TO ENG SIDE (A)	8-98008-163-0	02	1	1310-
14	04.128 CLIP; PIPE TO ENG SIDE (B)	8-98232-374-0	01	1	1310-
15	04.128 BRACKET; ATF PIPE	8-98100-277-0	01	1	1310-
16	04.128 BOLT; CLIP,ENG SIDE 02.343 M8X16 FLANGE	0-28050-816-0	03	1	1310-
