◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-44 - AUTO TRANS CONTROL VALVE; LOWER BODY ▶
2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#130516) — 30 parça

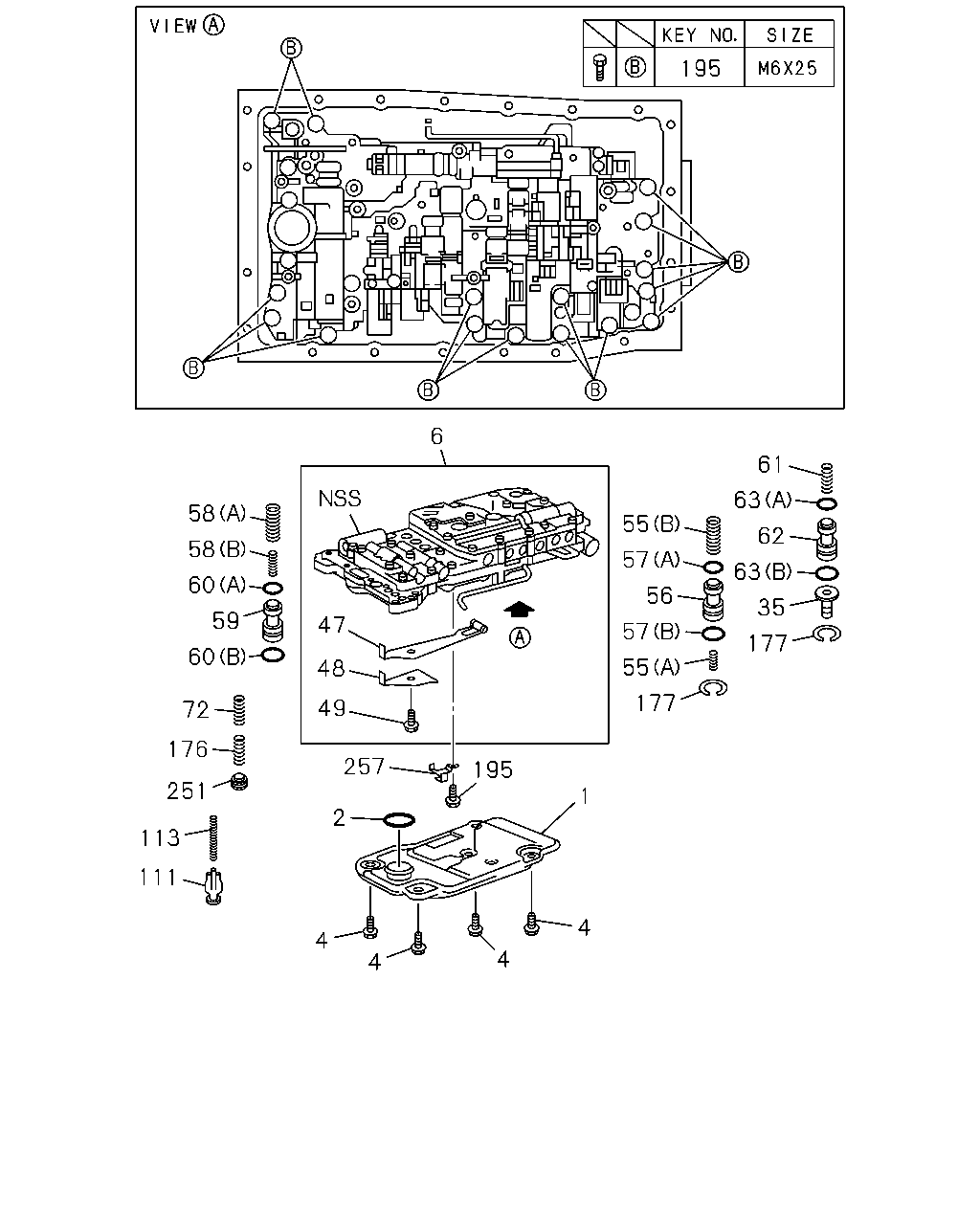

çizim 386103
195 6 58 60 59 60 58 72 176 251 113 111 4 4 4 1 4 195 257 2 49 47 48 177 55 57 55 56 57 177 63 63 61 62 35
BalonParca AdiParca NoAdetTipApplied Date
1 04.197 STRAINER ASM; OIL,A/T 8-98189-731-0 01 1 1310-
2 04.197 GASKET; OIL STRAINER,A/T 8-98189-732-0 01 1 1310-
4 04.197 BOLT; OIL STRAINER,A/T
04.265 M6X12 		8-94479-927-0 04 1 1310-
6 04.265 BODY ASM; VLV LWR,A/T 8-98189-497-0 01 1 1310-
35 04.265 SPRING; LWR VLV BODY 8-98189-477-0 01 1 1310-
47 04.050 SPRING; DETENT,A/T 8-98189-498-0 01 1 1310-
48 04.052 PLATE; DETENT SPR,A/T 8-98189-499-0 01 1 1310-
49 04.052 BOLT; DETENT SPR PLATE,A/T
M6X14 		8-98189-500-0 01 1 1310-
55 04.246 SPRING; ACCUMLATOR PISTON
(A) 		8-98189-480-0 01 1 1310-
55 04.246 SPRING; ACCUMLATOR PISTON
(B) 		8-98189-481-0 01 1 1310-
56 04.241 PISTON; ACCUMLATOR 8-98189-735-0 01 1 1310-
57 04.241 GASKET; 2ND SPD PISTON,A/T
04.167 (A) ID=24 		8-97184-889-0 01 1 1310-
57 04.241 GASKET; 2ND SPD PISTON,A/T
(B) ID=34 		8-98189-737-0 01 1 1310-
58 04.164 SPRING; DIRECT CLU (C-2 ACCUM),A
(A) 		8-97184-330-0 01 1 1310-
58 04.164 SPRING; DIRECT CLU (C-2 ACCUM),A
(B) 		8-98189-479-0 01 1 1310-
59 04.166 PISTON; DIRECT CLU,A/T 8-98189-734-0 01 1 1310-
60 04.169 GASKET; DIRECT CLU PISTON,A/T
04.241 (A) ID=27 		8-97184-886-0 01 1 1310-
60 04.169 GASKET; DIRECT CLU PISTON,A/T
04.241 (B) ID=34 		8-98189-737-0 01 1 1310-
61 04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T 8-98189-478-0 01 1 1310-
62 04.166 PISTON; FWD CLU,A/T 8-98189-733-0 01 1 1310-
63 04.167 GASKET; FWD CLU,A/T
04.241 (A) ID=20 		8-97184-885-0 01 1 1310-
63 04.167 GASKET; FWD CLU,A/T
(B) ID=29 		8-98189-736-0 01 1 1310-
72 04.233 SPRING; ACCUMLATOR PISTON 8-98189-483-0 01 1 1310-
111 04.169 BODY; CHECK BALL 8-94479-931-0 01 1 1310-
113 04.164 SPRING; CHECK BALL 8-94479-930-0 01 1 1310-
176 04.265 SPRING; ACCUM INNER 8-98189-482-0 01 1 1310-
177 04.265 RING; SNAP
ID=19 		8-97025-821-0 02 1 1310-
195 04.265 BOLT; CLAMP
M6X25 		8-94473-624-0 16 1 1310-
251 04.265 VALVE; ACCUMULATOR 8-98189-739-0 01 1 1310-
257 04.265 CLAMP; HARNESS 8-98189-740-0 01 1 1310-
