2-30 — GEAR SHIFTER AND QUADRANT BOX
(#130511) — 37 parça
◀

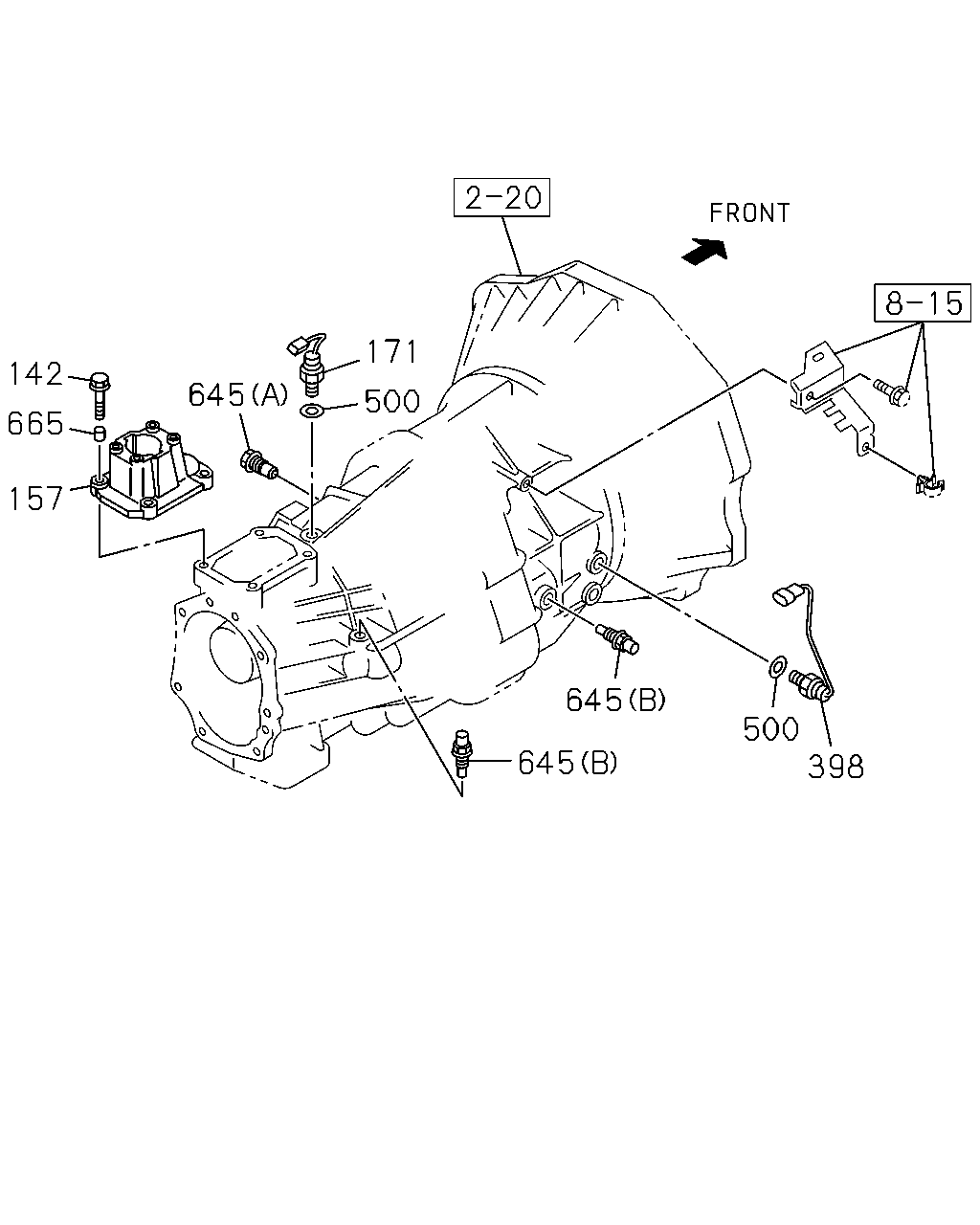

[230A] QUAD BOX (8 parça)

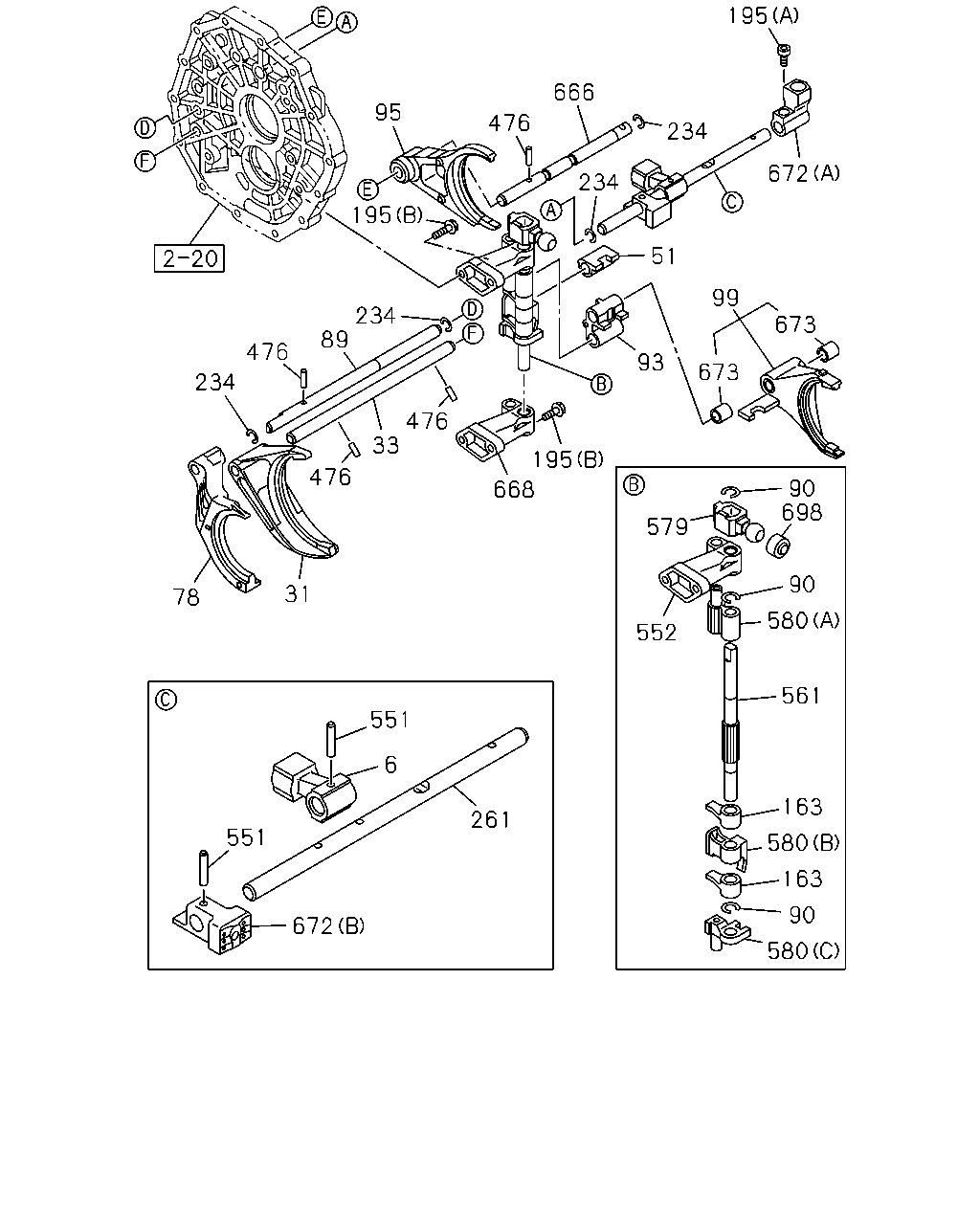

[230A] GEAR SHIFTER (29 parça)
▶
645
142
665
157
645
645
500
398
171
500
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
142
04.012 BOLT; QUAD BOX
01.060 M8X35 FLANGE
0-28650-835-0
04
1
1310-
157
04.105 BOX; QUAD,TRANS
8-98094-798-1
01
1
1310-
171
04.054 SWITCH; NEUTRAL
8-98180-974-0
01
1
1310-
398
02.698 SWITCH; REV LAMP
8-98180-973-0
01
1
1310-
500
04.075 GASKET; SW
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0
9-09571-414-0
02
1
1310-
645
04.311 DETENT ASM
04.307 (B)
8-98019-536-0
02
1
1310-
645
04.311 DETENT ASM
(A)
8-98244-364-0
01
1
1310-
665
00.206 DOWEL
OD=11 L=8
9-11229-058-1
02
1
1310-
195
666
234
672
476
95
195
234
476
234
89
476
33
476
31
78
668
93
99
51
234
673
673
195
579
90
698
90
580
561
163
552
551
6
261
551
672
580
163
90
580
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
04.302 LEVER; RELAY
8-98095-658-1
01
1
1310-
31
04.302 ARM; SHIFT,LOW & 2ND
8-97362-435-0
01
1
1310-
33
04.309 ROD; SHIFT,LOW & 2ND
8-97362-441-0
01
1
1310-
51
04.303 BLOCK; SHIFT,1ST & 2ND
04.302
8-98186-703-0
01
1
1310-
78
04.302 ARM; SHIFT,REV
8-97362-434-1
01
1
1310-
89
04.309 ROD; SHIFT,REV
8-98106-032-0
01
1
1310-
90
04.307 RING; SNAP,SHIFT ROD
ID=12
8-94460-357-0
03
1
1310-
93
04.303 BLOCK; SHIFT,REV & 5TH
8-98106-035-0
01
1
1310-
95
04.302 ARM; SHIFT,5TH
8-97362-436-1
01
1
1310-
99
04.302 ARM; SHIFT,4TH & 3RD
04.303
8-97362-439-2
01
1
1310-
163
04.302 LEVER; SELECT,INTERNAL
8-98052-461-0
02
1
1310-
195
04.105 BOLT
(A) M8X8.5 TAPER
8-97250-975-0
01
1
1310-
195
04.105 BOLT
(B) M8X30 FLANGE
8-98034-764-0
04
1
1310-
234
04.311 RING; SNAP
04.307 ID=12
8-94460-357-0
04
1
1310-
261
04.309 ROD; GEAR CONT
8-97362-444-0
01
1
1310-
476
04.311 PIN; SHIFT ROD
04.303 D=4.2 L=25
8-94171-541-0
04
1
1310-
551
04.303 PIN; SPRING
D=4.2 L=25
8-94171-541-0
02
1
1310-
552
04.105 BRACKET
8-97362-465-1
01
1
1310-
561
04.309 ROD; SHIFT
8-98095-659-1
01
1
1310-
579
04.303 BLOCK; SHIFT,ROD GUIDE
8-98095-657-0
01
1
1310-
580
04.303 BLOCK; INTERLOCK
(A)
8-97362-461-1
01
1
1310-
580
04.303 BLOCK; INTERLOCK
(B)
8-98052-462-0
01
1
1310-
580
04.303 BLOCK; INTERLOCK
(C)
8-98186-700-0
01
1
1310-
666
04.309 ROD; GEAR SHIFT,3RD,4TH & 4TH
8-97362-442-2
01
1
1310-
668
04.309 BRACKET; SHIFT ROD
04.105
8-97362-465-1
01
1
1310-
672
04.303 BLOCK; SHIFT,T/M CONTROL
(A)
8-97362-467-0
01
1
1310-
672
04.303 BLOCK; SHIFT,T/M CONTROL
(B)
8-98095-689-1
01
1
1310-
673
04.309 BEARING; SHIFT ARM
00.683
8-97362-853-0
02
1
1310-
698
04.303 SEAT; SHIFT CONT
04.307
8-98073-812-0
01
1
1310-
