2-26 — MANUAL TRANSMISSION GEAR (#130510) — 79 parça

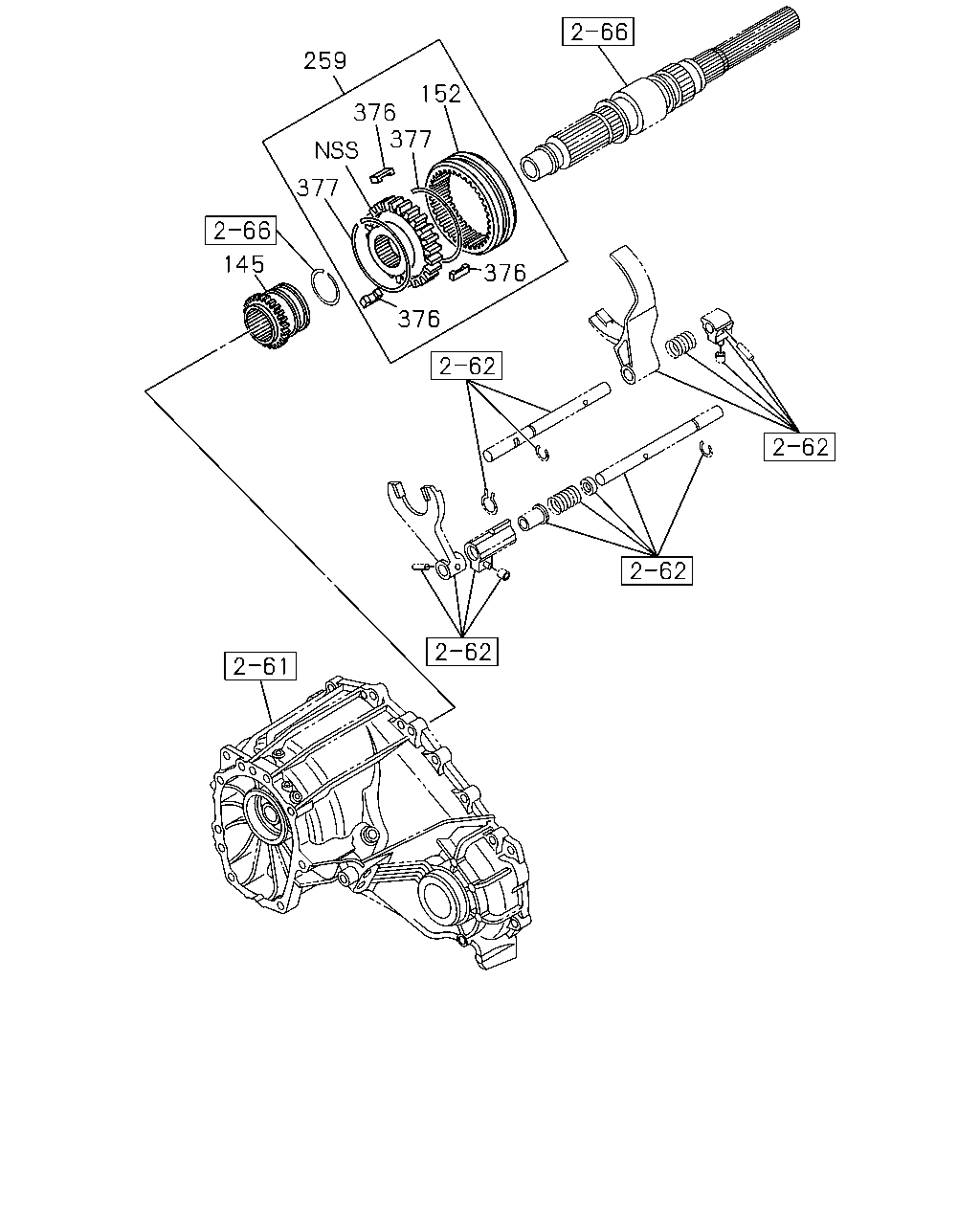

çizim 386185
259 152 376 377 377 376 376 145
BalonParca AdiParca NoAdetTipApplied Date A B
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 8-98063-369-1 01 1 1310- ●
145 04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER
4X4(UCS***) 		8-98063-369-1 01 1 1310- ●
152 04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 8-94363-060-0 01 1 1310- ●
152 04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER
4X4(UCS***) 		8-94363-060-0 01 1 1310- ●
259 04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 8-97234-225-0 01 1 1310- ●
259 04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER
4X4(UCS***) 		8-97234-225-0 01 1 1310- ●
376 04.384 INSERT; 4X2-4X4 SYN,TRANSFER 8-97238-590-0 03 1 1310- ●
376 04.384 INSERT; 4X2-4X4 SYN,TRANSFER
4X4(UCS***) 		8-97238-590-0 03 1 1310- ●
377 04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 8-94448-045-0 02 1 1310- ●
377 04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS
4X4(UCS***) 		8-94448-045-0 02 1 1310- ●

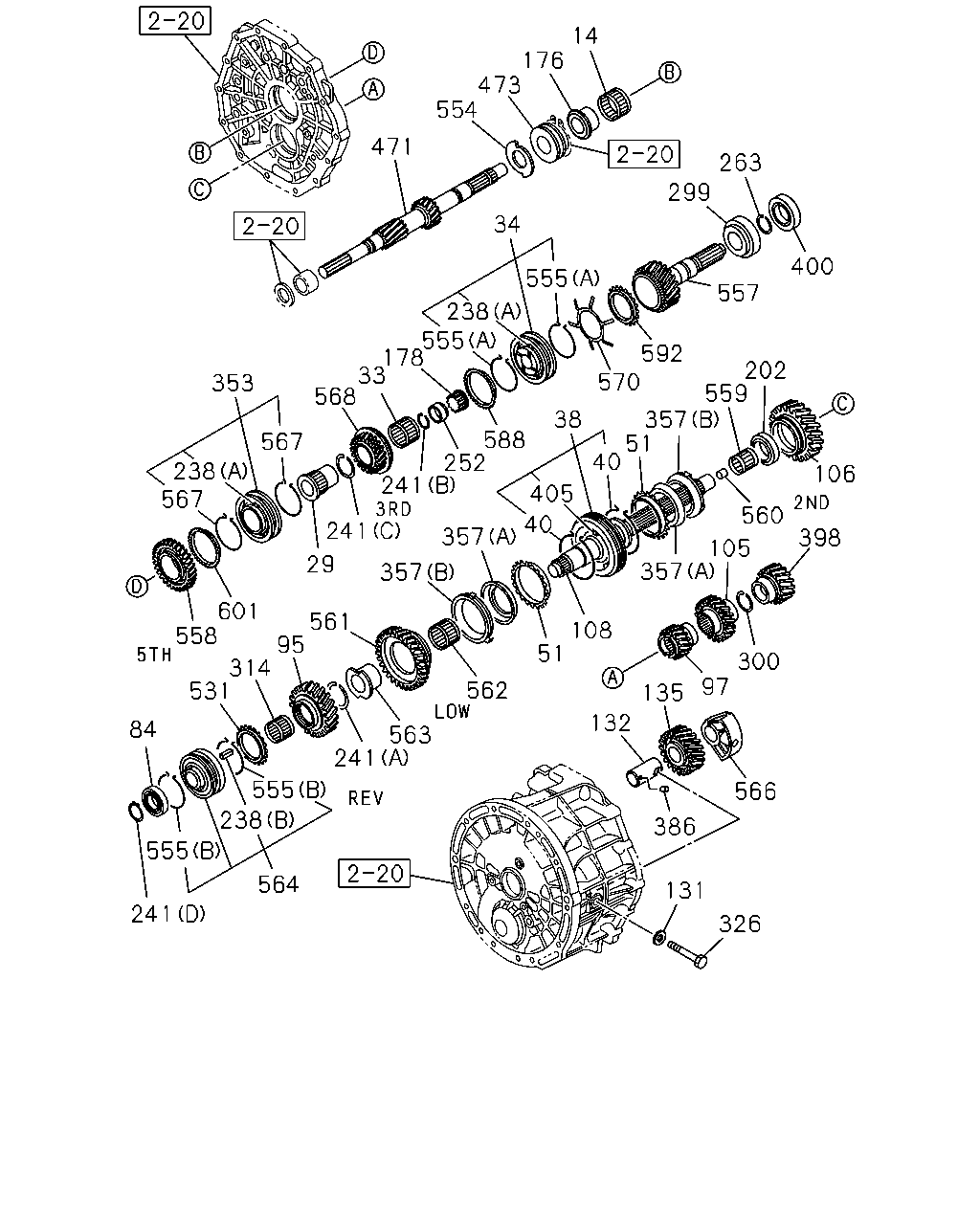

çizim 386374
14 176 473 554 471 34 299 263 400 557 592 570 38 555 238 555 178 33 568 567 238 567 353 241 252 588 202 559 357 51 40 405 40 560 106 398 105 357 108 135 97 566 300 386 132 131 326 51 562 563 241 555 238 564 241 555 84 531 314 95 561 601 558 29 241 357 357
BalonParca AdiParca NoAdetTipApplied Date A B
14 04.419 BEARING; NEEDLE,5TH
NSK 		8-97362-728-0 01 1 1310- ●
29 04.416 COLLAR; 3RD GEAR 8-97362-568-1 01 1 1310- ●
33 04.352 BEARING; NEEDLE,3RD GEAR
04.419 NSK 		1-09811-028-1 01 1 1310- ●
34 04.380 SYNCHRONIZER; 4TH & 3RD 8-97362-474-3 01 1 1310- ●
38 04.384 SYNCHRONIZER; LOW & 2ND 8-97362-503-1 01 1 1310- ●
40 04.384 SPRING; INSERT,LOW & 2ND 8-94448-045-0 02 1 1310- ●
51 04.383 RING; BLOCK,LOW & 2ND
Z=36 		8-98115-804-0 02 1 1310- ●
84 04.422 BEARING; COUNTER SHAFT,FRT 8-97362-724-0 01 1 1310- ●
95 04.417 GEAR; REV,COUNTER
Z=41 		8-98210-237-0 01 1 1310- ●
97 04.415 GEAR; 5TH,COUNTER
Z=27 		8-98040-114-0 01 1 1310- ●
105 04.415 GEAR; 3RD,COUNTER
Z=31 		8-98233-612-0 01 1 1310- ●
106 04.395 GEAR; 2ND,COUNTER
Z=38 		8-98210-236-0 01 1 1310- ●
108 04.428 SHAFT; COUNTER
Z=26-34-26-26 		8-98023-108-1 01 1 1310- ●
131 04.435 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=12.2 		9-09571-412-0 01 1 1310- ●
132 04.433 SHAFT; REV 8-98023-113-0 01 1 1310- ●
135 04.430 GEAR; REV IDLER
Z=32 		8-98233-615-0 01 1 1310- ●
176 04.415 COLLAR; 5TH GEAR 8-97362-567-0 01 1 1310- ●
178 04.352 BEARING; NEEDLE,MAINSHAFT 8-97362-869-0 01 1 1310- ●
202 04.422 BEARING; COUNTER GEAR 8-97362-725-0 01 1 1310- ●
238 04.384 INSERT
(B) 		8-94249-576-2 03 1 1310- ●
238 04.384 INSERT
(A) 		8-98004-522-0 06 1 1310- ●
241 04.416 RING; SNAP
04.422 (A) ID=34.4 T=1.9 		8-97254-735-0 01 1 1310- ●
241 04.416 RING; SNAP
(B) ID=27.1 T=1.9 		8-97362-871-0 01 1 1310- ●
241 04.416 RING; SNAP
(B) ID=27.1 T=2.1 		8-97362-872-0 01 1 1310- ●
241 04.416 RING; SNAP
(B) ID=27.1 T=2.3 		8-97362-873-0 01 1 1310- ●
241 04.416 RING; SNAP
(C) ID=37 T=1.95 		8-98004-523-1 01 1 1310- ●
241 04.416 RING; SNAP
(C) ID=37 T=2.1 		8-98004-524-1 01 1 1310- ●
241 04.416 RING; SNAP
(D) ID=27.9 		9-09180-030-0 01 1 1310- ●
252 04.412 SPACER 8-98024-456-0 01 1 1310- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.1 		8-98004-525-0 01 1 1310- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.2 		8-98004-526-0 01 1 1310- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.3 		8-98004-527-0 01 1 1310- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.4 		8-98004-528-0 01 1 1310- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.5 		8-98004-529-0 01 1 1310- ●
263 04.525 RING; SNAP,OUTPUT SHAFT BRG
ID=30.7 T=2.6 		8-98004-530-0 01 1 1310- ●
299 04.422 BEARING; OUTPUT SHAFT FRT 8-97362-722-0 01 1 1310- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=29 T=2.3 		8-98024-222-1 01 1 1310- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=29 T=2.5 		8-98024-223-1 01 1 1310- ●
300 04.422 RING; SNAP,COUNTER SHAFT,RR END
ID=29 T=2.7 		8-98024-224-1 01 1 1310- ●
314 04.419 BEARING; NEEDLE,REV GEAR
NSK 		8-97362-719-0 01 1 1310- ●
326 04.412 BOLT; REV SHAFT
04.439 M12X70 		9-92621-270-0 01 1 1310- ●
353 04.380 SYNCHRONIZER; 5TH 8-98004-511-1 01 1 1310- ●
357 04.383 RING
(B) OD=95.8 		8-94363-056-0 02 1 1310- ●
357 04.383 RING
(A) OD=90.0 		8-98115-793-0 02 1 1310- ●
386 04.435 PIN; REV SHAFT
00.662 OD=4 L=8 		9-08160-408-0 01 1 1310- ●
398 04.421 GEAR; COUNTER
Z=23 		8-98106-584-0 01 1 1310- ●
400 04.408 BEARING; OUTPUT SHAFT RR 8-97362-723-0 01 1 1310- ●
405 04.384 INSERT; SYN,LOW & 2ND 8-94363-062-1 03 1 1310- ●
471 04.530 SHAFT; INPUT
Z=24-14-20-27 		8-98106-034-0 01 1 1310- ●
473 04.352 BEARING; INPUT SHAFT 8-97362-721-1 01 1 1310- ●
531 04.383 RING; BLOCK,REV
OD=74 		8-98037-846-0 01 1 1310- ●
554 04.422 IMPELLER; OIL 8-97362-730-0 01 1 1310- ●
555 04.384 SPRING; INSERT
(A) 		5-33264-012-0 02 1 1310- ●
555 04.384 SPRING; INSERT
(B) 		8-97109-690-0 02 1 1310- ●
557 04.535 GEAR; OUTPUT
Z=31-27 		8-98210-239-0 01 1 1310- ●
558 04.415 GEAR; 5TH,INPUT SHAFT
Z=46 		8-98233-610-0 01 1 1310- ●
559 04.352 BEARING; NEEDLE,LOW & 2ND 8-97362-727-0 01 1 1310- ●
560 04.416 RING; DUM 8-97078-729-1 01 1 1310- ●
561 04.395 GEAR; LOW,COUNTER
Z=45 		8-98210-235-0 01 1 1310- ●
562 04.422 BEARING; NEEDLE,LOW & 2ND
04.352 		8-97362-727-0 01 1 1310- ●
563 04.419 COLLAR; 1ST GEAR 8-97362-569-1 01 1 1310- ●
564 04.380 SYNCHRONIZER; REV 8-97362-496-1 01 1 1310- ●
566 04.342 BRACKET; REV IDLER 8-97362-516-0 01 1 1310- ●
567 04.384 SPRING; INSERT,5TH 5-33264-012-0 02 1 1310- ●
568 04.415 GEAR; 3RD,INPUT SHAFT
Z=28 		8-98233-608-0 01 1 1310- ●
570 04.422 SPRING; PLATE 8-98072-467-2 01 1 1310- ●
588 04.383 RING; BLOCK,3RD
Z=36 		8-98052-559-0 01 1 1310- ●
592 04.383 RING; BLOCK,4TH 8-98197-460-0 01 1 1310- ●
601 04.383 RING; BLOCK,5TH 8-98283-241-0 01 1 1310- ●
