2-25 — SPEEDOMETER DRIVEN GEAR (#130509) — 18 parça

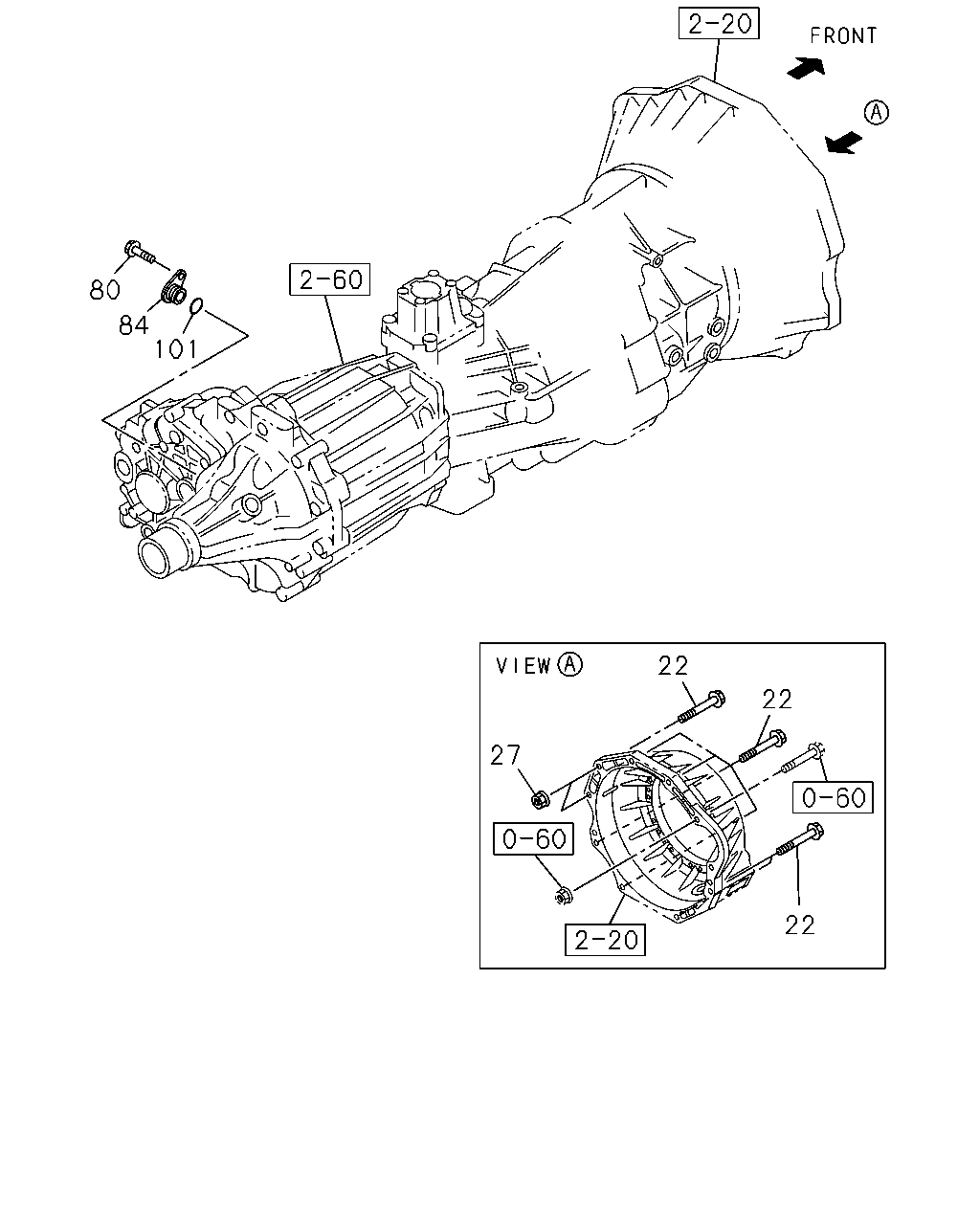

çizim 385449
101 84 80 27 22 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
22 00.685 BOLT; TRANS CASE TO ENG
00.724 M12X50 FLANGE 		0-28051-250-0 08 1 1310- ● ●
27 00.685 NUT; CLU HSG TO TRANS
02.042 M12 FLANGE 		0-91180-112-0 02 1 1310- ● ●
80 04.329 BOLT; SPD SENSOR
04.338 M8X20 FLANGE 		0-28050-820-0 01 1 1310- ●
80 04.329 BOLT; SPD SENSOR
4X4(UCS***) 04.338 M8X20 FLANGE 		0-28050-820-0 01 1 1310- ●
84 04.104 CAP; BUSH,SPEEDOMETER GEAR 8-98103-318-0 01 1 1310- ●
84 04.104 CAP; BUSH,SPEEDOMETER GEAR
4X4(UCS***) 		8-98103-318-0 01 1 1310- ●
101 04.338 GASKET; CAP
ID=21.7 OD=28.7 		9-09921-100-0 01 1 1310- ●
101 04.338 GASKET; CAP
4X4(UCS***) ID=21.7 OD=28.7 		9-09921-100-0 01 1 1310- ●

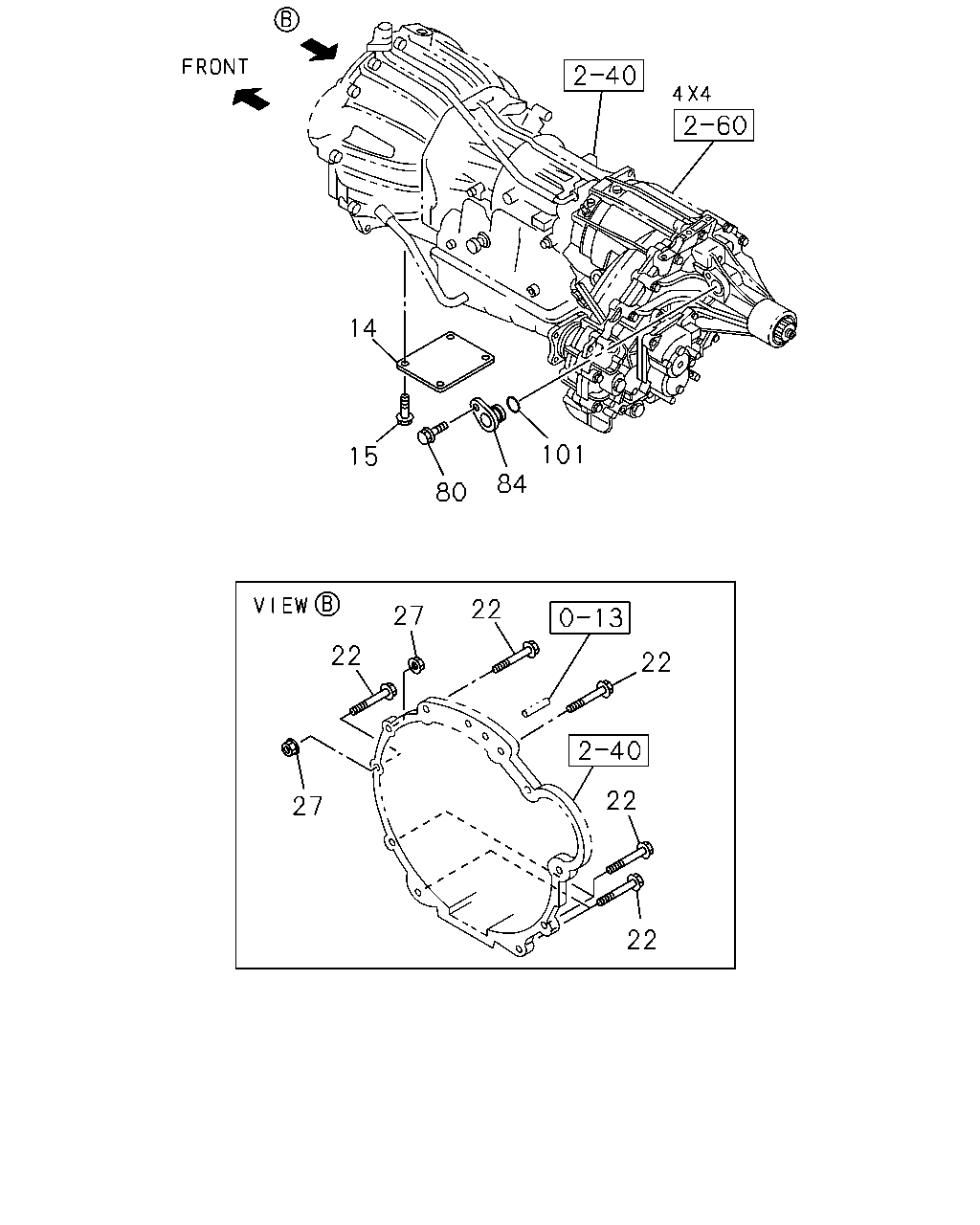

çizim 385450
14 15 80 84 101 22 27 22 27 22 22 22
BalonParca AdiParca NoAdetTipApplied Date A B
14 00.679 COVER; UNDER,TRANS 8-98049-857-0 01 1 1310- ●
15 00.685 BOLT; UNDER COVER TO TRANS
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1310- ●
22 00.685 BOLT; TRANS CASE TO ENG
00.724 M12X50 FLANGE 		0-28051-250-0 08 1 1310- ● ●
27 00.685 NUT; CLU HSG TO TRANS
02.042 M12 FLANGE 		0-91180-112-0 02 1 1310- ● ●
80 04.329 BOLT; SPD SENSOR
04.338 M8X20 FLANGE 		0-28050-820-0 01 1 1310- ●
80 04.329 BOLT; SPD SENSOR
4X4(UCS***) 04.338 M8X20 FLANGE 		0-28050-820-0 01 1 1310- ●
84 04.104 CAP; BUSH,SPEEDOMETER GEAR 8-98103-318-0 01 1 1310- ●
84 04.104 CAP; BUSH,SPEEDOMETER GEAR
4X4(UCS***) 		8-98103-318-0 01 1 1310- ●
101 04.338 GASKET; CAP
ID=21.7 OD=28.7 		9-09921-100-0 01 1 1310- ●
101 04.338 GASKET; CAP
4X4(UCS***) ID=21.7 OD=28.7 		9-09921-100-0 01 1 1310- ●
