◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51489 - UCR/UCS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#130503) — 13 parça

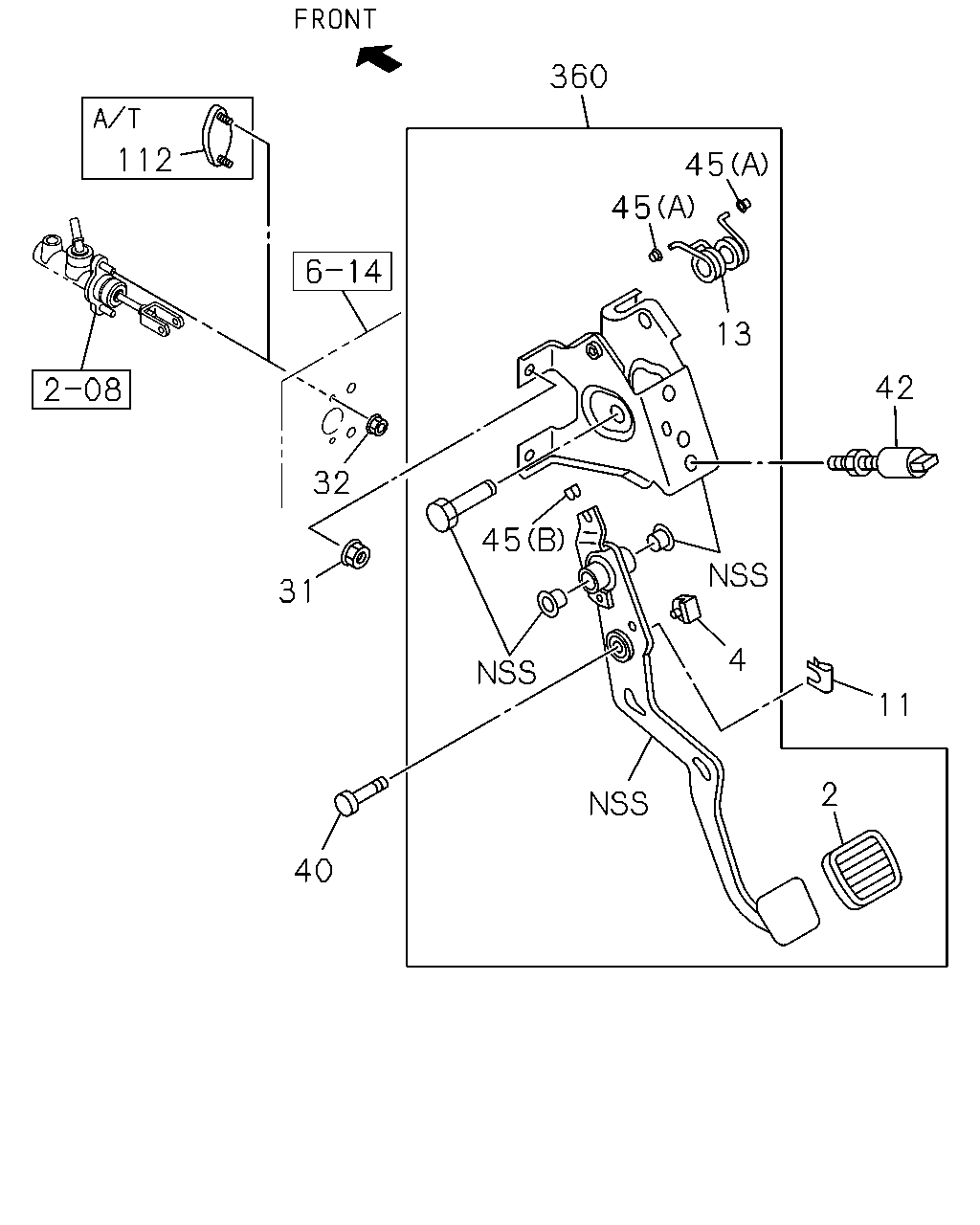

çizim 385415
112 32 31 40 2 4 11 45 13 42 45 45 360
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.630 COVER; CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ) 		8-97318-799-0 01 1 1310- ●
4 00.829 STOPPER; CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ) 		8-97947-783-0 01 1 1310- ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUX 5 SPEED 5S(MZJ) 		8-98007-161-0 01 1 1310- ●
13 00.844 SPRING; ASSIST,CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ) 		8-97942-312-0 01 1 1310- ●
31 01.153 NUT; MTG BRKT TO BODY
M/T MUX 5 SPEED 5S(MZJ) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1310- ●
32 00.777 NUT; BRKT TO CLU M/CYL
01.062 M8 FLANGE 		0-91180-108-0 02 1 1310- ● ●
40 00.833 PIN; JOINT,CLU DAMPER
M/T MUX 5 SPEED 5S(MZJ) OD=7.9 L=27.5 		8-97312-338-0 01 1 1310- ●
42 04.054 SWITCH; CLU
M/T MUX 5 SPEED 5S(MZJ) 		8-98154-210-0 01 1 1310- ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97942-313-0 02 1 1310- ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97942-314-0 01 1 1310- ●
112 00.785 PLUG; METAL,M/CYL
A/T 5 SPEED-AISIN(MA1) 		8-97945-168-0 01 1 1310- ● ●
360 00.830 PEDAL ASM; CLUTCH
M/T MUX 5 SPEED 5S(MZJ) 		8-98219-800-0 01 1 1310-1601 ●
360 00.830 PEDAL ASM; CLUTCH
M/T MUX 5 SPEED 5S(MZJ) 		8-98317-389-0 01 1 1602- ●
