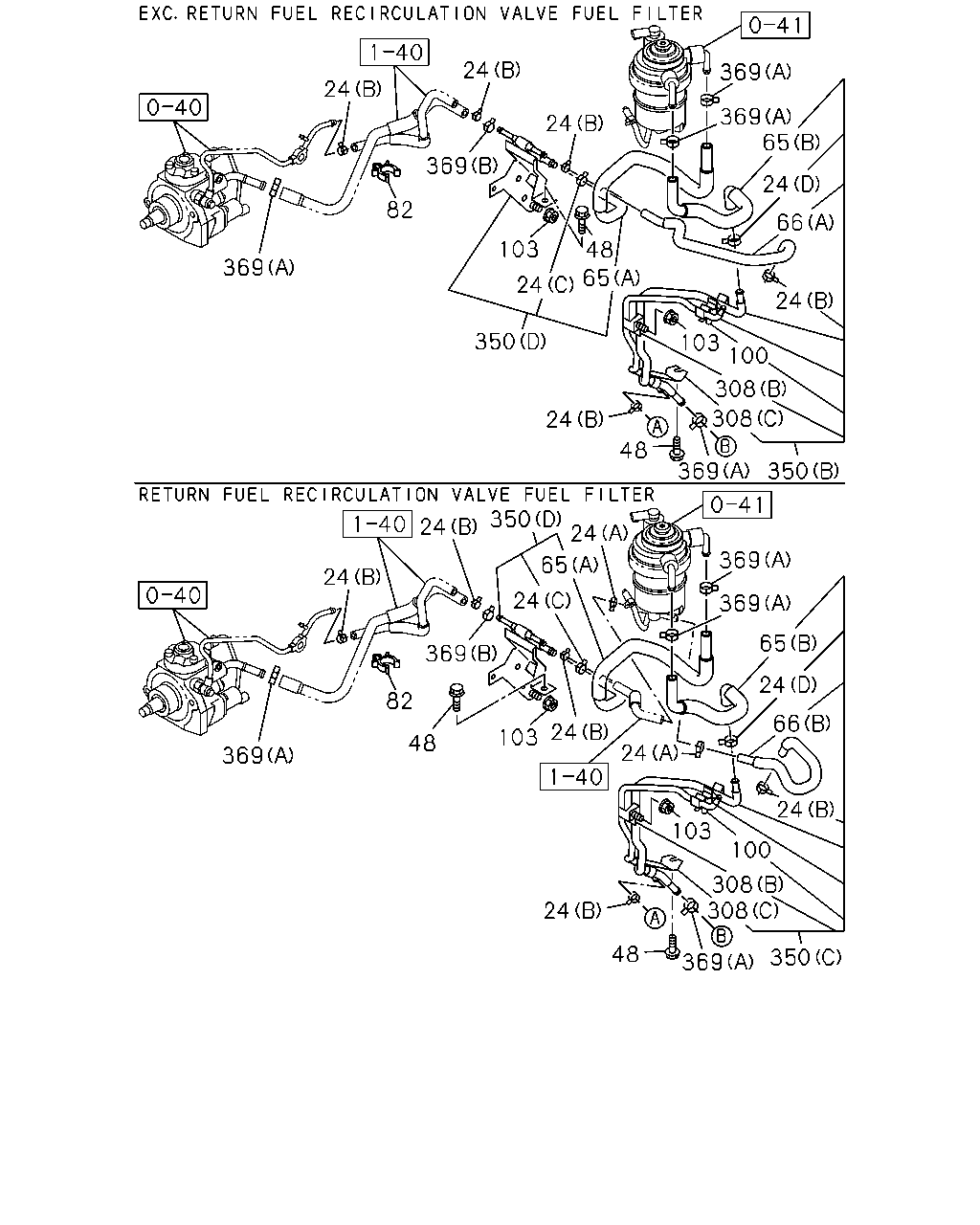

1-41 — FUEL PIPING; CHASSIS (#130500) — 55 parça

369 82 369 24 24 103 350 48 24 24 65 369 369 24 66 103 308 100 24 369 369 65 24 66 24 24 24 103 48 82 369 24 103 100 308 308 369 350 48 308 65 24 24 65 24 24 369 24 48 369 350 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (A) ID=13	8-98150-357-0	02	1	1310-
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	01	1	1310-
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	01	1	1310-
24	03.162 CLIP; FUEL HOSE 03.145 (D) ID=17.2	8-98052-395-0	01	1	1310-
24	03.162 CLIP; FUEL HOSE 03.145 (D) ID=17.2	8-98052-395-0	01	1	1310-
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1310-
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	06	1	1310-
24	03.162 CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1310-
24	03.162 CLIP; FUEL HOSE (E)	8-98233-887-0	01	1	1310-
48	03.162 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1310-
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98248-705-0	01	1	1310-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98206-282-1	01	1	1310-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98206-283-1	01	1	1310-
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98248-706-0	01	1	1310-
66	03.163 HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (B)	8-98206-269-1	01	1	1310-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98206-285-1	01	1	1310-
82	03.163 CLIP; FUEL HOSE 06.672 ID=17	8-94382-792-1	01	1	1310-
100	03.162 CLIP; FUEL PIPE	8-98113-581-0	01	1	1310-
103	03.130 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1310-
308	03.162 BRACKET; FUEL PIPE (A)	8-98128-259-0	01	1	1310-
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1310-
308	03.162 BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1310-
350	03.163 PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (C)	8-98248-695-0	01	1	1310-
350	03.163 PIPE; FUEL,DEL & RET (A)	8-98248-734-0	01	1	1310-
350	03.163 PIPE; FUEL,DEL & RET EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98248-694-0	01	1	1310-
350	03.163 PIPE; FUEL,DEL & RET (D)	8-98206-140-1	01	1	1310-
369	03.162 CLAMP; HOSE,FUEL 03.145 (A) ID=17.2	8-98052-395-0	06	1	1310-
369	03.162 CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1310-

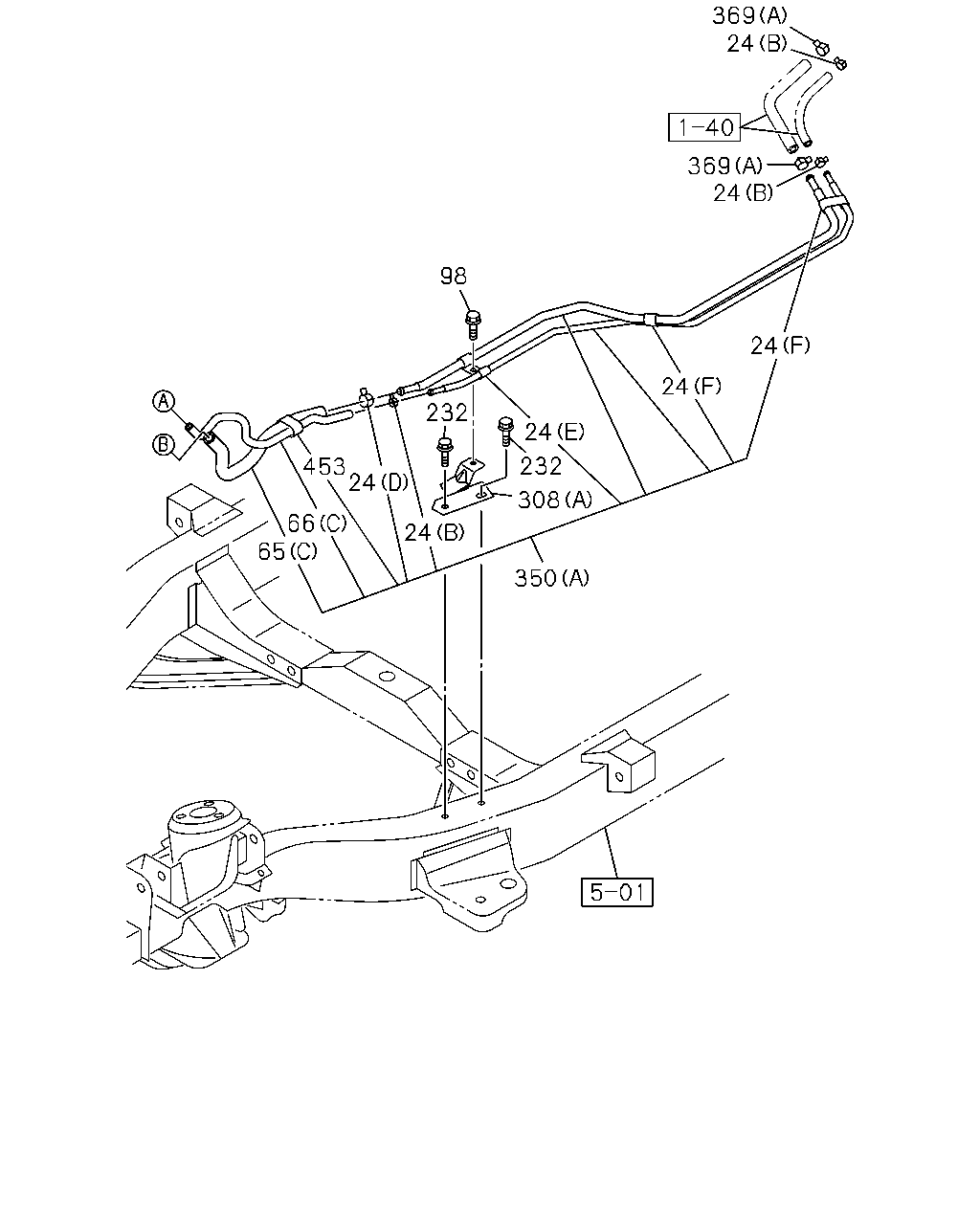

369 24 369 24 24 24 98 24 232 232 350 308 24 24 453 66 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	03.162 CLIP; FUEL HOSE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (A) ID=13	8-98150-357-0	02	1	1310-
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	01	1	1310-
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	01	1	1310-
24	03.162 CLIP; FUEL HOSE 03.145 (D) ID=17.2	8-98052-395-0	01	1	1310-
24	03.162 CLIP; FUEL HOSE 03.145 (D) ID=17.2	8-98052-395-0	01	1	1310-
24	03.162 CLIP; FUEL HOSE 01.762 (C) ID=16	8-98030-682-0	01	1	1310-
24	03.162 CLIP; FUEL HOSE 03.330 (B) ID=11.5	8-98051-892-0	06	1	1310-
24	03.162 CLIP; FUEL HOSE (F)	8-98233-886-0	02	1	1310-
24	03.162 CLIP; FUEL HOSE (E)	8-98233-887-0	01	1	1310-
65	03.163 HOSE; FUEL,DELIVERY PIPE (C)	8-98248-705-0	01	1	1310-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98206-282-1	01	1	1310-
65	03.163 HOSE; FUEL,DELIVERY PIPE (B)	8-98206-283-1	01	1	1310-
66	03.163 HOSE; FUEL,RETURN PIPE (C)	8-98248-706-0	01	1	1310-
66	03.163 HOSE; FUEL,RETURN PIPE RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (B)	8-98206-269-1	01	1	1310-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (A)	8-98206-285-1	01	1	1310-
98	03.162 BOLT; BRKT,FUEL PIPE 02.343 M6X16 FLANGE	0-28650-616-0	01	1	1310-
232	03.162 BOLT; CLIP,PIPE 06.509 M10X25 FLANGE	0-28061-025-0	02	1	1310-
308	03.162 BRACKET; FUEL PIPE (A)	8-98128-259-0	01	1	1310-
308	03.162 BRACKET; FUEL PIPE (B)	8-98233-889-0	01	1	1310-
308	03.162 BRACKET; FUEL PIPE (C)	8-98233-890-0	01	1	1310-
350	03.163 PIPE; FUEL,DEL & RET RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (C)	8-98248-695-0	01	1	1310-
350	03.163 PIPE; FUEL,DEL & RET (A)	8-98248-734-0	01	1	1310-
350	03.163 PIPE; FUEL,DEL & RET EXC. RETURN FUEL RECIRCULATION VALVE FUEL FILTER(V10) (B)	8-98248-694-0	01	1	1310-
350	03.163 PIPE; FUEL,DEL & RET (D)	8-98206-140-1	01	1	1310-
369	03.162 CLAMP; HOSE,FUEL 03.145 (A) ID=17.2	8-98052-395-0	06	1	1310-
369	03.162 CLAMP; HOSE,FUEL (B) ID=15.2	8-98186-048-0	01	1	1310-
453	03.162 BAND; FLEX HOSE	8-98233-888-0	01	1	1310-
