◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11048 - EXZ LHD EURO4 WITH 2STEPS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#13050) — 24 parça

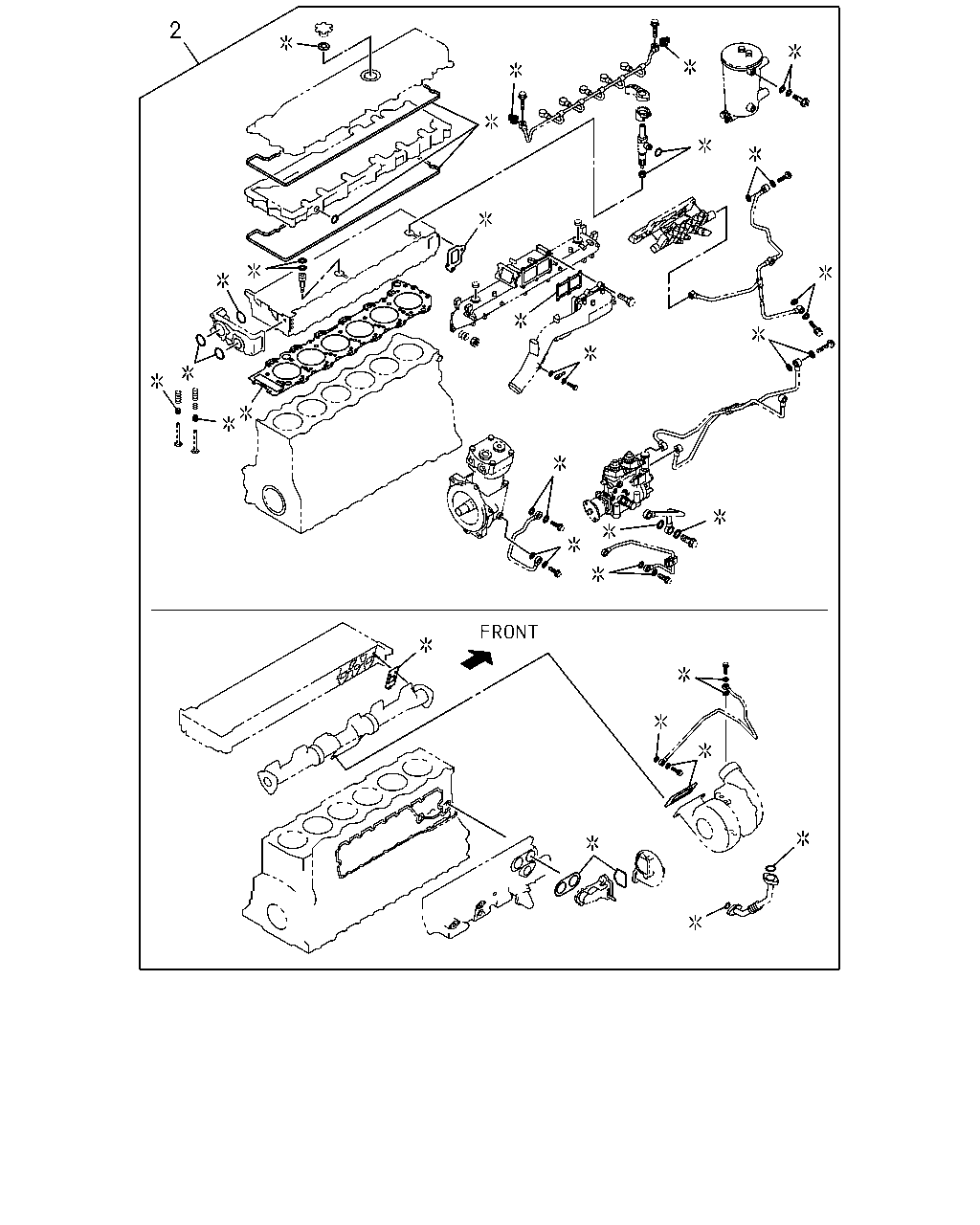

çizim 105550
2
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET SET; ENG HD OVERHAUL 1-87813-094-0 01 1 0611-0702
2 GASKET SET; ENG HD OVERHAUL 1-87813-312-0 01 1 0703-0804
2 GASKET SET; ENG HD OVERHAUL 1-87813-368-3 01 1 0805-1001
2 GASKET SET; ENG HD OVERHAUL 1-87813-566-1 01 1 1002-1111
2 GASKET SET; ENG HD OVERHAUL 1-87813-817-0 01 1 1112-1312
2 GASKET SET; ENG HD OVERHAUL 1-87814-662-0 01 1 1401-

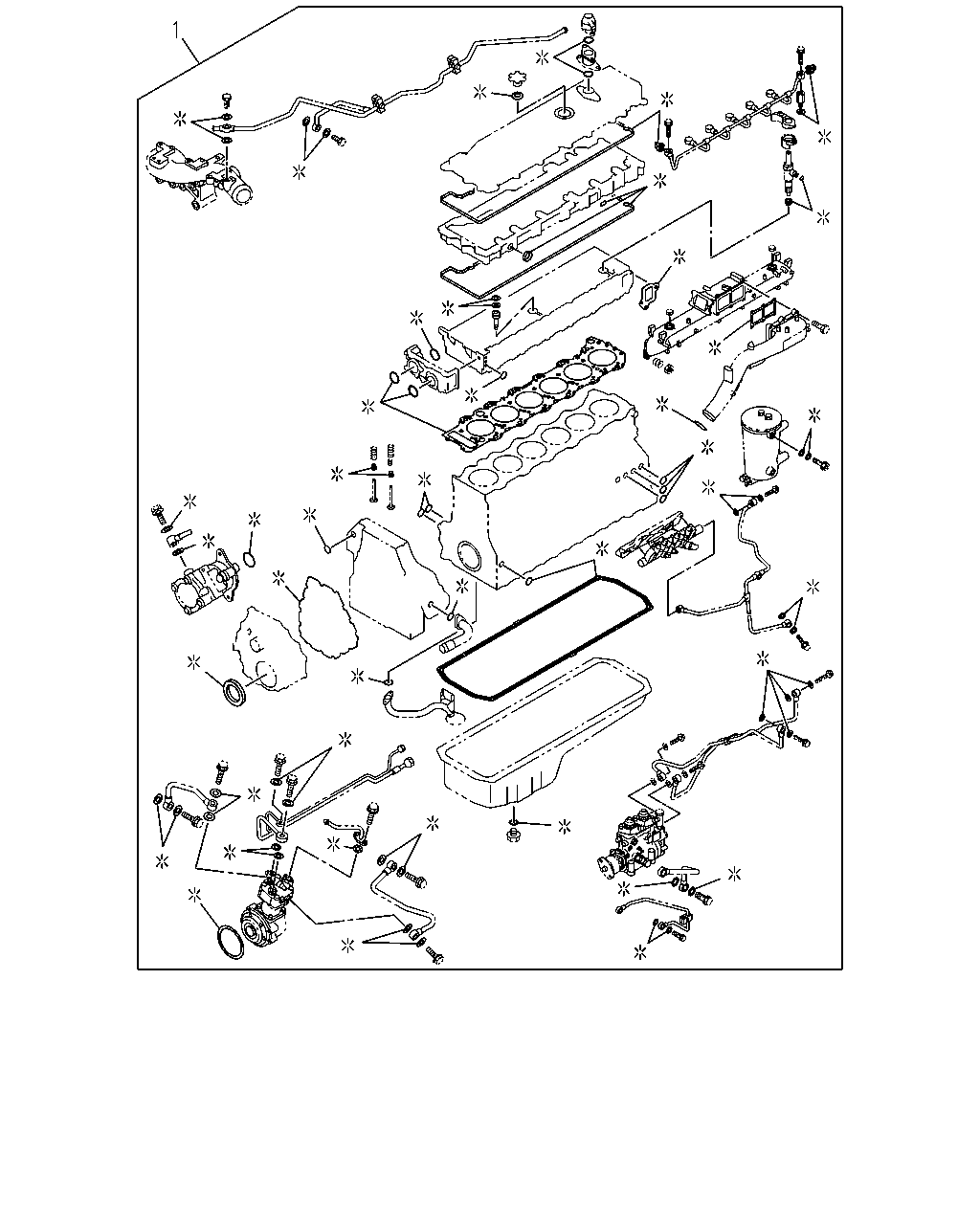

çizim 105623
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL 1-87813-093-0 01 1 0611-0702
1 GASKET SET; ENG OVERHAUL 1-87813-195-1 01 1 0703-0703
1 GASKET SET; ENG OVERHAUL 1-87813-249-0 01 1 0704-0708
1 GASKET SET; ENG OVERHAUL 1-87813-308-1 01 1 0709-0804
1 GASKET SET; ENG OVERHAUL 1-87813-367-4 01 1 0805-1001
1 GASKET SET; ENG OVERHAUL 1-87813-565-2 01 1 1002-1111
1 GASKET SET; ENG OVERHAUL 1-87813-816-0 01 1 1112-1312
1 GASKET SET; ENG OVERHAUL 1-87814-661-0 01 1 1401-1502
1 GASKET SET; ENG OVERHAUL 1-87815-585-0 01 1 1503-

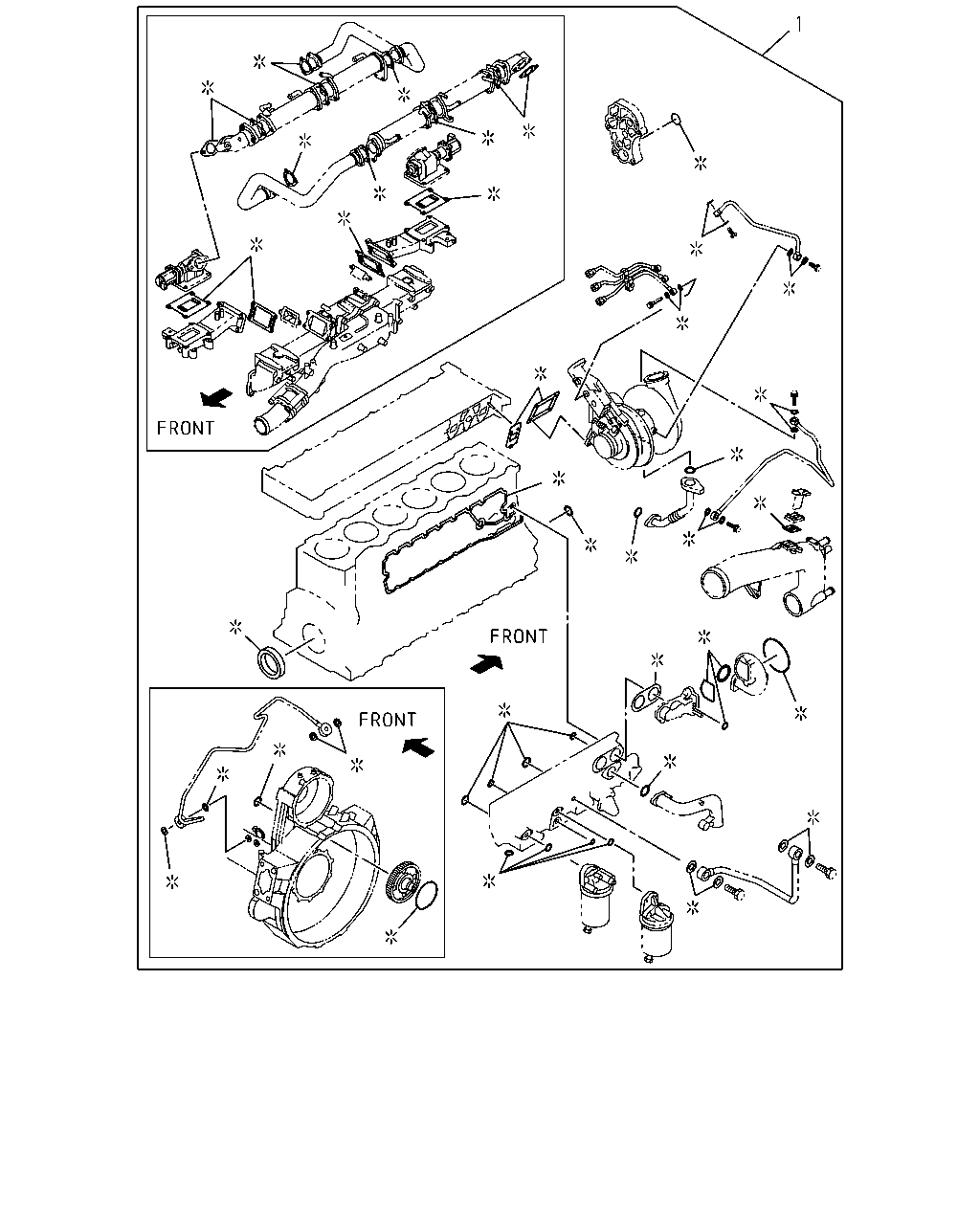

çizim 105626
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL 1-87813-093-0 01 1 0611-0702
1 GASKET SET; ENG OVERHAUL 1-87813-195-1 01 1 0703-0703
1 GASKET SET; ENG OVERHAUL 1-87813-249-0 01 1 0704-0708
1 GASKET SET; ENG OVERHAUL 1-87813-308-1 01 1 0709-0804
1 GASKET SET; ENG OVERHAUL 1-87813-367-4 01 1 0805-1001
1 GASKET SET; ENG OVERHAUL 1-87813-565-2 01 1 1002-1111
1 GASKET SET; ENG OVERHAUL 1-87813-816-0 01 1 1112-1312
1 GASKET SET; ENG OVERHAUL 1-87814-661-0 01 1 1401-1502
1 GASKET SET; ENG OVERHAUL 1-87815-585-0 01 1 1503-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
