6-80 — BACK PANEL (#1305) — 9 parça

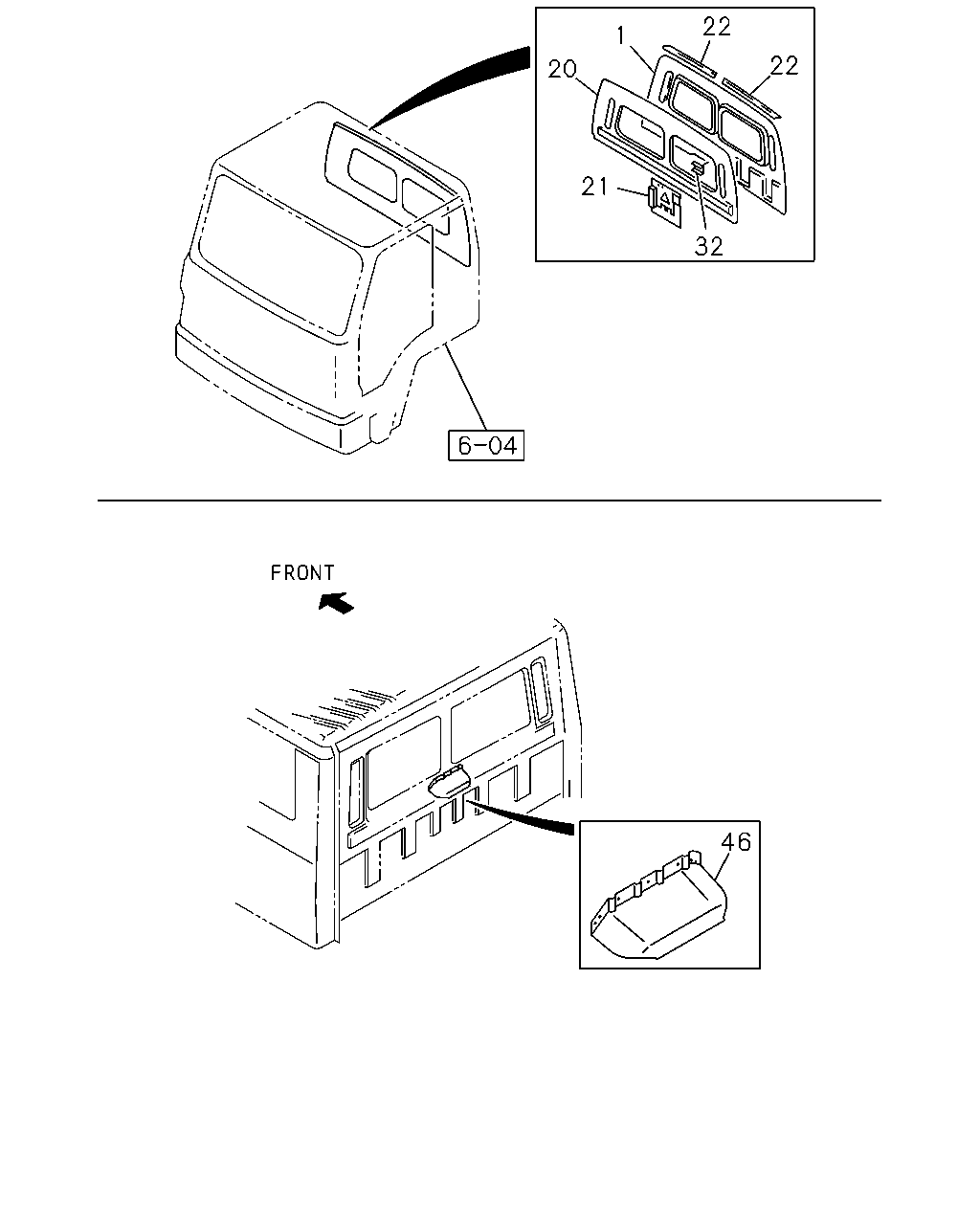

çizim 28236
22 1 22 20 21 32 46
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-61580-903-1 01 1 9202- ● ●
1 PANEL; BACK OUTER
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> PRIMER 		1-61580-867-2 01 1 9202- ● ●
20 PANEL; BACK INNER,CENTER 1-61580-717-7 01 1 9202- ● ●
21 REINFORCEMENT; CAB LK 1-61580-720-5 01 1 9202- ● ●
22 MOLDING; DRIP,BACK PANEL 1-61580-711-0 01 1 9202- ● ●
22 MOLDING; DRIP,BACK PANEL 1-61580-710-0 01 1 9202- ● ●
32 PATCH; AIR INT DUCT
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-61580-849-0 01 1 9202- ● ●
32 PATCH; AIR INT DUCT
EXC. VERTICAL AIR CLEANER SNORKEL<PP3> 		1-61580-753-2 01 1 9202- ● ●
46 COVER; CAB LK 1-61580-657-1 01 1 9202- ● ●
