1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#130499) — 51 parça
◀

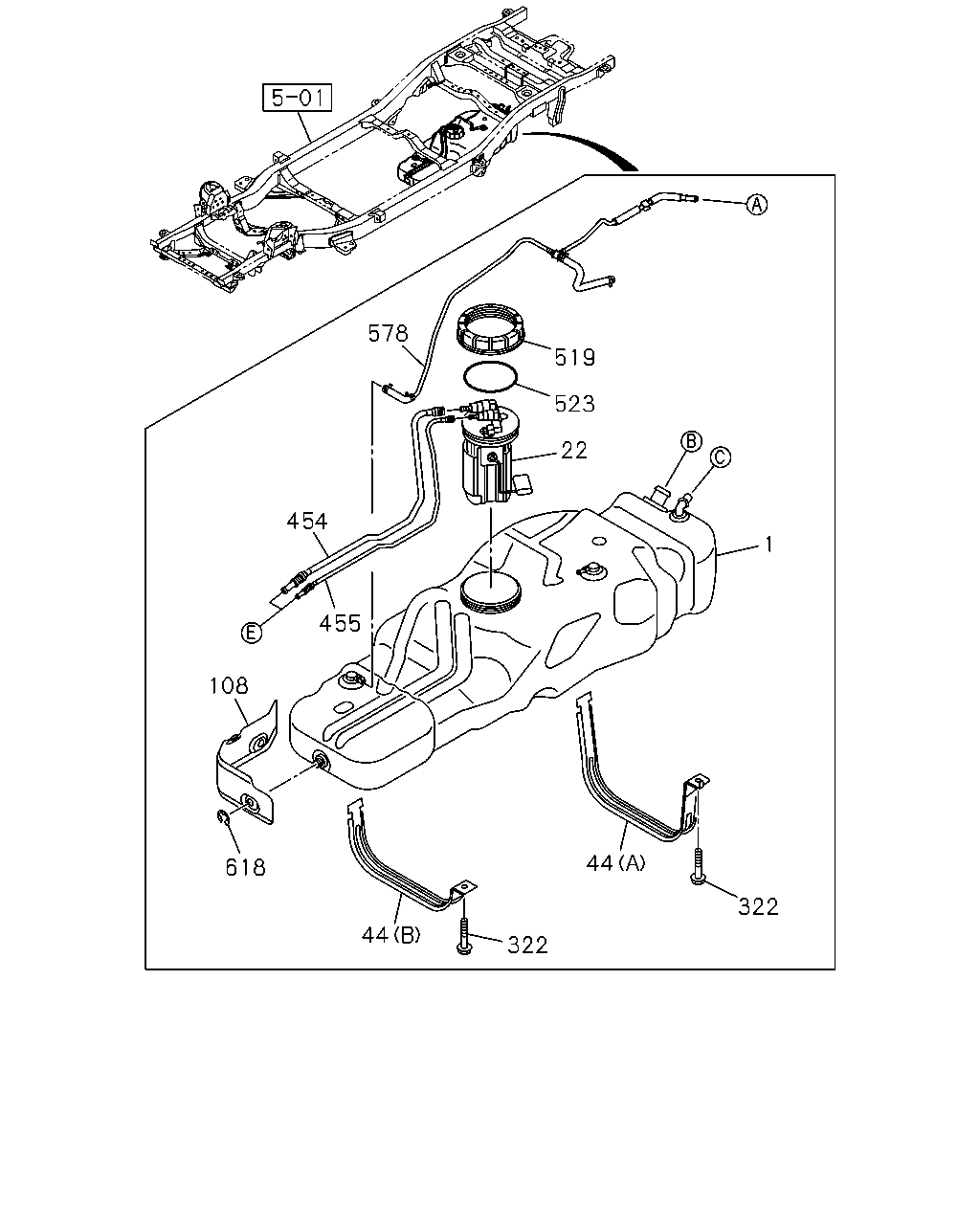

[140A] FUEL TANK (21 parça)
[140A] FUEL FILLER NECK (20 parça)
[140A] SEDIMENTER HOSE (5 parça)
[140A] FUEL HOSE (5 parça)
▶
1
523
519
578
22
454
455
108
618
44
322
44
322
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.001 TANK; FUEL
8-98212-990-0
01
1
1310-1405
1
03.001 TANK; FUEL
8-98212-990-1
01
1
1406-
22
03.107 UNIT; FUEL TANK
8-98212-993-0
01
1
1310-1405
22
03.107 UNIT; FUEL TANK
8-98212-993-0
01
1
1406-
44
03.023 BAND; FUEL TANK
(A)
8-98204-957-0
01
1
1310-
44
03.023 BAND; FUEL TANK
(B)
8-98204-958-0
01
1
1310-
108
03.015 PROTECTOR; FUEL TANK
8-98212-997-0
01
1
1310-1405
108
03.015 PROTECTOR; FUEL TANK
8-98212-997-0
01
1
1406-
322
03.895 BOLT; BRKT FIX
03.023 M10X50 FLANGE
8-97301-165-0
02
1
1310-
454
03.163 PIPE; FUEL,DELIVERY
8-98212-991-0
01
1
1310-1405
454
03.163 PIPE; FUEL,DELIVERY
8-98212-991-0
01
1
1406-
455
03.163 PIPE; FUEL,RETURN
8-98212-992-0
01
1
1310-1405
455
03.163 PIPE; FUEL,RETURN
8-98212-992-0
01
1
1406-
519
03.107 RETAINER; FUEL PUMP
8-98212-995-0
01
1
1310-1405
519
03.107 RETAINER; FUEL PUMP
8-98212-995-0
01
1
1406-
523
03.008 SEAL; FUEL SENSOR
8-98212-994-0
01
1
1310-1405
523
03.008 SEAL; FUEL SENSOR
8-98212-994-0
01
1
1406-
578
03.001 TUBE; FUEL,EVAPO
8-98228-330-0
01
1
1310-1405
578
03.001 TUBE; FUEL,EVAPO
8-98228-330-0
01
1
1406-
618
03.107 RETAINER; FUEL TANK
8-98212-998-0
03
1
1310-1405
618
03.107 RETAINER; FUEL TANK
8-98212-998-0
03
1
1406-

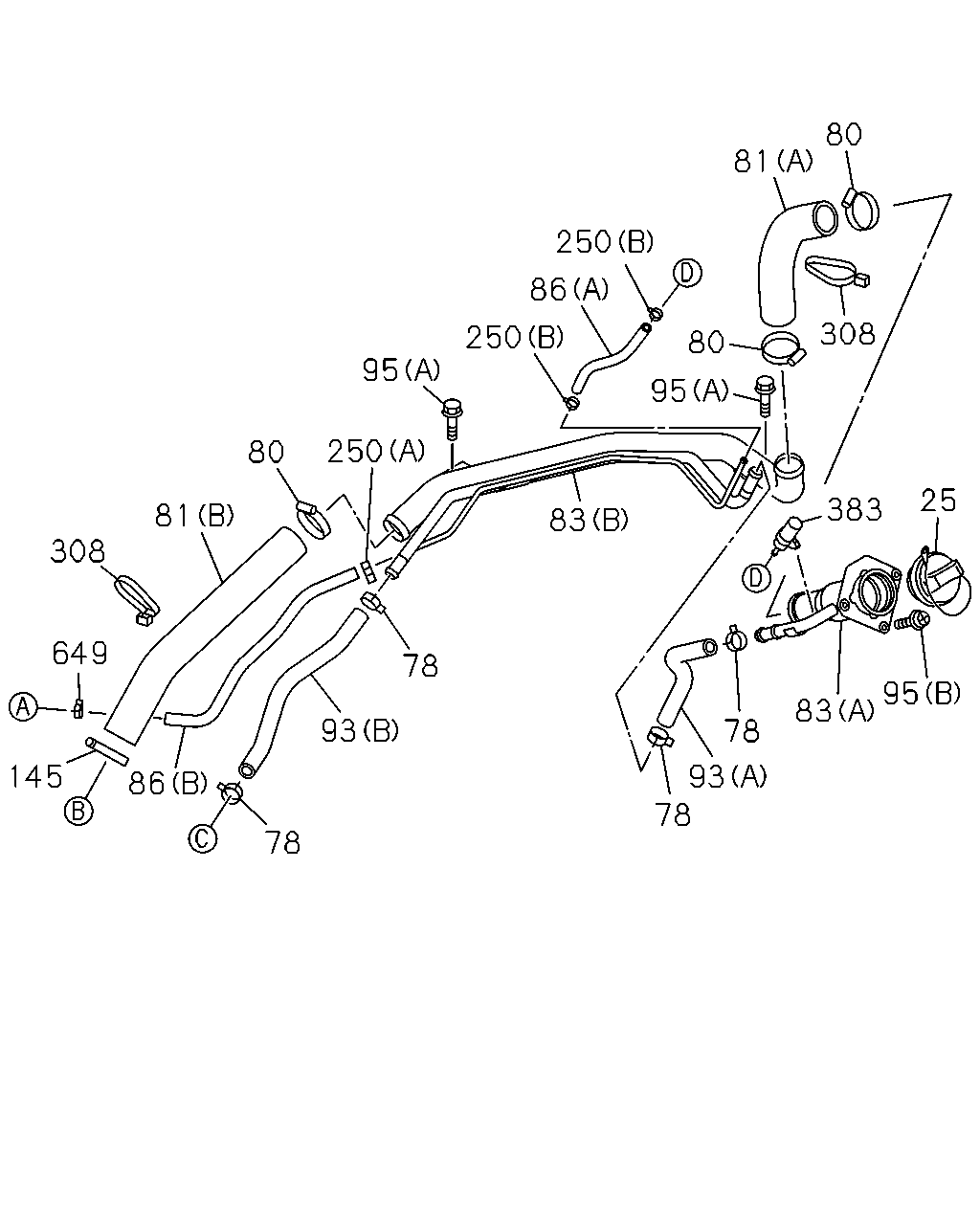

95
250
86
250
81
80
308
383
25
95
83
78
93
78
78
78
250
83
95
80
80
81
308
649
145
86
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
03.028 CAP; FILLER,FUEL TANK
8-98088-024-0
01
1
1310-1510
25
03.028 CAP; FILLER,FUEL TANK
8-98327-664-0
01
1
1511-
78
03.003 CLIP; BREATHER HOSE
08.846 ID=20.8
8-97944-127-0
04
1
1310-
80
03.008 CLIP; FILLER HOSE
8-98232-268-0
03
1
1310-
81
03.003 HOSE; FUEL FILLER
(A)
8-98230-137-0
01
1
1310-
81
03.003 HOSE; FUEL FILLER
(B)
8-98230-139-0
01
1
1310-
83
03.003 NECK; FUEL FILLER
(A)
8-98230-128-0
01
1
1310-
83
03.003 NECK; FUEL FILLER
(B)
8-98230-133-0
01
1
1310-
86
03.163 HOSE; EVAP
(A)
8-98230-134-0
01
1
1310-
86
03.163 HOSE; EVAP
(B)
8-98230-135-0
01
1
1310-
93
03.003 HOSE; BREATHER,FUEL TANK
(A)
8-98230-136-0
01
1
1310-
93
03.003 HOSE; BREATHER,FUEL TANK
(B)
8-98230-138-0
01
1
1310-
95
03.028 SCREW; FILLER NECK
02.277 (A) BOLT M8X20 FLANGE
0-28660-820-0
02
1
1310-
95
03.028 SCREW; FILLER NECK
(B)
8-98139-595-0
03
1
1310-
145
03.162 CLIP; HOSE,FILLER NECK
ID=30-45
8-97947-244-0
01
1
1310-
250
03.162 CLIP; BAND,EVAP HOSE
03.330 (A) ID=11.5
8-98051-892-0
01
1
1310-
250
03.162 CLIP; BAND,EVAP HOSE
(B)
8-98232-266-0
02
1
1310-
308
03.163 CLIP; HOSE
8-98234-324-0
02
1
1310-
383
03.162 VALVE; 2 WAY
8-98230-130-0
01
1
1310-
649
03.003 CLAMP; FUEL PIPE
03.330 ID=11.5
8-98051-892-0
01
1
1310-
314
304
314
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

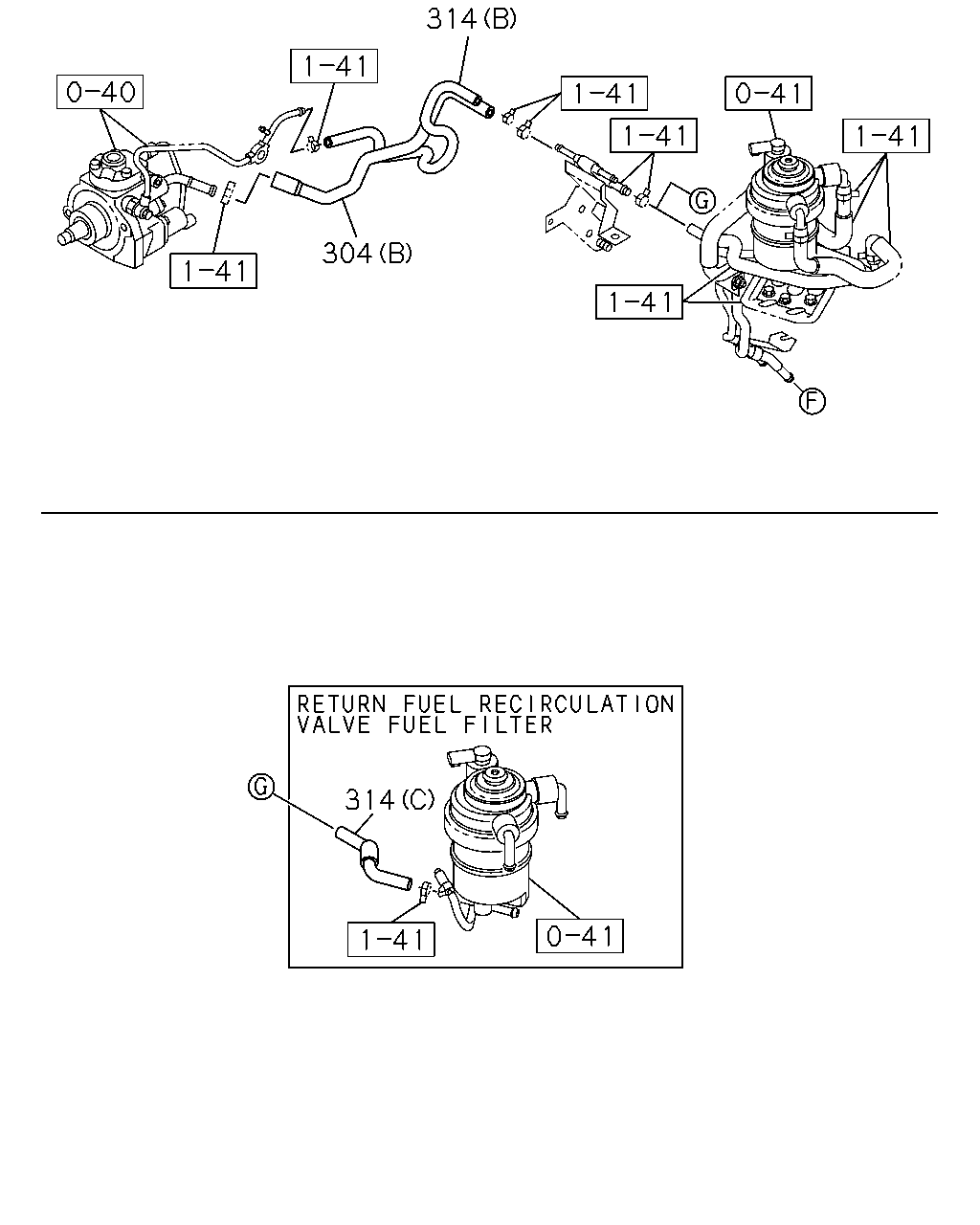

304
03.163 HOSE; RUBBER,FUEL FILTER TO INJ
(A)
8-98217-428-0
01
1
1310-
304
03.163 HOSE; RUBBER,FUEL FILTER TO INJ
(B)
8-98222-044-1
01
1
1310-
314
03.163 HOSE; RUBBER,FUEL RETURN
RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (C)
8-98206-273-0
01
1
1310-
314
03.163 HOSE; RUBBER,FUEL RETURN
(A)
8-98206-450-0
01
1
1310-
314
03.163 HOSE; RUBBER,FUEL RETURN
(B)
8-98222-041-0
01
1
1310-
304
314
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
304
03.163 HOSE; RUBBER,FUEL FILTER TO INJ
(A)
8-98217-428-0
01
1
1310-
304
03.163 HOSE; RUBBER,FUEL FILTER TO INJ
(B)
8-98222-044-1
01
1
1310-
314
03.163 HOSE; RUBBER,FUEL RETURN
RETURN FUEL RECIRCULATION VALVE FUEL FILTE R(V10) (C)
8-98206-273-0
01
1
1310-
314
03.163 HOSE; RUBBER,FUEL RETURN
(A)
8-98206-450-0
01
1
1310-
314
03.163 HOSE; RUBBER,FUEL RETURN
(B)
8-98222-041-0
01
1
1310-
